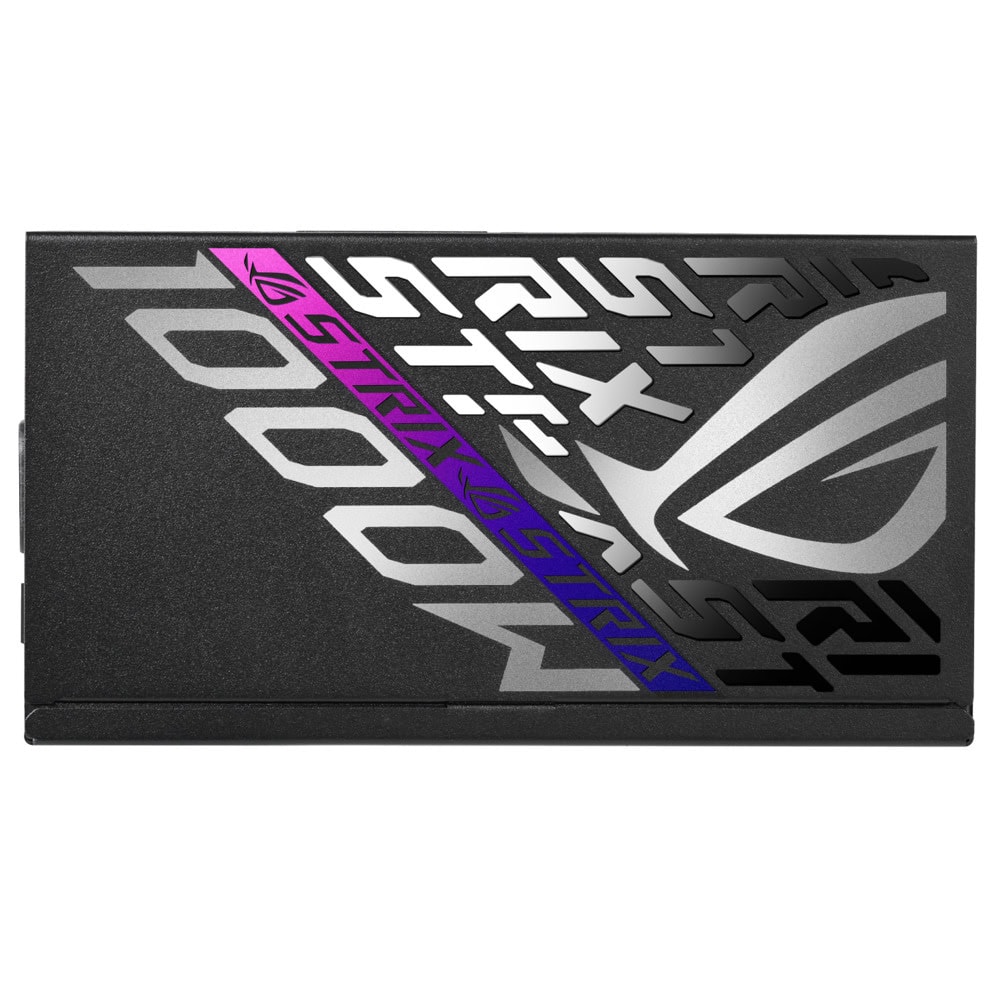

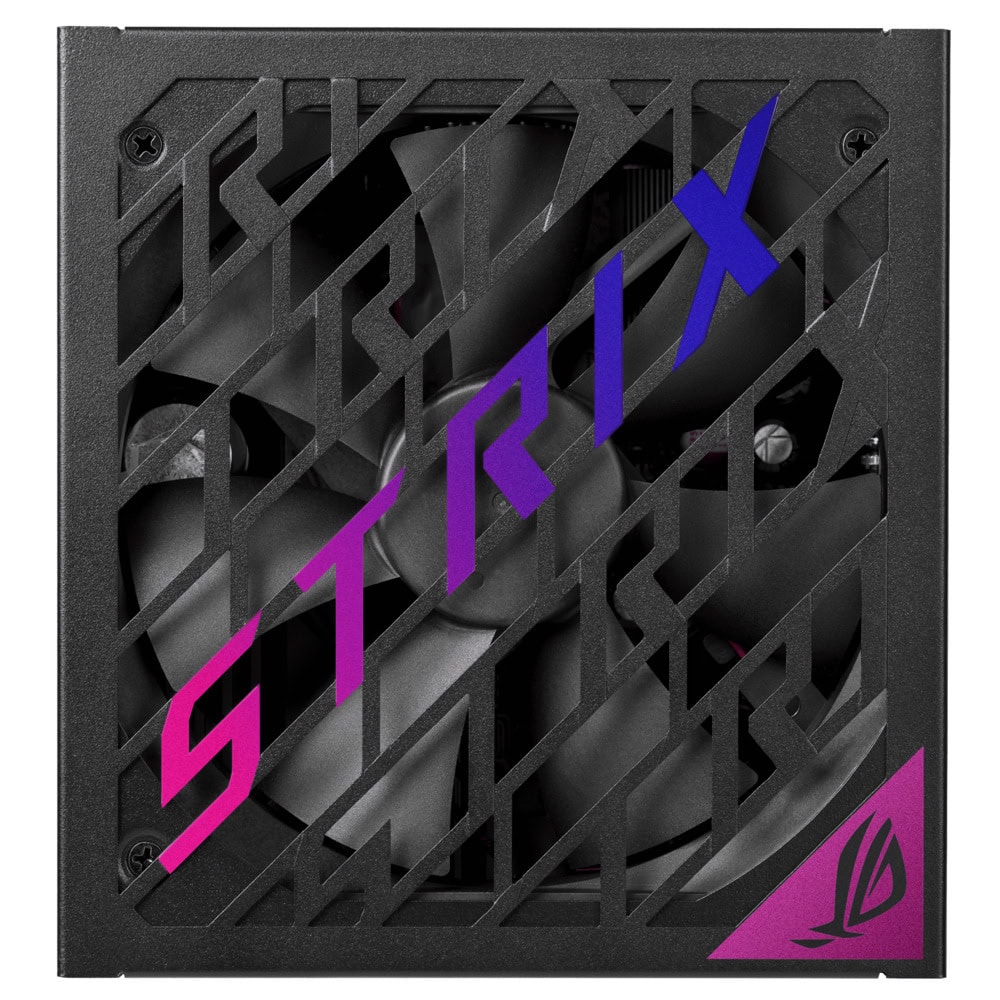

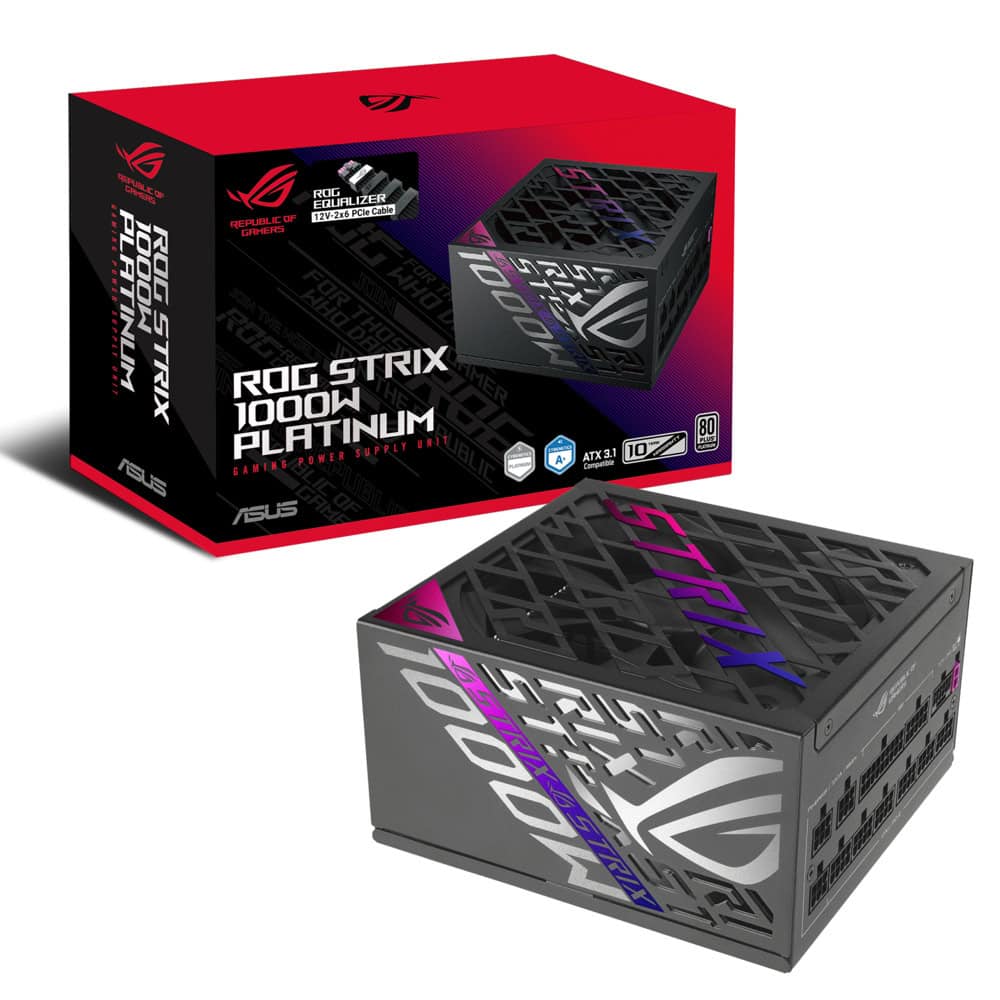

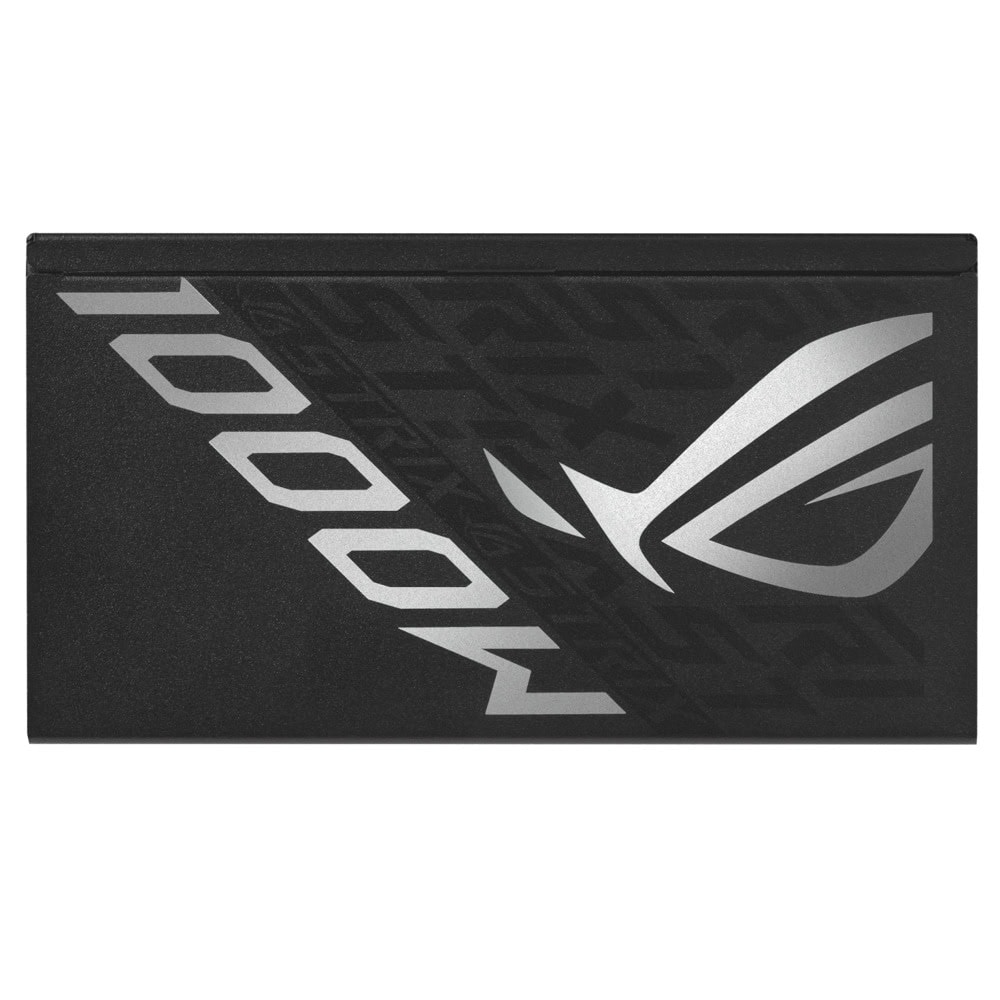

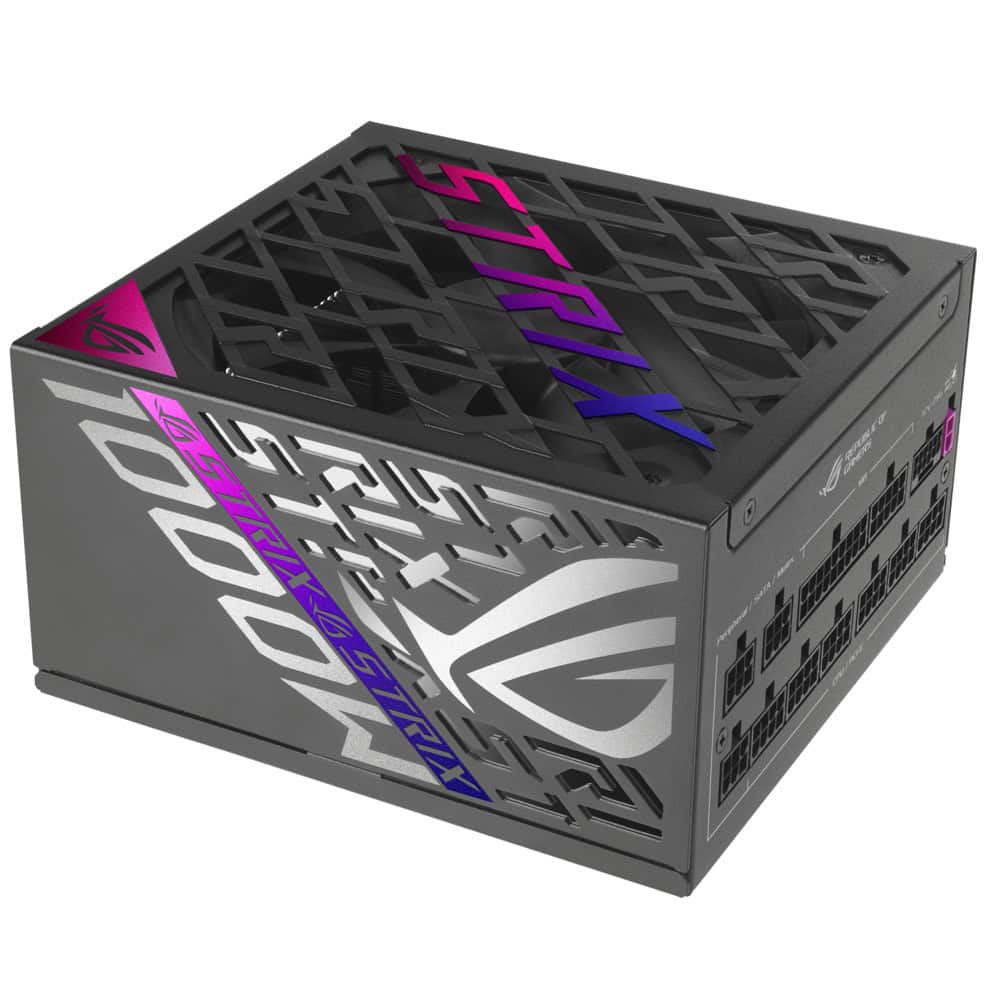

Захранване Asus ROG Strix Platinum (ROG Equalizer), 1000W, Active PFC, 80 Plus Platinum

Superior Stability.
Next-Level Efficiency

The ROG Strix 1000W Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring a next gen GaN MOSFET for premium power efficiency, it also incorporates the patented GPU-First Intelligent Voltage Stabilizer to maintain a steady and reliable flow of power to the graphics card.

The ROG Strix 1000W Platinum further includes the ROG Equalizer, a patented 12V-2x6 PCIe power cable engineered to reduce heat stress and keep cable and connector temperatures well to protect the graphics card. With full ATX 3.1 compliance and a native 12V-2×6 connector, the ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.

GaN MOSFET

The ROG Strix Platinum PSU boasts an innovative GaN MOSFET that increases power efficiency by up to 30%, resulting in lower energy waste. Plus, the smaller size of a GaN MOSFET allows for a more organized internal layout. This optimized design provides space for larger heatsinks and enhanced airflow, improving heat dissi

pation within the PSU.

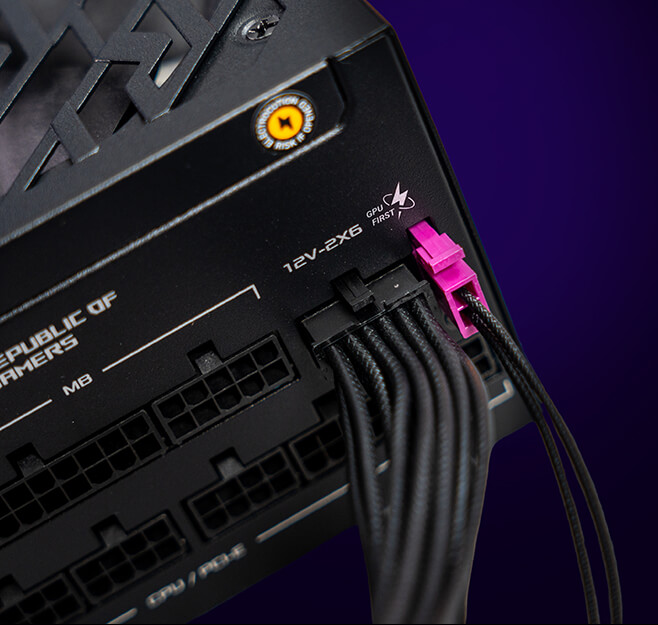

Patented GPU-First Intelligent Voltage Stabilizer (IVS)

Activate the GPU-First voltage sensing by connecting the GPU-First IVS cable. This innovative feature enhances voltage stability by up to 45%, even during demanding gaming sessions and overclocking scenarios. With this advanced technology, you can experience smooth and consistent gameplay. If you prefer conventional CPU-focused voltage sensing, simply disconnect the purple connector.

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

80 PLUS Efficiency

80Plus Platinum

Cybenetics Efficiency

Platinum (230V) ; Platinum (115V)

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A 25A 83.3A 0.3A 3A

Combined Load

130W 130W 1000W 3.6W 15W

Total Output

1000W

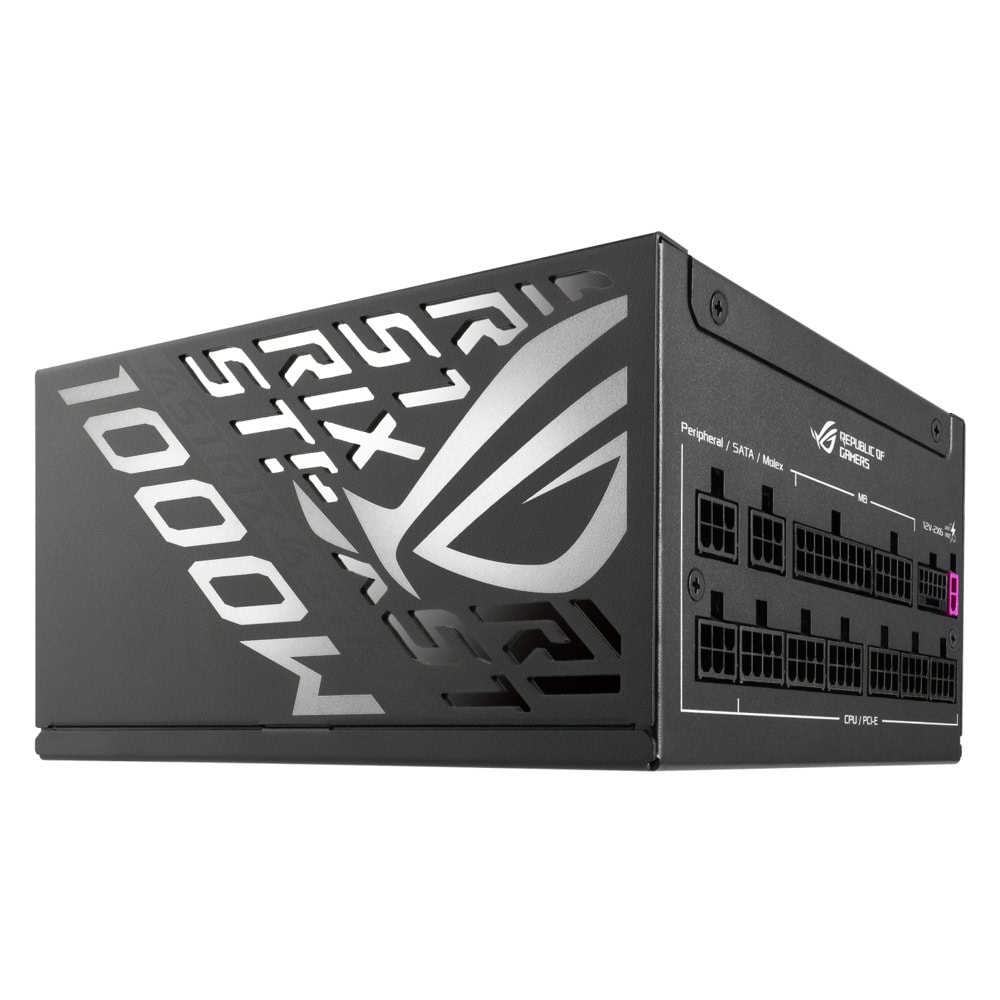

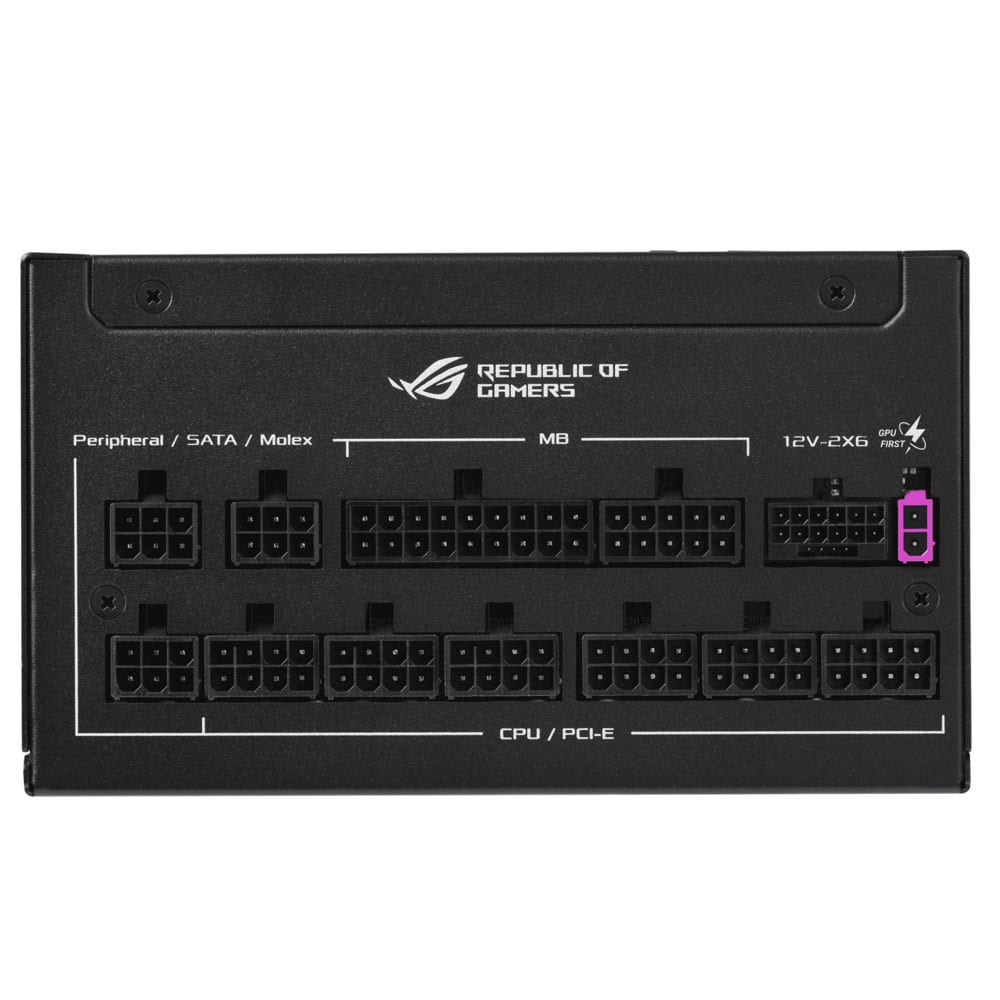

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x1 (12V-2x6)
PCI-E 6+2-pin x 4
SATA x 6
Peripheral x 3

Dimensions

160 x 150 x 86 mm

Weight

1.81 kg (single PSU)

Cybenetics Noise Level Certification

A+

AURA SYNC

No

MTBF

>120,000 hrs @ 25°C

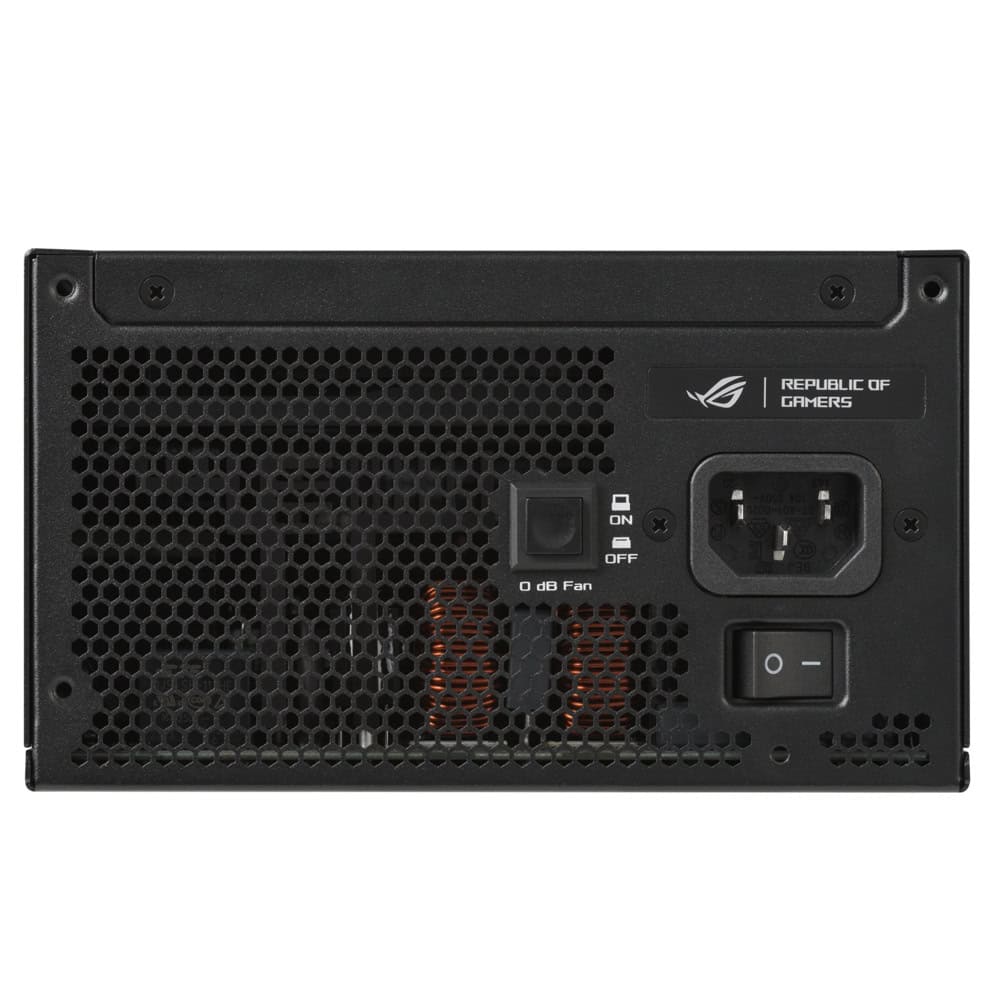

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
