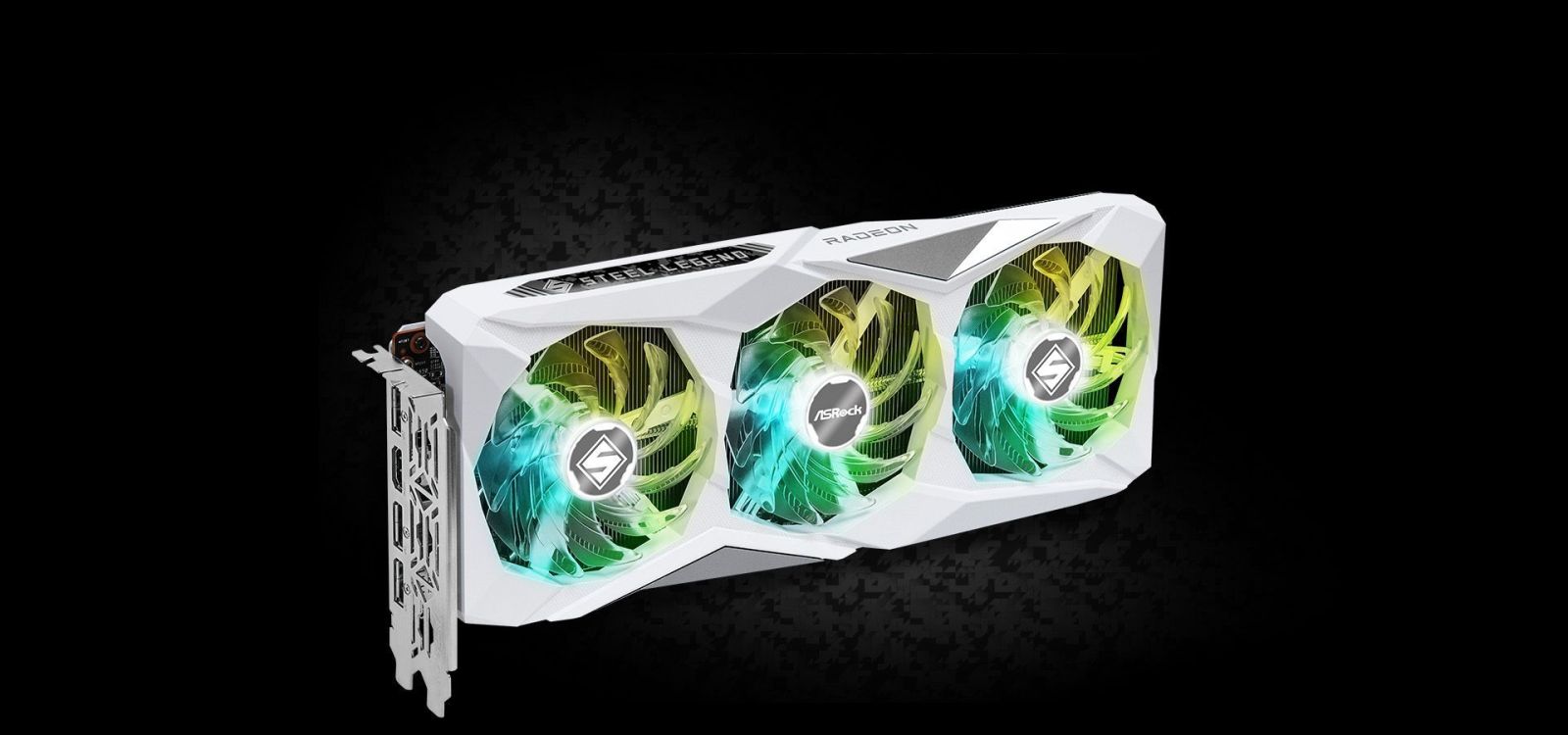

Видео карта AMD Radeon RX 7600, 8GB, ASRock Steel Legend OC, PCI-E 4.0, GDDR6, 128-bit, DisplayPort, HDMI

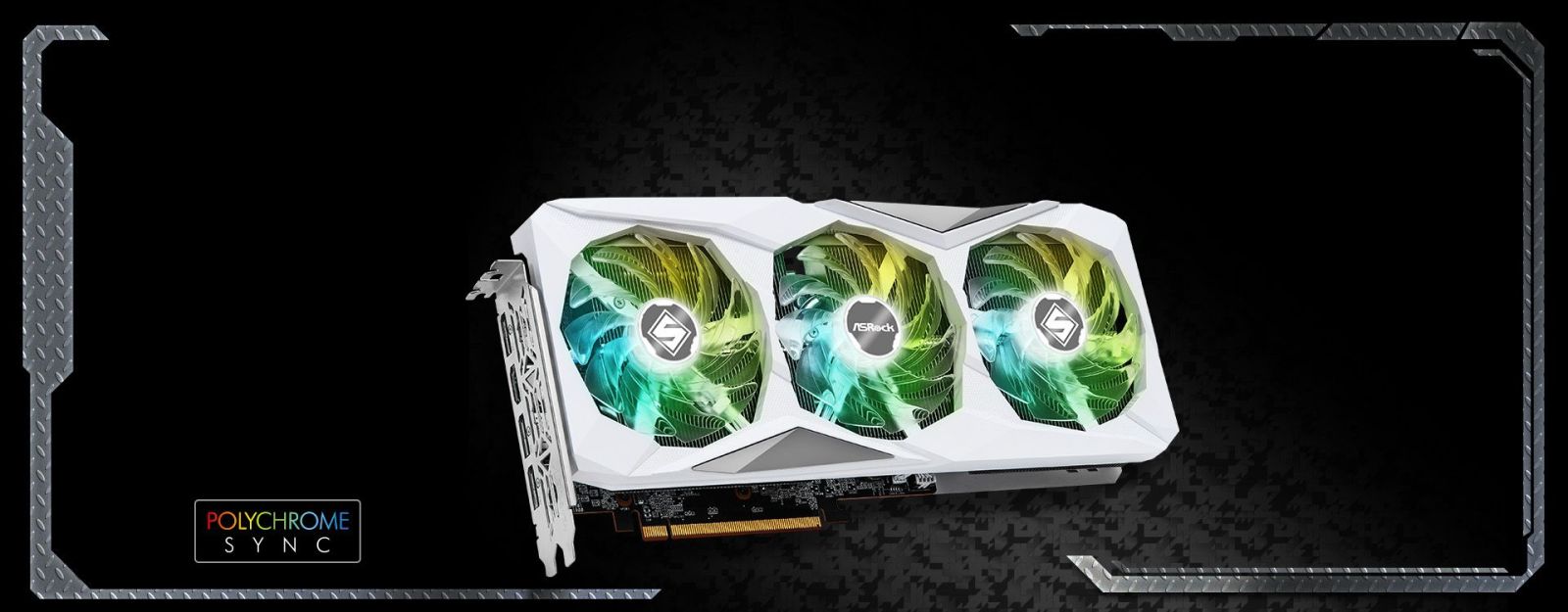

Polychrome SYNC

Create your own unique colorful light effects.

Triple Fan Design

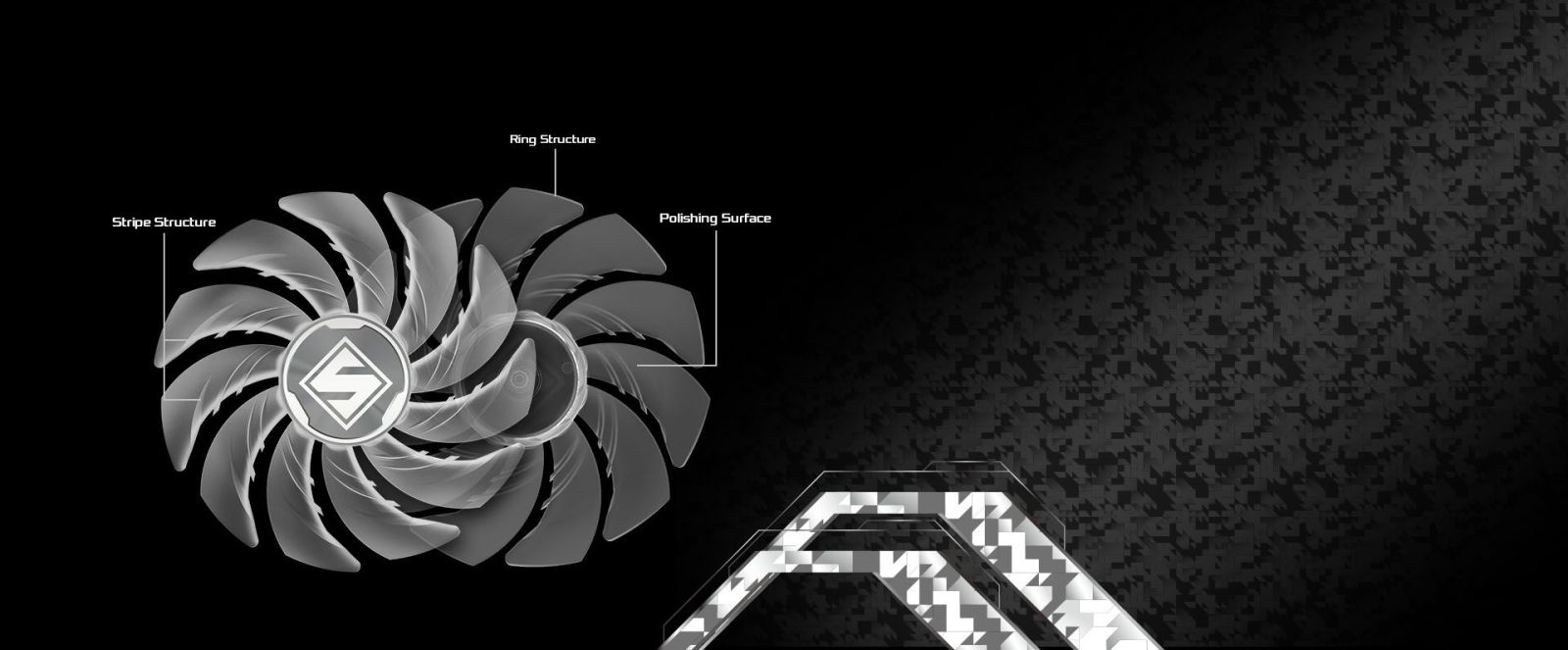

Striped Axial Fan

Designed For Enhanced Airflow.

ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

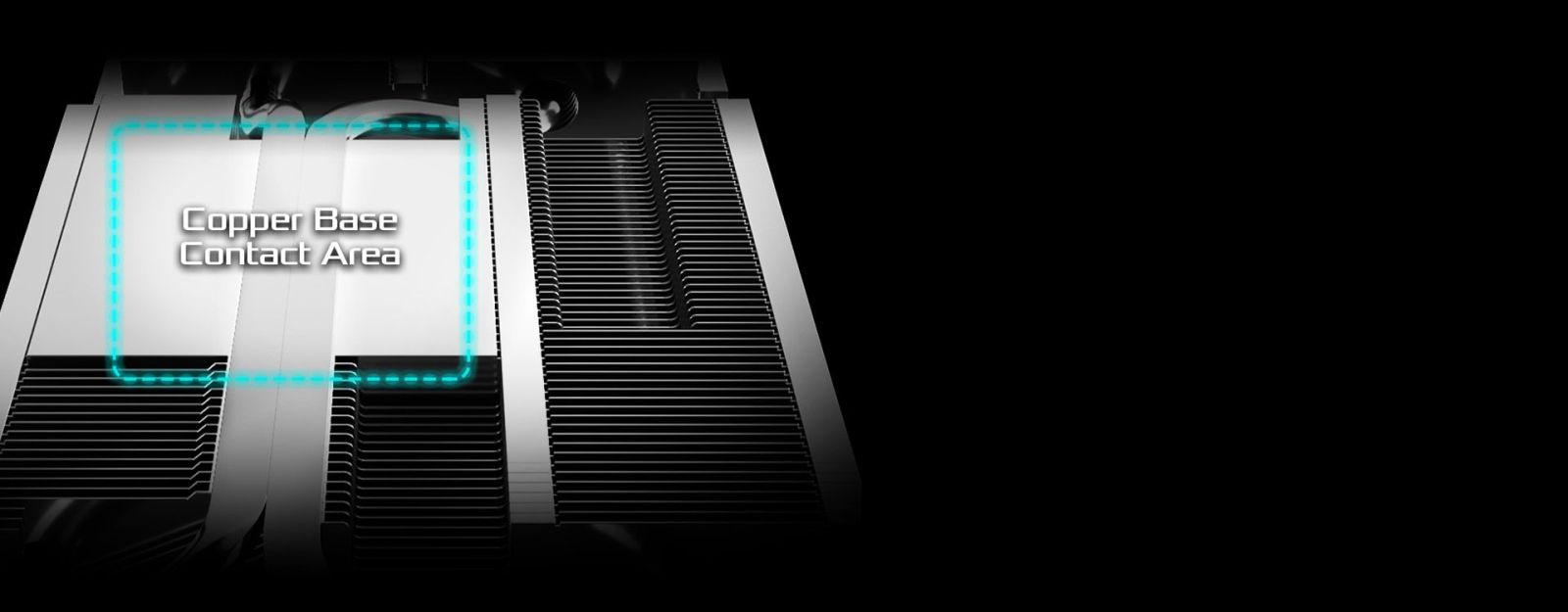

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.



8K Resolution Support

Not only can it handles 4K graphics but also supports the next generation 8K video output for the ultimate visual experience.

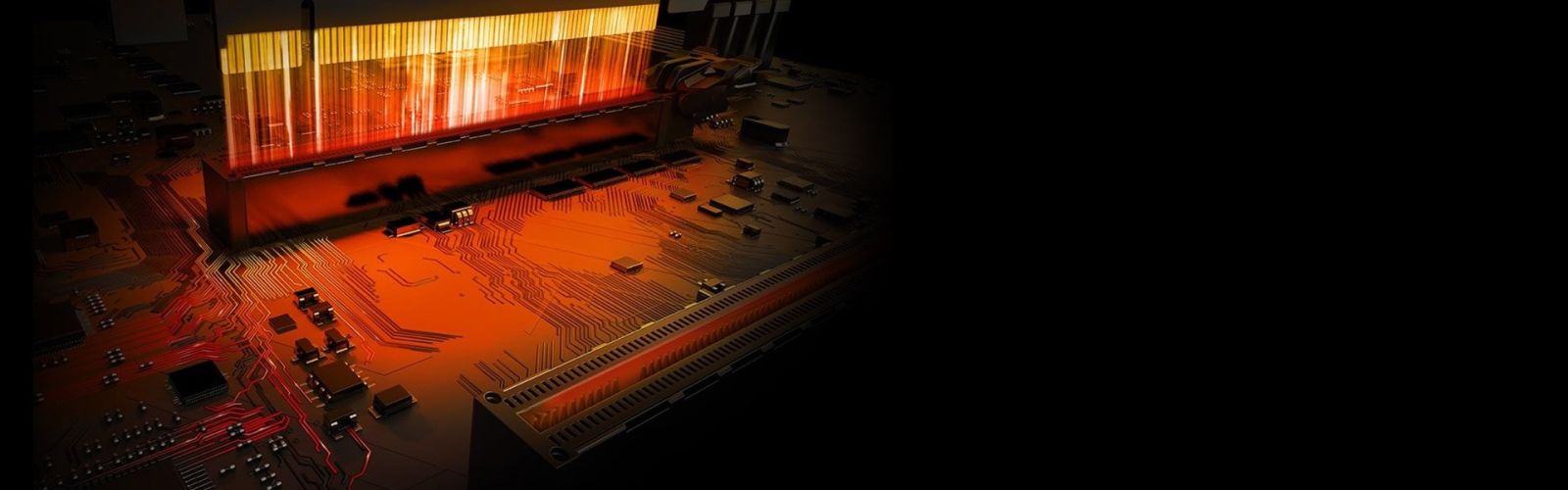

PCI Express 4.0 Support

This graphics card features PCI Express 4.0 support, with a throughput of 16 GT/s and enables two times the bandwidth compared to PCI Express 3.0. Get ready for the next generation of PC gaming.





Tech specs

Graphics Engine

- AMD Radeon RX 7600



Bus Standard

- PCI Express 4.0



DirectX

- 12 Ultimate



OpenGL

- 4.6



Memory

- 8GB GDDR6



Engine Clock

- Boost Clock*: Up to 2725 MHz

- Game Clock**: 2320 MHz

*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.



Stream Processors

- 2048



Memory Clock

- 18 Gbps



Memory Interface

- 128-bit



Resolution

- Digital Max Resolution: 7680 x 4320



Interfacе

- 3 x DisplayPort 2.1*

- 1 x HDMI 2.1

*DisplayPort (DP) 2.1 on any one or two ports. DisplayPort (DP) 1.4a on any and up to 4 ports simultaneously.



HDCP

- Yes



Multi-view

- 4



Recommended PSU

- 600W



Power Connector

- 1 x 8-pin



Dimensions

- 303 x 131 x 45 mm, 2.25-slot



Net Weight

- 834 g
