AMD Radeon™ RX 6800 XT
Phantom Gaming D 16G OC

PRODUCT BRIEF:

Clock: GPU / Memory
Boost Clock: Up to 2310 MHz / 16 Gbps
Game Clock: Up to 2065 MHz / 16 Gbps
Base Clock: 1875 MHz / 16 Gbps
Key Specifications
7nm AMD Radeon™ RX 6800 XT Graphics
16GB 256-bit GDDR6
AMD RDNA™ 2 Architecture
Hardware Raytracing
PCI^® Express 4.0 Support
3 x 8-pin Power Connectors
3 x DisplayPort™ 1.4 with DSC / 1 x HDMI™ 2.1 VRR

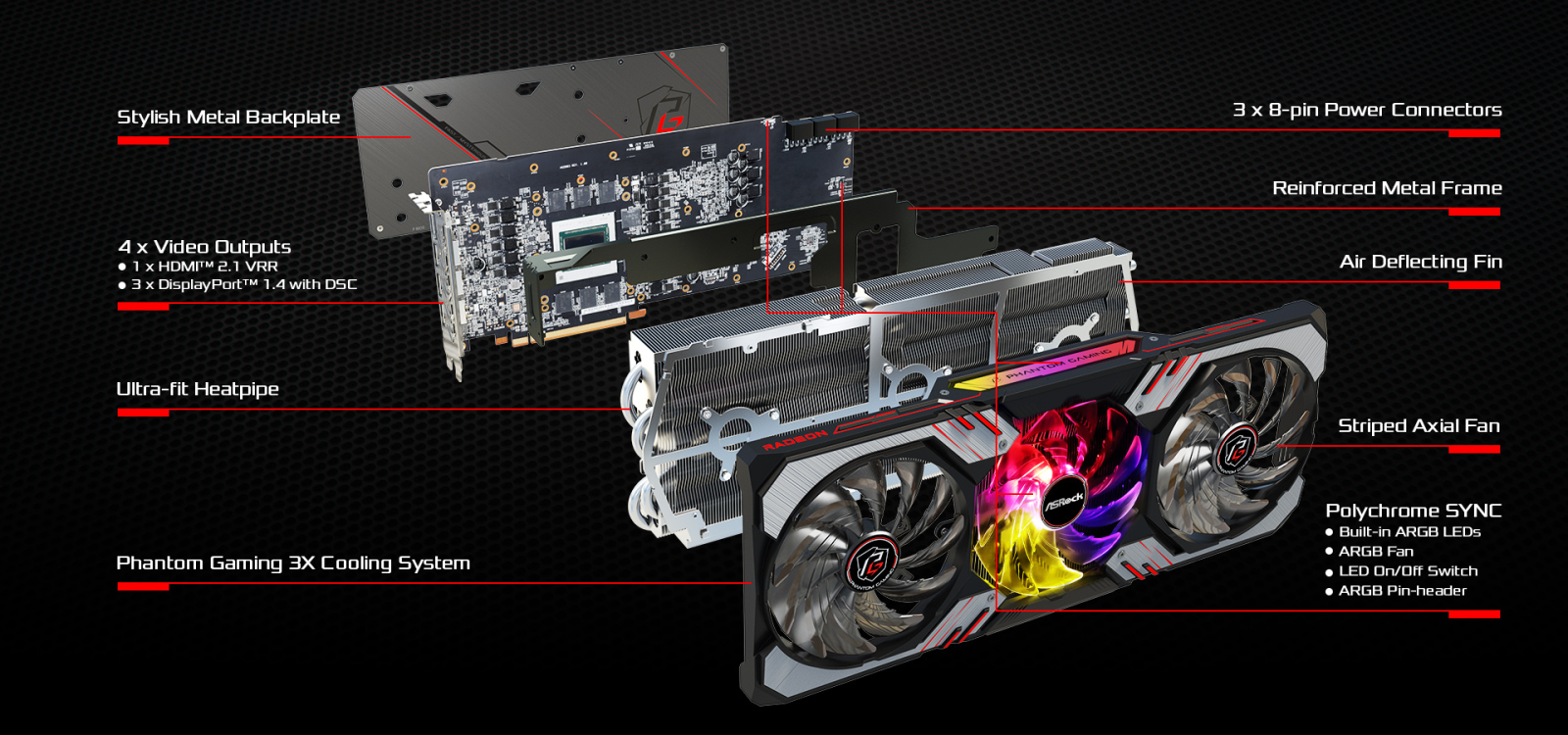

Key Features
Polychrome SYNC
Phantom Gaming 3X Cooling System
Striped Axial Fan
Reinforced Metal Frame
Stylish Metal Backplate
0dB Silent Cooling
Super Alloy Graphics Card

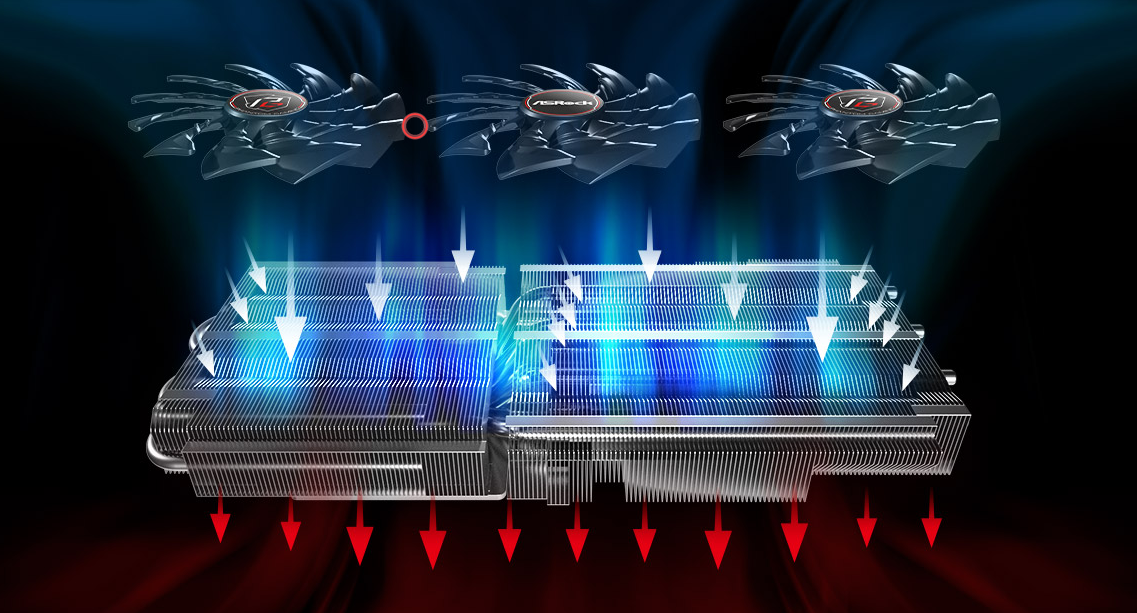

Phantom Gaming 3X Cooling System

For Cool and Silent.

Crafted for the best balance between the thermal efficiency and silence by all the details.

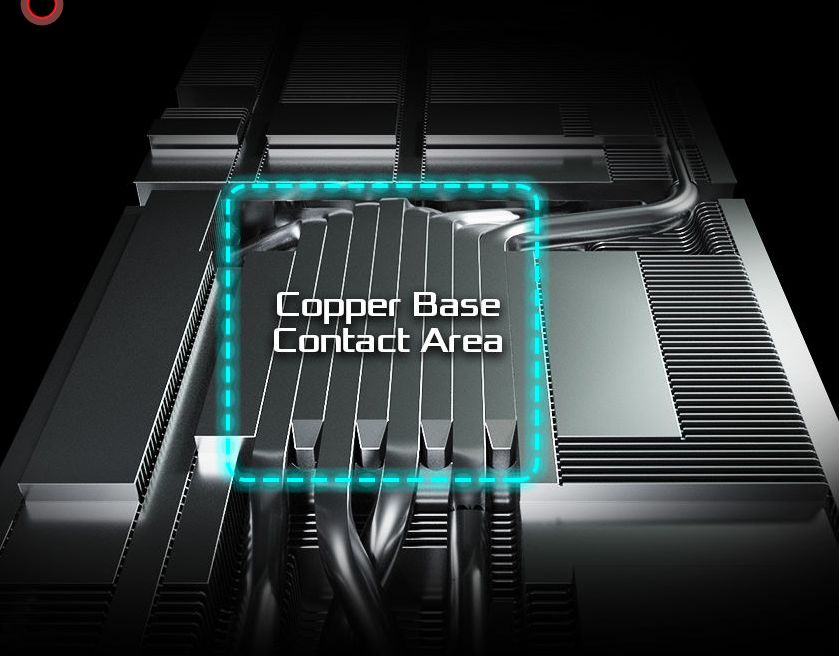

Ultra-fit Heatpipe

Consolidated to Maximize the Contact.

The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

0dB Silent Cooling

Spin For Cooling, Stop For Silence.

The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

AMD Eyefinity Technology

AMD Eyefinity technology expands the traditional limits of desktop computing by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.

Powerhouse Performance

AMD Radeon™ RX 6000 Series graphics cards deliver ultra-high frame rates and serious 4K gameplay. Get the ultimate gaming experience with powerful new compute units, groundbreaking AMD Infinity Cache, and up to 16GB of dedicated GDDR6 memory. And, when paired with an AMD Ryzen™ 5000 Series desktop processor, AMD Smart Access Memory technology offers new levels of gaming performance.

Elevated Experiences

Ultimate responsiveness and smooth gaming are up-leveled with low-latency gaming technology from AMD Radeon Anti-Lag and AMD Radeon Boost.1, 2 Propel your gaming experience with the latest HDMI™ 2.1 VRR technology, USB-C™ enabled VR headsets, or over 1250 AMD FreeSync™ technology-enabled gaming displays.

Specifications

Graphics Engine

- AMD Radeon™ RX 6800 XT Graphics
Bus Standard

- PCI^® Express 4.0 x16
DirectX

- 12 Ultimate
OpenGL

- 4.6
Memory

- GDDR6 16GB
Engine Clock

- Boost Clock: Up to 2310 MHz
- Game Clock: Up to 2065 MHz
- Base Clock: 1875 MHz
Stream Processors

- 4608
Compute Units

- 72
Memory Clock

- 16 Gbps
Memory Interface

- 256-bit
Resolution

- Digital Max Resolution: 7680 x 4320
Interface

- 1 x HDMI™ 2.1 VRR
- 3 x DisplayPort™ 1.4 with DSC
HDCP

- Yes
Multi-view

- 4
Recommended PSU

- 800W
Power Connector

- 3 x 8-pin
Dimensions

- 330 x 140 x 56 mm, 2.8-slot
Net Weight

- 1784 g
