Водно охлаждане за процесор ASRock Phantom Gaming 360 LCD, съвместимост със сокети Intel LGA 1851/1700 & AMD AM5/AM4

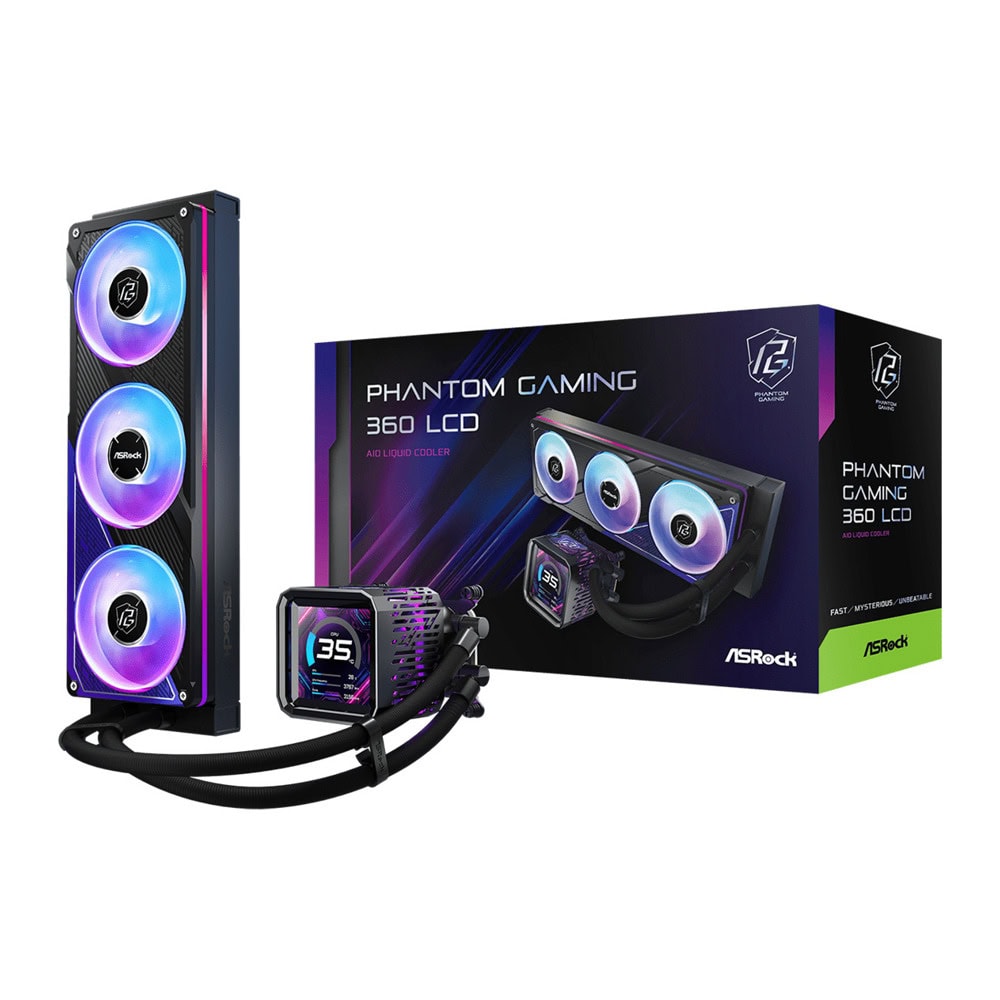

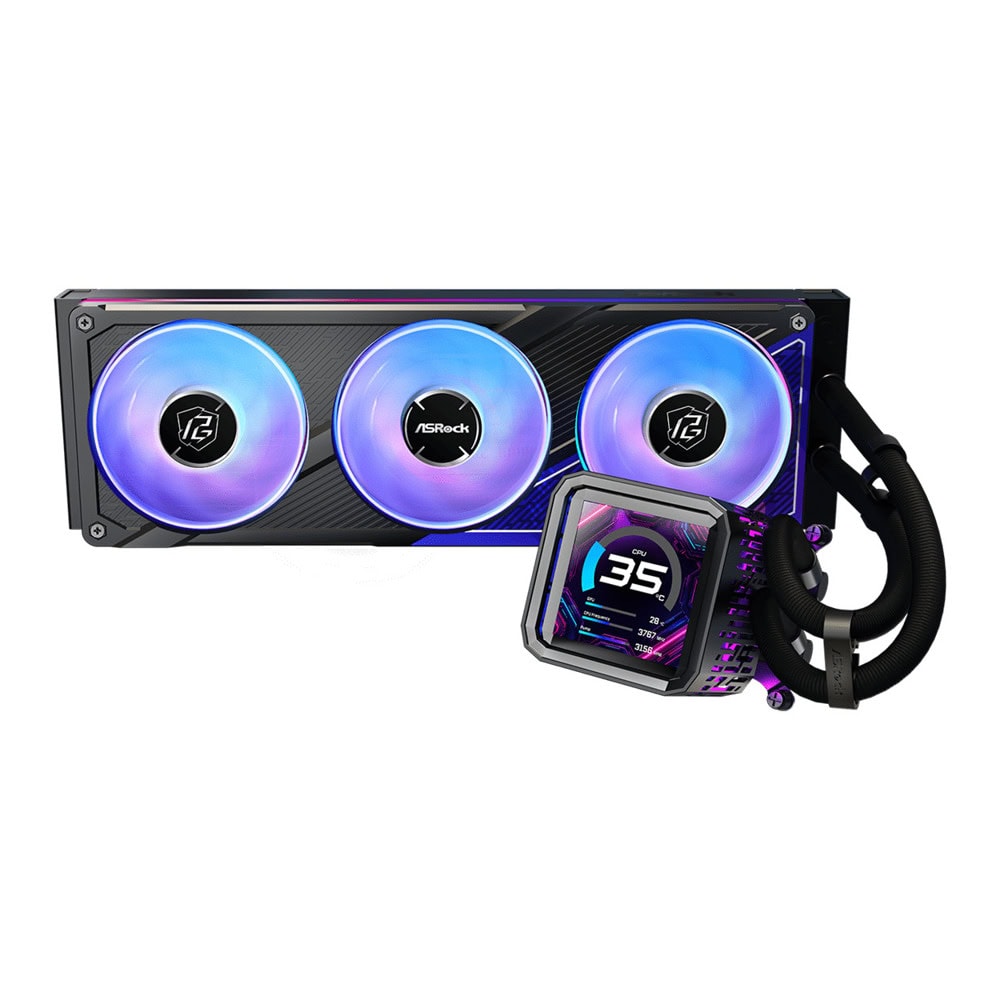

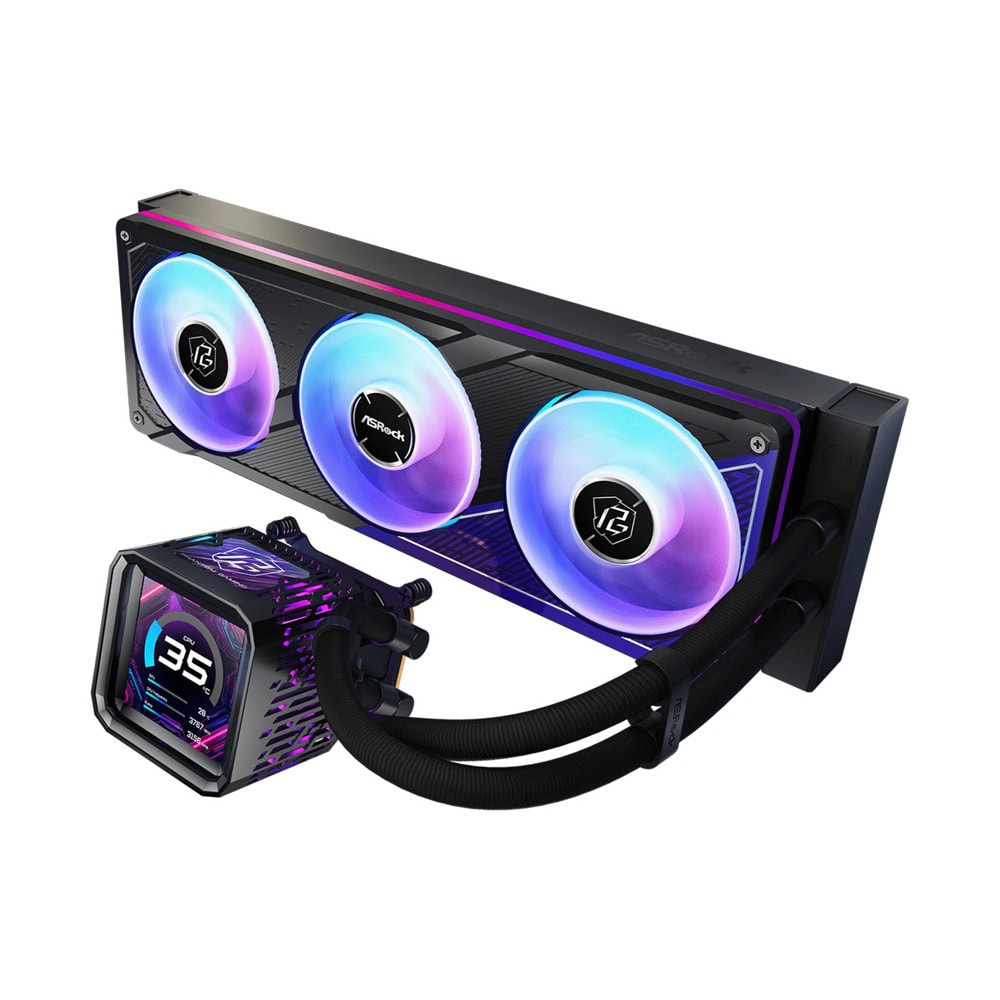

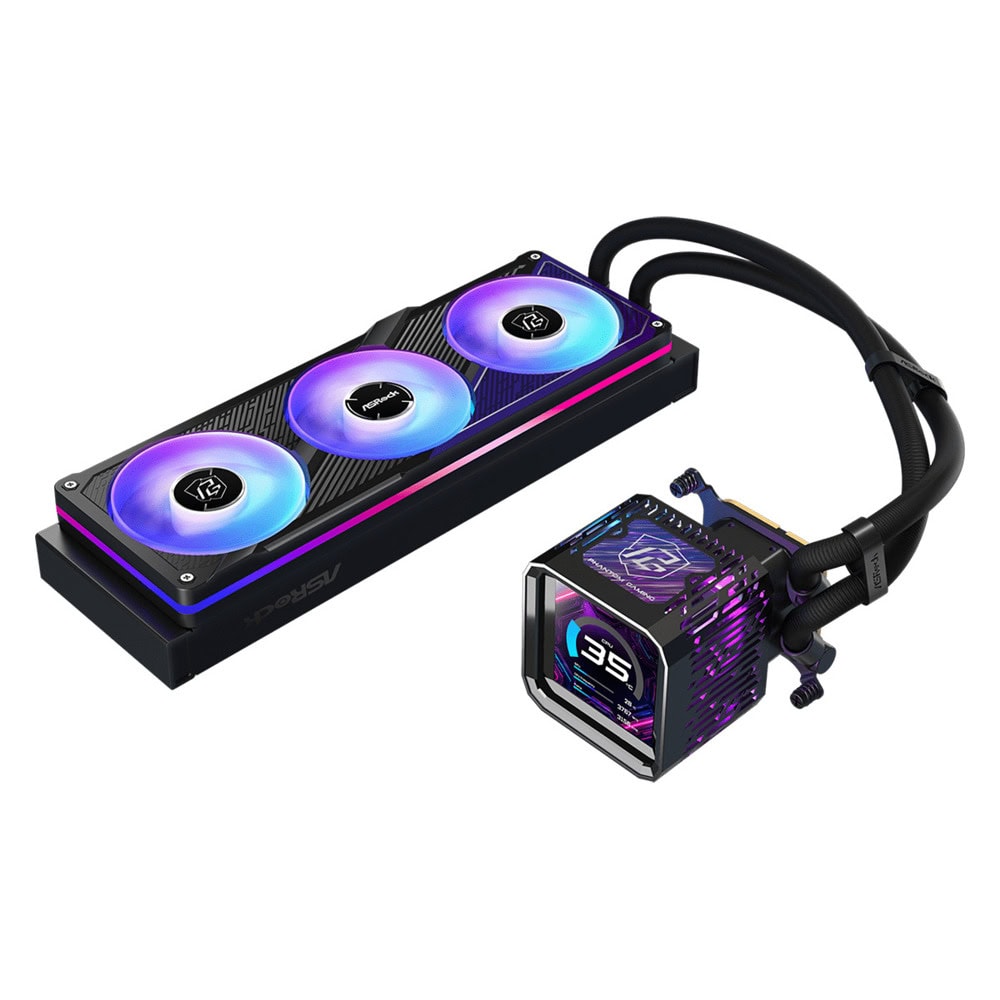

ASRock Phantom Gaming 360 LCD

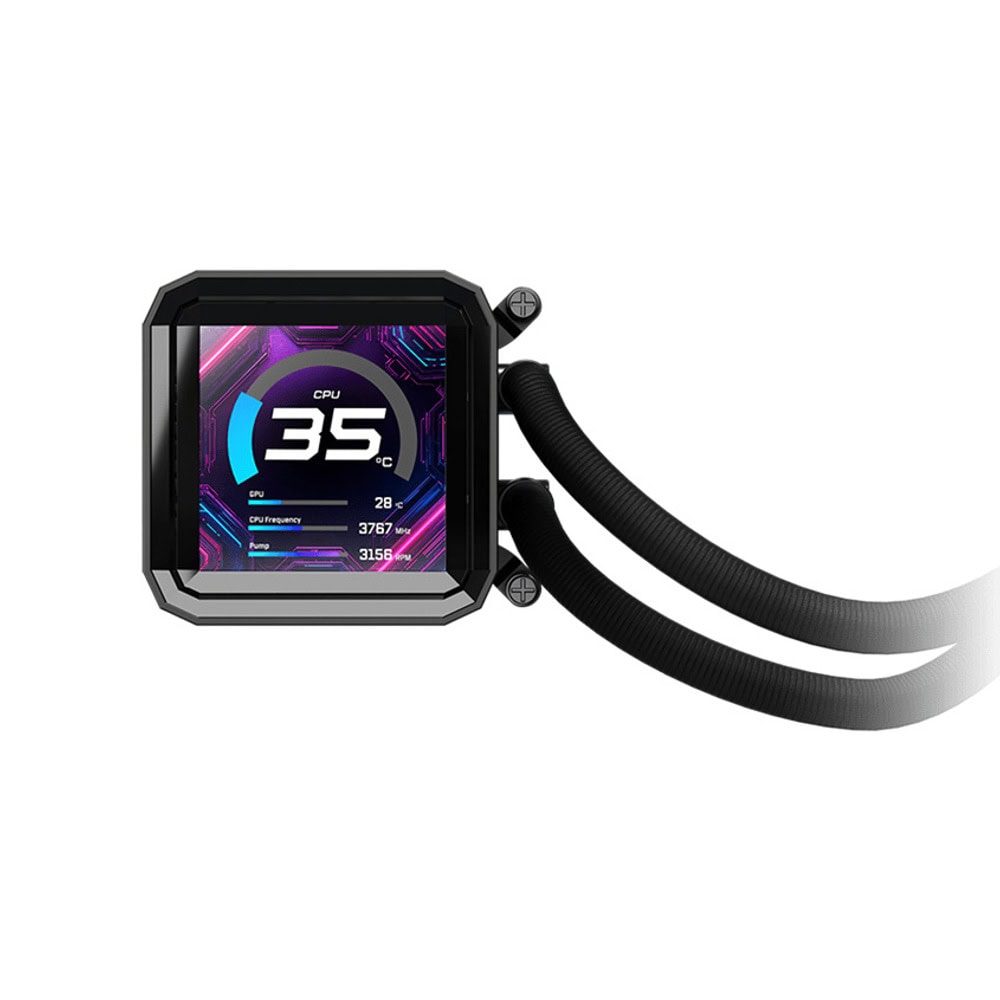

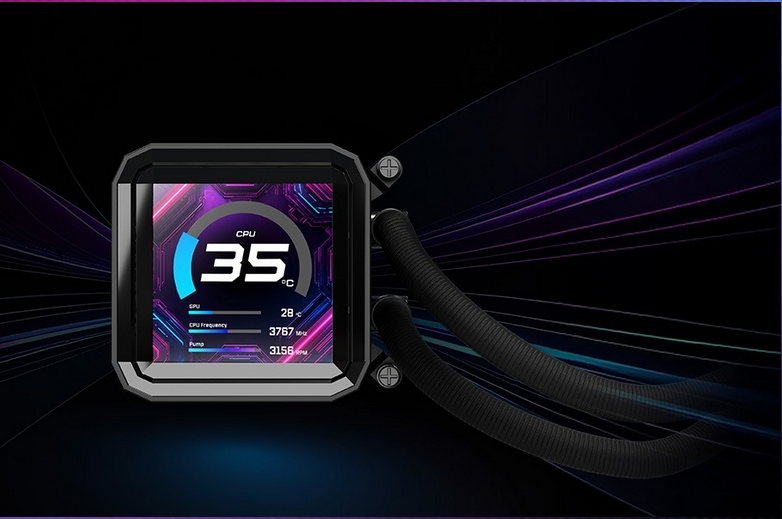

3.4” Full-Color LCD Display A 3.4" full-coverage LCD brings your system stats and custom visuals to life in vibrant detail.   480x480 Resolution 60 FPS Frame Rate 24-bit Color Depth

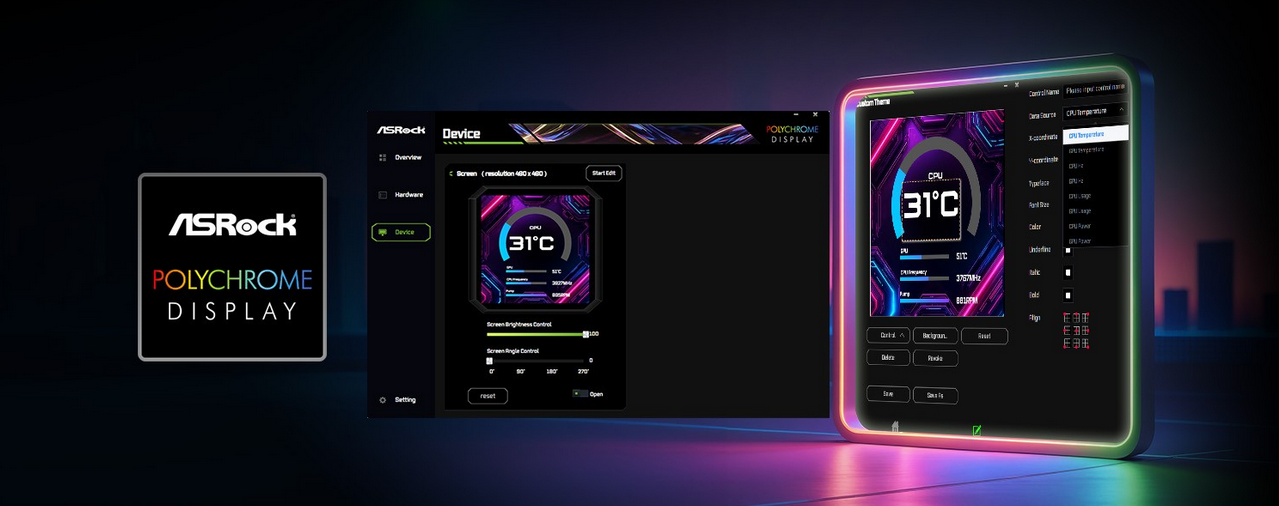

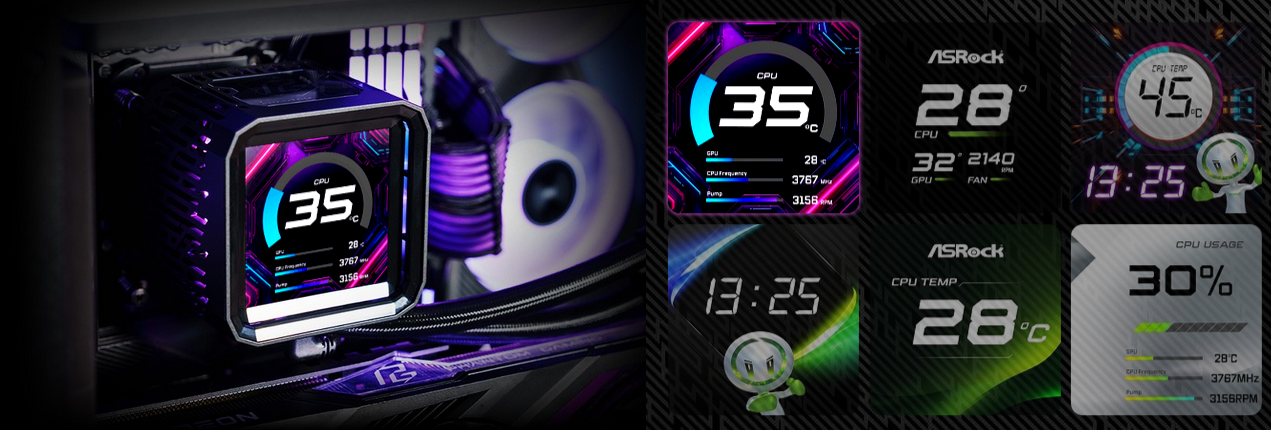

Polychrome display

Combines real-time monitoring with customizable visuals, letting users display system stats, preferred images, or animations — all through an intuitive interface with multi-language support.

Customizable animations

Explore built-in animations or import your own for a fully customized display experience.

Next-Gen Cooling System

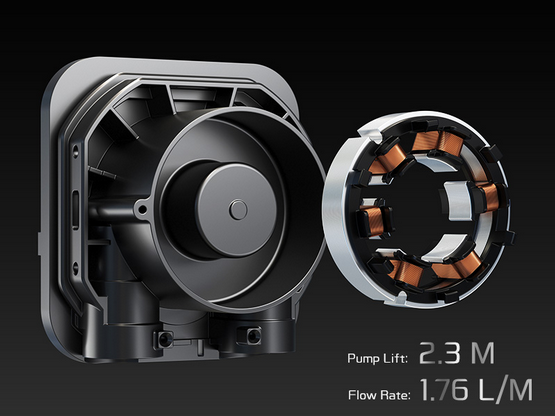

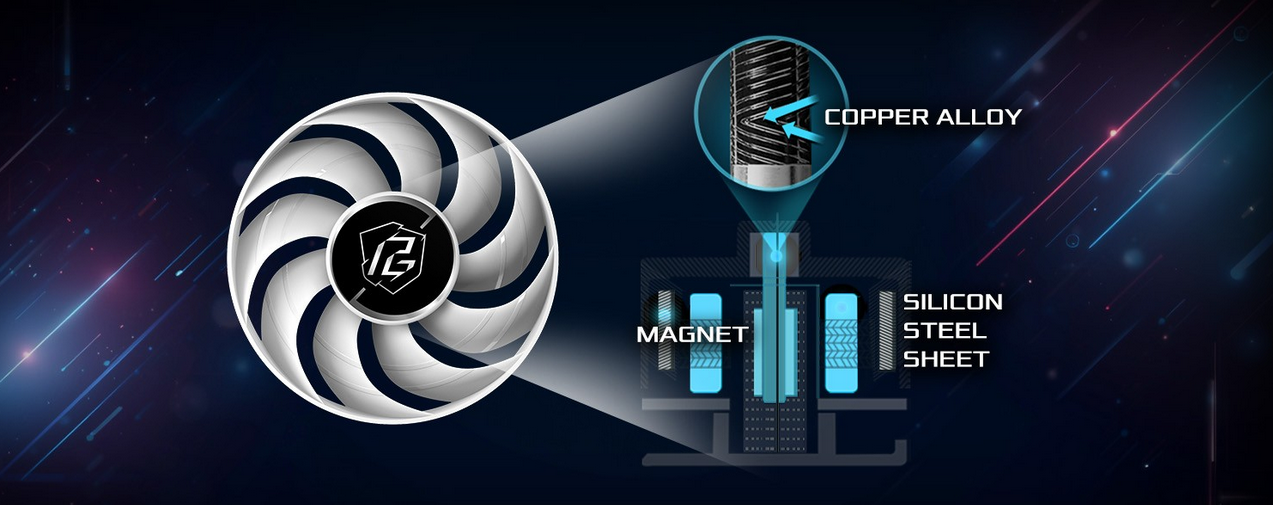

Next-Gen Cooling Pump Precision-engineered structure and automotive-grade components, powered by a 3-phase, 6-slot, 4-pole motor for stronger flow, extended durability, and peak cooling performance for unwavering CPU stability.   Continuous Magnetic Field Continuous rotating magnetic field for higher energy conversion efficiency.   Low Torque Ripple Low torque ripple ensures smooth and stable operation.   Balanced Current Load Balanced current distribution minimizes copper loss.   Reduced Core Loss Reduced core loss improves overall operating efficiency.   Lower Thermal Output Lower thermal output maintains efficiency during prolonged operation.   Simplified Motor Architecture No starting capacitors or coils required, improving reliability.

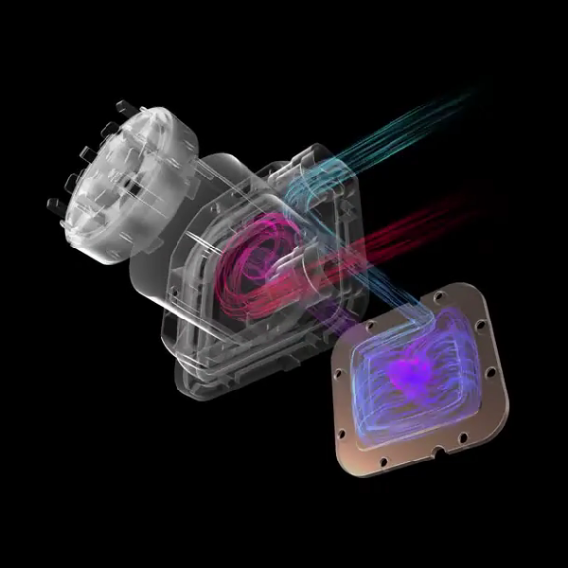

Dual-Side Inlet Cooling Path The dual-side inlet cooling path design shortens coolant flow distance while ensuring balanced distribution across the high-density micro-fin array. By delivering coolant directly to the CPU hot spot from multiple directions, the design helps keep temperatures more even and improves overall thermal efficiency.

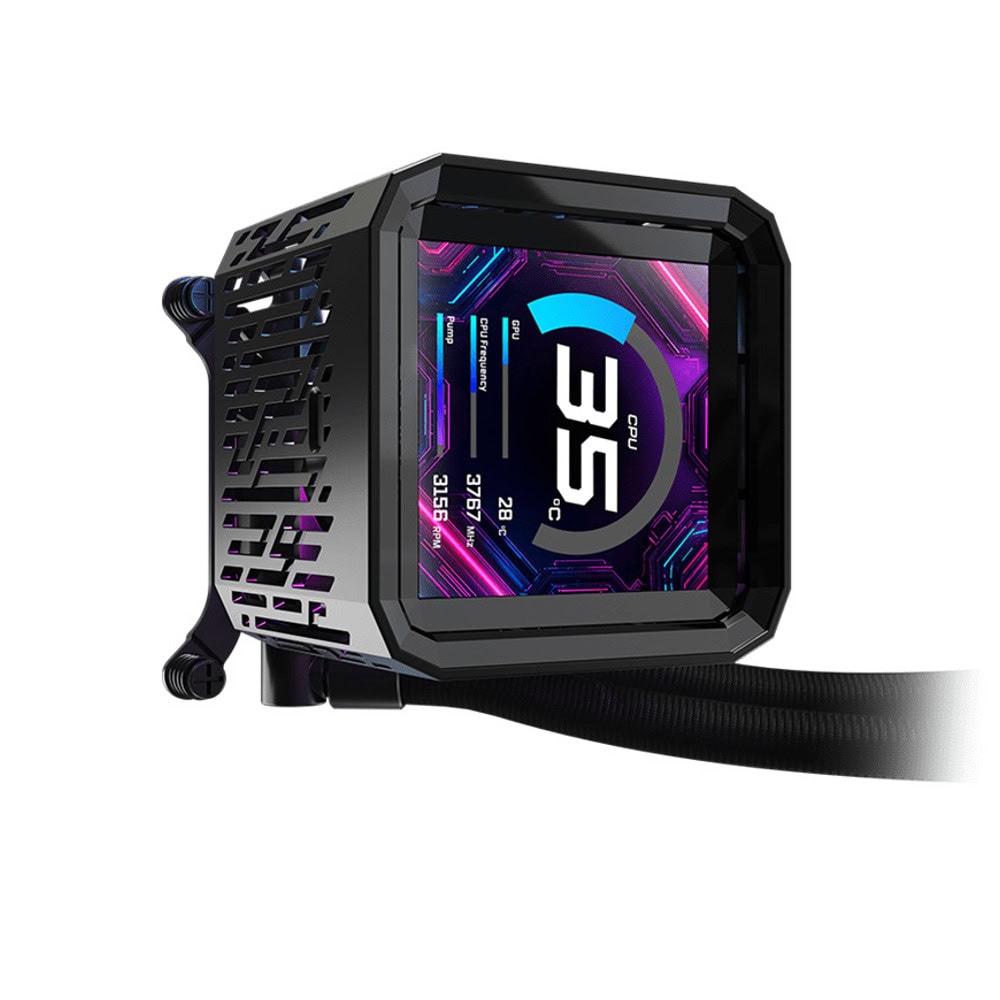

Targeted Airflow Technology

Integrated ventilation and air-guide design channel airflow directly to heat-critical zones for maximum cooling efficiency.

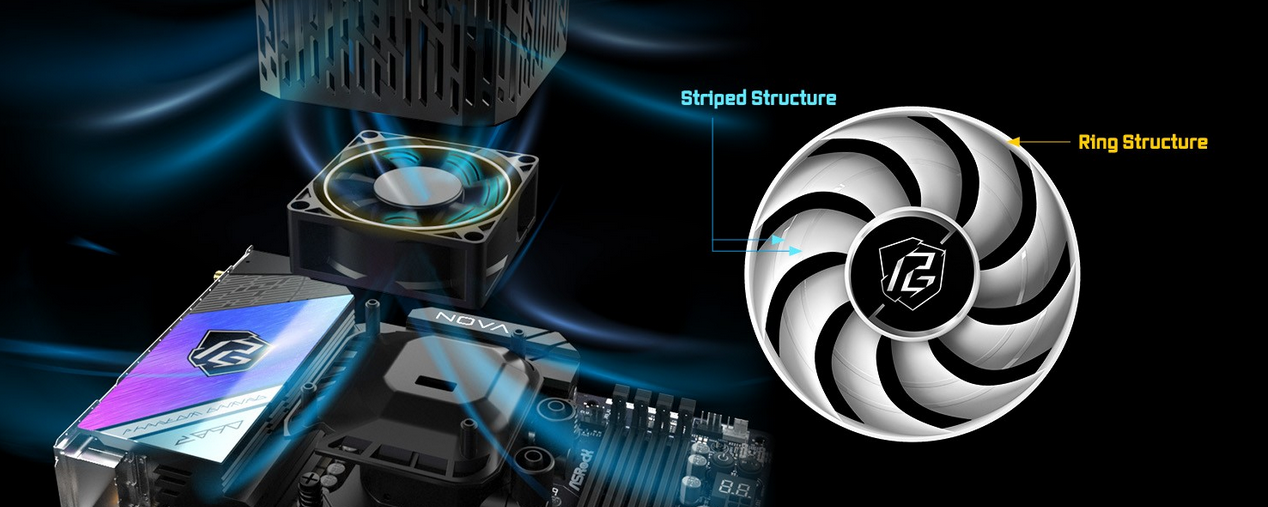

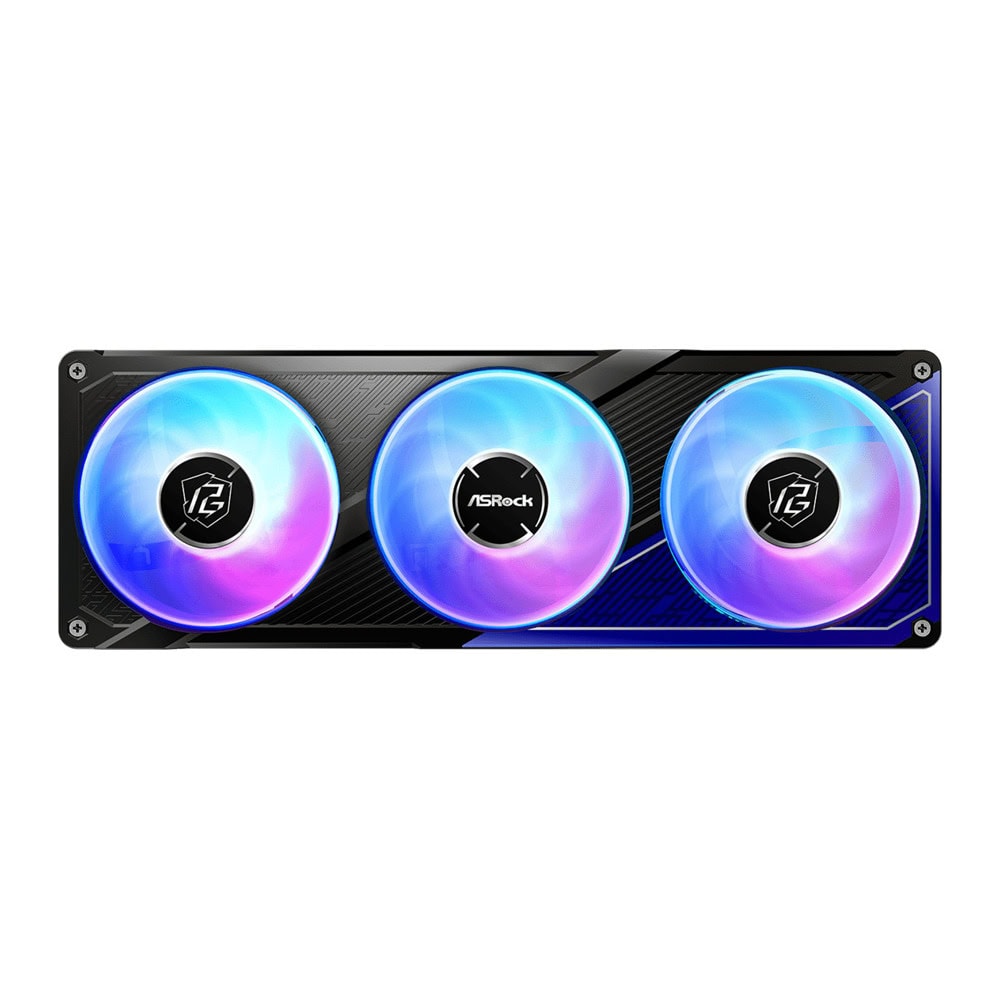

Striped Ring Fan

The Striped Ring fan design features reinforced blades engineered to optimize airflow across both the VRM module and the radiator, driving high-volume intake to keep power delivery components cool and stable, while generating strong lateral airflow for deep fin penetration and maximum radiator cooling efficiency.

Long-Lasting FDB Fan

Fluid Dynamic Bearing minimizes friction and vibration for whisper-quiet, stable cooling and long service life.

Enhanced Flow & Surface Cooling System

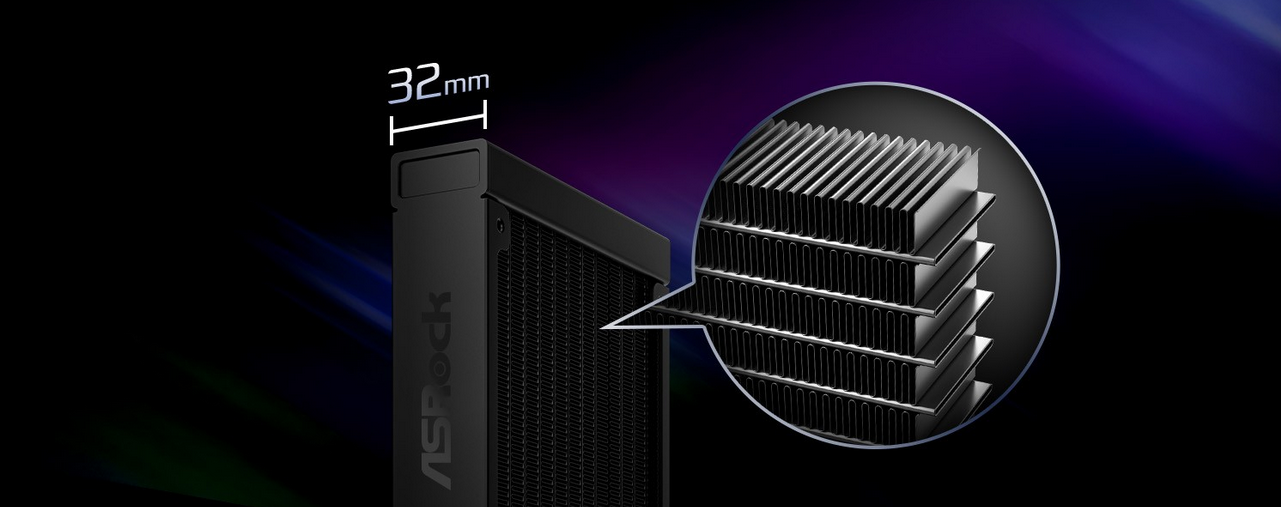

A 32mm-thick radiator maximizes heat dissipation and cooling efficiency, while 7mm reinforced tubing increases coolant volume for superior thermal performance.

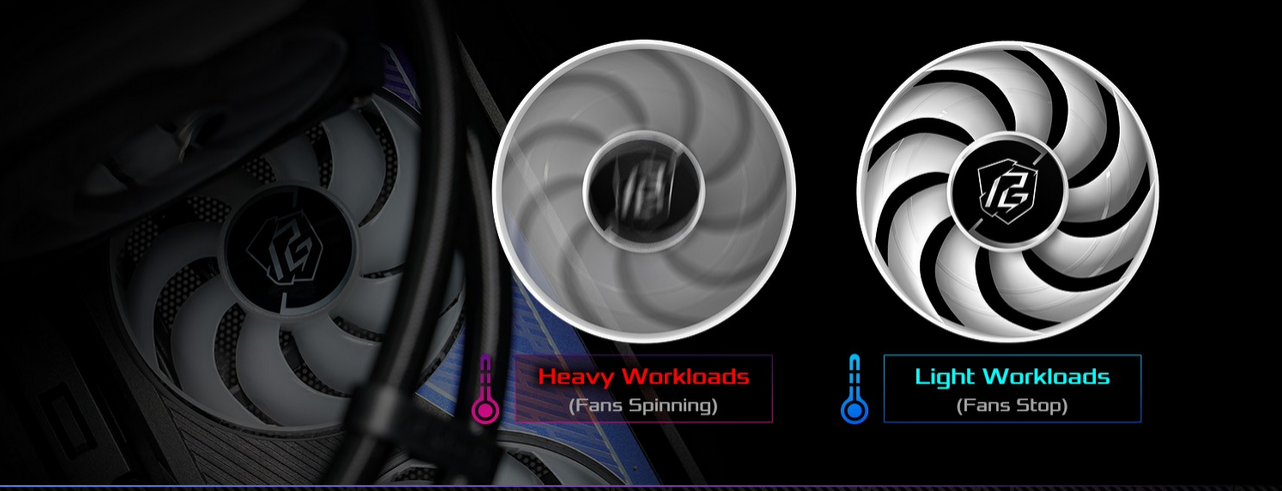

0dB Silent Cooling Technology

Fan stops completely under low load for absolute silence and extended lifespan.

Specifications

• Compatibility

  AMD: AM5, AM4
  Intel: LGA1851, 1700

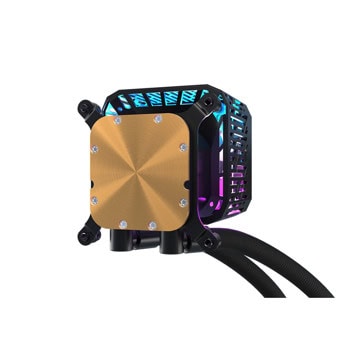

• Water Block

  Dimension：(L)100.4 x (W)86 x (H)107.6 mm
  Material (Cold Plate)：Copper
  LEDs ：ARGB

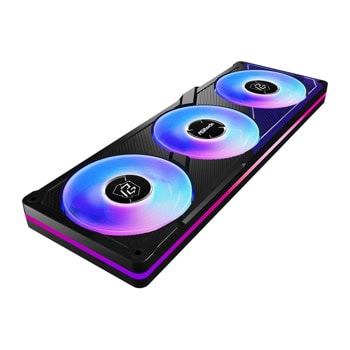

• Radiator

  Dimension：(L)397 x (W)120 x (H)32 mm
  Material：Aluminum

• Pump

  Speed：1200 - 3100 ± 10% RPM
  Current/ Voltage：0.38A/ 12V
  Connector：PWM (4-Pin)

• VRM Fan

  Dimension：(L)70 x (W)70 x (H)25 mm
  Speed：(Max.) 3000 ± 10% RPM
  Connector：PWM (4-Pin)
  Current/ Voltage：0.12A/ 12V

• Radiator Fan

  Dimension：(L)362 x (W)123 x (H)28 mm
  Speed：0 - 2400 ± 10% RPM
  Air Flow：(Max.) 61.28 CFM
  Air Pressure：(Max.) 3.11 mmH20
  Noise：(Max.) 31.4 dB(A)
  Connector：PWM (4-Pin)
  Current/ Voltage：0.84A/ 12V
  Bearing：Fluid Dynamic Bearing
  LEDs ：ARGB Gen1

• Screen

  Type：IPS LCD
  Size：3.4"
  Resolution：480 x 480
  Display Colors：24-bit
  Brightness：250 cd/m²
  Refresh Rate：60 Hz
  Frames Per Second (FPS)：60 FPS
  Connector：USB Type-C to Motherboard 9-Pin

• Tubing

  Material：IIR + EPDM
  Length：450mm
