Процесор AMD Ryzen 7 Pro 8700G, шестядрен, (4.2/5.1GHz, 16MB Cache, 2.9GHz графична честота, AM4), Tray, без охлаждане

*Tray версия: Процесорът се продава без кутия

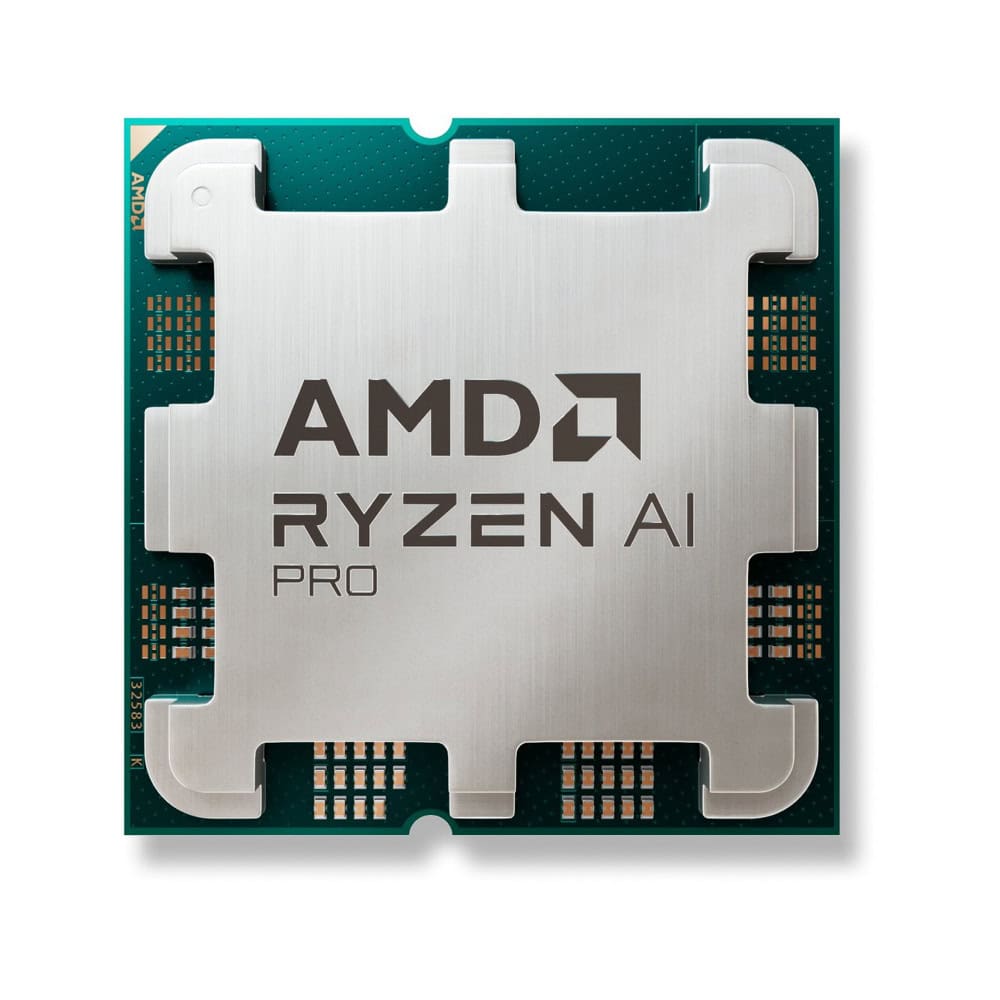

AMD Ryzen 7 Pro 8700G

100-100001238

General Specifications

Name

AMD Ryzen™ 7 PRO 8700G

Family

Ryzen PRO

Series

Ryzen PRO 8000 Series

Form Factor

Desktops

AMD PRO Technologies

Yes

Regional Availability

Global

Former Codename

Phoenix

Processor Architecture

Zen 4

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.1 GHz

Base Clock

4.2 GHz

L2 Cache

8 MB

L3 Cache

16 MB

Default TDP

65W

AMD Configurable TDP (cTDP)

45-65W

Processor Technology for CPU Cores

TSMC 4nm FinFET

CPU Compute Die (CCD) Size

178mm²

Package Die Count

1

CPU Socket

AM5

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Max. Operating Temperature (Tjmax)

95°C

Launch Date

4/16/2024

*OS Support

RHEL x86 64-Bit , Ubuntu x86 64-Bit , Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition

Connectivity

Native USB 4 (40Gbps)

2

Native USB 3.2 Gen 2 (10Gbps)

2

Native USB 2.0 (480Mbps)

1

PCI Express® Version

PCIe® 4.0

Native PCIe® Lanes (Total/Usable)

20 , 16

NVMe Support

Boot , RAID0 , RAID1

System Memory Type

DDR5

Memory Channels

2

Max. Memory

256 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires platform support)

Graphics Capabilities

Graphics Model

AMD Radeon™ 780M

Graphics Core Count

12

Graphics Frequency

2900 MHz

DirectX® Version

12

DisplayPort™ Version

2.1

DisplayPort Extensions

Adaptive-Sync , HDR Metadata , UHBR10

DisplayPort Max Refresh Rates (SDR)

7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

DisplayPort Max Refresh Rates (HDR)

7680x4320 @ 60Hz , 3840x2160 @ 240Hz , 3440x1440 @ 360Hz , 2560x1440 @ 480Hz , 1920x1080 @ 600Hz

HDMI® Version

2.1

HDCP Version Supported

2.3

USB Type-C® DisplayPort™ Alternate Mode

Yes

Multi-Monitor Support

Yes

Max Displays

4

AMD FreeSync™

Yes

Wireless Display

Miracast

Max Video Encode Bandwidth (SDR)

1080p630 8bpc H.264, 1440p373 8bpc H.264, 2160p175 8bpc H.264, 1080p630 8bpc H.265, 1440p373 8bpc H.265, 2160p175 8bpc H.265, 4320p43 8bpc H.265, 1080p864 8/10bpc AV1, 1440p513 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

Max Video Decode Bandwidth

1080p60 8bpc MPEG2, 1080p60 8bpc VC1, 1080p786 8/10bpc VP9, 2160p196 8/10bpc VP9, 4320p49 8/10bpc VP9, 1080p1200 8bpc H.264, 2160p300 8bpc H.264, 4320p75 8bpc H.264, 1080p786 8/10bpc H.265, 2160p196 8/10bpc H.265, 4320p49 8/10bpc H.265, 1080p960 8/10bpc AV1, 2160p240 8/10bpc AV1, 4320p60 8/10bpc AV1

AMD SmartAccess Memory

Available

AI Engine Capabilities

Brand Name

AMD Ryzen™ AI

AMD Ryzen™ AI

Available

NPU TOPS

Up to 16 TOPS

Security, Virtualization, and Manageability

DASH support

Yes

AMD Memory Guard

Yes

AMD Secure Processor Support

Yes

Windows Secure Boot Support

Yes

UEFI Secure Boot Support

Yes

Windows Device Guard Support

Yes

Guest Mode Execution (GMET) Trap Support

Yes

Virtualization-Based Security (VBS) Support

Yes

Windows Secured-Core PC Support

Yes

Firmware TPM

Yes

AMD-V (SVM) Support

Yes

AMD-V Nested Paging (RVI) Support

Yes

AMD AVIC (Interrupt Virtualization) Support

Yes

AMD-Vi (I/O MMU Virtualization) Support

Yes

Second Level Address Translation (SLAT) Supported

Yes

Advanced Encryption Standard New Instructions (AES-NI)

Yes

AMD Enhanced Virus Protection (NX bit)

Yes

*Tray версия: Процесорът се продава без кутия,

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
