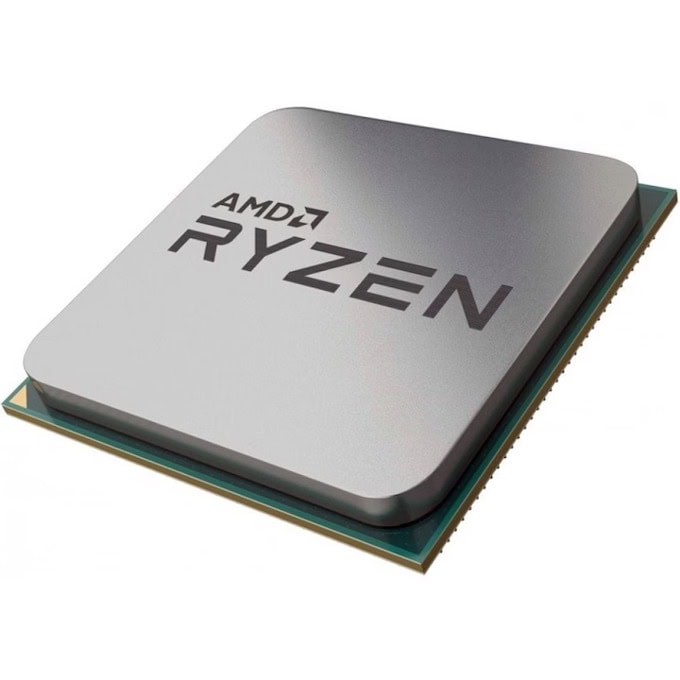

Процесор AMD Ryzen 7 5700, осемядрен (3.7/4.6GHz, 16MB Cache, AM4) Tray, без охлаждане

*Tray версия: Процесорът се продава без кутия'


AMD Ryzen 7 5700 Tray
100-100000743

General Specifications

Platform
Boxed Processor

Market Segment
Mainstream Desktop

Product Family
AMD Ryzen™ Processors

Product Line
AMD Ryzen™ 7 Desktop Processors

Consumer Use
Yes

Regional Availability
Global, China, NA, EMEA, APJ, LATAM

Former Codename
"Cezanne"

Architecture
"Zen 3"

# of CPU Cores
8

# of Threads
16

Max. Boost Clock
Up to 4.6GHz

Base Clock
3.7GHz

L1 Cache
512KB

L2 Cache
4MB

L3 Cache
16MB

Default TDP
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
TSMC 7nm FinFET

CPU Compute Die (CCD) Size
180mm²

Package Die Count
1

Unlocked for Overclocking
Yes

CPU Socket
AM4

Socket Count
1P

Supporting Chipsets
X570
X470
X370
B550
B450
B350
A520



CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermal Solution (PIB)
AMD Wraith Stealth

Max. Operating Temperature (Tjmax)
95°C

Launch Date
4/4/2022

*OS Support
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.


Connectivity

USB Type-C® Support
Yes

Native USB 4 (40Gbps) Ports
0

Native USB 3.2 Gen 2 (10Gbps) Ports
4

Native USB 3.2 Gen 1 (5Gbps) Ports
0

Native USB 2.0 (480Mbps) Ports
0

Native SATA Ports
2

PCI Express® Version
PCIe 3.0

Native PCIe® Lanes (Total/Usable)
24 / 20


Additional Usable PCIe Lanes from Motherboard


AMD X570
16x Gen 3

AMD X470
2x Gen 3

AMD X470
8x Gen 2



NVMe Support
Boot, RAID0, RAID1, RAID10

System Memory Type
DDR4

Memory Channels
2

System Memory Subtype
UDIMM

System Memory Specification
Up to 3200MT/s

Max Memory Speed

2x1R
DDR4-3200

2x2R
DDR4-3200

4x1R
DDR4-2933

4x2R
DDR4-2667

ECC Support
No


Graphics Capabilities

Integrated Graphics
No

Graphics Model
Discrete Graphics Card Required
