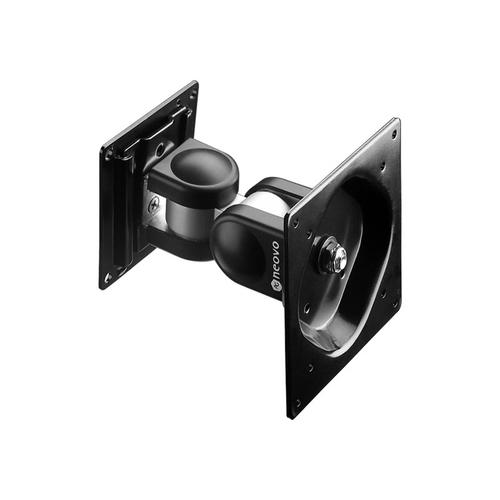

Name: Аксесоар Ag Neovo PMK-01 PIVOT
Availability: OutOfStock

Design
Product colour	Black

Housing material	Steel
Ergonomics
Swivel angle range	-90 - 90°

Tilt angle range	-90 - 90°

Pivot angle	0 - 270°

Tilt adjustment	Y

Swivel angle	180°
General Information
Marketing Information	Ergonomic Wall Mount Kit Left, Right, Up and Down: the AG Neovo PMK-01 provides up to 270 degrees of rotation for the perfect viewing angle no matter what the environment. The e PMK-01 is perfect for museums, information kiosks or other public and multi-user environments. Made from durable steel and die-cast aluminum, the PMK-01 complies with VESA standards and supports displays up to 14.0 kg. ree pivots allow for a broad 270° rotation of the display, 180° up and down tilt, as well as 180° le to right swivel. The convenient slide in-and-out wall mount bracket allows for easy removal of the display.
Logistics data
Harmonized System (HS) code	85299097
Mounting
Maximum weight capacity	14 kg

Panel mounting interface	75 x 75,100 x 100 mm

Mounting type	Wall

Minimum screen size	38.1 cm (15)

Maximum screen size	81.3 cm (32)

Number of displays supported	1

Minimum VESA mount	75 x 75 mm

Maximum VESA mount	100 x 100 mm
Packaging content
Manual	Y
Packaging data
Package weight	1.6 kg

Package depth	145 mm

Package height	120 mm

Package width	120 mm

Package type	Box
Weight & dimensions
Weight	1.5 kg

Height	115 mm

Width	115 mm

Depth	131 mm
