Проектор Acer P6505 (MR.JUL11.001), DLP, Full HD (1920x1080), 20 000:1, 5500lm, USB, RS232, LAN, VGA

Acer P6505

MR.JUL11.001

Acer P6505 offers a premium projection solution with Full HD resolution for both small and large conference rooms, delivering amazing image quality at 5,500 lumens of brightness.

	5,500 Lumens Brightness See crystal-clear, vibrant images from a distance in lecture halls, auditoriums or any large venues with up to 5,500 lumens of brightness.
	FHD Resolution A 100” image of pure beauty in 1080p Full HD looks so real, you’ll swear you’re looking out the window.
	Acer ColorBoost3D Reproduce lifelike colors and brilliantly bright images with Acer ColorBoost3D technology.
	Acer LumiSense+ Project in any environment without loss of detail as Acer LumiSense+ adjusts brightness and color saturation based on content and ambient light.
	Acer ColorSafe II Enjoy consistent, natural colors with ColorSafe II technology, which controls the dynamic RGB levels to prevent color decay.

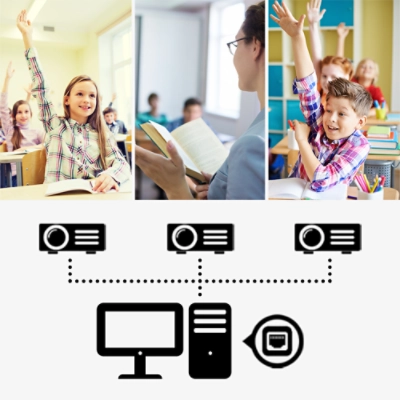

	Integrated Crestron Network System Control, maintain and monitor your device anywhere with an internet connection using Crestron control systems.
	DLP 3D Ready DLP 3D ready enables users to view 120Hz 3D frame sequential (progressive) content from a PC with an appropriate 120Hz graphics card and 3D stereoscopic player or Blu-ray Disc title from a Blu-ray player by wearing DLP 3D glasses.

Tech specs:

Native Resolution 1920 x 1080

Maximum Resolution 1920 x 1200

Standard Mode Brightness 5500 lm

Native Aspect Ratio 16:9

Compatible Aspect Ratio 4:3

Contrast Ratio 20,000:1

Throw Ratio 1.41 to 2.24 (1625.60 mm@2000 mm)

Digital Zoom 2x

Vertical Keystone Correction -30°/+30°

Horizontal Keystone Correction -30°/+30°

Maximum Vertical Sync 120 Hz

Maximum Horizontal Sync 100 kHz

Minimum Vertical Sync 24 Hz

Minimum Horizontal Sync 15 kHz

Colour Supported 1.07 Billion Colors (30-bit)

Lamp

Number of Lamps 1

Lamp Power 365 W

Interfaces/Ports

USB (Mini B)

RS232 (D sub)

12V DC (Screen control)

Ethernet port (RJ45)

2x Analog RGB/Component Video (D sub)

Composite Video (RCA)

S Video (Mini DIN)

Component (3 RCA)

PC Audio (Stereo mini jack)

L/R Audio (Stereo RCA)

Mic In (Stereo mini jack)

HDMI1.4b/MHL (Video, Audio, HDCP)

HDMI1.4b/MHL (Video, Audio, HDCP, Internal)

Analog RGB (D sub)

PC Audio (Stereo mini jack)

DC Out (5V/1.5A, USB Type A)

DC Out (5V/1.5A, USB Micro B, Internal Plug)

Technical Information

Projection System DLP

Projection Method Front; Rear; Ceiling; Rear Ceiling

Video Compatibility NTSC; PAL; SECAM; HDTV; EDTV; SDTV

Computer Compatibility Windows PC; Mac PC; Google Chrome PC

Audio

Number of Speakers 2

Speaker Output Power 10 W

Speaker Output Mode Stereo

Network & Communication

Ethernet (LAN) Capability Crestron eControl

Power Description

Input Voltage 120 V AC; 230 V AC

Operating Power Consumption 460 W

Standby Power Consumption 500 mW

Physical Characteristics

Installation Ceiling Mount

Weight (Approximate) 4.50 kg

Form Factor Ceiling Mountable
