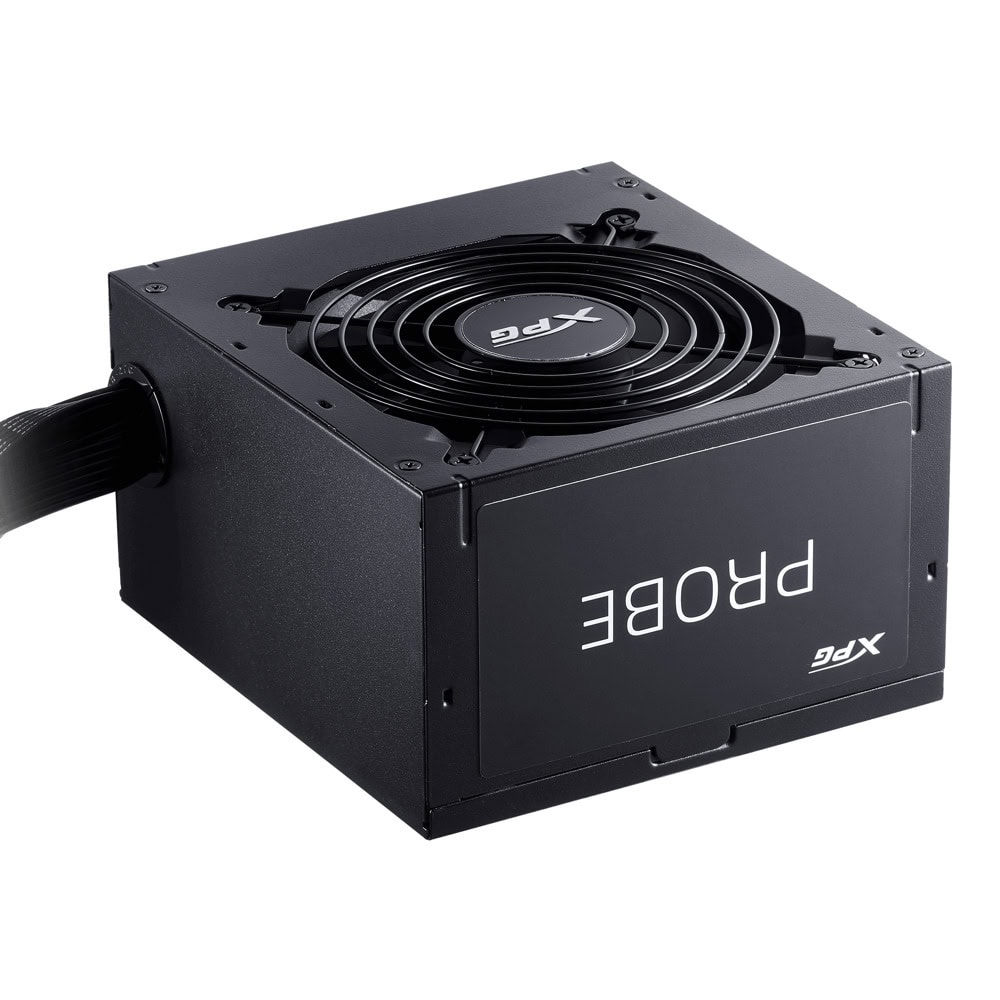

PROBE
VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation:
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Intelligent Fan-Curve Design:

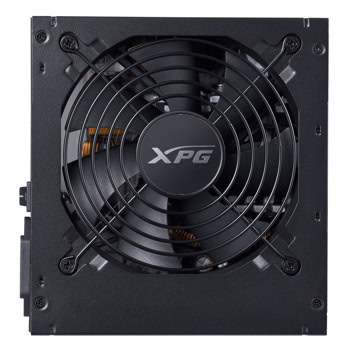

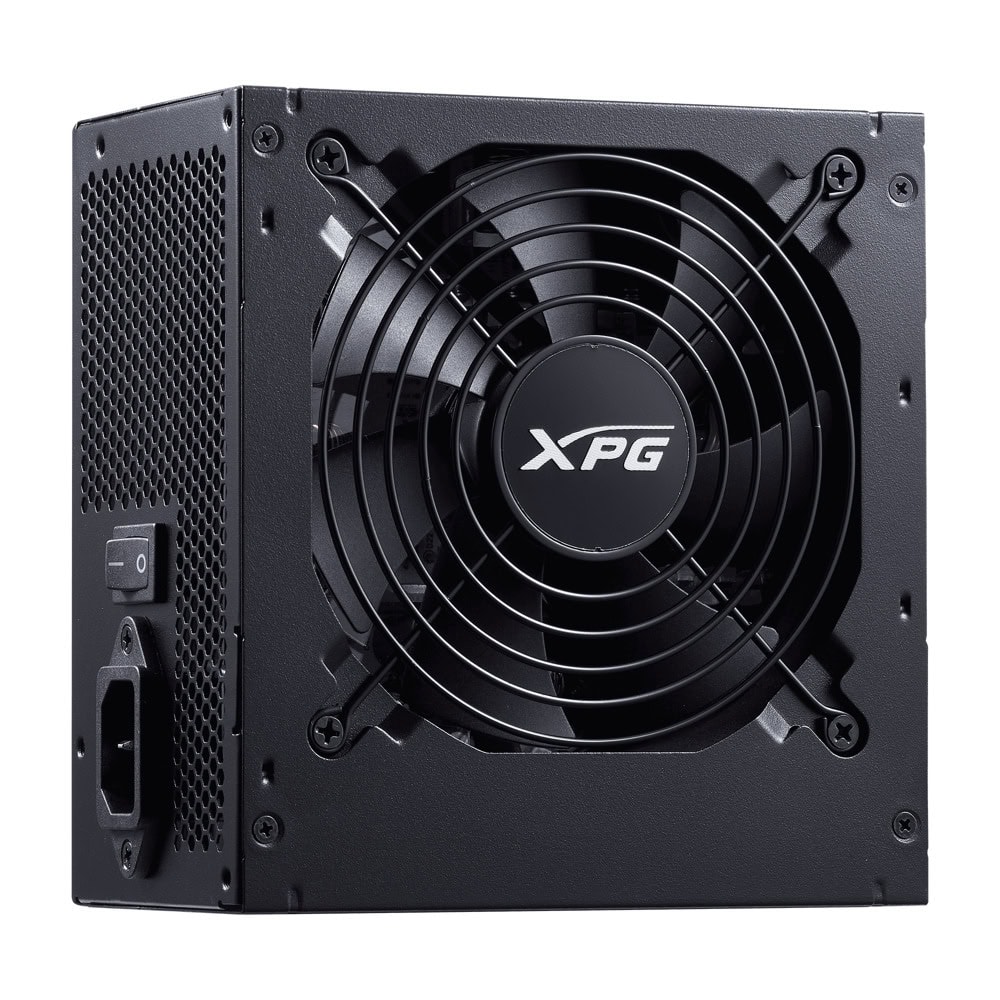

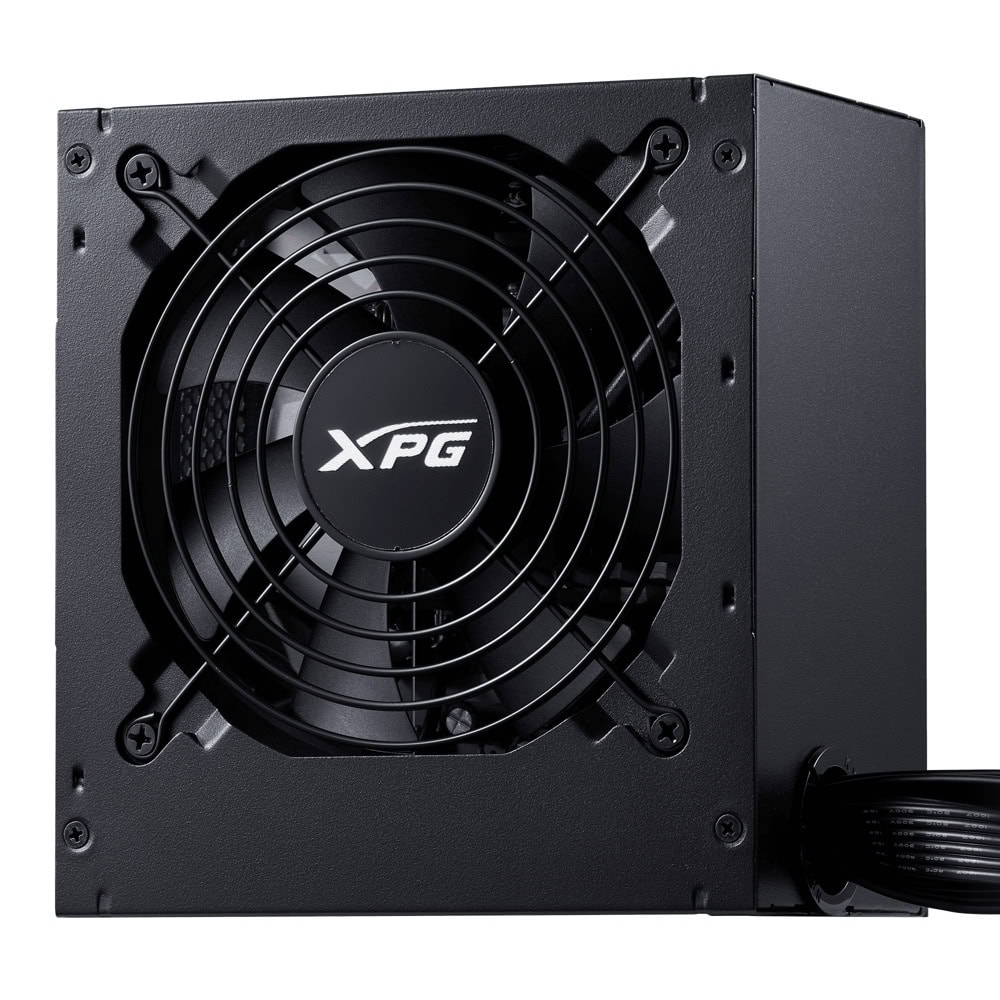

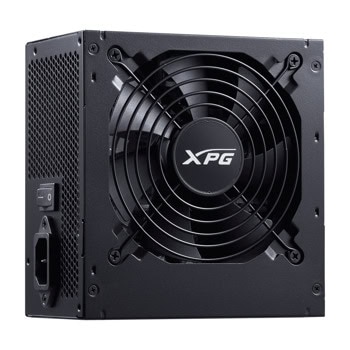

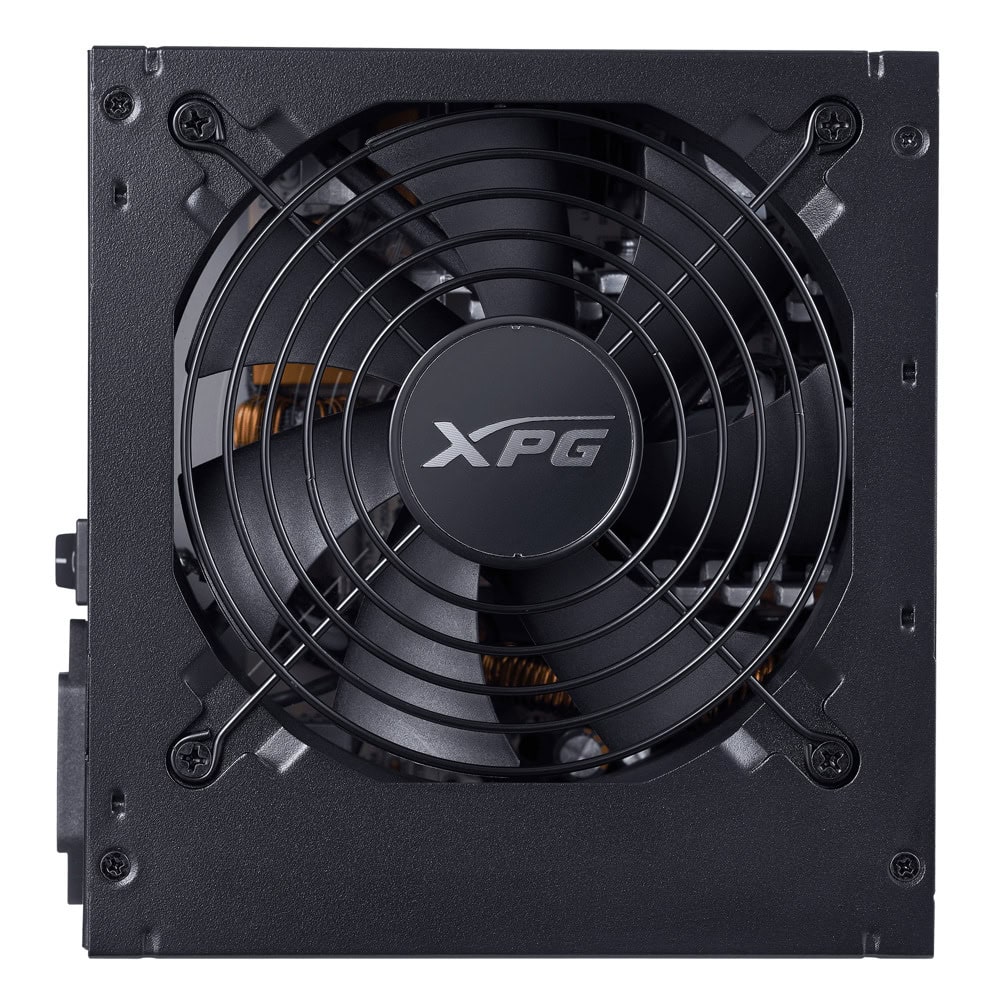

The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan:
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.
Specifications
Dimensions (L x W x H)
140 x 150 x 86mm
80 Plus Rating
BRONZE
ATX Version
ATX 2.52
Protections
OVP / OPP / SCP / UVP / OTP / SIP
Certification
CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
PFC
> 0.99 @ Typical load
Input Voltage
100-240V, 47~63Hz
Input Current
9A - 10A
Input Frequency
47 - 63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
700W: +5V: 17A, +3.3V:19A, +12V:54A, -12V:0.3A, +5Vsb:2.5A 600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
Power Excursion
Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
Operating Temperature
0~40°C
Fan Size
120mm
Fan Bearing
Sleeve Bearing Fan
Fan Speed
2400 ± 10% RPM
MTBF
>100,000 hours @ 25°C
ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
2
Molex 4 Pin Connector
2
SATA Connector
5
Виж още Захранвания Настолни компютри A-Data
Виж всички Захранвания Настолни компютри в категорията
VIABLE, APPLIABLE, & RELIABLE
With up to 87% efficiency at 50% load and a 120mm low-noise fan featuring an intelligent curve, XPG PROBE is designed to deliver stable and reliable power to your system!
Enhanced Safety in Operation:
Unlike most Bronze power supply units, XPG PROBE is ATX v2.52 compliant, enhancing overall reliability and providing safer operation for your current and future hardware.
Intelligent Fan-Curve Design:
The 120mm low-noise sleeve-bearing fan, featuring an intelligent curve design, keeps the power supply cool without excessive noise, thus reducing power consumption for cooling and improving overall energy efficiency.
Long, Reliable Lifespan:
XPG PROBE comes with premium capacitors with a 105°C rating, offering greater reliability, premium efficiency, and a longer lifespan.
Specifications
Dimensions (L x W x H)
140 x 150 x 86mm
80 Plus Rating
BRONZE
ATX Version
ATX 2.52
Protections
OVP / OPP / SCP / UVP / OTP / SIP
Certification
CB, CE, FCC, TUV, cTUVus, BSMI, CCC, NOM, FCC IC, UKCA,EAC, RCM
PFC
> 0.99 @ Typical load
Input Voltage
100-240V, 47~63Hz
Input Current
9A - 10A
Input Frequency
47 - 63Hz
DC Output Voltage
+5V | +3.3V | +12V | -12V | +5Vsb
Total Output
700W: +5V: 17A, +3.3V:19A, +12V:54A, -12V:0.3A, +5Vsb:2.5A 600W: +5V: 17A, +3.3V:19A, +12V:46A, -12V:0.3A, +5Vsb:2.5A
Power Excursion
Total:700W +5V/+3.3V:110W, +12V:648W, -12V:3.6W, +5Vsb:12.5W Total:600W +5V/+3.3V:110W, +12V:552W, -12V:3.6W, +5Vsb:12.5W
Operating Temperature
0~40°C
Fan Size
120mm
Fan Bearing
Sleeve Bearing Fan
Fan Speed
2400 ± 10% RPM
MTBF
>100,000 hours @ 25°C
ATX 24 Pin Connector
1
EPS 8 (4+4) Pin Connector
2
Molex 4 Pin Connector
2
SATA Connector
5
JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
Виж още Захранвания Настолни компютри A-Data
Виж всички Захранвания Настолни компютри в категорията
Технически характеристики
| Изходна мощност: | 600 W |
|---|---|
| Модулен блок: | Не |
| Форм фактор: | ATX |
