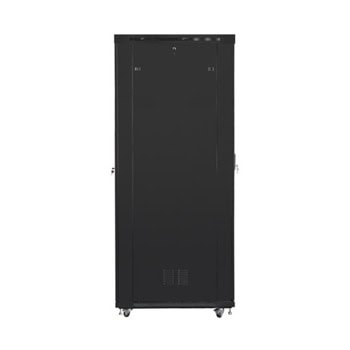

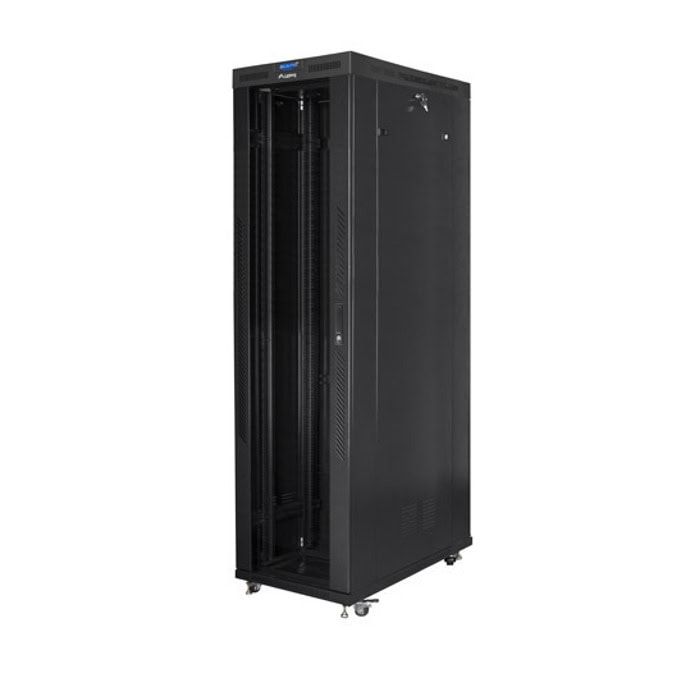

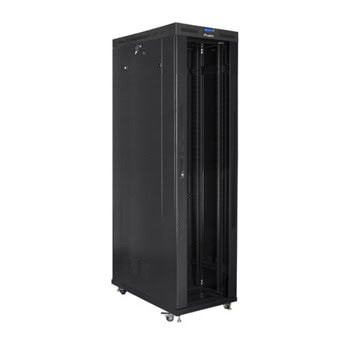

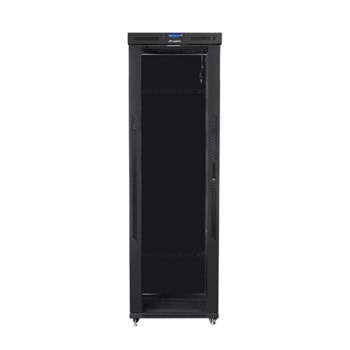

Name: Комуникационен шкаф Lanberg FF01-8247-12BL, 19 , 47U, 235 x 120 x 80 cm, товароносимост до 1200кг, термостат, черен
Brand: Lanberg
SKU: NTRLANBERGFF01824712BL
Price: 1085.85 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

Specifications

Type of cabinet
Free standing

Size
19"

ICT height
47 U

Assembly type
Self-assembly

Working depth
1120 mm

Front door type
Temper glass

Rear door type
Metal

Door type
Single-leaf

Maximum front door opening angle
215 °

Maximum static load
1200 kg

Slot amount for fans
8

Number of vertical rails
4

Thermostat
Yes

LCD panel
Yes

Colour
Black

RAL color
RAL9004

Weatherproof rating
IP20

Front door thickness
1.2 mm

Rear door thickness
1.2 mm

Upper & lower panel thickness
1.5 mm

Side panel thickness
1.2 mm

Mounting rails thickness
2 mm

Frame thickness
1.5 mm

Other elements sheet thickness
1.2 mm

Depth
1200 mm

Width
800 mm

Height
2350 mm

Height without casters
2242 mm

Weight
186 kg

Standard
ANSI/EIA RS-310-D, DIN 41491/PART 1, DIN 41494/PART 7, ETSI, IEC297-2:1982

Grounding Details
Back door, Frame, Front door
