BenQ LH890UST

Creating Lasting Lessons with Striking Picture Quality

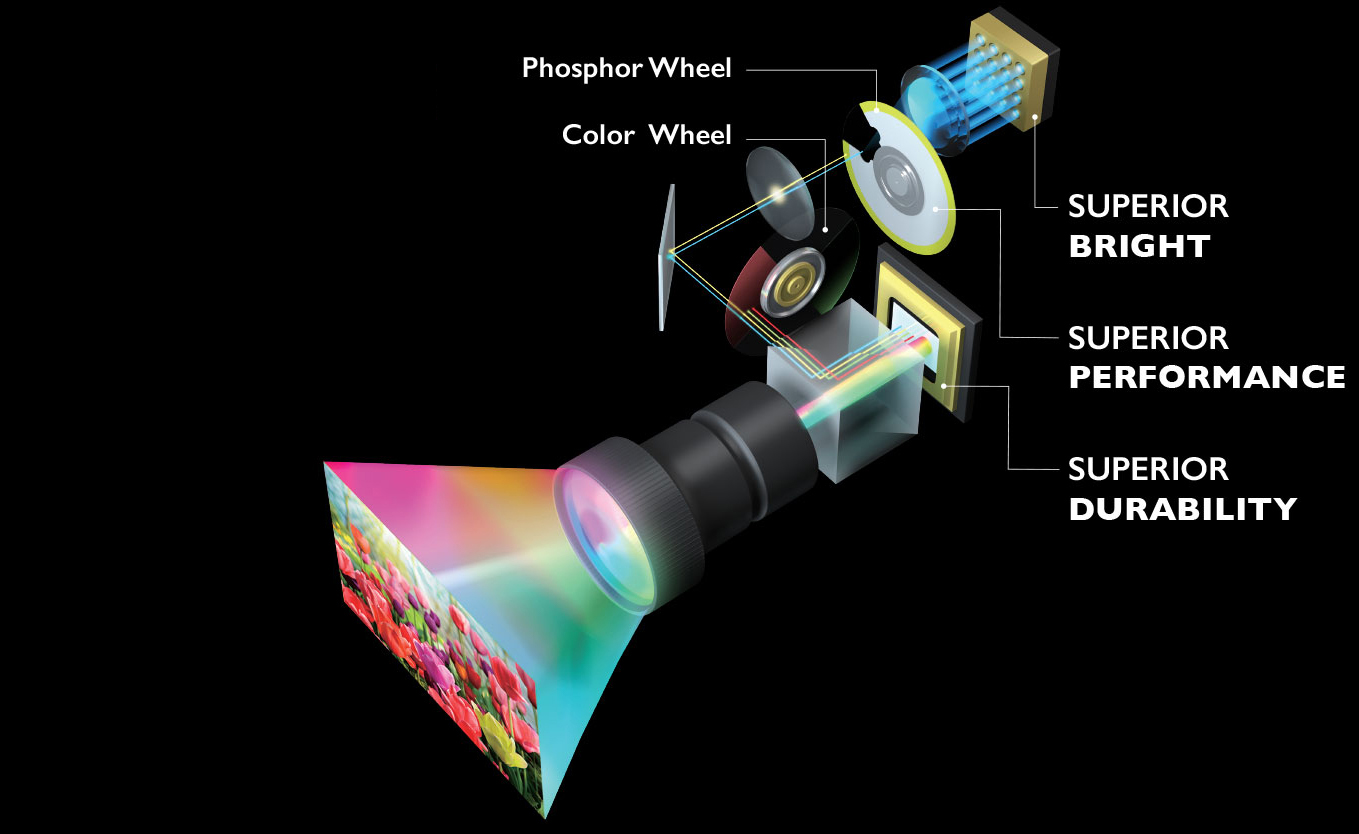

BenQ BlueCore™ Laser Technology
Superior Brightness

Precision-Aligned High-Output Laser Source

Zero-deviation alignment of BlueCore laser diodes boosts luminous flux into the light tunnel, improving light efficacy to 4,000 lumens.

Superior Performance

Secondary Yellow-Infused Color Wheel

Dual synchronized BlueCore color wheels utilize an additive yellow segment, stimulating precise RGBY spectra for optimal chromatic performance.

Superior Durability

Hermetically Sealed DLP Chip

Comprising over two million micromirrors that reflect pure light through the color wheel, the DLP chip is hermetically sealed to resist heat for over 100,000 hours without degradation.

Superior Dustproofing Design to Prolong Projector Lifespan

BenQ LH890UST is designed with DustGuard™ technology including sealed laser modules to protect the laser bank. This lock-and-key design hermetically seals the laser engine from dust* to prolong projector lifespan.

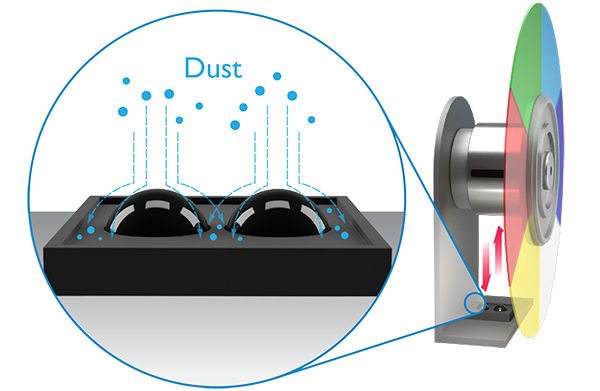

Anti-Dust Accumulation Sensor Resists Dust Buildup

Incorporating color wheel sensors with an ingenious anti-dust accumulation feature, LH890UST prolongs optimal performance by rejecting dust which can accumulate on traditional sensors to block the IR signal and cause flickering, abnormal colors, or even shutdown.

Brilliant Display of Lecture Content

LH890UST’s powerful BlueCore™ laser projection utilizes a dual color wheel system to produce outstanding color performance by increasing color ratios and purity of RGBY colors, greatly enhancing color saturation and brilliancy at the same lumen output of lamp-based projectors to deliver superior viewing experiences.

Laser-Enabled Ultra-High Contrast

LH890UST laser projectors create strikingly clear images with stratospherically high native contrast ratio of 100,000:1 for true deep blacks, vividly rich colors, and fine subtle details.

LH890UST also features spontaneous response, requiring no wait to turn on or resume from blanking in true black for flexible performance capability.

Long Lasting High Brightness

LH890UST produces 4,000 ANSI lumens and superior brightness efficiency, at the same level as IFPs for clear, sharp images and text even in large, bright classrooms. High brightness allows lights to be kept on during lessons, and sealed laser banks prevent dust entry to minimize brightness decay for long-lasting high brightness.

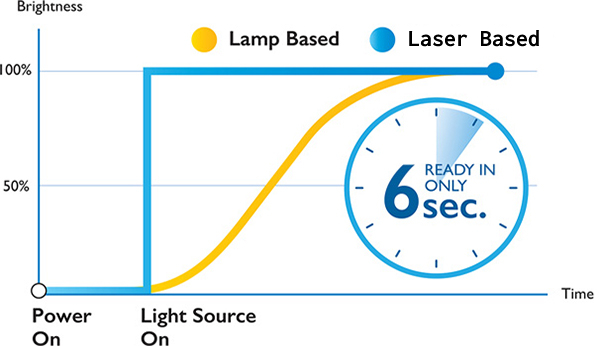

Instant Power-On

BenQ BlueCore™ education projectors can be turned on and off instantly to significantly reduce setup time compared to other lamp-based projectors.

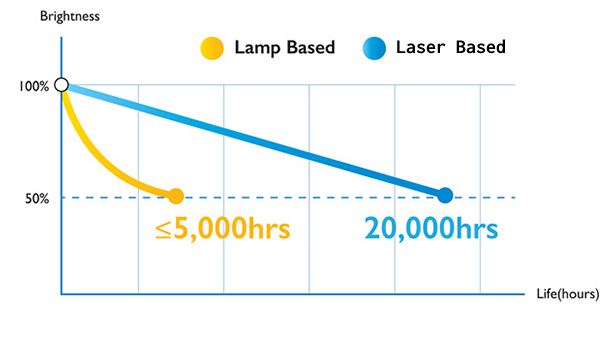

20,000 Hour Long-Lasting Performance

With a fully sealed laser light source and an innovative sealed laser engine design, BenQ BlueCore™ laser education projectors deliver 20,000 hours of maintenance-free operation, preventing extra expenses on lamp replacement and maintenance. The laser light source resists color and brightness decay over time, offering significantly more reliable performance after a period of operation.

Expanding Classroom Possibilities

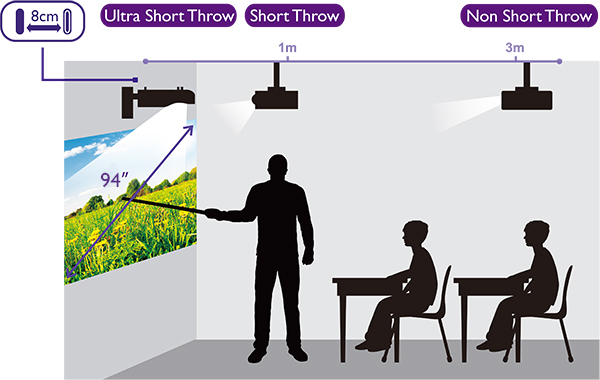

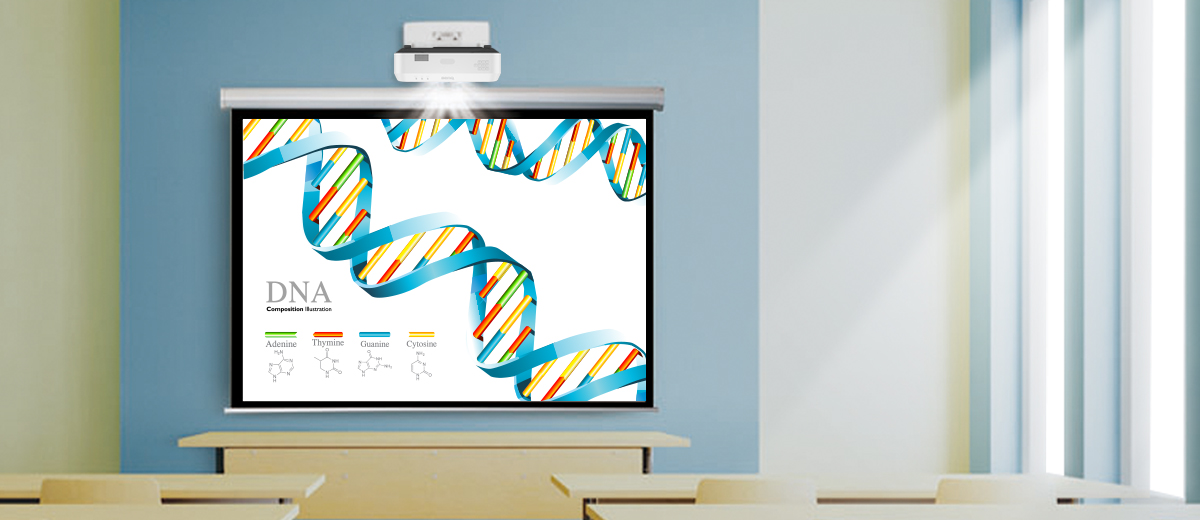

Ultra-Short Throw

Ultra-short throw projectors can be mounted inches the wall directly above the screen, eliminating distracting shadows and glare for students and teachers to engage and collaborate freely in front of the board.

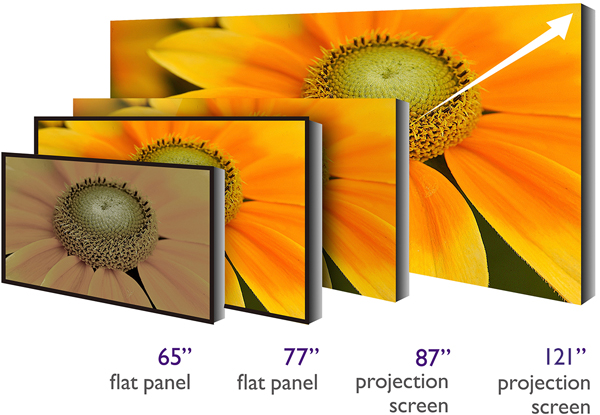

Bigger Images

BenQ education projectors offer a range of resolutions and projected image sizes to meet diverse classroom needs. Featuring crisp image quality up to 121 inches, our ultra-short throw education projectors deliver increased classroom versatility at reduced costs.

Create Interaction on Any Surface

PointWrite™ technology works on any flat surface, so no expensive digital whiteboard or additional equipment is necessary. With the PointWrite™ module, images can be projected onto a wall for multiple students to easily share and write on the same screen, creating vast new opportunities for classroom interactivity and enabling possibilities for modern digital classrooms.

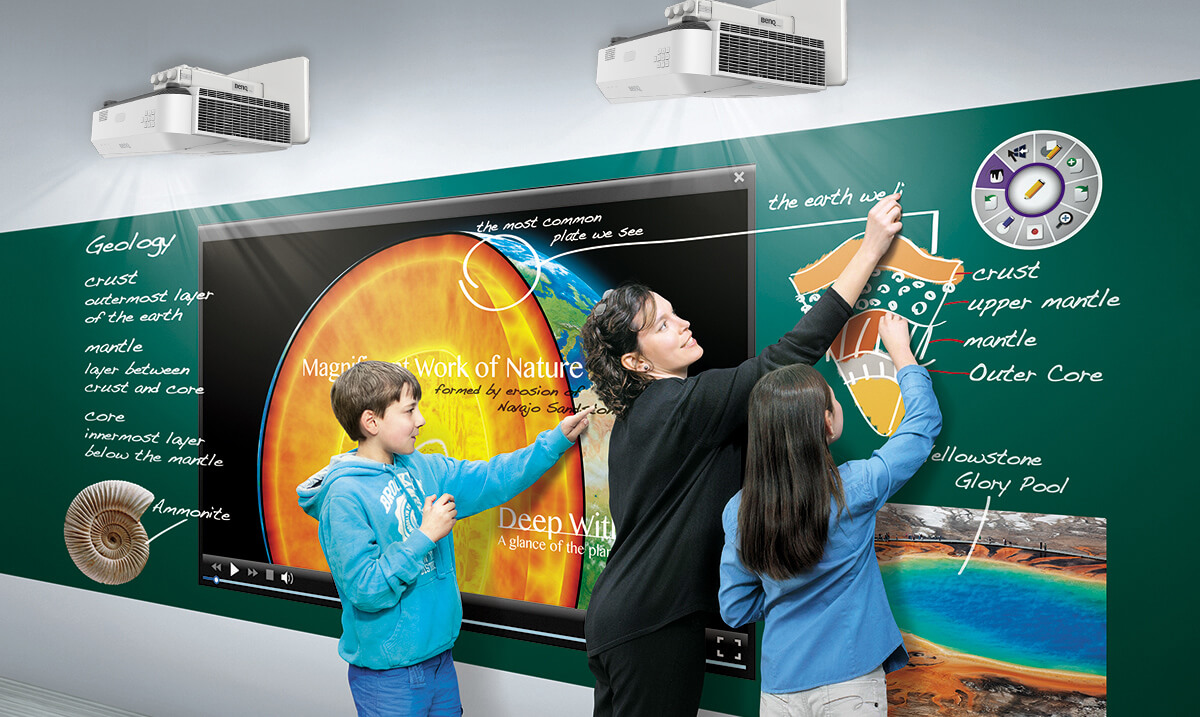

Multi-Touch with Pens and Multi-Screen Drawing

PointWrite™ projectors offer multi-user capability, and two PointWrite™ projectors can be used to double the projection surface. With QWrite* Whiteboard Mode, teachers can run different applications or display, view, and annotate across two monitors.

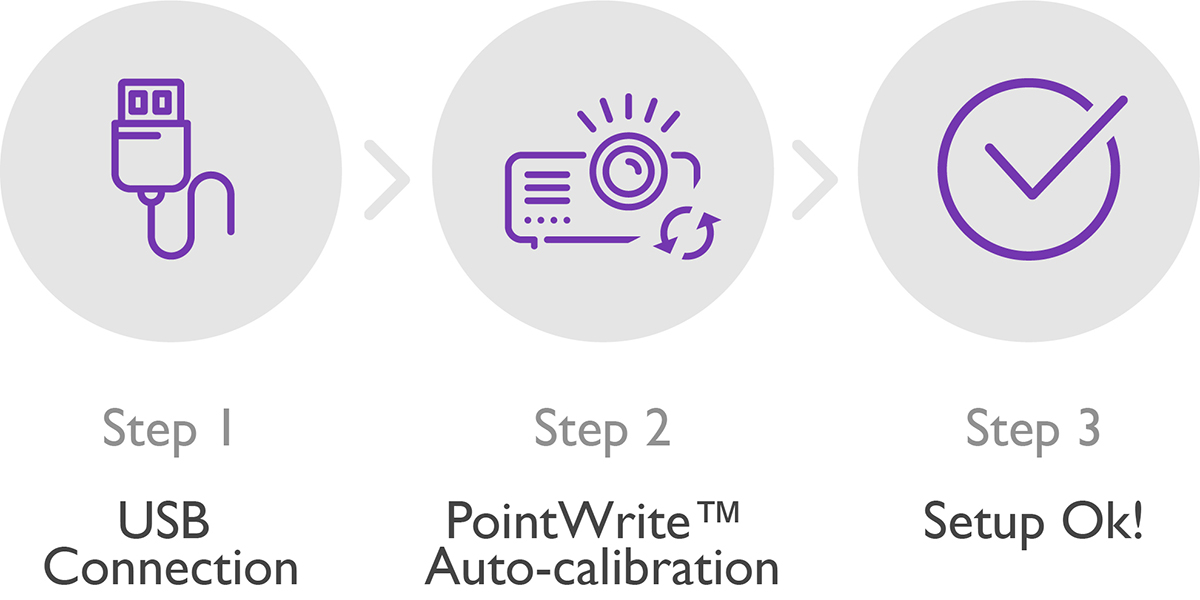

Intuitive Setup

PointWrite™ automatically calibrates and saves its settings the moment it is plugged into a computer’s USB port. PointWrite™ then remains ready with no manual configuration or complicated training for teachers needed. Additionally, LH890UST’s interactive sensor guarantees reliable auto-calibration in any ambient lighting.

Advanced Interactive Module Compatible

A modular design allowing schools the flexibility of adding interactivity to classrooms with future investment, the new BenQ PointWrite™ interactive module PW40U provides truly collaborative learning environments where students and teachers work together using intuitive templates along with QWrite™ software, all with one-time calibration convenience.

* PW40U is an optional interactive module for LX890UST/ LW890UST/ LH890UST

Facilitating Smart, Efficient Projector Maintenance

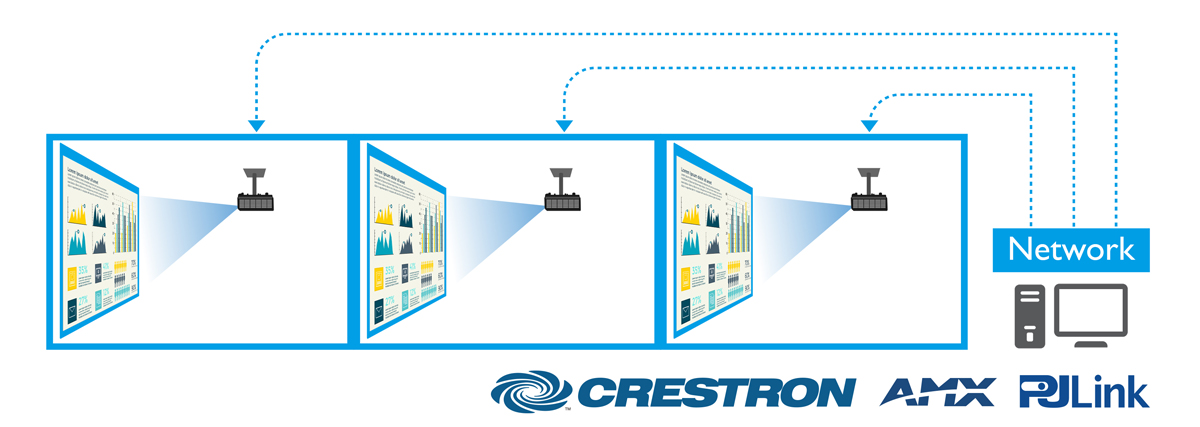

Control System Compatibility

LH890UST is widely compatible with leading projector control systems including Crestron, AMX, PJ Link, and Extron* IP Link for network control via LAN, making it simple to integrate into educational network infrastructures. LH890UST also supports RS-232 for reliable long-distance Installation up to 15 meters when there is no LAN infrastructure.

Centralized Control with BenQ MDA Software

BenQ Multiple Display Administrator (MDA) software enables powerful centralized monitoring, control, and power scheduling across the school’s projector network from a single computer, offering full access and control over every projector directly.

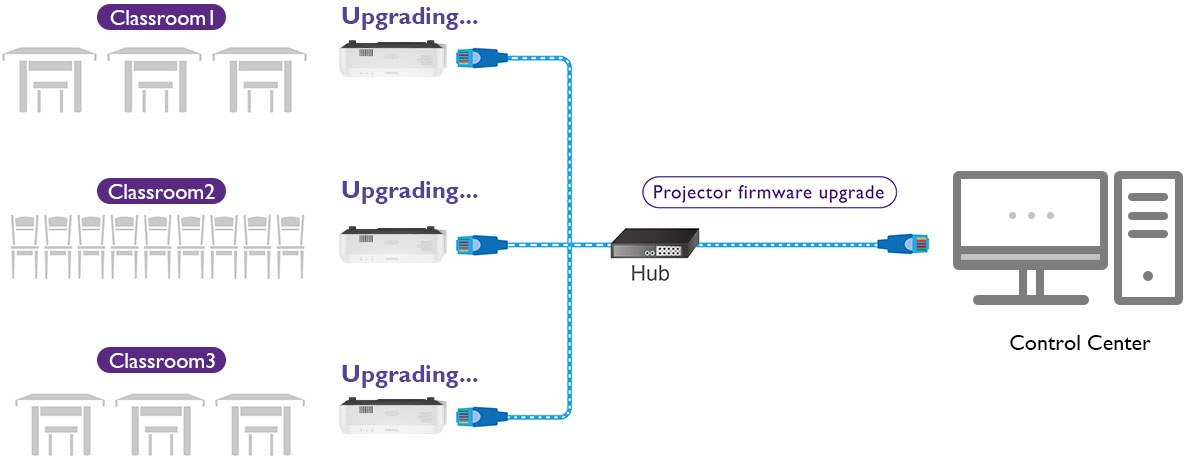

Centralized Upgrade Tool for Multiple Projector Maintenance

Administrators can centrally upgrade firmware on multiple networked BenQ education projectors on the same local network via LAN (up to 253 projectors), deploying the latest updates to all devices at once. This new tool can upgrade firmware types including TI IC, MCU IC, LAN IC, and Ballast IC, with a friendlier user interface.

Expanding Classroom Possibilities

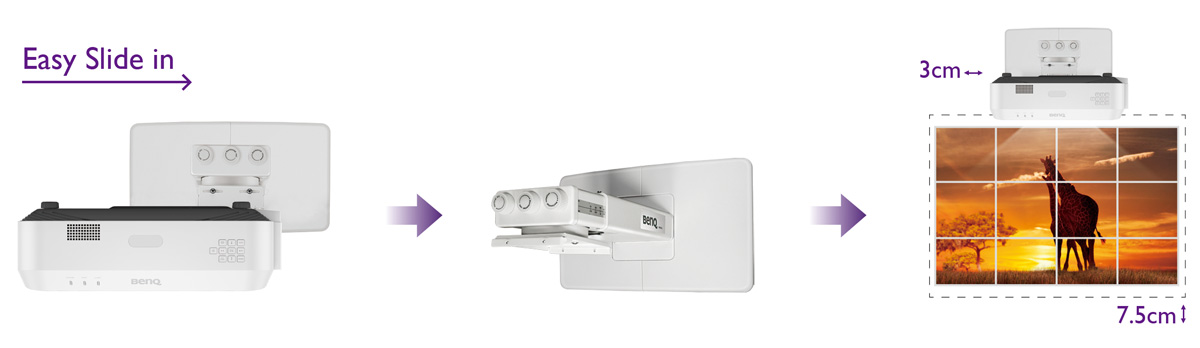

Streamlined Wall Mount Alignment

For efficient professional installation, our ultra-short throw projector wall mount features an installation chart and ruler for perfect screen alignment and image position in the classroom. Even simpler, using an existing wall mount without uninstallation, a three-way adjustment knob is located in front of the projector for cleanly installed, absolutely square screens.

Clear Images without Distortion

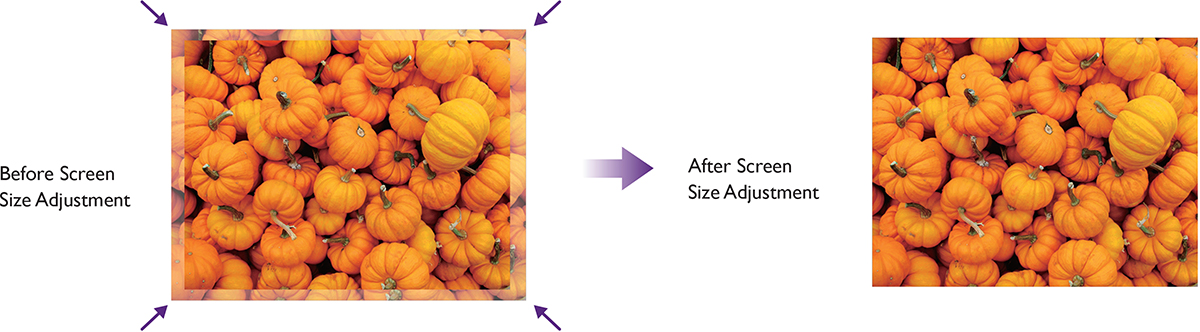

Digital Shrink

Digital Shrink is used for fine tuning the screen size via OSD menu when the image is not precisely aligned on the desired frame.

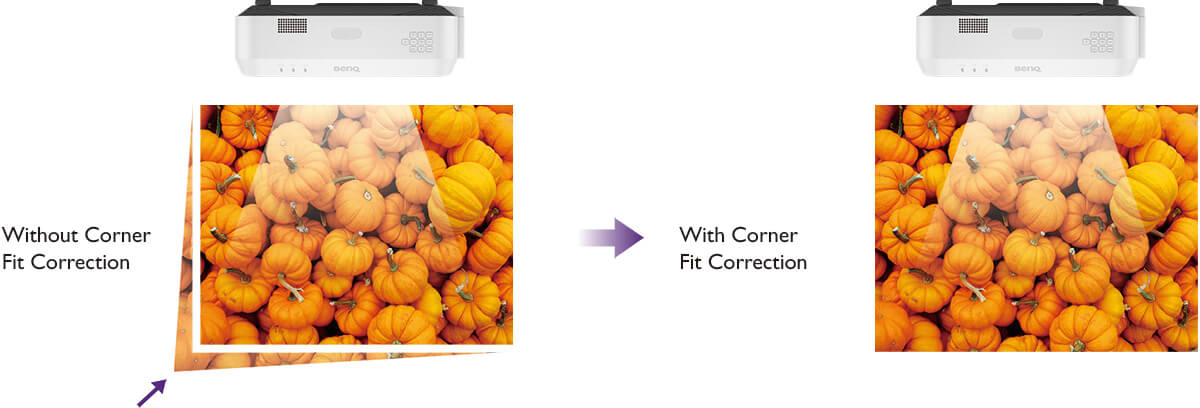

Corner Fit Correction

Corner Fit provides individual adjustment of each corner for perfect fit and alignment onto restricted or uneven spaces.





Brightness

4,000 ANSI Lumens

Resolution

1920x1080

Aspect Ratio

16:9 (HD)

Contrast

100,000:1 (full on/off)

Display Type

2 cm DLP x 1

Color Wheel

4 segments

Color Processing

8-bit

Video Modes

720p, 1080i, 1080p/60, 1080p/24, 1080p/25, 1080p/30, 1080p/50, 576i, 576p, 480p, 480i

Data Modes

MAX 1920x1200


Lamp Type

Laser Phosphor

Lamp Life

20,000 hours


Throw Distance

0.1 m - 0.3 m

Image Size

206 cm - 307 cm

Throw Ratio

0.24:1 (D:W)

Digital Keystone

Horizontal & Vertical


Projector Size

16 cm x 50 cm x 40 cm (HxWxD)

Weight

9.1 kg

Audible Noise

37 dB  / 32 dB (Eco)

Internal Speakers

10.0 Watts Mono

Power

380 Watts 100V - 240V

Connection Panel

Audio In: Mini Jack
Audio In: RCA
Audio Out: Mini Jack
Composite: RCA
HDMI
HDMI (MHL)
Network: RJ-45
RS232: DB-9pin
S-Video
USB x 3
VGA In: Dsub-15pin
VGA Out: Dsub-15pin

Features

Picture-in-Picture
Short-Throw Wall Mount
Geometric Correction
Blackboard Mode
Laser Pointer
Crestron RoomView™


Пълно ръководство на потребителя_Benq LH890UST.pdf


Виж още Проектори BenQ

Технически характеристики

Тип:  DLP
3D:  Не
Разделителна способност (native):  1920 x 1080
Разделителна способност (max):  1920 x 1200
Яркост:  4000 lm
Контраст:  100 000:1
Мрежови възможности:  RJ-45
Говорители:  1 x 10 W
4K:  Не
Разстояние на проектиране:  0.1 - 0.3m
Short Throw:  Да
Живот на лампата:  20000 h
Предназначен за:  Образование
Формат:  16:9
