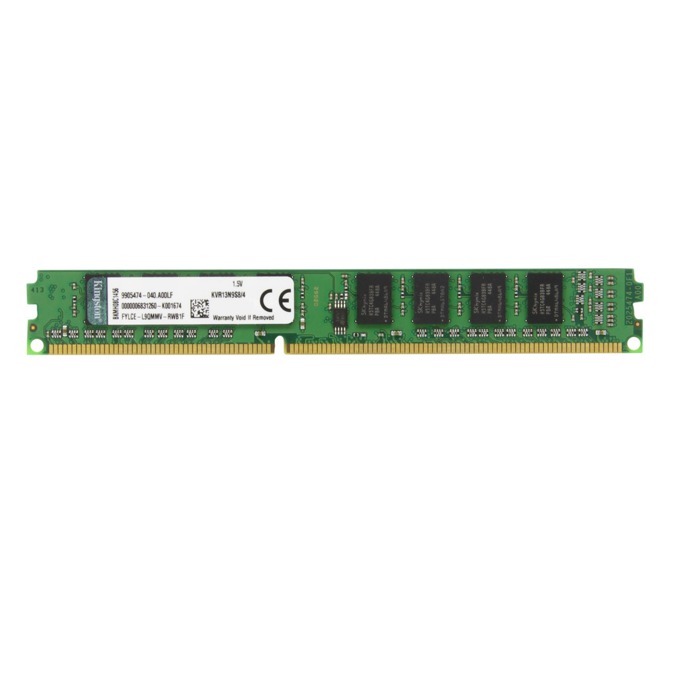

4GB 1Rx8 512M x 64-Bit PC3-10600 CL9 240-Pin DIMM
DESCRIPTION
This document describes ValueRAM's 512M x 64-bit (4GB)DDR3-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memory module, based on eight 512M x 8-bit DDR3-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers
SPECIFICATIONS
CL(IDD): 9 cycles
Row Cycle Time (tRCmin): 49.125ns (min.)
Refresh to Active/Refresh: 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin): 36ns (min.)
Maximum Operating Power: TBD W*
UL Rating: 94 V - 0
Operating Temperature: 0o C to 85o C
Storage Temperature: -55o C to +100o C
Виж още Настолни компютри Памети Kingston
Виж всички Настолни компютри Памети в категорията
DESCRIPTION
This document describes ValueRAM's 512M x 64-bit (4GB)DDR3-1333 CL9 SDRAM (Synchronous DRAM), 1Rx8 memory module, based on eight 512M x 8-bit DDR3-1333 FBGA components. The SPD is programmed to JEDEC standard latency DDR3-1333 timing of 9-9-9 at 1.5V. This 240-pin DIMM uses gold contact fingers
SPECIFICATIONS
CL(IDD): 9 cycles
Row Cycle Time (tRCmin): 49.125ns (min.)
Refresh to Active/Refresh: 260ns (min.)
Command Time (tRFCmin)
Row Active Time (tRASmin): 36ns (min.)
Maximum Operating Power: TBD W*
UL Rating: 94 V - 0
Operating Temperature: 0o C to 85o C
Storage Temperature: -55o C to +100o C
Виж още Настолни компютри Памети Kingston
Виж всички Настолни компютри Памети в категорията
Технически характеристики
| Капацитет: | 4 GB |
|---|---|
| Тип: | DDR3 |
