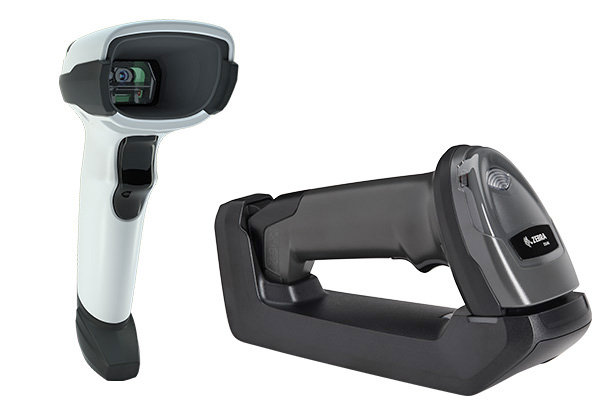

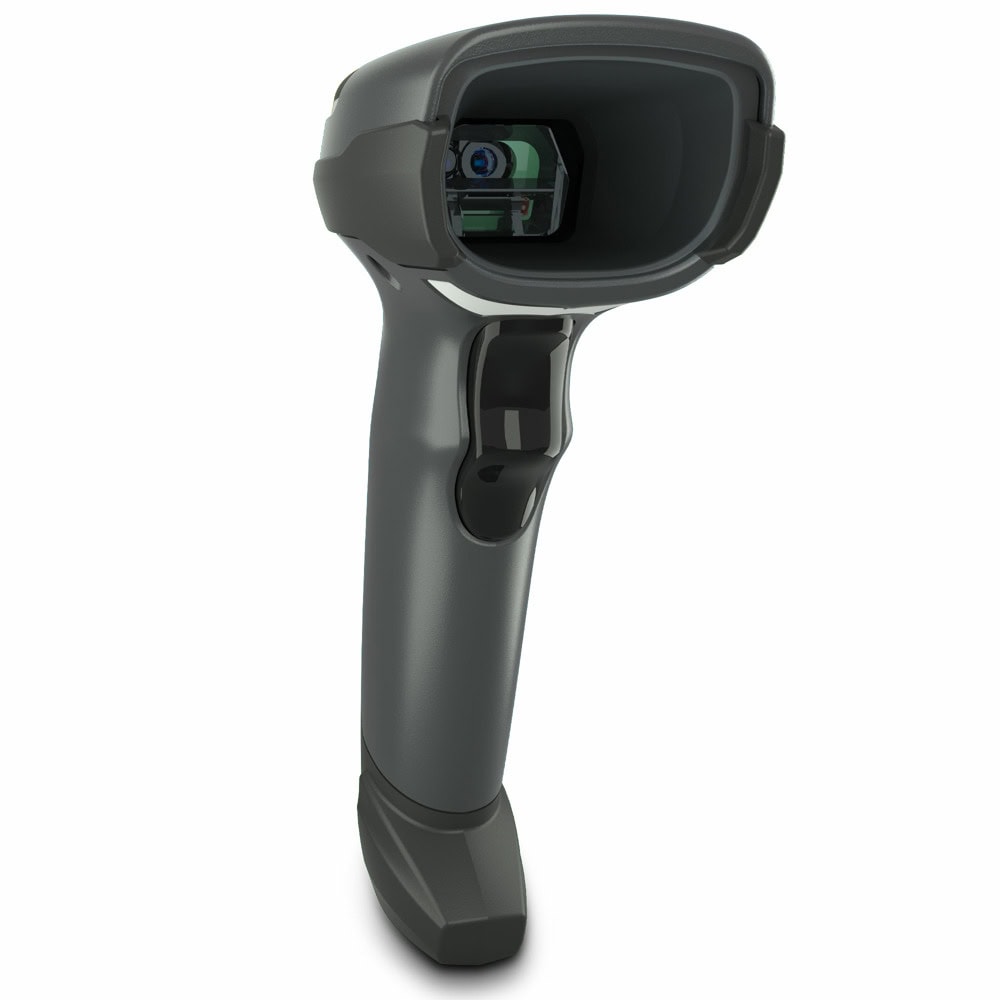

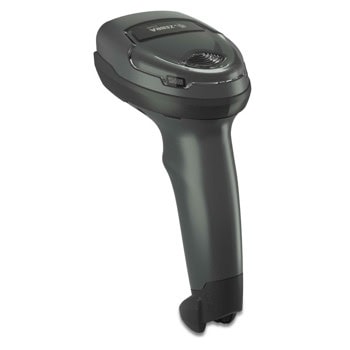

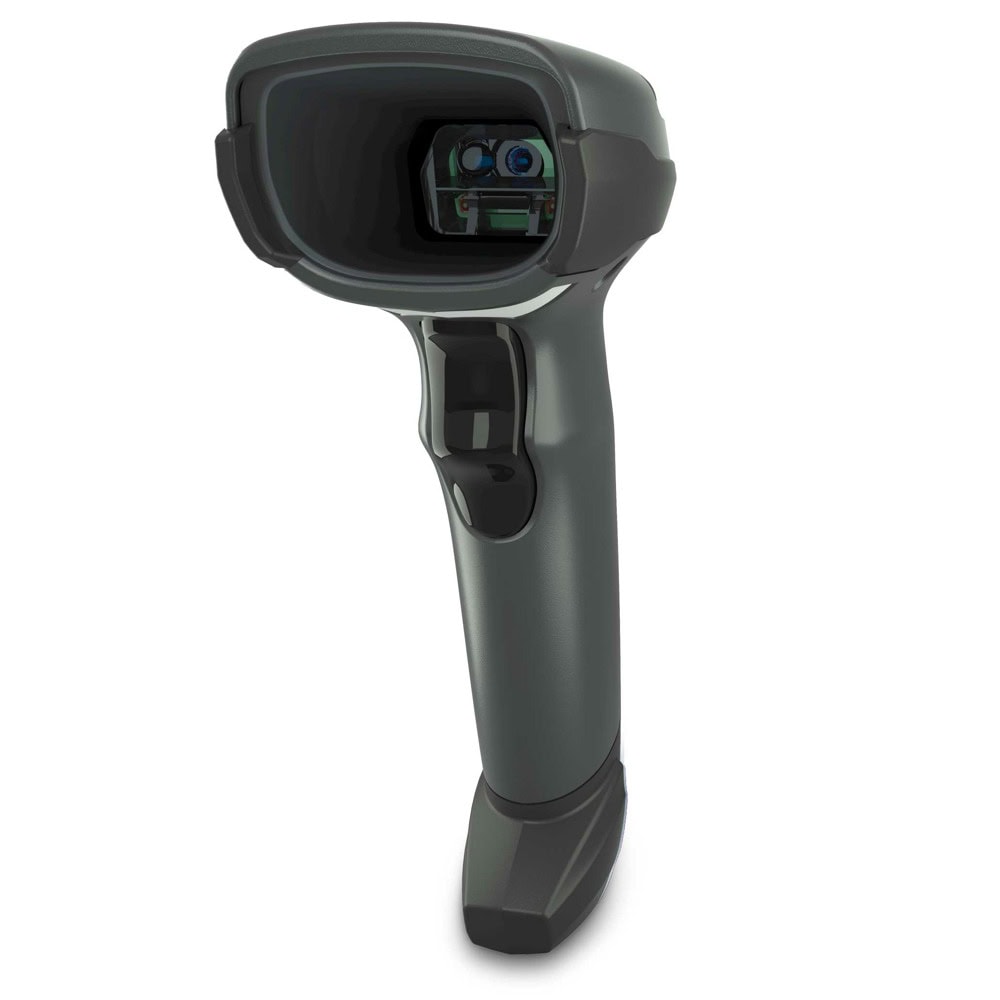

Zebra DS4608-SR7U2100AZW
Key Features
- Scan Type: 2D, 1D
- Image Sensor: 1280x800 pixels
- Scan Range: Standard Range, High Density
- Corded/Cordless: Corded
| Category | Specification |
|---|---|
| Physical Characteristics | |
| Dimensions | Corded DS4608: 6.5 in H × 2.6 in W × 3.9 in D / 16.5 cm × 6.7 cm × 9.8 cm |
| Weight | Corded: 5.7 oz (161.9 g) Cordless: 7.9 oz (225 g) Standard Cradle: 7.1 oz (201.3 g) Presentation Cradle: 6.5 oz (184.3 g) |
| Input Voltage Range | Corded: 4.5 – 5.5 VDC Host Powered / 4.5 – 5.5 VDC External Power Supply Standard/Presentation Cradle: 4.7 – 5.5 VDC Host Powered / 10.8 – 13.2 VDC External Power Supply |
| Operating Current (5.0V) | Corded: 340 mA (typical) Standard/Presentation Cradle: 470 mA (USB), 743 mA (12V) |
| Standby Current (Idle, 5.0V) | Corded: 150 mA (typical) |
| Color Options | Nova White (corded only), Twilight Black |
| Supported Host Interfaces | USB Certified, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | Supports 90+ international keyboards |
| TAA Compliance | Trade Agreement Act (TAA) Compliant |
| Electronic Article Surveillance | Compatible with Checkpoint EAS deactivation system |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear View LEDs, Beeper (tone & volume adjustable) |
| Performance Characteristics | |
| Light Source | Aiming: Circular 617 nm amber LED |
| Illumination | (2) × 660 nm red LEDs |
| Imager Field of View | 31.6° H × 22.6° V (nominal) |
| Image Sensor | 1280 × 800 pixels |
| Minimum Print Contrast | 15% minimum reflective difference |
| Motion Tolerance (Skew/Pitch/Roll) | ±60° / ±60° / 0–360° |
| Imaging Characteristics | |
| Graphics Format Support | Bitmap, JPEG, TIFF |
| Image Quality | 96 PPI on A4 (DS4600-SR) |
| Symbol Decode Capability | |
| 1D | Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma) |
| 2D | PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes, SecurPharm, DotCode, Dotted DataMatrix |
| OCR | OCR-A, OCR-B, MICR, US Currency |
| Minimum Element Resolution | Code 39 – 3.0 mil (DS4600-SR) DataMatrix – 5.0 mil (DS4600-SR) Code 39 – 2.0 mil (DS4600-HD) DataMatrix – 4.0 mil (DS4600-HD) |
| User Environment | |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Storage Temperature | –40°F to +158°F (–40°C to +70°C) |
| Humidity | 5% to 95% RH, non-condensing |
| Drop Spec | Multiple drops from 6.0 ft (1.8 m) to concrete |
| Tumble Spec | 2,000 tumbles at 1.5 ft (0.5 m) |
| Sealing | IP52 |
| ESD | ±15 kV Air, ±8 kV Direct, ±8 kV Indirect (EN61000-4-2) |
| Ambient Light Immunity | 0 – 10,000 foot candles (0 – 107,000 Lux) |
| Utilities & Maintenance | |
| 123Scan | Programs parameters, upgrades firmware, barcode data & report generation |
| Scanner SDK | Full-featured app dev kit |
| SMS (Scanner Management Service) | Remote management & asset info |
| Regulatory | |
| Environmental | 2011/65/EU, EN 50581:2012, EN IEC 63000:2018 |
| Electrical Safety | UL 60950-1, CSA-C22.2 No. 60950-1-07, EN 60950-1:2006/A2:2013, IEC 60950-1:2005/A2:2013, IEC 62368-1 (ed.2), EN 62368-1:2014 |
| LED Safety | IEC 62471:2006, EN 62471:2008 |
| EMI/RFI | FCC Part 15 Class B, ICES-003 Issue 6 Class B, EN 55032 Class B, EN 55024, EN 55035, EN 60601-1-2:2015, IEC 60601-1-2:2014 |
Виж още Баркод Скенери Zebra
Виж всички Баркод Скенери в категорията
Документация
Product BrochureТехнически характеристики
| Тип: | LED |
|---|---|
| Вид: | Ръчен |
| Интерфейс: | USB |
