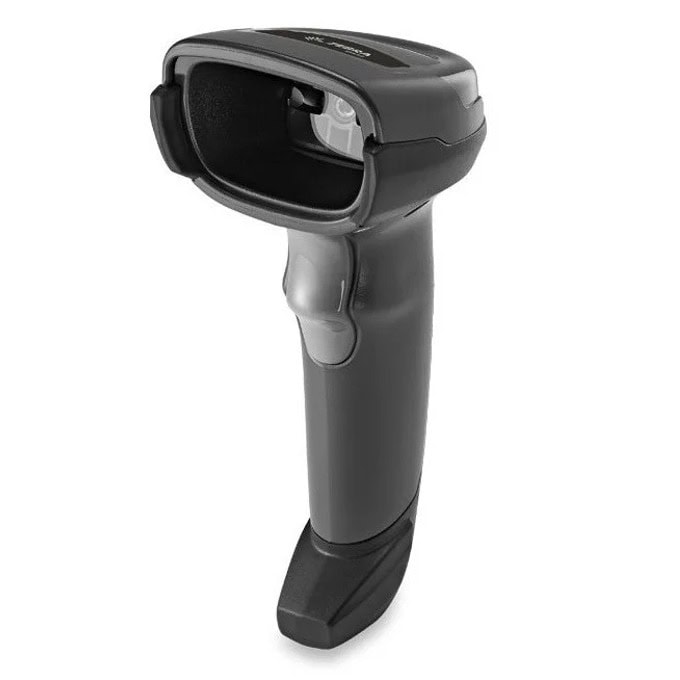

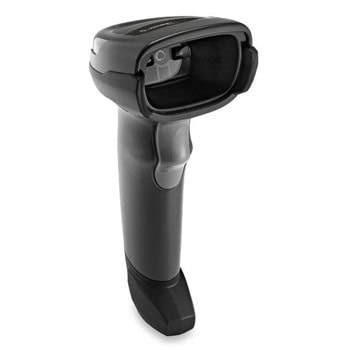

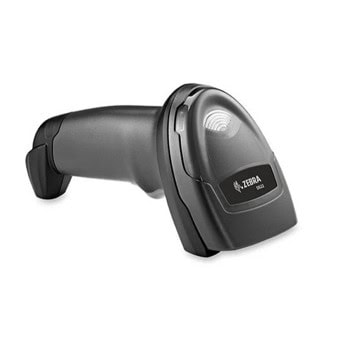

DS2208 Handheld Scanner
Key Features
- Scan Type: 2D, 1D
- Image Sensor: 640x480 pixels
- Scan Range: Standard Range
- Corded/Cordless: Corded
| Category | Specification |
|---|---|
| Physical Characteristics | |

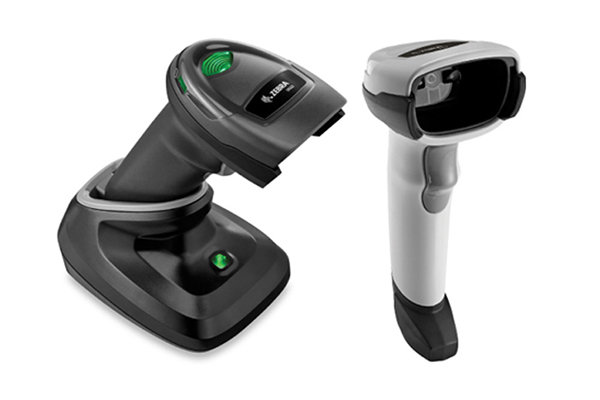

| Dimensions | Corded DS2208: 6.5 in. H × 2.6 in. W × 3.9 in. D (16.5 × 6.6 × 9.9 cm) Cordless DS2278: 6.9 in. H × 2.6 in. W × 3.5 in. D (17.5 × 6.6 × 9.0 cm) Presentation Cradle: 2.8 in. H × 3.7 in. W × 4.8 in. D (7.2 × 9.4 × 12.2 cm) |
| Weight | Corded DS2208: 5.7 oz / 161.6 g Cordless DS2278: 7.5 oz / 214 g Cradle: 5.2 oz / 151 g |
| Input Voltage Range | DS2208/DS2278 & Cradle: 4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply |
| Current | DS2208 Operating Current: 250 mA @ 5.0V DS2208 Standby Current: 150 mA @ 5.0V Cradle + Micro USB Cable: 500 mA (Standard USB), 1100 mA (BC 1.2 USB) |
| Color | Nova White, Twilight Black |
| Supported Host Interfaces | USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485 |
| Keyboard Support | >90 international keyboards |
| User Indicators | Direct Decode Indicator, Good Decode LEDs, Rear LEDs, Beeper (adjustable tone & volume) |
| Performance Characteristics | |
| Motion Tolerance (Handheld) | Up to 5 in./13 cm per second (13 mil UPC) |
| Swipe Speed (Hands-Free) | Up to 30 in./76.2 cm per second (13 mil UPC) |
| Light Source | Aiming: Linear 624 nm Amber LED |
| Illumination | (2) 645 nm Super-Red LEDs |
| Imager Field of View | 32.8° H × 24.8° V (nominal) |
| Image Sensor | 640 × 480 pixels |
| Minimum Print Contrast | 25% reflective difference |
| Skew/Pitch/Roll Tolerance | ±65° / ±65° / 0–360° |
| Minimum Element Resolution | Code 39: 4.0 mil Code 128: 4.0 mil Data Matrix: 6.0 mil QR Code: 6.7 mil |
| User Environment | |
| Operating Temperature | DS2208/DS2278: 32°–122°F (0°–50°C) Cradle: 32°–104°F (0°–40°C) |
| Storage Temperature | -40°–158°F (-40°–70°C) |
| Humidity | 5%–95% RH, non-condensing |
| Drop Spec | Multiple drops at 5.0 ft/1.5 m to concrete |
| Tumble Spec | 250 tumbles in 1.5 ft/0.5 m tumbler |
| Environmental Sealing | IP52 |
| Electrostatic Discharge (ESD) | ±15 kV Air, ±8 kV Direct, ±8 kV Indirect (EN61000-4-2) |
| Ambient Light Immunity | 0–10,000 Foot Candles (0–107,600 Lux) |
| Radio Specifications | |
| Bluetooth | Version 4.0 with BLE Range: Class 2, min 30 ft (10 m), up to 300 ft (100 m) with cradle Profiles: Serial Port & HID Output Power: Adjustable down from 2.0 dBm in 8 steps |
| Battery (DS2278 Cordless) | |
| Capacity / Type | 2,400 mAh Li-Ion |
| Scans per Charge | 110,000 scans @ 60 scans/min 50,000 scans @ 10 scans/min |
| Operating Time | Up to 84 hours |
| Charge Time (14 hr shift / Full) | Standard USB: 4 hrs / 17 hrs BC1.2 USB: 1 hr / 5 hrs External 5V: 1 hr / 5 hrs Micro USB: 1 hr / 7 hrs BC1.2 Micro USB: 1 hr / 4 hrs |
| Regulatory | |
| Electrical Safety | EN 60950-1, IEC 60950-1, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 |
| Environmental | RoHS EN 50581 |
| LED Safety | IEC 62471 |
| IT Emissions | EN 55032 (Class B) |
| IT Immunity | EN 55024 |
| Harmonic Current | EN 61000-3-2 |
| Voltage Fluctuation & Flicker | EN 61000-3-3 |
| Radio Frequency Devices | 47 CFR Part 15, Subpart B, Class B |
| Digital Apparatus | ICES-003 Issue 6, Class B |
Виж още Баркод Скенери Zebra
Виж всички Баркод Скенери в категорията
Документация
User manualТехнически характеристики
| Тип: | LED |
|---|---|
| Вид: | Ръчен |
| Интерфейс: | USB |
