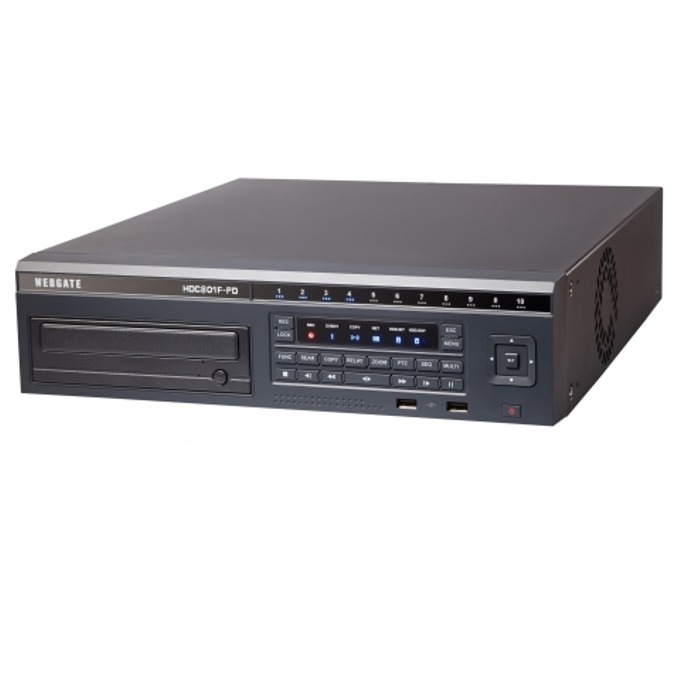

Видеорекордер DVR Webgate HDC801F, 8 канален, H.264 / JPEG, 2x SATA, 2x USB 2.0, 2x RS485, 1x RS-232C, 1x HDMI 1x VGA

Video Input:
Video input standard- SMPTE 292M (HD-SDI)
Resolution / framerate- SMPTE 274M (1080p, 1920x1080) : 25, 30, 29.97 FPS
Input format auto detection
Connectors- 8ch, 75Ω BNC connector


Video output:
HDMI
1, 4, 8 split-screen
User defined sequence / Alarm pop-up
1920x1080p via HDMI port


Recording:
Compression- H.264 / JPEG
Resolution- 1920x1080
Rate- 240/200 fps at 1080p
Quality- 1080p, 10 levels up to 12Mbps
Mode- Manual & Event / Schedule & Event / Continuous & Event
Schedule- 24hrs / 7days


Playback:
Mode- Instant playback / search
Speed- Max. 240/200 fps at 1080p
Search type- Time, Calendar, Timeline, Event, Thumbnail, Smart, Text
Block playback- 24hours ~ 99days


Event & alarm:
Event source- MD(Motion Detection), sensor, text, Video Loss
Event check schedule- 24hrs / 7days
Event action- Buzzer, Relay, E-mail, FTP, Alarm pop-up
MD area- 15x10
Sensor input- Dry contact (NO or NC selectable)
Text input- POS/ATM support, AVE VSI Pro/Hydra support


System alarm:
Alarm source- HDD fail, HDD almost full, Fan fail, Password fail, WRS fail
Alarm action- Warning message, Buzzer, E-mail, Relay


Audio:
Input/output- Input 4ch RCA / output HDMI, RCA
Compression- 16KHz, 16bit sampling ADPCM
Direction- Both


PTZ:
Protocols- 35 models including C1080, C1080PT-Z20, Pelco-D, Pelco-P, Samsung,Panasonic and others


Network:
Interface- 1 Gigabit Ethernet (10/100/1000Mbps)
Type- Static IP, Dynamic IP, xDSL
DDNS- WNS, DynDNS, NoIP, WRS
Bandwidth limit- Supported
NTP- Server / Client / Both
Users- 10 monitoring, 2 playback
Streaming:
1 HD, H.264 stream, Same as recording setting
1 additional H.264 stream, nHD(640 x 360)
1 JPEG stream, nHD(640 x 360) for e-mail or mobile


Security:
User level- 1 admin, 10 users
User privilege- Menu, PTZ, Relay, Playback, Power, Copy, Network MIC
IP filtering- Supported


Storage & Backup:
Storage devices- 2 internal SATA HDDs, 1 external eSATA Interface,
File system- Proprietary file system, data-loss protection against power-failure
Capacity- Max. 32TB with eSATA
Backup type- Multi-channel or Single channel avi file
Backup device- USB drive (2 ports)
S.M.A.R.T.- Temperature and Health checking


Serial & I/O:
Serial port- 1 RS-232C, 2 RS-485
Sensor input- 8 Dry-contact
Relay output- 2 Relay


Controller:
Device- Front panel, IR remote, Joystick Keyboard, Mouse


Software:
Web viewer- Monitoring / Event / PTZ / Playback with IE
Java viewer- Monitoring / Event/ PTZ with IE, Chrome, Safari
Mobile viewer- Monitoring / PTZ / LogView with iPhone & Android
CMS- Control Center Standard, Max. 1024 DVRs
SDK- ActiveX(COM) SDK


Environmental & physical:
Dimension- 350(W) x 393(D) x 88(H) mm
Weight- 8 Kg (No HDD)
Operating temperature- 5°C~45°C (41°F ~ 113°F)
Power- AC free volt (100 ~ 240VAC), 50/60Hz
PoC Power- DC 24V/7.5A (Option)
Power consumption- Max. 100W Typical 70W (1HDD)
Approval- KC, FCC, CE, RoHS, HDcctv
