Проектор Vivitek DU5053Z-WH, 3D Ready, DLP, WUXGA (1920x1200), 3 000 000:1, 7500lm, HDMI, USB, RS232, LAN

DU5053Z

Reliable and easy-to-install conference projectors

The all-new DU5053Z is designed for easy installation and outstanding brightness up to 7,500 lumens to deliver excellent projector image during the meeting. It features two optics lens options(Std. and short Lens
), 3D-Ready, installation flexibility and portable with a 1.65x zoom lens, keystone and corner correction all in a compact chassis to make installation more flexible. Supports 21:9 aspect ratio to have a wider and stunning meeting experience for video conferences.

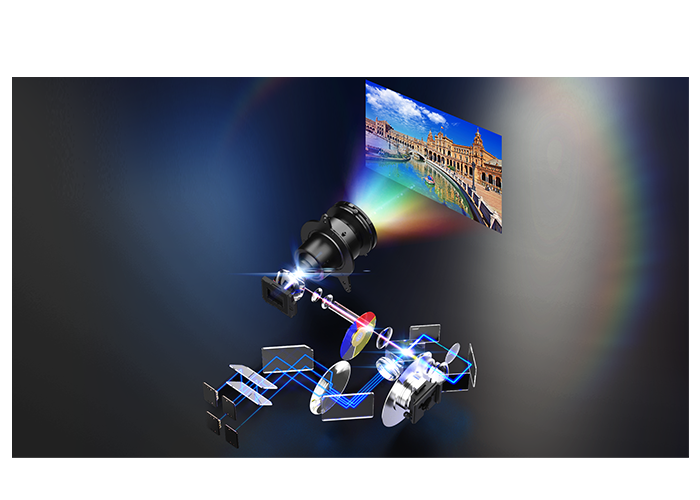

Brightness and Color Performance

The DU5053Z features up to 7,500 lumens of high brightness, 3,000,000: 1 contrast ratio and offers the next generation of advanced vivid color technology to deliver a perfect image display.

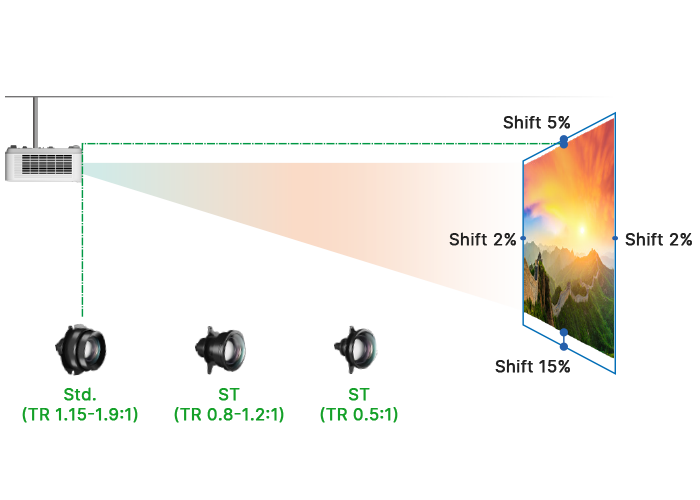

Flexible Installation options

The DU5053Z is equipped with a 1.65X big zoom optical lens and supports a throw ratio of 0.5 to 1.9:1. It can provide flexible projection distance installation in any challenging environments. With the horizontal/vertical lens shift, even if the projector cannot be placed in the middle position, it can be flexibly adjusted to provide a perfect ratio image.

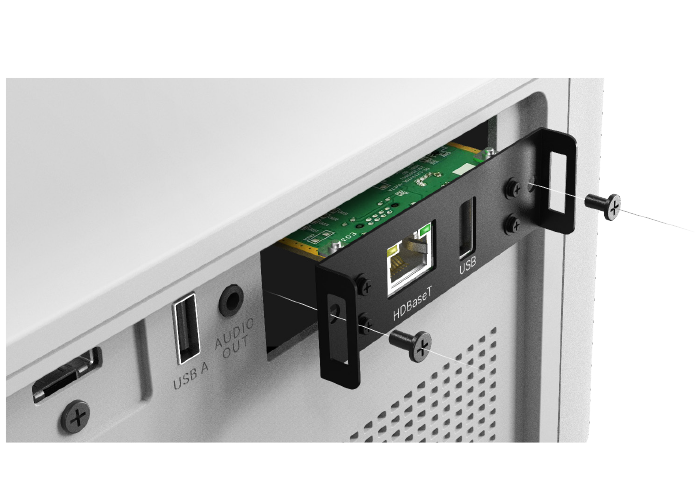

Support HDBaseT™ Connectivity

The DU5053Z provides optional single board for HDBaseT™ interface with long-distance signal transmission of high-quality audiovisual content. HDBaseT™ reduces cabling requirements and installation, saving time and costs.

Specifications

Display

Projection System

1-Chip DLP™ 0.67 inch

Resolution

WUXGA (1920 x 1200)

Light Source

Laser

Optics

Brightness

7,500 lm

Brightness Uniformity

85%

Contrast Ratio

3,000,000:1 (Full On/Off)

Light Source Life

20,000 hrs (Normal)

Lens Type

Fixed

Zoom Ratio

1.65x

Lens Throw Ratio

1.15~1.9 : 1

Lens Shift - Horizontal (Full Image Width)

Above +/-2%

Offset (Full Image Width)

+95% ~ +115%

Geometry Adjustment

Keystone Correction

Yes (H/V)

Four Corner Adjustment

Yes

I/O Terminal

HDMI

2.0 In x2 / Out x1

DisplayPort

N/A

SDI

N/A

DVI-D

N/A

YPbPr

N/A

D-Sub

N/A

3D Sync

Out x1

RJ45

HDBaseT x1(Optional), LAN x1

RS-232

In x1

Wire Remote

N/A

Speaker

10W x1

USB

Type A (5V/1.5A power only) x1

12V Trigger (mini Jack)

N/A

5 BNC

N/A

Audio

Audio-In (Mini-Jack) x1

System

Power Supply

AC 110-240V 50/60Hz

Power Consumption ±5%

525W

Standby Power

< 0.5W (Network Off)／< 2.0W( Network On)

Acoustic Noise ±5%

36dB \ 31dB (Normal \ Eco Mode)

Dimension ±2%

496 x 380 x 160 mm

Weight ±1kg

12 kg

3D Display

Active

24x7 Operation

Yes

Dust Proof*4

IP5X

Operation Oreinetation

360˚ free installation

Operation Environment

Temp. 5~40˚C / Humidity10~85%

Storage Environment

Temp. -10~60˚C / Humidity 5~95%
