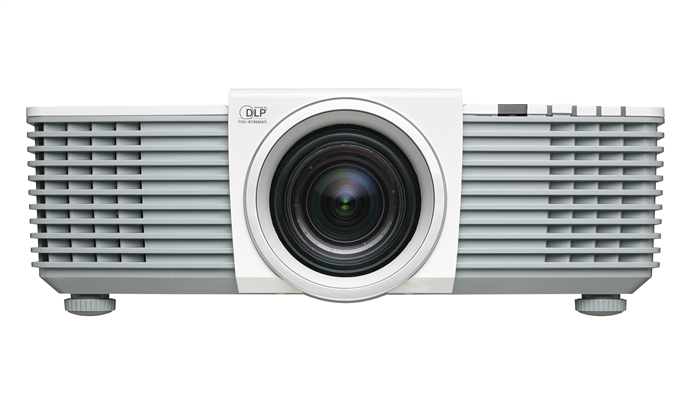

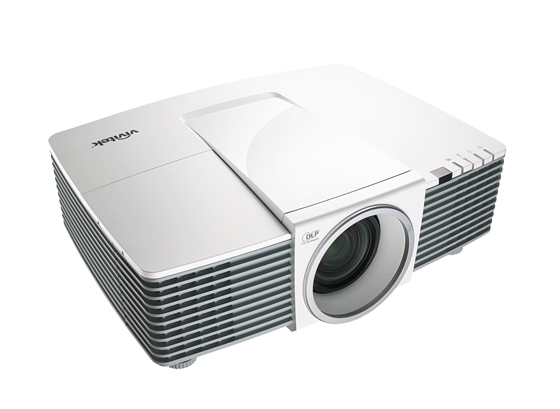

DH3331
Versatile Installation Projector
|
Feature rich with extensive connectivity. The DH3331 features a 1080p native resolution and 5000 ANSI lumens to ensures clear, crisp and bright projection. Its 1.7x zoom centered lens and manual horizontal and vertical lens shift enables great installation flexibility. The projector’s performance is further enhanced with its HDBaseT connectivity allowing HD video and audio sending over standard LAN cable without risking any quality compromise over long distance. The dual-7W built-in speakers and the microphone input ensure clear sound in a meeting room. |
 |
 |
Key features
|
SPECIFICATIONS
Native Resolution: 1080p (1920 x 1080)
Brightness: 5000 ANSI Lumens
Contrast Ratio: 10,000:1
Max. Supported Resolution: WUXGA (1920 x 1200) @60Hz
Native Aspect Ratio: 16:9
Lamp Life and Type: 1,500 / 3,500 Hours (Normal / Eco. Mode), 370W/280W
Display Type: Single chip DLP® Technology by Texas Instruments
Chip Size: 0.65" DMD
Throw Ratio: 1.25 - 2.13:1
Image Size (Diagonal): 21" - 361"
Projection Distance: 1 - 10 m
Projection Lens: F = 2.45 - 3.22, f = 18.8 - 32 mm
Zoom Ratio: 1.7x
Lens Shift ( Based on Full Image Height): Vertical +28.7%, -13.5%; Horizontal +/-10.3%
Offset (Based on Full Image Height): 105% - 146%
Keystone Correction: Vertical: +/-30°; Horizontal: +/-25°
Speakers: 7W x2
Video Compatibility: SDTV (480i, 576i) / EDTV (480p, 576p) / HDTV (720p, 1080i, 1080p), NTSC (M, 3.58/4.43 MHz), PAL (B,D,G,H,I,M,N) SECAM (B,D,G,K,K1,L)

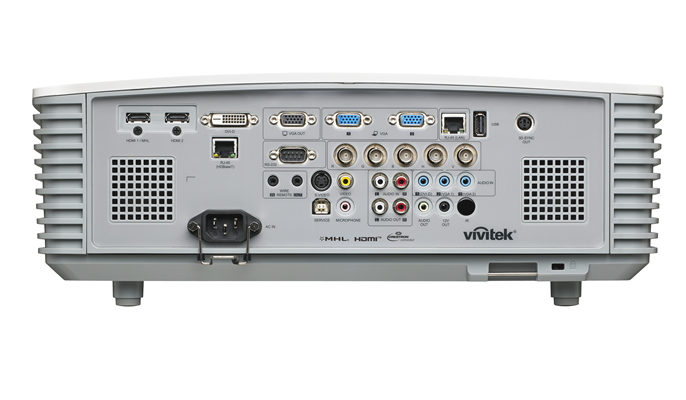

I/O Connection Ports: VGA-In (15pin D-Sub) (x2), HDMI (x2: HDMI/MHLx1, HDMIx1), DVI-D, Component (5 BNC) (RGBHV), S-Video, Composite Video, Audio-In (RCA), Audio-In (Mini-Jack) (x3), VGA-Out (15pin D-Sub), Audio-Out (RCA), Audio-Out (Mini-Jack), RJ45 (x2: LANx1, HDBaseTx1), 12v Trigger, RS-232, 3D-Sync, USB A (Power Only), USB B (Service), Microphone (Mini-Jack), Remote Jack(wire remote)
Dimensions (W x D x H): 445 x 331 x 162 mm
Weight: 8.4 kg
Noise Level 36dB / 33dB (Normal / Eco. Mode)
Power: Supply: AC 100-240V, 50/60Hz Consumption: 380W (Eco. Mode), 480W (Normal Mode), <0.5W (Standby)
3D Ready(DLP link, PC+Video): Yes
Spare Lamp P/N: 5811119760-SVV
3D Glasses P/N: 3534257700
Remote Control P/N: 5041846600
Standard Accessories: VGA Cable, User Manual (CD), Quick Start Guide, Warranty Card (by region), Remote Controller (with battery), AC Power Cord
UPC Code: 813097020345
Виж още Проектори Vivitek
Виж всички Проектори в категорията
Документация
Data SheetТехнически характеристики
| Тип: | DLP |
|---|---|
| 3D: | 3D Ready |
| Разделителна способност (native): | 1920 x 1080 |
| Разделителна способност (max): | 1920 x 1200 |
| Яркост: | 5000 lm |
| Контраст: | 10000 |
| Мрежови възможности: | RJ-45 |
| Говорители: | Да |
| 4K: | Не |
| Разстояние на проектиране: | 1.0m - 10.0m |
| Short Throw: | Не |
| Живот на лампата: | 3000 h |
| Предназначен за: | Бизнес |
| Формат: | 16:9 |
