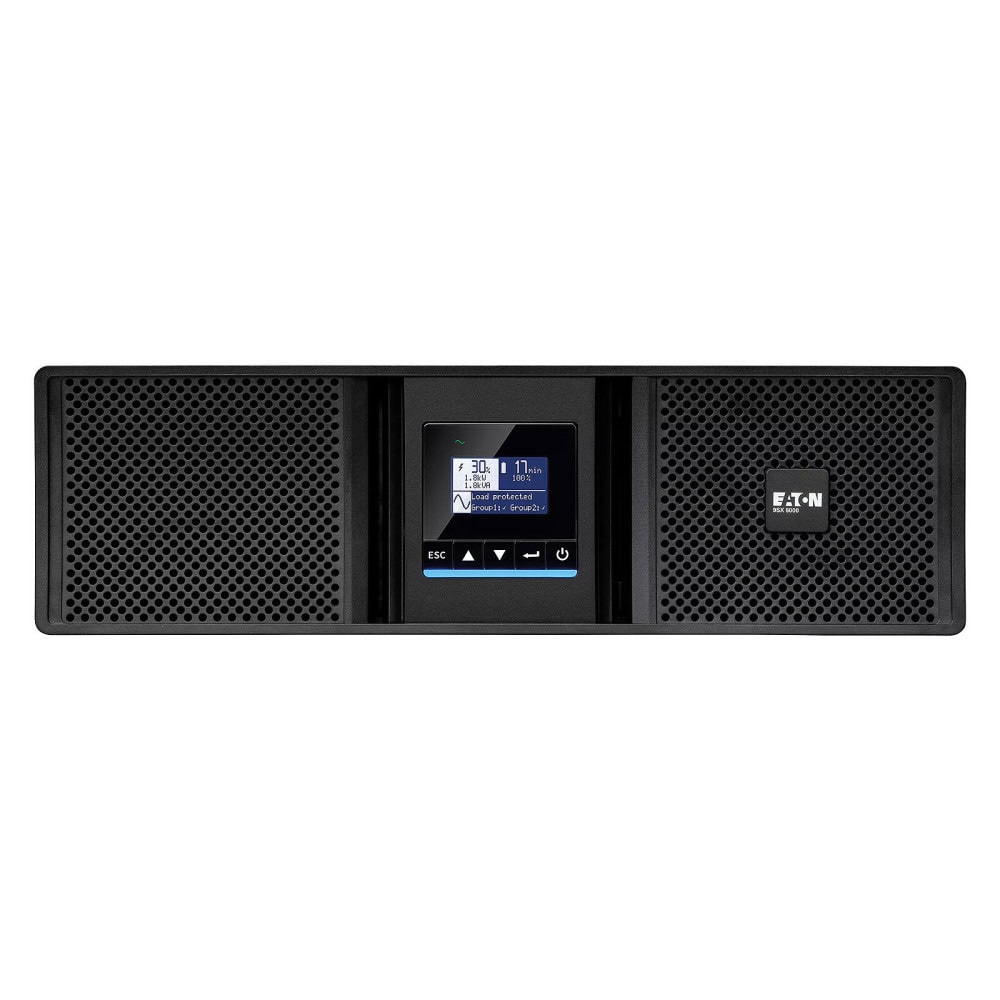

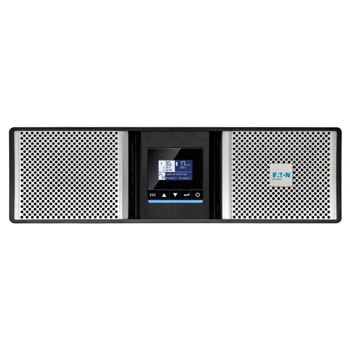

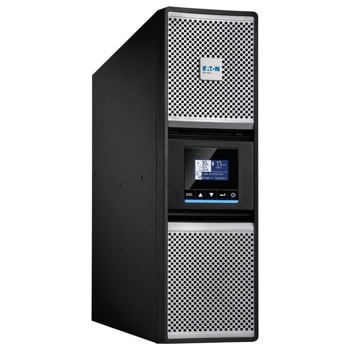

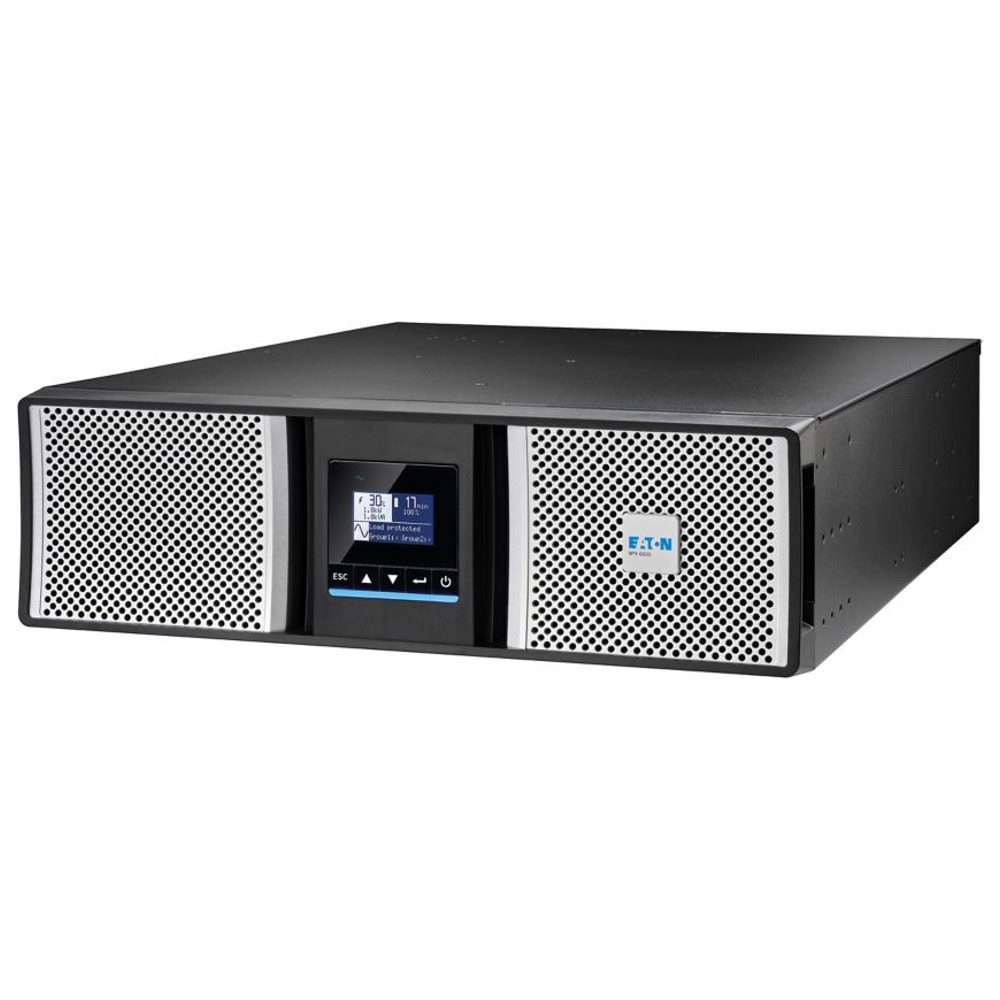

Name: UPS Eaton 9PX Gen2 UPS Netpack (9PX5KIRTNG2), 5000VA/5000W, ON Line, Rack&Tower
Brand: Eaton
SKU: UPSEATON9PX5KIRTNG2
Price: 4586.01 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

Eaton 9PX Gen2 UPS Netpack, 5000 VA, 5000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included

Specification	Value
Product Length/Depth	684 mm
Product Height	130 mm
Product Width	440 mm
Product Weight	43.1 kg
Compliances	LVD Directive (CB), EMC Directive, RoHS Directive, REACH, WEEE Directive, Packaging Directive, Batteries Directive
Certifications	IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM
Auto shutdown function	Yes
Color	Black/silver
Construction type	482.6 mm (19 inch) device
Efficiency at max. load	96.7
Hot swap power	No
Internal bypass	Yes

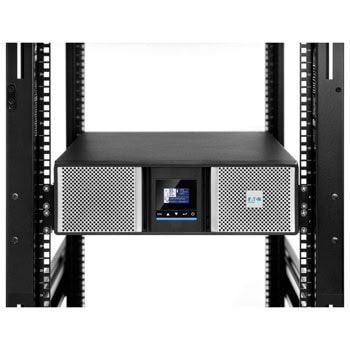

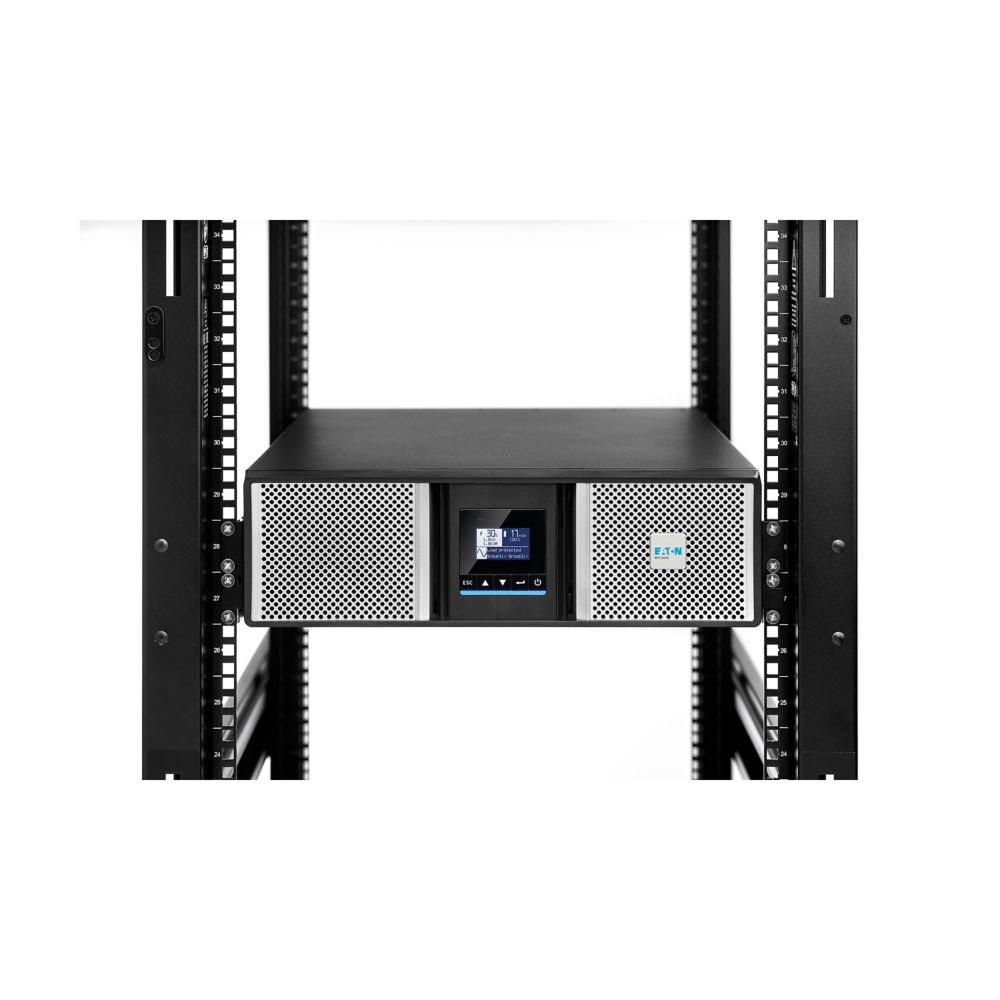

Rack mounting kit	Yes

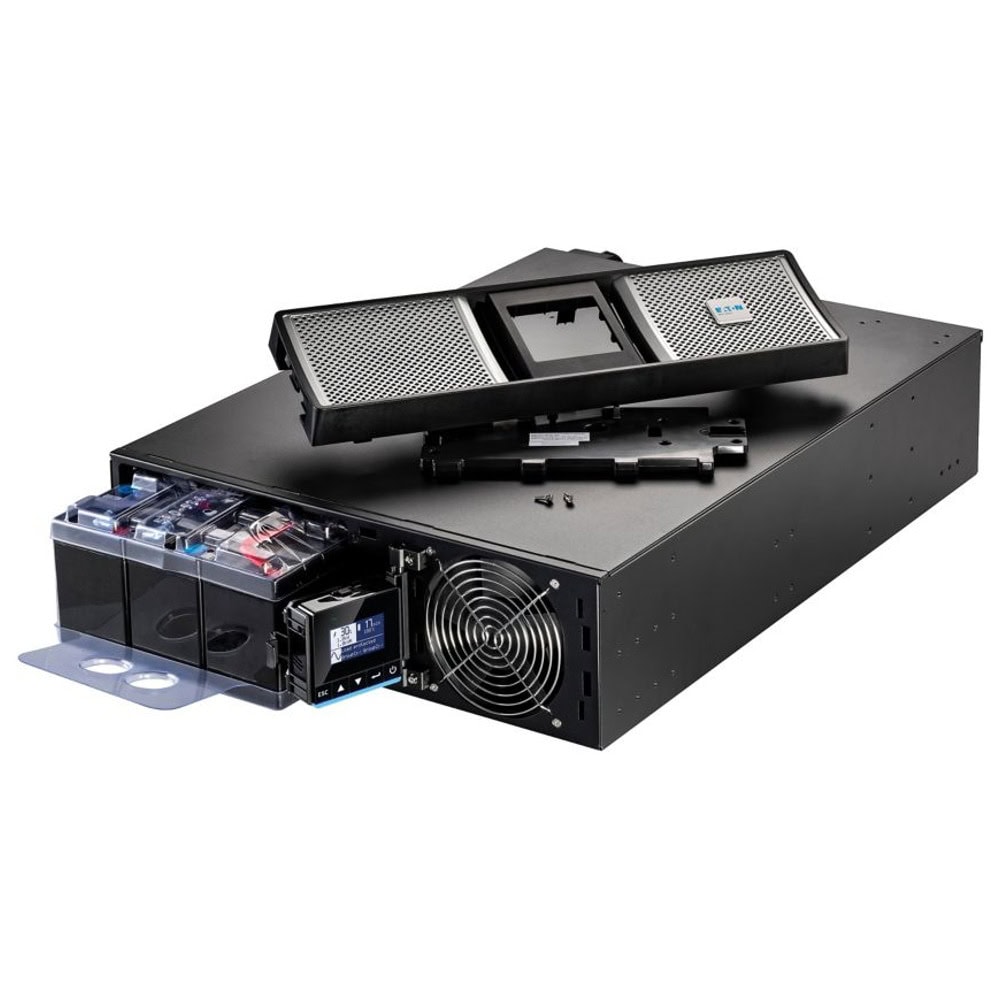

Battery management	ABM+ (Predictive battery life) & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units
Battery quantity	15
Battery rating	12 V / 5 Ah
Battery type	Sealed, lead-acid
Extended battery capability	Yes
Runtime graph	View runtime graph
Communication	USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Mini-terminal block for dry contacts outputs (2 contacts), Network card
Ethernet interface	Yes
Expansion slots	One slot, network card included
Includes network card	Yes
Potential free switch contact	Yes
Software compatibility	Eaton Brlightlayer Software suite
Type of interface	Other

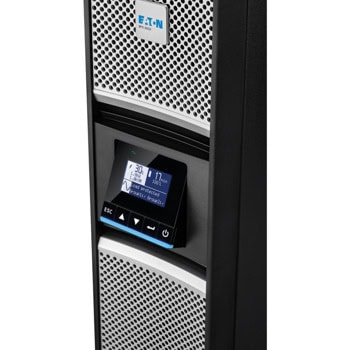

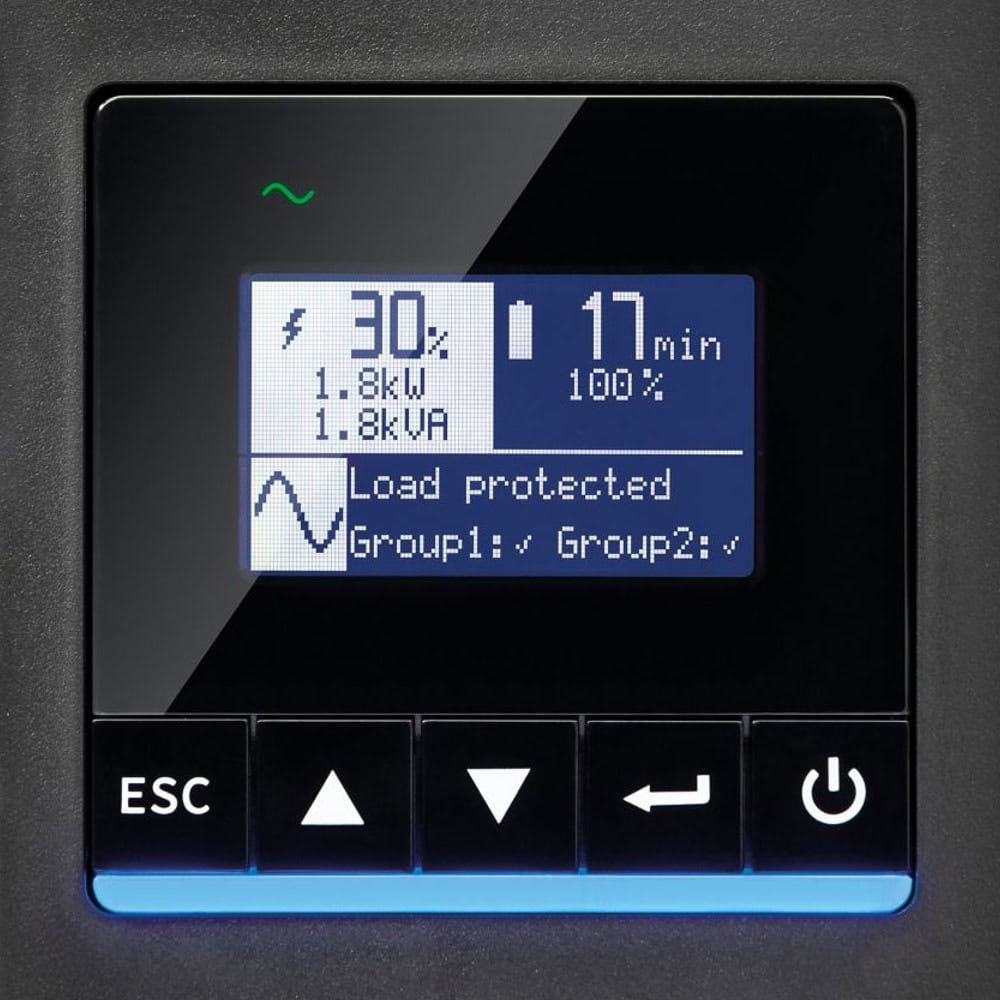

User interface	Multilingual graphical LCD display
Input frequency range	40-70 Hz
Input power factor	>.99
Input voltage range	176-276 V (100-276 V with derating)
Nominal frequency	50/60 Hz
Feed type	1
Output nominal voltage	230V default (200/208/220/230/240V)
Output power factor	1
Output voltage range	200/208/220/230/240 V +/- 1%
Output waveform	Sine wave

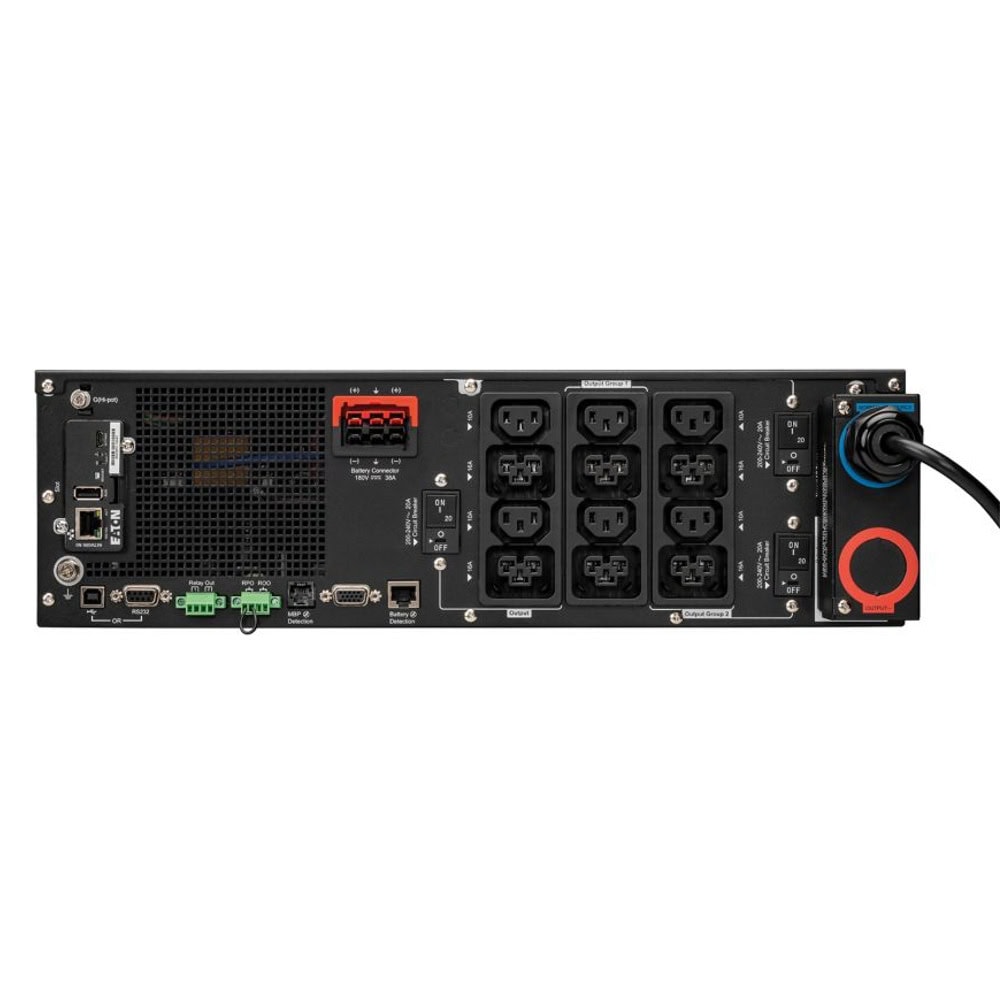

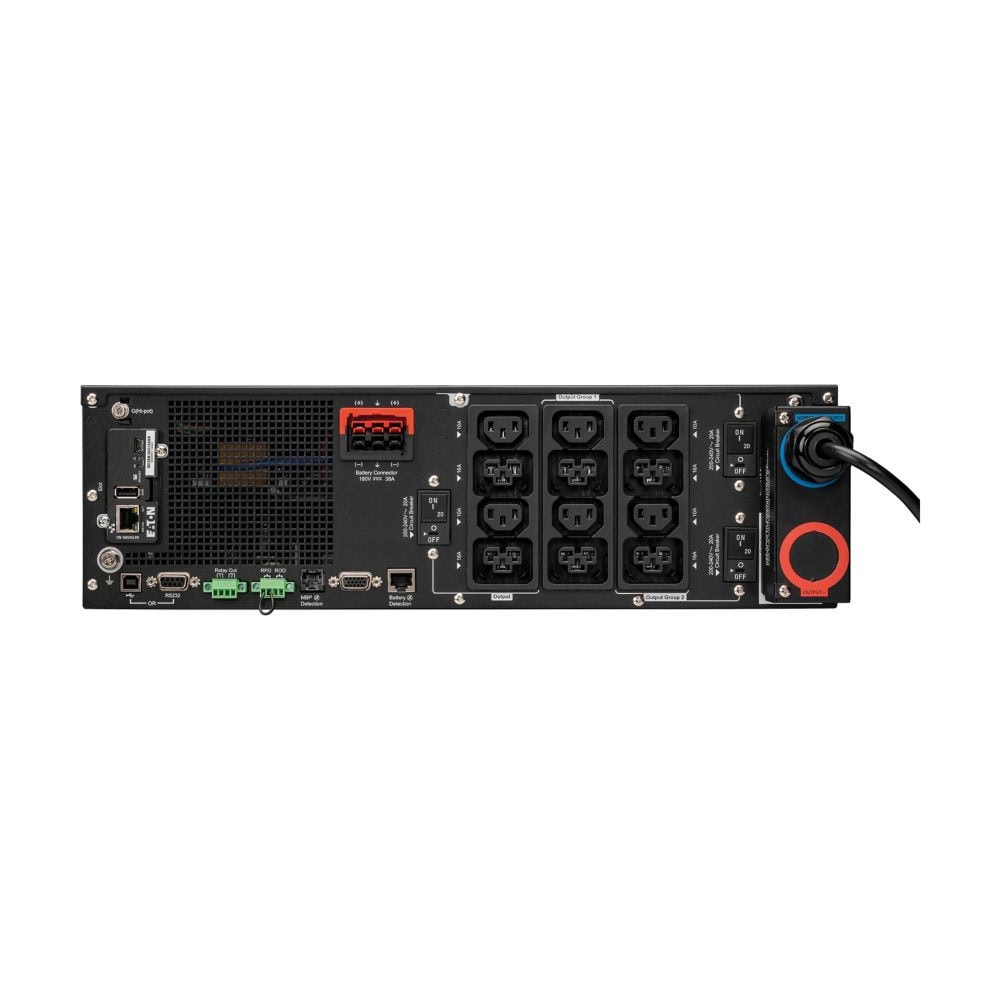

Receptacle	(6) C13, (6) C39, Hardwired
Topology	Online/Double-conversion
VA rating	5000 VA
Voltage	230V
Voltage distortion output (linear load) - max	1
Wattage	5000W
