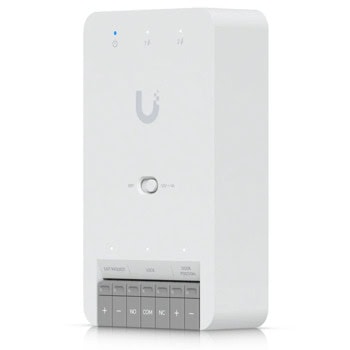

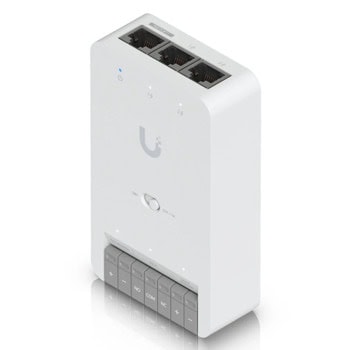

Контролен хъб Ubiquiti UA-Hub-Door-Mini, за 1 врата, 3x 10/100/1000Mbps LAN (1x PoE++ input, 2x PoE+ outputs)

Door Hub Mini

UA-Hub-Door-Mini

Dimensions

113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1")

UniFi Application Suite

Access

✓

Supported Doors

1

Maximum User Count

3,000

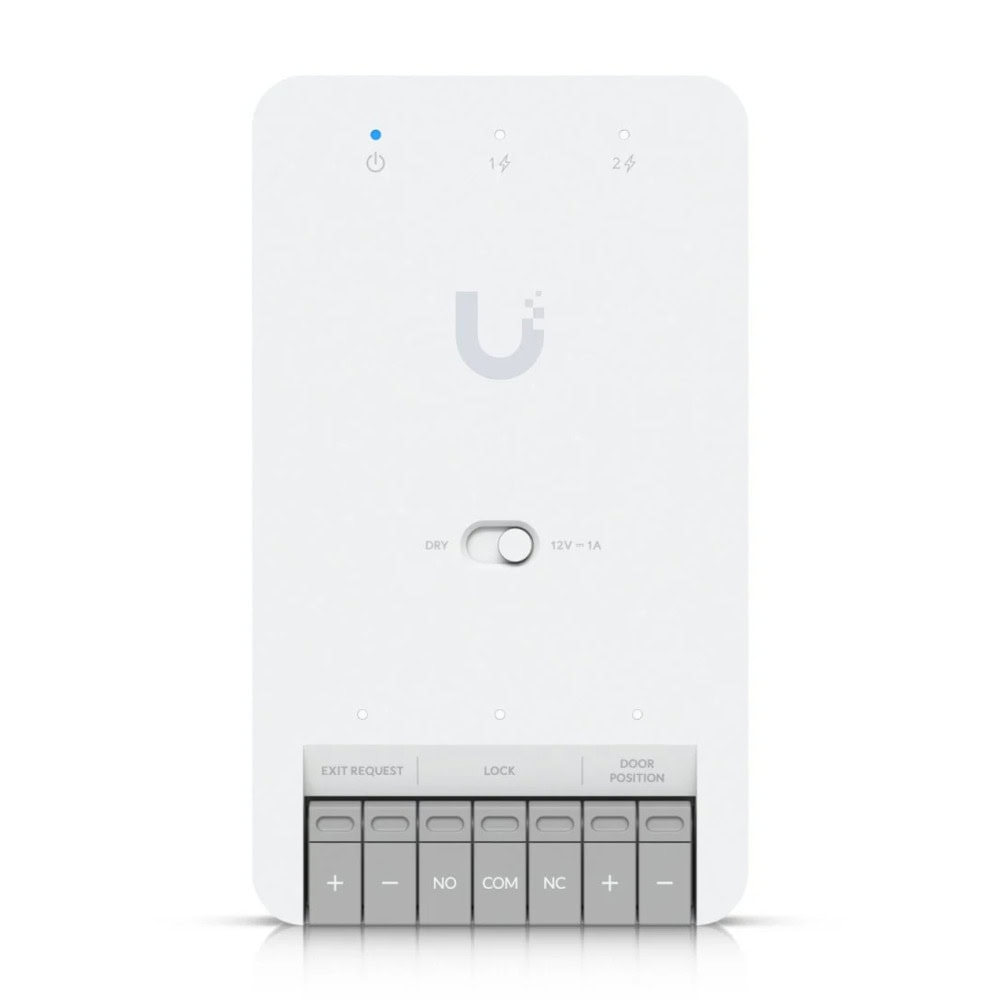

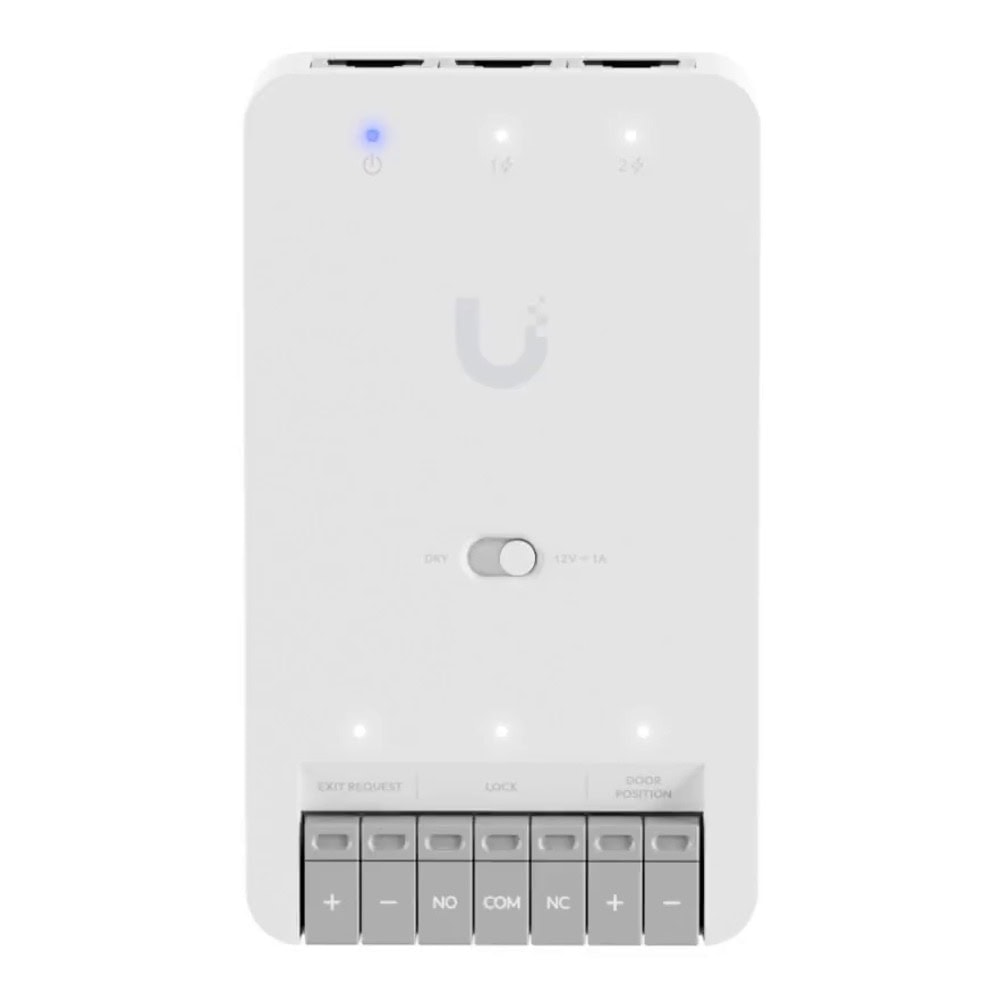

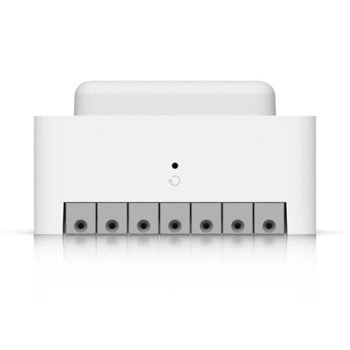

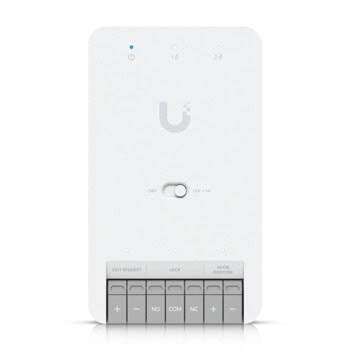

Input Terminals

(1) Door exit request (1) Door position

Power Method

PoE++ UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

NDAA Compliant

✓

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weight

190 g (6.7 oz)

Enclosure Material

Polycarbonate, metal

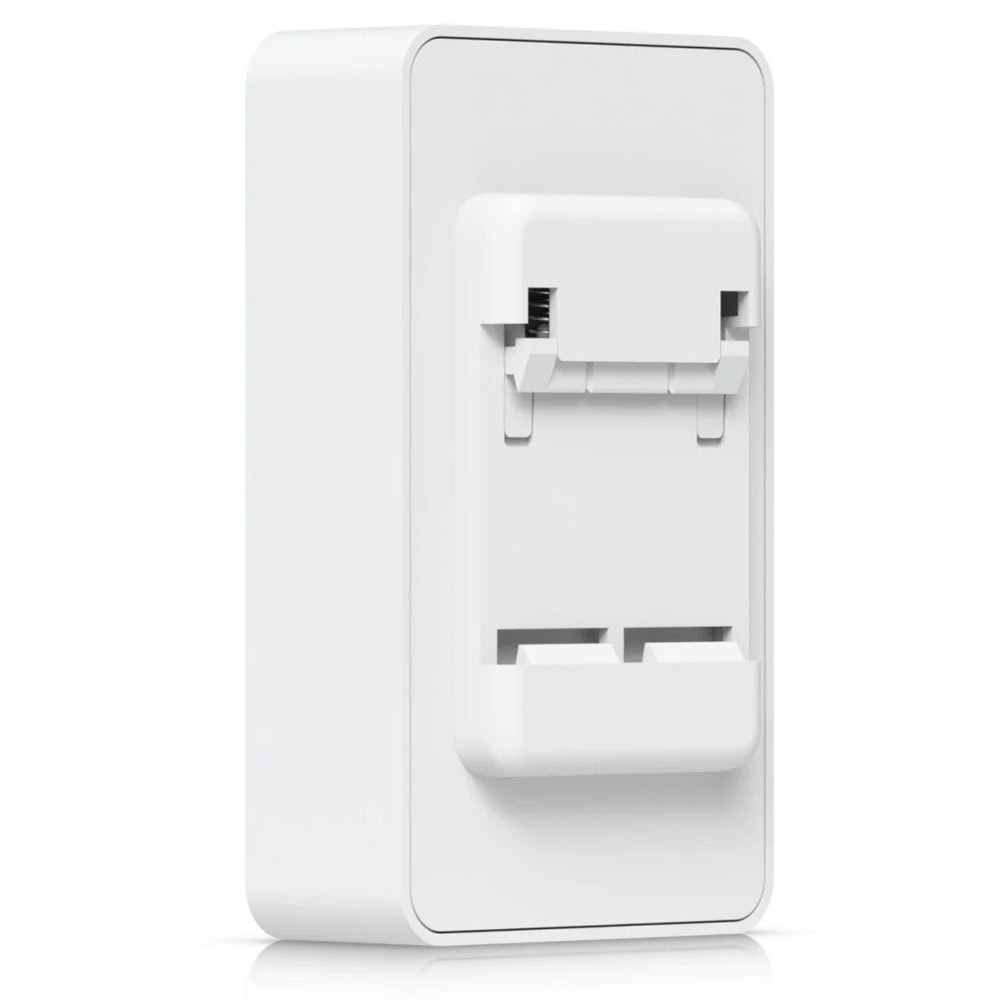

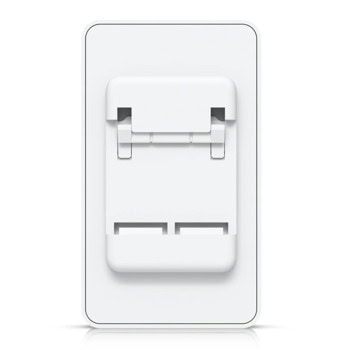

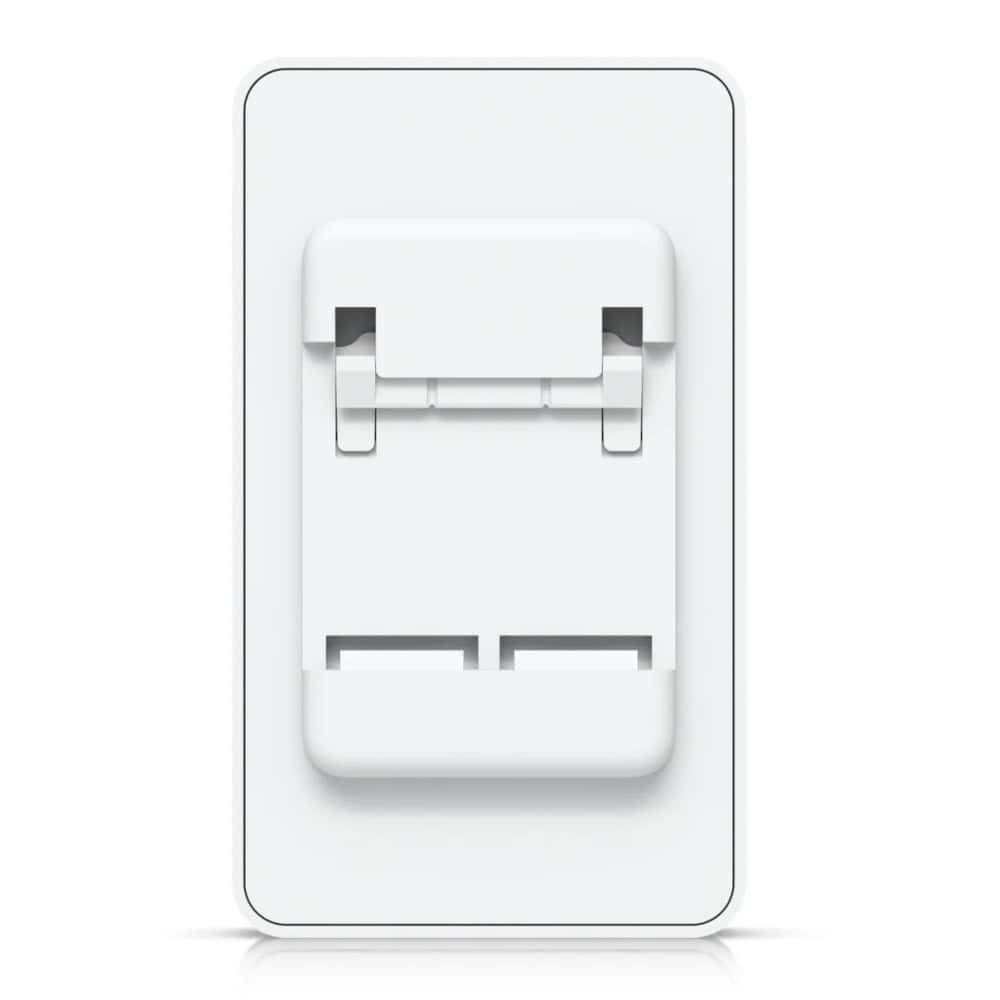

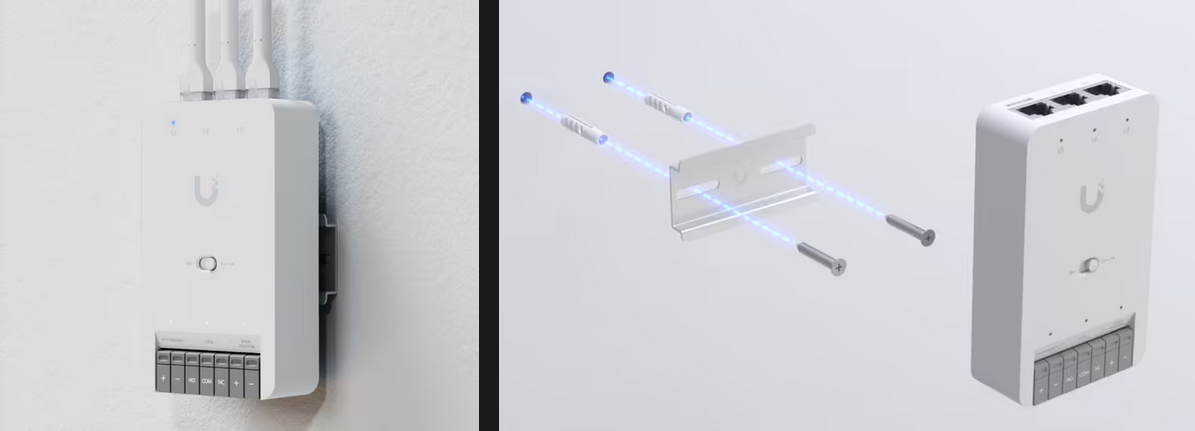

Mounting

DIN-rail (Included)

Dry Output Relay

30V DC, 1A

Wet Output Relay

12V DC, 1A

Indoor and Outdoor Use

Indoor only

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 90% noncondensing

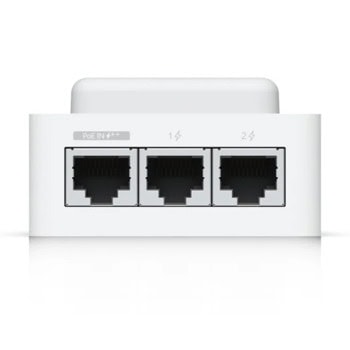

Networking Interface

(3) GbE RJ45 ports

PoE Interface

(1) PoE++ input, 50V DC, 1A (2) PoE+ outputs, 50V DC, 30W per port (Max 45W aggregated)

Max. Power Consumption

19W (Without PoE output) 50W (With PoE output)

LEDs

W/B

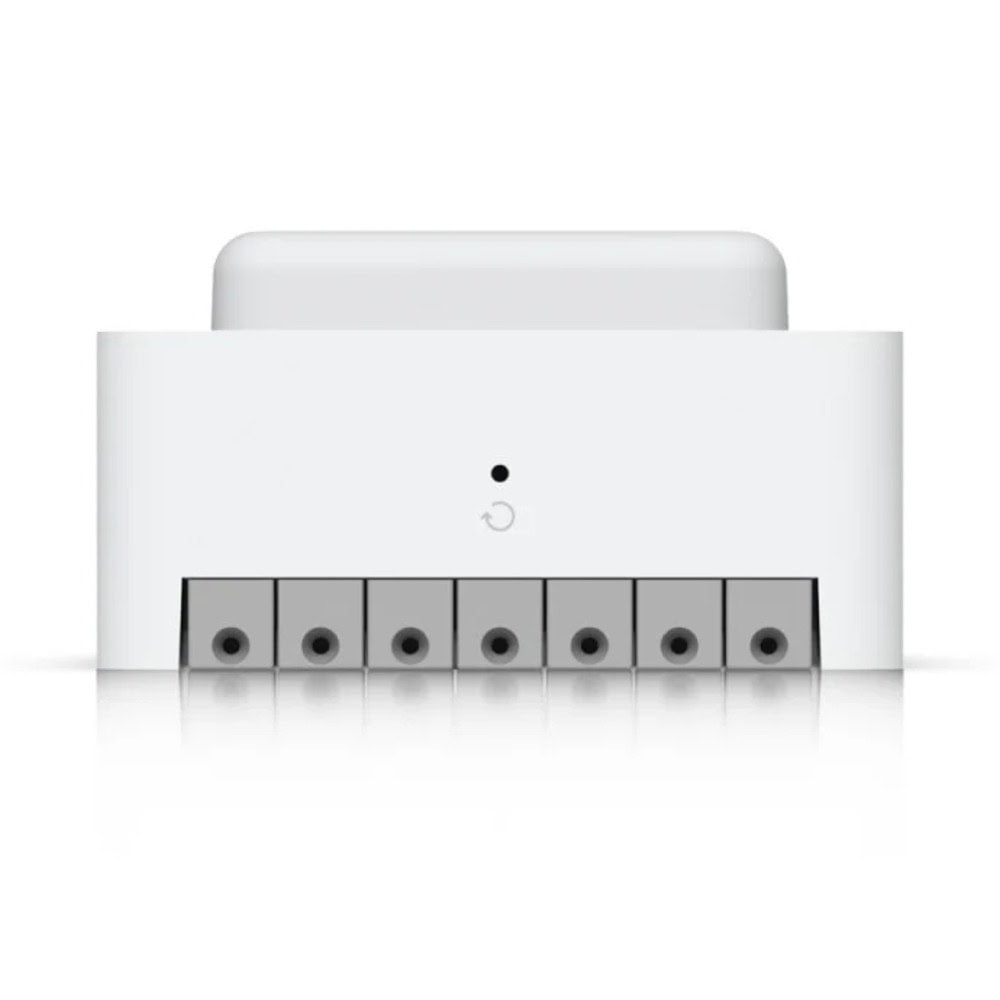

Buttons

(1) Factory-reset (1) Dry/Wet switch

Recommend Max. Cable Length

UA-Lock-Electric (400mA)

24 AWG length: 25 m (82 ft) 22 AWG length: 42 m (138 ft) 20 AWG length: 66 m (217 ft) 18 UACC-Cable-DoorLockRelay length: 100 m (328 ft)

UA-Lock-Magnetic-540kg (500mA)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (66 ft) 20 AWG length: 30 m (98 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (262 ft)

UA-Lock-Magnetic-270kg (800mA)

24 AWG length: 12 m (29 ft) 22 AWG length: 20 m (98 ft) 20 AWG length: 30 m (167 ft) 18 UACC-Cable-DoorLockRelay length: 46 m (151 ft)

Other locks (1A)

24 AWG length: 9 m (30 ft) 22 AWG length: 15 m (49 ft) 20 AWG length: 24 m (79 ft) 18 UACC-Cable-DoorLockRelay length: 36 m (118 ft)

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-Hub-Door-Mini, V01
