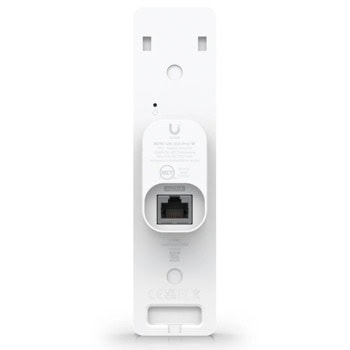

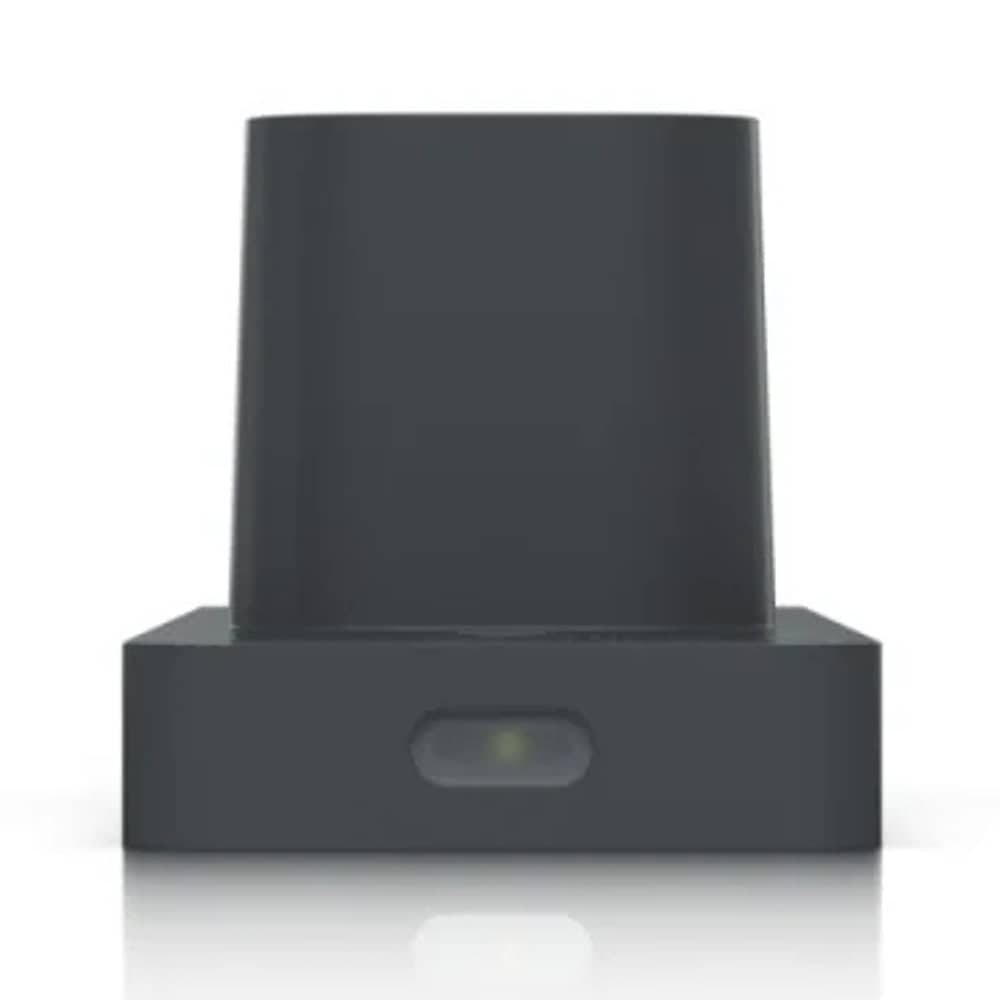

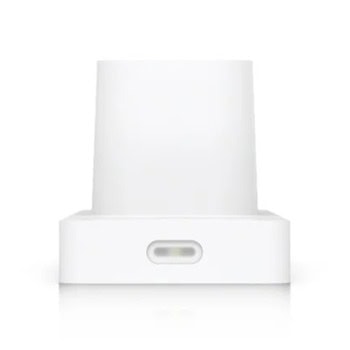

Контролер Ubiquiti UA-G3-PRO-W, за 1 врата, четец на магнитни карти, 2MP камера, тъч дисплей, Apple/Google Wallet съвместим, IP55 защита

G3 Reader Pro

UA-G3-Pro-B

Third-generation, indoor/outdoor NFC reader and intercom with Touch Pass support.

Dimensions

160 x 40.4 x 40.55 mm (6.3 x 1.59 x 1.6")

Integrated Camera

✓

NFC Card & Keyfob Access

✓

PIN Access

✓

Apple/Google Wallet

✓

Mobile Unlock

✓

Face Unlock

✓

Two-Way Intercom & Doorbell Access

✓

NDAA Compliant

✓

UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Weatherproofing

IP55

Weight

136 g (4.8 oz)

Enclosure Material

Polycarbonate, glass

Mount Material

Aluminum alloy

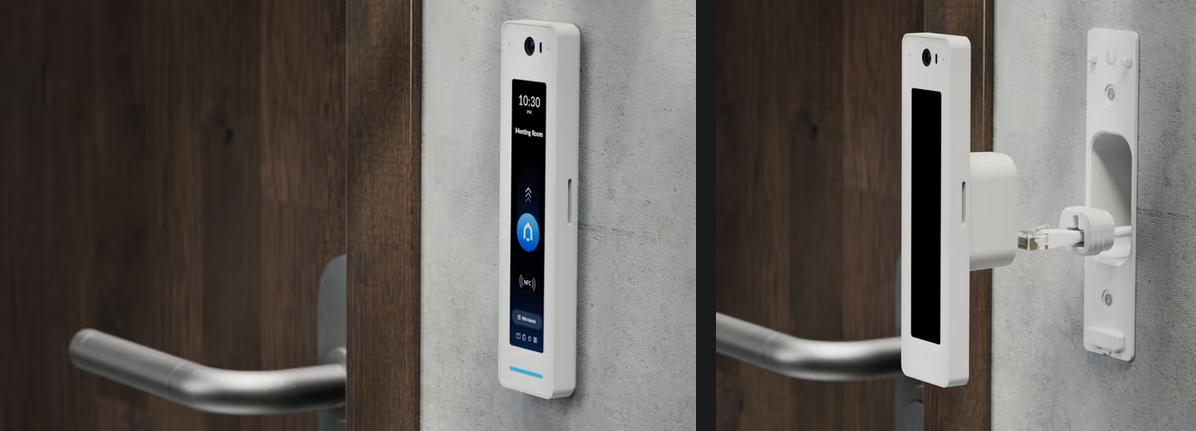

Mounting

Wall, gang-box mount (Included) Angle mount, junction box (Optional)

Indoor and Outdoor Use

Yes

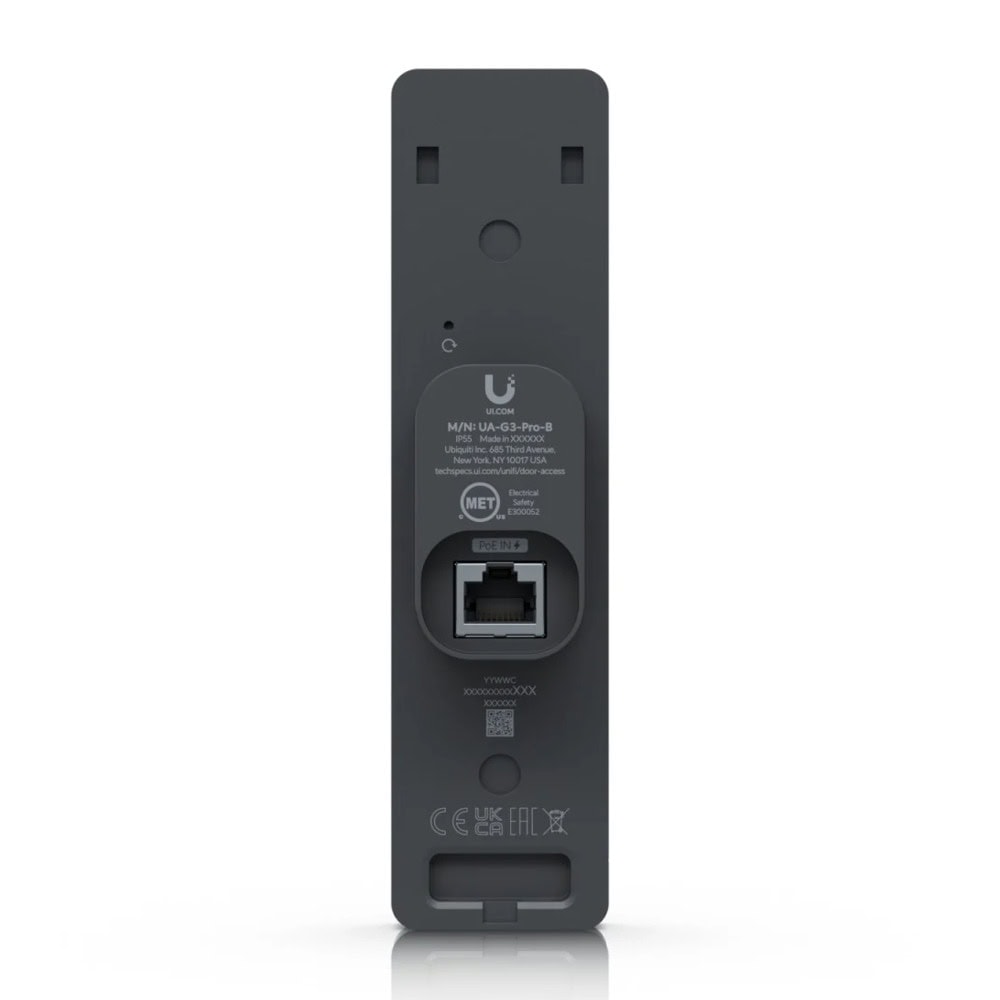

Networking Interface

(1) GbE RJ45 port

Connectivity

BLE 4.2 NFC

Power Method

PoE UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Max. Power Consumption

6W

Supported Voltage Range

48V DC

ESD/EMP Protection

Air: ±15kV, contact: ±8kV

Video

Max. Frame Rate

30 FPS

Resolution

2MP 1200 x 1600 (3:4)

Optics

Resolution

12 MP (3072 × 4096)

Field of View

H: 98.6°, V: 125.7°, D: 157.8°

Sensors

Proximity sensor

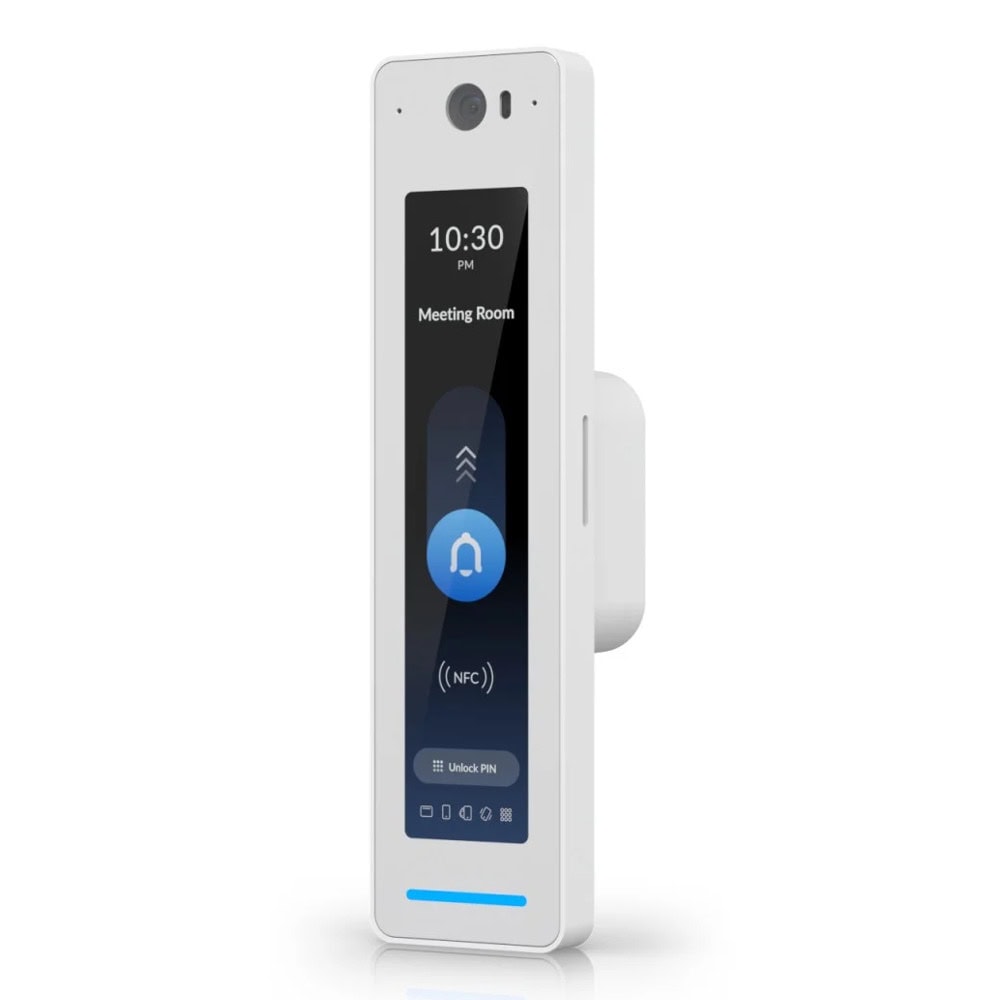

Display

Size

120 mm (4.7") diagonal

Screen Technology

Capacitive touch

Luminance

480 nits (Typical)

Screen Orientation

Portrait

Resolution

1280 x 286 px

Microphone

✓

Speaker

✓

LEDs

R/G/B/W/Amber

Button

(1) Factory-reset

NFC Frequency

13.56 MHz

NFC Read Range

< 30 mm (1.18'')

NFC Technology

ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340) MIFARE Classic / MIFARE DESFIRE Sony FeliCa™ (ID only) NFC Forum tags T1T, T2T, T3T, T4T and T5T ECP 2.0

PoE Cabling Requirements

Cat 5e cabling is the minimum performance category recommended. The performance category utilized should match the transmission speed required at the installation site. The minimal conductor gauge permitted to connect between the PSE or power injector and the PD shall be 26 AWG (0.13 mm² ) for patch cords; 24 AWG (0.21 mm² ) for horizontal or riser cable.

UL 294 Statement

Compliance with IEEE 802.3 specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725.121, Power Sources for Class 2 and Class 3 Circuits.

CAN/ULC-60839-11-1 Grade

Grade assignment: I

Certifications

CE, FCC, IC, SRRC, UL 294, CAN/ULC-60839-11-1

Document number, and issue date and/or revision level

UA-G3-Pro-W/UA-G3-Pro-B, V01

Ambient Operating Temperature

Device: -30 to 45° C (-22 to 113° F) Display: -10 to 45° C (14 to 113° F)

Ambient Operating Humidity

5 to 90% noncondensing
