TV Tuner INNO3D TV7100, USB2.0, DVB-T, дистанционно

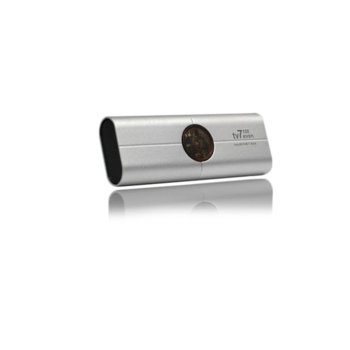

INNO3D TV7100

Features

* Compact Pen-size USB 2. 0 Terrestrial TV Receiver for DVB-T
* USB 2.0 High speed data transmission
* Full DVB-T and NorDig Unified Standards compliant
* Auto-Select 6, 7, 8MHz Channel bandwidth
* Real Time and Scheduled Program recording
* Time Shifting functionality
* Multi channels preview support
* Multi-Language support
* Video Capture and Snapshot
* Microsoft® Windows® Vista™ Premium ready
* IR remote control for video application

Specifications:

* General: PC-Interface: USB 2.0 compliant
* Input Terminal: 75 Ohm
* Receiving frequency: 48.25 ~ 863.25 MHz tuning range
* Dimension: 77mm(L) x 23mm(W) x 14mm (T)
* 30 keys IR remote control for video application control
* DVB-T: Digital TV standard: ETS300744 DVB-T & Nordic Unified standard Compliance
* Modulation / De-multiplexing: 16QAM / 64QAM / Software
* Video Resolution support: up to 720 x 480 (NTSC), 720 x 576 (PAL)
* Video Decoding: MPEG-2 software decode
* Video Bit rate: Constant Bit Rate (CBR) and Variable Bit Rate (VBR) support
* Picture Aspect Ratio: 4:3 or 16:9
* Audio Decoding: MPEG Layer 1 and Layer 2
* Audio Sampling Rate: 32KHz, 44.1KHz or 48KHz
* Video frequency band support: Full 47 ~ 860MHz frequency range for VHF and UHF
* Channel Bandwidth: 6, 7, 8MHz
* OFDM Demodulation: 2K / 8K for SFN or MFN
* Modulation: QPSK, 16QAM or 64QAM Constellations support
* Type of carrier: 2K / 8K
* Guard interval: 1 / 4 , 1 / 8, 1 / 16, 1 / 32

Package contents:

* Inno3D® USB Stick
* Portable Terrestrial antenna
* Antenna adapter for Terrestrial antenna
* Quick Installation Guide
* Driver and Application CD-ROM Disc

System requirements:

* One free USB Port (Must be USB 2.0 port )
* Pentium 4 2.0GHz or above (Pentium 4 2.4GHz recommended)
* 256MB RAM or above (512MB recommended)
* Microsoft® Windows® XP Sp2
* Graphic Card (Support Microsoft DirectX 9.0 or above)
* AC '97 compatible sound card / chipset for audio playback
* Microsoft® DirectX 9.0c or above
* CD-ROM drive for driver and application software installation
* 1GB free Hard disk space for application software
