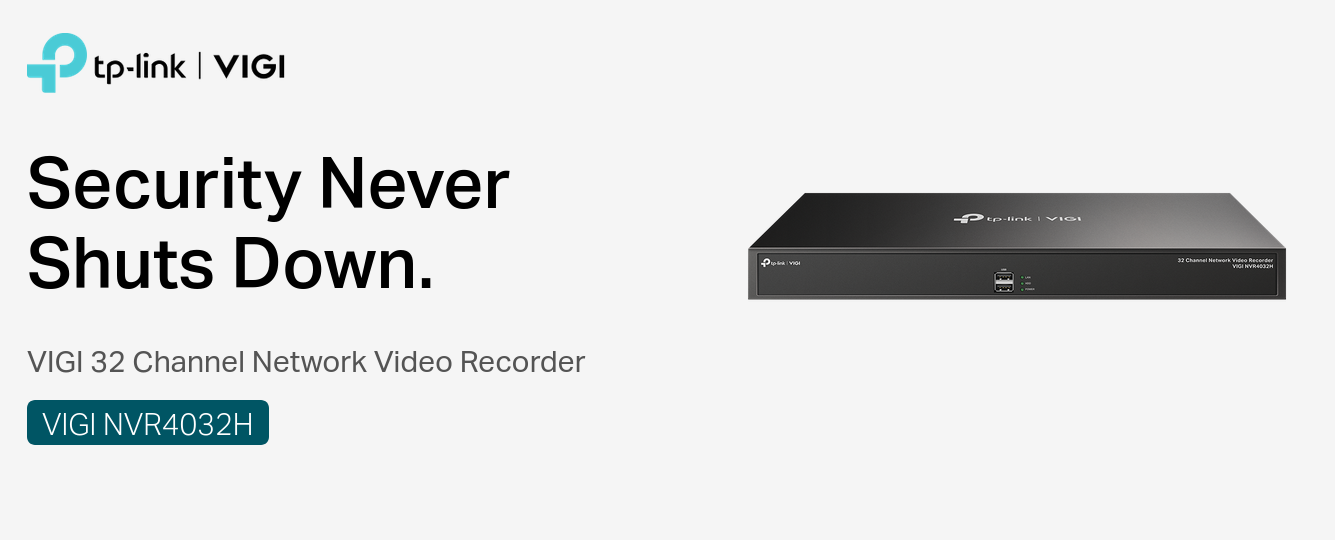

TP-Link VIGI NVR4032H
VIGI 32 Channel Network Video Recorder
Face Recognition: Enhances access management and maximizes security.
Smart Search by Motion and Object: Quickly find target footage for improved playback efficiency.
- H.265+: Without using any extra bandwidth, your camera transmits compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
320 Mbps Incoming and Outgoing Bandwidth: Ensures your NVR manages more cameras with high resolutions.
- Mass Storage: Supports 4× SATA, up to 10 TB each
- 16-ch@2MP/ 8-ch@4MP Decoding Capacity†: Allows you to enjoy more channels, live view, and playback at the same time.
- 1 HDMI and 1 VGA Interface: Supports independent video output.
- 16-Channel Simultaneous Playback: Replay the feed from up to 16 cameras at the same time, increase replay speed, and find events in the video schedule to easily review footage.
- Plug & Play: Allows new and unused VIGI IP Cameras to be added automatically to the new NVR and activated instantly, making installation faster than ever before.
- Remote Monitoring: The dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring, providing ease and convenience.
- Two-Way Audio: With voice intercom support, carry two-way conversations while watching your feed from anywhere. Suitable for management.
- ONVIF Ensures Compatibility: Easily adds IPCs from VIGI and other brands to establish a powerful and varied network thanks to barrier-free compatibility.


Video and Audio | |
---|---|
IP Video Input | 32-Channel |
Incoming Bandwidth | 320 Mbps |
Outgoing Bandwidth | 320 Mbps |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
Video Output Mode | HDMI/VGA Independent Output |
Multi-View Display | 1/4/6/8/9/16/25/32/36 |
DECODING | |
---|---|
Audio Compression | G.711A/G.711U/G.726 |
Decoding Format | H.265+/H.265/ H.264+/H.264 |
Video Compression | H.265+/H.265/ H.264+/H.264 |
Record Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
Live View/Playback Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
Synchronous Playback | 16-Channel |
Capability | 16-ch @ 1080p (30 fps), 8-ch @ 4MP (30 fps), 4-ch @ 8MP (30 fps) |
Record Management | |
---|---|
Record Mode | • Manual Recording • Scheduling Recording • Motion Detection Recording |
Playback Mode | • Instant Playback • Regular Playback • Tag Playback • Event Playback |
Backup Mode | • Regular Backup • Video Clip Backup |
Playback Function | • Play • Pause • Stop • Fast Forward • Fast Backward • Play By Frame • Full Screen • Video Clip • Export Clip • Digital Zoom • Lock Recording • Audio On/Off |
NETWORK | |
---|---|
Protocol | UPnP (Plug and Play), NTP (Network Timing) |
Mobile Phone Access | Android, iOS |
Incoming Bandwith | 320 Mbps |
Outgoing Bandwidth | 320 Mbps |
Web Browser | Chrome (57+), Firefox (52+), Edge (91+) |
Interoperability | ONVIF, CGI |
External Interface | |
---|---|
Network Interface | 2, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface |
USB Interface | USB Interface |
Audio Interface | 1, Audio In; 1, Audio Out |
Alarm In/Out | 16/4 |
Serial Interface | 1, RS232 |
Power | 1× AC Jack |
Reset Button | 1 |
Speaker | N/A |
eSATA | N/A |
HDMI | 1 |
VGA | 1 |
HARD DISK | |
---|---|
SATA | 4 SATA Interfaces |
Capacity | Up to 10 TB Capacity for Each HDD |
Alarm | |
---|---|
General Alarm | Motion Detection, Video Tampering, Intrusion Detection, Line-Crossing Detection |
Anomaly Alarm | Video Loss, Offline and IP Conflict,Disk Exception, Login Exception, Fan Exception |
Alarm Linkage | Recording, White Ligh Alarm, Buzzer, Log, Audible Alarm |
Network Management | |
---|---|
Network Protocols | UPnP (Plug and Play), NTP (Network Timing) |
Interoperability | ONVIF, CGI |
Mobile Phone Access | Android, iOS |
Browser | Chrome (57+), Firefox (52+), Edge (91+) |
GENERAL | |
---|---|
Storage Temperature | -40–70 °C |
Storage Humidity | 10%~90% RH Non-Condensing |
Package Contents | VIGI Network Video Recorder Mouse Installation Guide Power Cord, HDD Power Cables, HDD Data Cables, and Terminal Blocks Mounting Brackets, Screws and Rubber Feet |
Working Temperature | -10–55 °C |
Working Humidity | 10%~90% RH Non-Condensing |
Dimensions( W X D X H ) | 440 × 330 × 44 mm |
External Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
Net Weight | 4.0 Kg |
Gross Weight | 5.2 Kg |
Power Supply | 100-240 VAC, 50 to 60HZ, 1.5A |
Power Consumption | 5 W (Without Disk) 48 W (With Disk) |
Certifications | CE, EAC, UKCA, RCM, Triman, RoHS, VCCI, FCC, IC, HDMI |
Record Playback | |
---|---|
Record Mode | Manual Recording, Scheduling Recording, Motion Detection Recording |
Playback Mode | Instant Playback, Regular Playback, Tag Playback, Event Playback |
Backup Mode | Regular Backup, Video Clip Backup |
Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off |
VIDEO/IMAGE | |
---|---|
IP Video Input | 32-Channel |
Multi-View Dispaly | 1/4/6/8/9/16/25/32/36 |
Video Output Mode | HDMI/VGA Independent Output |
Recording Resolution | 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF |
HDMI Output Resolution | 1 Channel, Resolution: 3840x2160/30Hz,1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
VGA Output Resolution | 1 Channel, Resolution: 1920x1080/60Hz,1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
