Name: IP видеорекордер TP-Link VIGI NVR4016H, 16 канала, H.265+/H.265/H.264+/H.264, 4x SATA (до 16TB), 1x USB 3.0, 2x USB 2.0, 2x RJ-45, 2x HDMI, 1x VGA
Brand: TP-Link
SKU: SCNVRTPLINKNVR4016H
Price: 1556.71 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

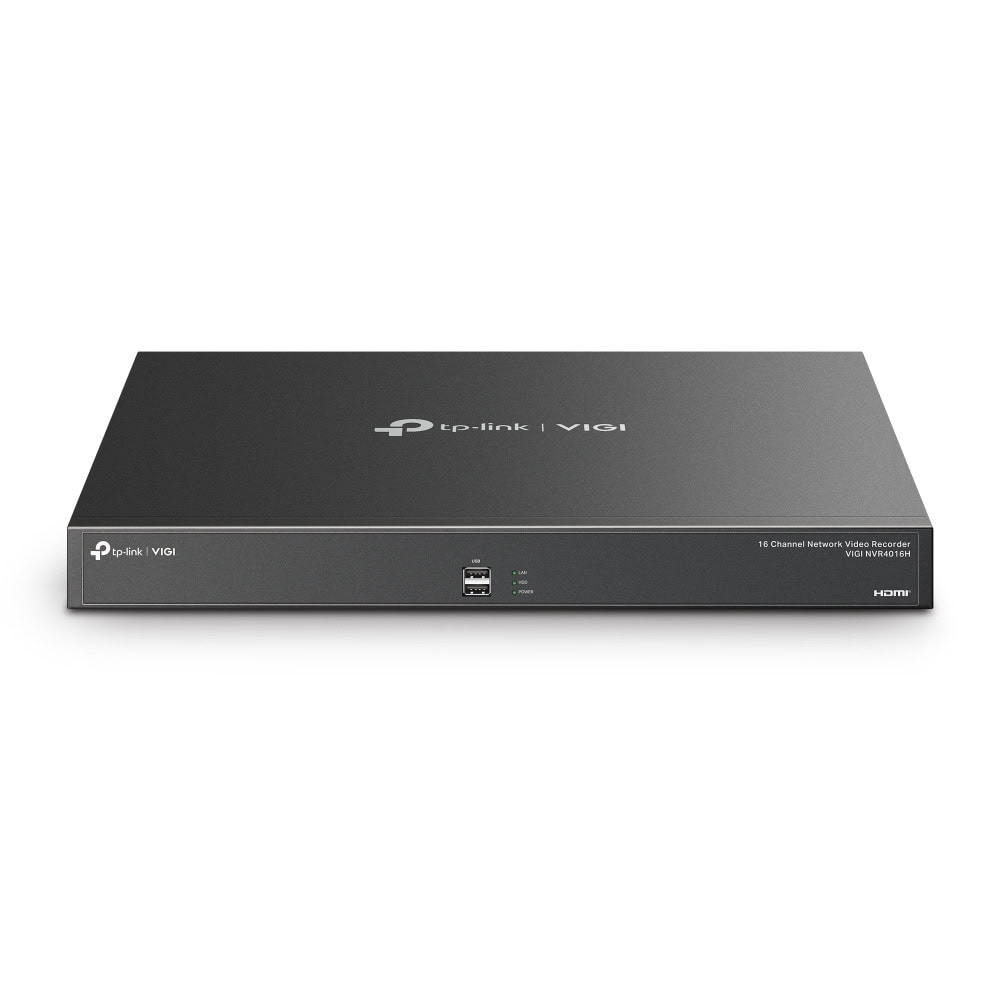

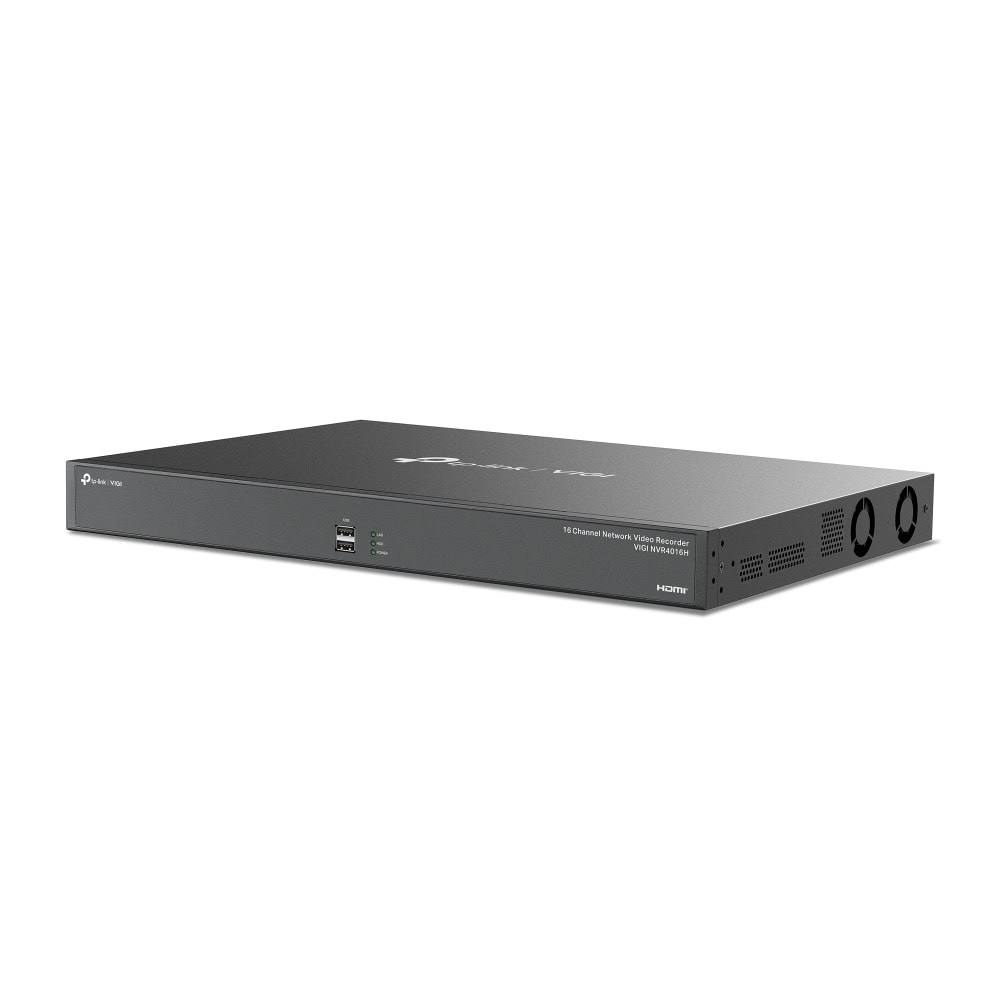

TP-Link VIGI NVR4016H

VIGI 16 Channel Network Video Recorder

16-Channel Live View and 4K HDMI Video Output
Up to 10-ch @ 3MP (25fps) / 16-ch @ 1080P (25fps) Decoding Capability
16-Channel Synchronous Playback†
320 Mbps Incoming Bandwidth and 320 Mbps Outgoing Bandwidth
4× SATA Interfaces and 1 Up to 16 TB*
H.265+ Compression Technology
2 HDMI and 1 VGA Video Output
Remote Monitoring

Category	Specification
Video and Audio
IP Video Input	16-Channel
Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	320 Mbps
HDMI Output Resolution	2 Channels • HDMI1: 3840×2160/30Hz, 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz • HDMI2: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
VGA Output Resolution	1 Channel: 1920×1080/60Hz, 1680×1050/60Hz, 1440×900/60Hz, 1280×1024/60Hz, 1280×720/60Hz
Video Output Mode	• HDMI1/HDMI2 Independent Output • HDMI1/VGA Independent Output Note: HDMI2 and VGA cannot operate simultaneously. HDMI2 takes precedence.
Multi-View Display	1, 4, 6, 8, 9, 16
Decoding
Audio Compression	G.711A / G.711U / G.726
Video Compression	H.265+ / H.265 / H.264+ / H.264
Record Resolution	8MP, 5MP, 4MP, 3MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF
Synchronous Playback	16-Channel
Capability	• 25fps: 10-ch@3MP, 16-ch@1080P • 30fps: 4-ch@8MP, 6-ch@5MP, 8-ch@4MP
Record Management
Record Mode	Manual, Scheduling, Motion Detection Recording
Playback Mode	Instant, Regular, Tag, Event Playback
Backup Mode	Regular Backup, Video Clip Backup
Playback Function	Play, Pause, Stop, Fast Forward, Fast Backward, Play by Frame, Full Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off
Network
Protocols	UPnP, NTP, SMTP, DNS, TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, RTSP, SSL/TLS, RTP, IPv4, ARP
Mobile Phone Access	Android, iOS
Web Browser	Chrome (57+), Firefox (52+), Edge (91+)
Interoperability	ONVIF Profile S, CGI

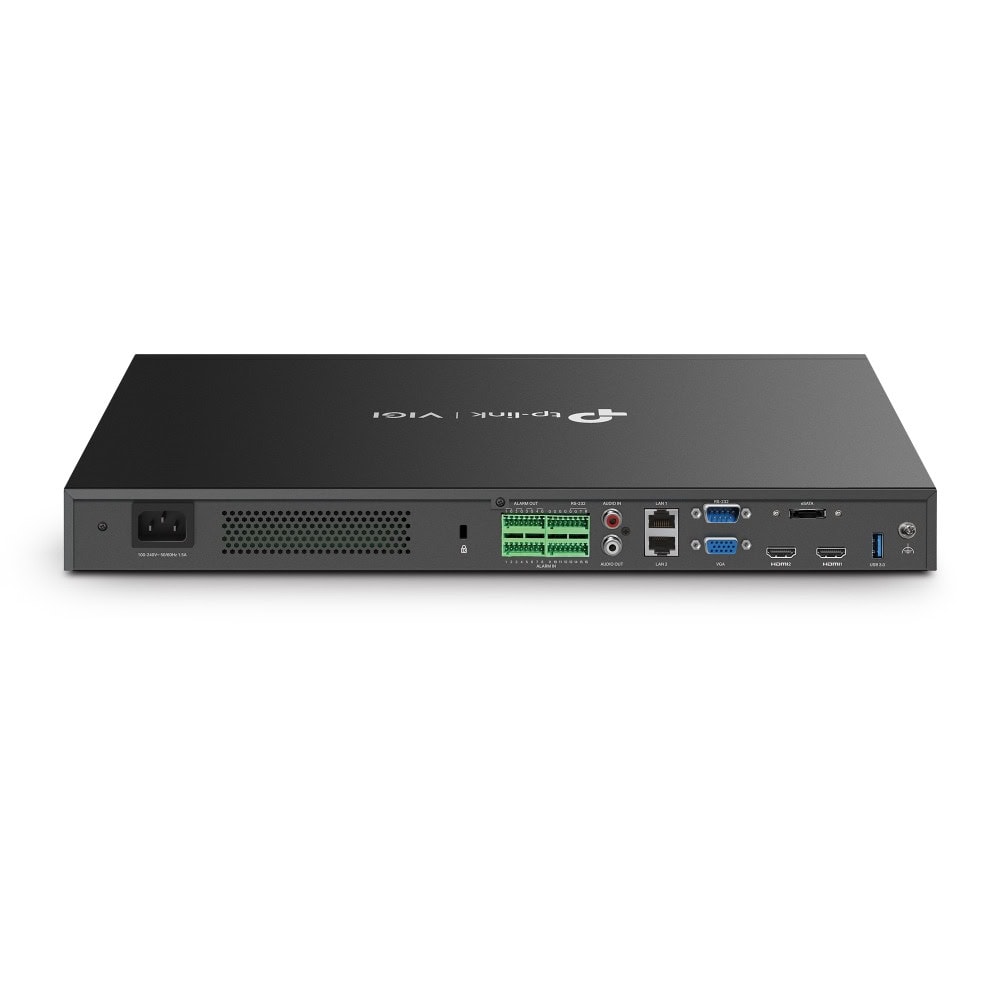

External Interface
Network Interface	2× RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet
USB Interface	2× Front USB 2.0, 1× Rear USB 3.0
Audio Interface	1-ch RCA Input, 1-ch RCA Output
Alarm In/Out	16 / 4
Serial Interface	1× RS232
Power	1× AC Jack
Reset Button	1
Speaker	N/A
eSATA	1
HDMI	2
VGA	1
Hard Disk
SATA	4 SATA Interfaces
Capacity	Up to 16 TB per HDD
Alarm
General Alarm	Motion Detection, Video Tampering, Scene Change, Line-Crossing, Intrusion, Region Entering/Exiting, Loitering, Object Abandoned/Removed, Vehicle Detection, Human Detection, Abnormal Sound Detection, Smart Frame Note: Requires camera.
Anomaly Alarm	Video Loss, Offline/IP Conflict, Disk Exception, Login Exception, Fan Exception Note: Requires camera.
Alarm Linkage	Recording, White Light Alarm, Buzzer, Log, Audible Alarm Note: Requires camera.
General
Storage Temperature	-40 – 70 °C
Storage Humidity	10%–90% RH (Non-Condensing)
Working Temperature	-10 – 55 °C
Working Humidity	10%–90% RH (Non-Condensing)
Dimensions (W×D×H)	440 × 330 × 44 mm (17.32 × 12.99 × 1.73 in)
Net Weight	4.0 kg
Gross Weight	5.0 kg
Power Supply	100–240 VAC, 50/60Hz, 1.5A
Max. Power Consumption	5.5 W (Without Disk), 45 W (With Disk)
Certifications	CE, NTRA, KC, HDMI, FCC, IC, VCCI, BSMI, ONVIF
Package Contents	NVR, Mouse, Installation Guide, Power Cord, HDD Power/Data Cables, Terminal Blocks, Mounting Brackets, Screws, Rubber Feet
