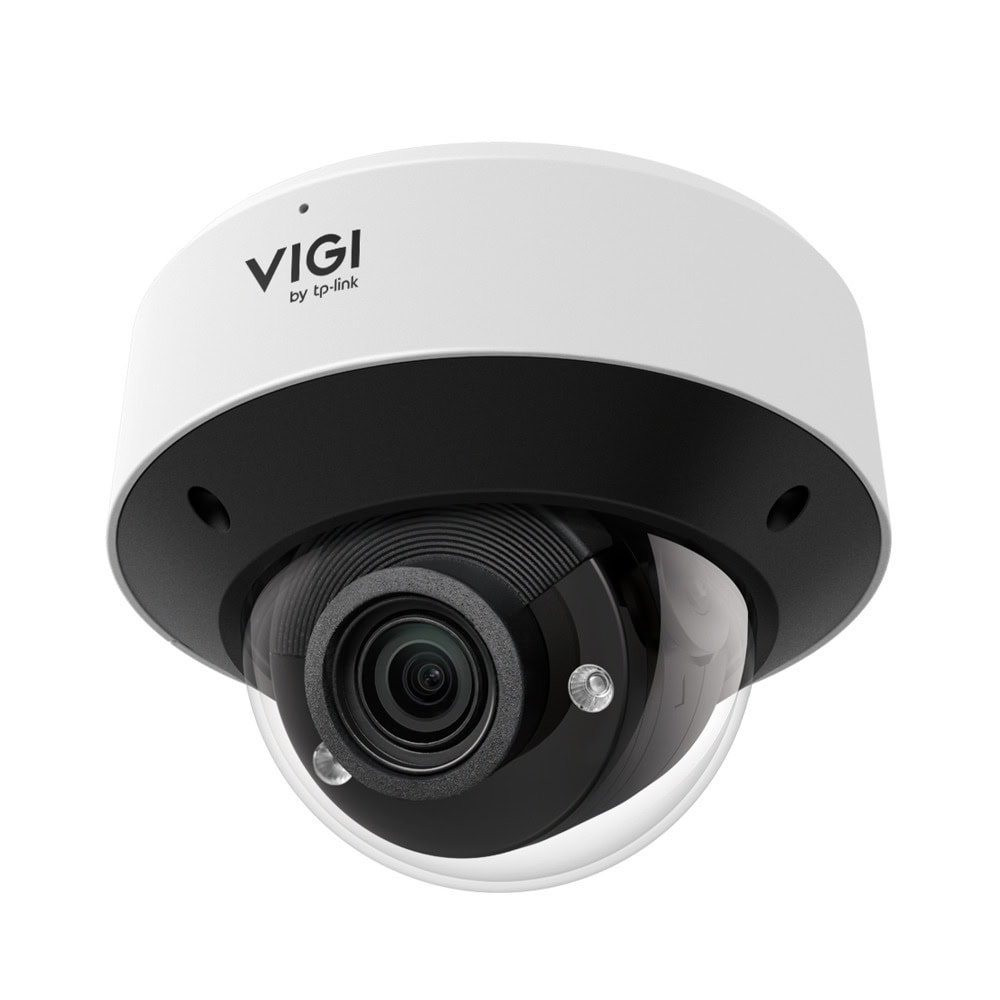

Name: IP камера TP-Link VIGI InSight S245ZI, куполна камера, 4Mpix(2688x1520@30fps), 2.7-13.5mm моторизиран обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 60m), външна IP67/IK10, PoE, microSD слот до 512GB, вграден микрофон
Brand: TP-Link
SKU: SCMDGTPLINKINSIGHTS245ZI
Price: 358.17 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

TP-Link VIGI InSight S245ZI

VIGI 4MP IR Motorized Varifocal Dome Network Camera

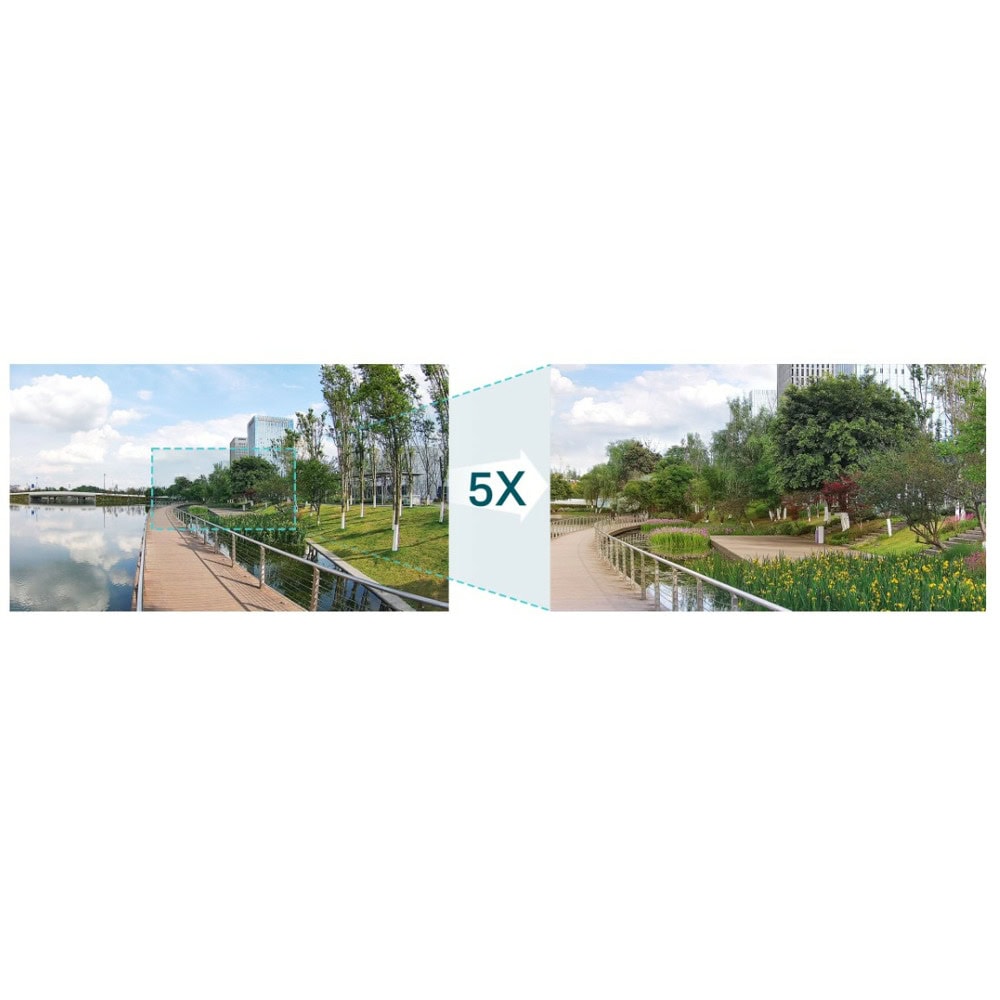

5X Optical Zoom for Easy Installation and Monitoring
4MP Super-High Definition and IR Range Up to 197 ft (60 m)*1
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Audio and Alarm Interface Available
IP67 Weatherproof and IK10 Vandal Proof
H.265+ Compression Technology

Motorized Varifocal

By adjusting the field of view (FOV), this feature assists you in concentrating on areas of interest, minimizing invalid detection zones, and enhancing target clarity.

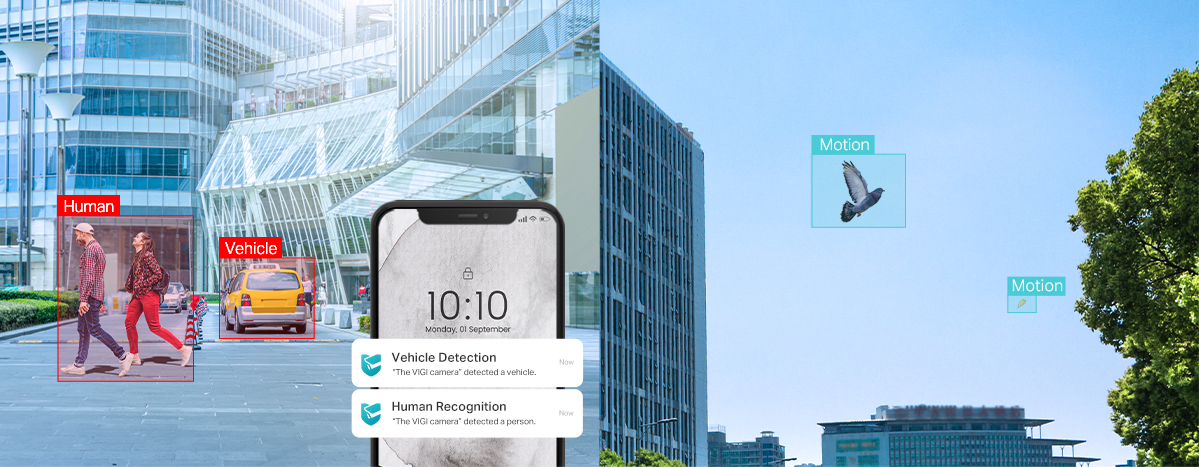

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Category	Specification
Камера
Sensor Type	1/2.9” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified / Scheduled / Auto
LENS
Type	Motorized Varifocal Lens
Focal Length	2.7-13.5 mm (5X Optical Zoom)
Aperture	F1.6
FOV	Horizontal: 29.6°-102.0°; Vertical: 16.8°-53.8°; Diagonal: 34.1°-122.8°
Lens Mount	Φ14
DORI Distance	Detect: 62-200 m; Observe: 27-84 m; Recognize: 13-40 m; Identify: 7-21 m
Angle Adjustment (Manual)	Pan: 0° to 350°; Tilt: 0° to 75°; Rotate: 0° to 344°
ILLUMINATOR
IR LED	Quantity: 4; Range: 60 m; Wavelength: 850 nm
Illuminator Control	Auto / Scheduled / Always on / Always off
VIDEO
Max Resolution	2688x1520
Main Stream Frame Rate	50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps
Main Stream Resolution	2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080
Sub-Stream Frame Rate	50Hz: 1/5/10/15/20/25 fps; 60Hz: 1/5/10/15/20/25/30 fps
Sub-Stream Resolution	1280x720, 848x480, 704x576, 640x480, 640x360, 352x288, 320x240
Frame Rate Note	If rotation is 90° or 270°, max frame rate is 20fps
Bit Rate Control	CBR, VBR
Video Compression	Main: H.265+/H.265/H.264+/H.264; Sub: H.265/H.264
H.264 Type	High Profile
H.264+	Supported (Main Stream)
H.265 Type	Main Profile
H.265+	Supported (Main Stream)
Video Bit Rate	Main: 256 Kbps to 6 Mbps; Sub: 64 Kbps to 1024 Kbps
Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Infrared Protection, HLC
Enhancement	BLC, 3D DNR, HLC, SmartIR
Wide Dynamic Range (WDR)	120 dB
Signal-to-Noise Ratio (SNR)	≥ 52 dB
Image Parameter Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
АУДИО
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Noise Filtering	Yes
Audio Bit Rate	64 Kbps (G.711 alaw)
МРЕЖА
Protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client Software	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser Support	Chrome 57+, Firefox 52+, Safari 11+, Edge 91+
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Filter, Digest Authentication
УПРАВЛЕНИЕ НА АЛАРМИТЕ И СЪБИТИЯТА
Smart Events	Intrusion, Line-Crossing, Region Entering/Exiting, Object Abandoned/Removal, Loitering, People, Vehicle, Abnormal Sound, Scene Change
Basic Events	Motion Detection (Human & Vehicle Classification), Video Tampering, Illegal Login, Alarm Input
Alarm Linkage	Memory Card Recording, Push Notifications, Active Defence Sound, Email Alarm, FTP Upload, Alarm Output, Alarm Server
ИНТЕРФЕЙСИ
Network Interface	1 RJ45 10/100M Ethernet Port, PoE
Alarm Interface	1 Alarm In, 1 Alarm Out
Reset Button	Yes
Power	DC Power Port
Storage	Built-in microSD Slot, up to 512 GB
Built-in Microphone	Yes, records within 5 m radius
Built-in Speaker	N/A
Audio Ports	1 Audio In, 1 Audio Out
ОБЩИ ХАРАКТЕРИСТИКИ
Operating Temperature	-30°C to 60°C
Storage Temperature	-40°C to 60°C
Operating Humidity	≤ 95% (Non-Condensing)
Storage Humidity	≤ 95% (Non-Condensing)
Package Contents	VIGI Network Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories
Material	Metal
Net Weight	0.775 Kg
Power Supply	12V DC ±5%, Max 10.8W, 5.5 mm Coaxial Power Plug; PoE 802.3af/at, class 0, Max 12W
Protection	IP67 Weatherproof, IK10 Vandal Proof
Dimensions (L×W×H)	Φ5.1 × 4.0 in (Φ129.9 × 102.5 mm)

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Куполни камери
Резолюция:	QHD
Управляема:	Неуправляема
Аудио:	Микрофон
Безжична:	Не
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
