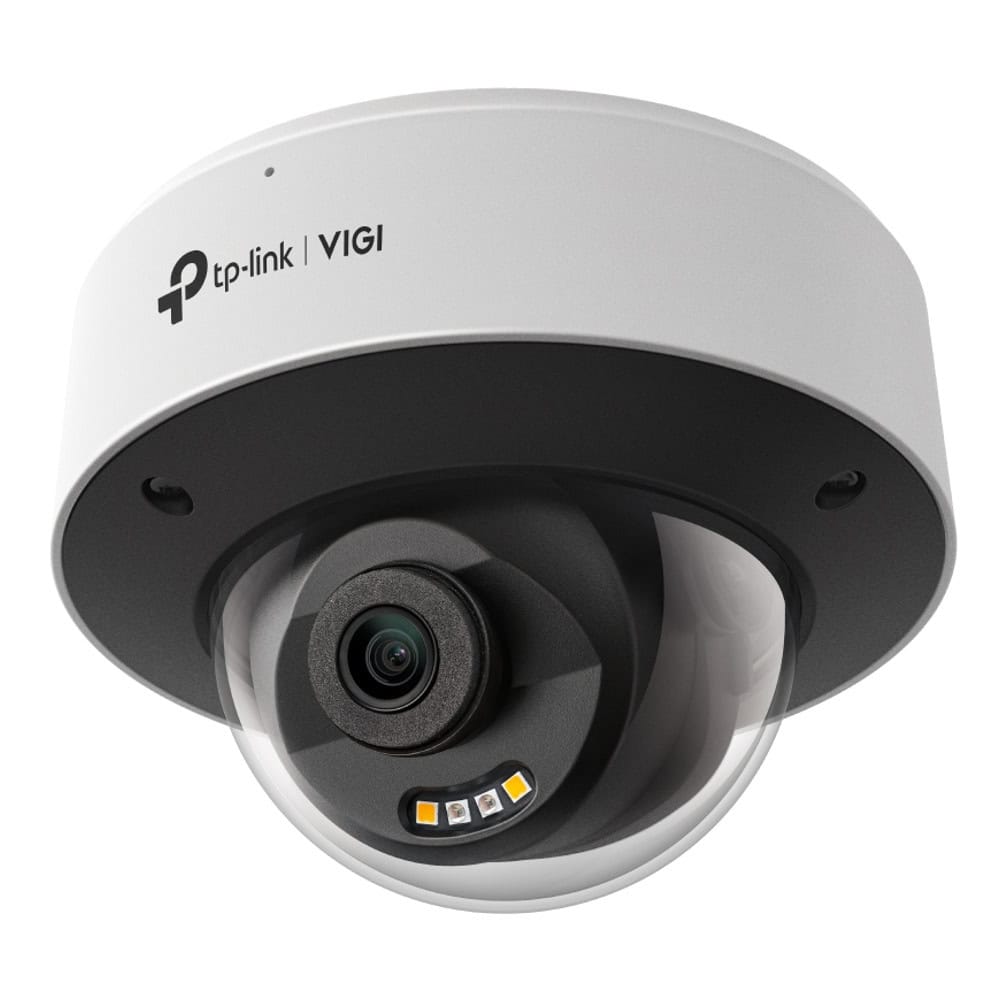

InSight S245

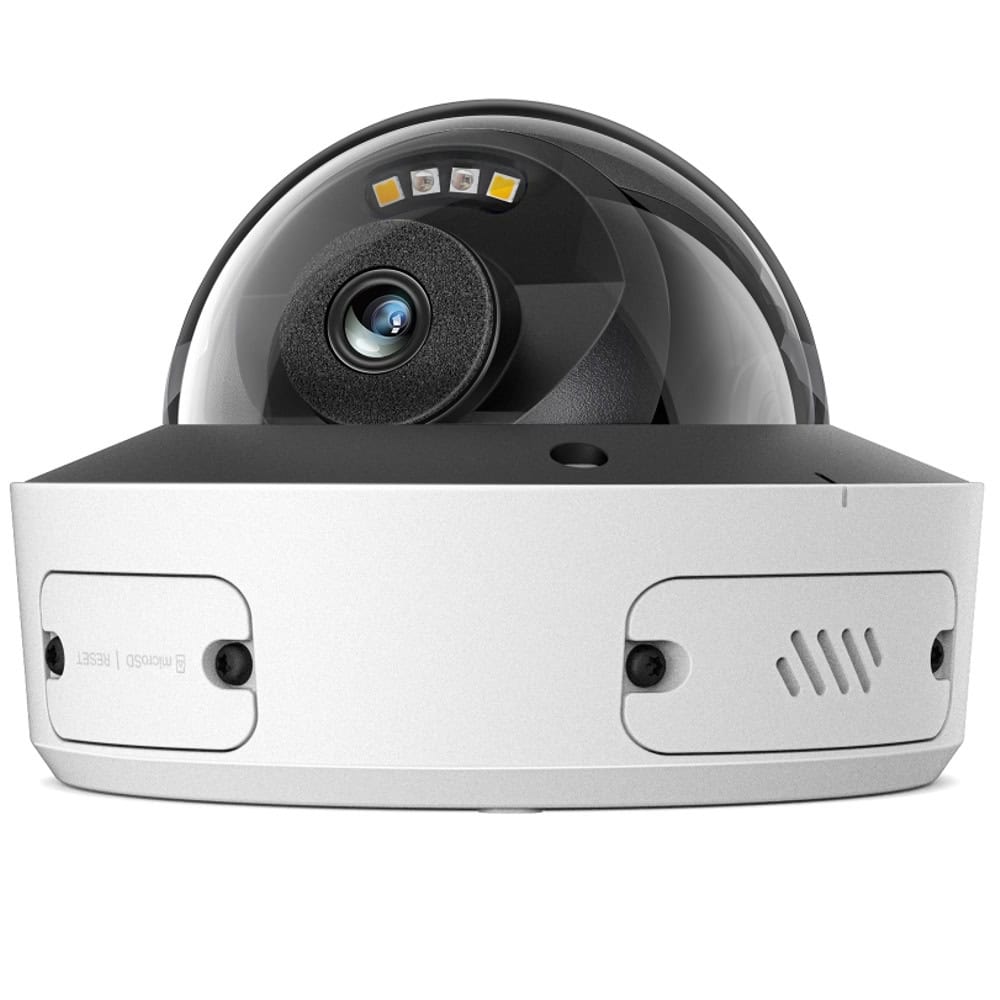

VIGI 4MP Full-Color Dome Network Camera
- 4MP Super-High Definition and 24h Full-Color
- People & Vehicle Analytics†
- Human & Vehicle Classification
- Smart Detection
- Smart Video Enhancement Technology
- Active Defense and Two-Way Audio
- IP67 Waterproof and IK10 Vandal-Proof
- H.265+ Compression Technology
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Specifications:
| Category | Specification |
|---|---|
| Camera | |
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux; 0 Lux with IR/White light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified / Scheduled / Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.6 |
| FOV | 4 mm: H: 88°, V: 46°, D: 105.4° |
| Lens Mount | M12*P 0.5 |
| DORI Distance | 4 mm: D: 80 m, O: 33 m, R: 16 m, I: 8 m |
| Angle Adjustment | Pan: 0–346°, Tilt: 0–75°, Rotation: 0–355° |
| Illuminator | |
| IR LED | Qty: 2, Range: 30 m, Wavelength: 850 nm |
| White LED | Qty: 2, Range: 30 m |
| Illuminator Control | Auto / Scheduled / Always On / Always Off |
| Video | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolutions: 2688x1520 to 1280x720Note: Max 20 fps if rotated 90°/270° |
| Sub-Stream | 50Hz: 1–25 fps, 60Hz: 1–30 fpsResolutions: 848x480 to 320x240Note: Max 20 fps if rotated 90°/270° |
| Bit Rate Control | CBR, VBR |
| Compression | Main: H.265+/H.265/H.264+/H.264Sub: H.265/H.264 |
| H.264 Type | High Profile |
| H.265 Type | Main Profile |
| Video Bit Rate | Main: 256 Kbps – 6 MbpsSub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, WB, IR Overexposure Prevention, HLC (via software) |
| Enhancement | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | 120 dB (Note: DWDR only with People/Vehicle Analytics enabled) |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input / Output | Yes / Yes |
| Compression | Yes |
| Sampling Rate | 8 KHz |
| Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS, FTP/SFTP, RTP, IPv4/6, ARP |
| ONVIF | Yes |
| API | ONVIF Profile S/T/G |
| Live View | 3 Main + 3 Sub Streams |
| Client | VIGI App, Web UI, VIGI VMS, Utility |
| Browsers | Chrome ≥ 57, Firefox ≥ 52, Safari ≥ 11, Edge ≥ 91 |
| Cloud | Yes |
| Security | Password, HTTPS, IP Filter, Digest Auth |
| Alarm & Events | |
| Smart Events | Intrusion, Line-Crossing, Region Enter/Exit, Abandoned/Removed Object, Loitering, People/Vehicle Detection, Abnormal Sound, Scene Change |
| Basic Events | Motion (Human/Vehicle Classification), Tampering, Illegal Login |
| Alarm Linkage | Recording, Push Notification, Audible Warning, Light Flash |
| Output Notification | Message Push |
| Deep Learning Analytics | People & Vehicle Attribute-Based Search |
| Interfaces | |
| Network Interface | 1× RJ45 (10/100M, PoE) |
| Reset Button | Yes |
| Power | DC Power Port |
| Storage | MicroSD up to 512 GB |
| Built-in Mic/Speaker | Yes / Yes |
| Audio Interface | N/A |
| General | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating/Storage Humidity | ≤ 95% (Non-Condensing) |
| Package Content | Camera, Quick Start Guide, Waterproof Cable Attachments, Mounting Accessories |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | 12V DC ±5%, Max. 10.54 W, 5.5 mm plugPoE: 802.3af/at, Max. 12.52 W |
| Protection | IP67 (Waterproof), IK10 (Vandal Proof) |
Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията
Технически характеристики
| Вид: | Куполни камери |
|---|---|
| Резолюция: | QHD |
| Управляема: | Неуправляема |
| Аудио: | Двупосочно |
| Безжична: | Не |
| Външен монтаж: | Да |
| IR Осветление: | Да |
| Термокамера: | Не |
