SM9110-SR4

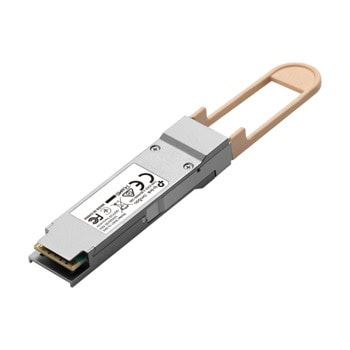

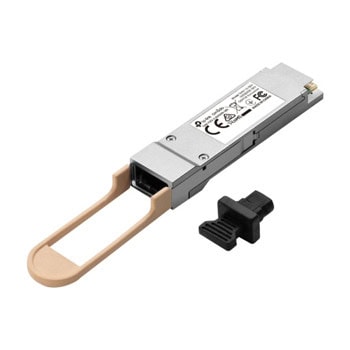

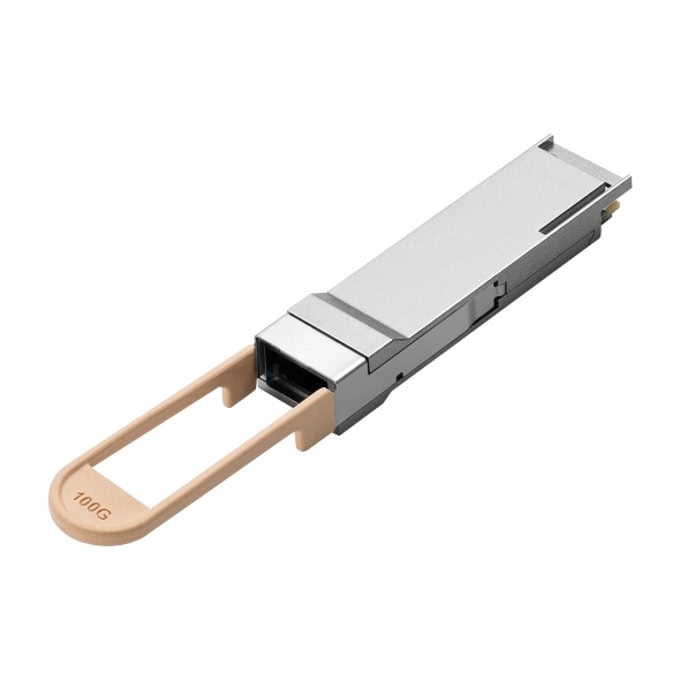

Omada 100GBASE-SR4 QSFP28 Transceiver
- 100GBASE-SR4 multi-mode QSFP28 Transceiver
- Supports Digital Diagnostic Monitoring (DDM)
- Up to 100 m transmission distance
- Hot-Pluggable with maximum flexibility
- Wide operating temperature
- Compatible with 100G/40G Quad Small Form-Factor Pluggable 28 (QSFP28)
| Category | Details |
|---|---|
| Form Factor | QSFP28 |
| Standards and Protocols | • IEEE 802.3bm, IEEE 802.3ba, QSFP28 MSA• SFF-8665, SFF-8636, SFF-8436• CPRI, eCPRI• TCP/IP |
| Wave Length | 850 nm |
| Power Supply | 3.3 V |
| Max. Power Consumption | • Max 1.8 W at 100 Gbps• Max 1.54 W at 40 Gbps |
| Fiber Type | 50/125 µm MMF (Multimode) |
| Max. Cable Length | • 70 m (OM3), 100 m (OM4) @103.125 Gbps (4x 25.78 Gbps)• 100 m (OM3), 150 m (OM4) @41.2 Gbps (4x 10.3 Gbps) |
| Data Rate | Dual Rate: 103.125 Gbps and 41.2 Gbps |
| Connector | MTP/MPO-12 |
| Предавателна мощност (Tx Power) | • -8.4 dBm to 2.4 dBm @103.125 Gbps• -7.6 dBm to 2.4 dBm @41.2 Gbps |
| Transmitter Type | VCSEL 850 nm |
| Receiver Type | PIN |
| Receiver Sensitivity | • < -10.3 dBm @103.125 Gbps• < -9.5 dBm @41.2 Gbps |
| Receiver Overload | > 2.4 dBm @103.125 Gbps / > 2.4 dBm @41.2 Gbps |
| Extinction Ratio | • > 2 dB @103.125 Gbps• > 3 dB @41.2 Gbps |
| Regulatory Compliance | CE, FCC, RoHS |
| DDM (Digital Diagnostics Monitoring) | Yes |
| QSFP28 MSA | Yes |
| Hot Swappable | Yes |
| Dimensions (W × D × H) | 4.88 × 0.72 × 0.46 in (124 × 18.35 × 11.7 mm) |
