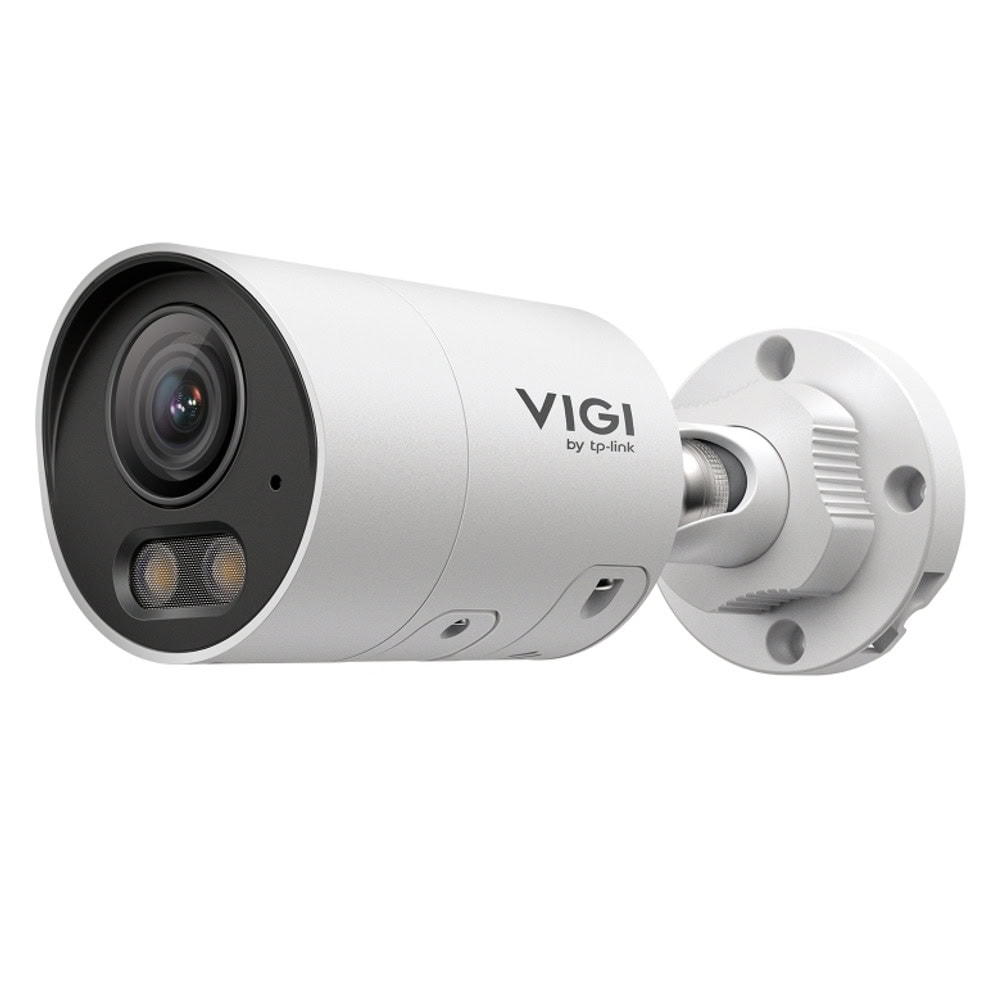

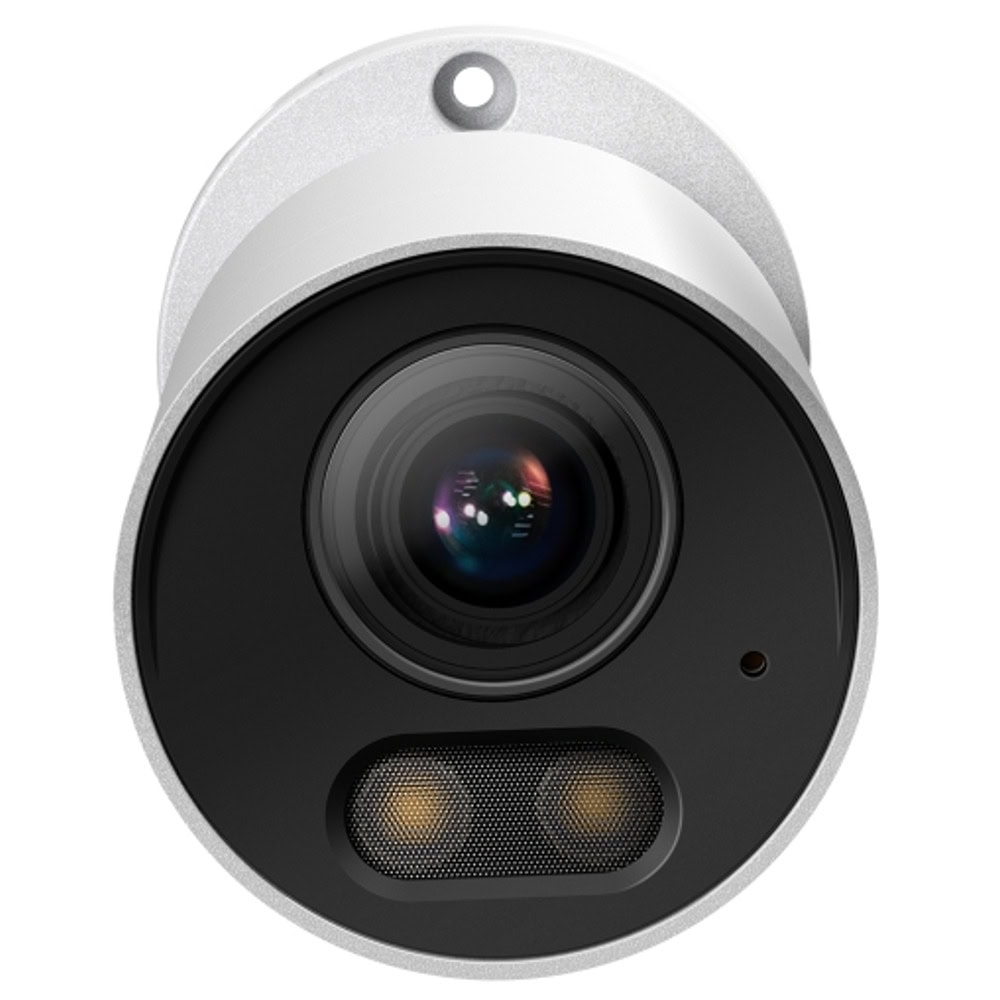

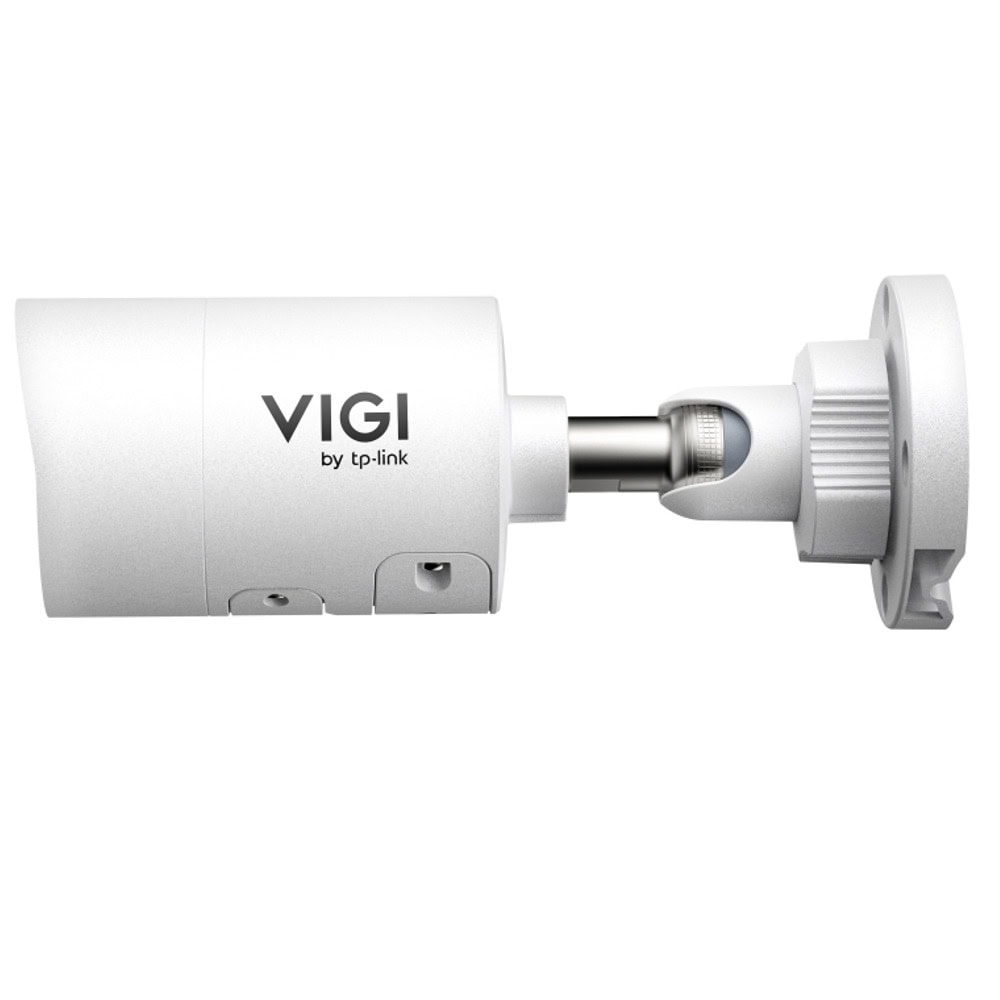

Name: IP камера TP-Link VIGI InSight S345S(4mm), насочена bullet камера, 4Mpix(2688x1520@30fps), 4mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 30m), външна IP67, PoE, microSD слот до 512GB, микрофон и говорител
Brand: TP-Link
SKU: SCMDGTPLINKINSIGHTS345S4MM
Price: 481.48 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

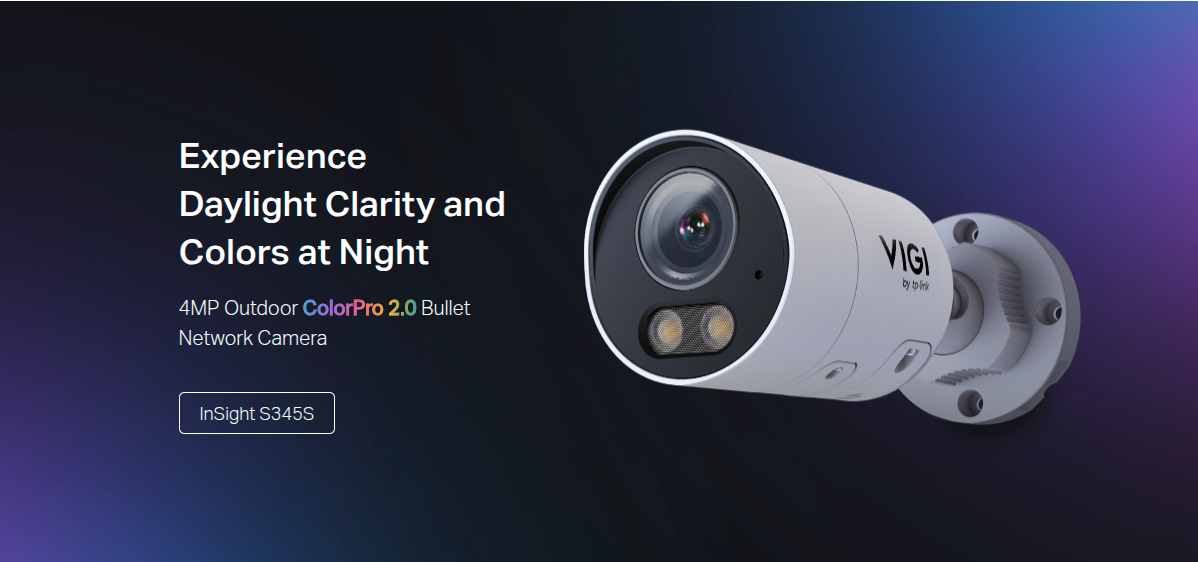

InSight S345S

AI-ISP Powered Ultra Low-Light Color Night Vision
4MP Super-High Definition
People & Vehicle Analytics‡
Human & Vehicle Classification
Smart Detection
Two-Way Audio
Smart Video Enhancement Technology
Flexible Alarm In/Out Devices Integration
IP67 Weatherproof
H.265+ Compression Technology

See True Colors and Details in the Dark

Unveiling every detail in the dark, experiencing clarity and color as vivid as daylight — no extra fill lights needed.

Worry-Free Night Surveillance: Beyond IR & Full-Color

Eliminates general night vision issues like dark corners, glare, and color loss — enjoy worry-free nighttime monitoring.

Category / Feature	Specification
CAMERA
Image Sensor	1/1.79” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
LENS
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.0
FOV	• Horizontal FOV: 95° • Vertical FOV: 51° • Diagonal FOV: 115°
Lens Mount	M16
DORI Distance	4 mm: • D: 249 ft (76 m) • O: 95 ft (29 m) • R: 46 ft (14 m) • I: 23 ft (7 m)
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
ILLUMINATOR
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Integrated Infrared-White LED	• Quantity: 2 • IR Range: 98 ft (30 m)† • White LED Range: 98 ft (30 m)† • Wavelength: 850nm
VIDEO
Max. Resolution	2688x1520
Main Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 Note: • If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream	• Frame Rate： 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 • Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Video Compression	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings	• Mirror • Rotation • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light • HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120 dB
SNR	$\ge$ 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes (Built-in Microphone)
Audio Output	Yes (Built-in Speaker)
Audio Compression	Yes
Audio Sampling Rate	8 KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP, RTMP
ONVIF	Yes
API	Open Network Video Interface (Profile S/T/G)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
ALARM AND EVENT MANAGEMENT
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login) • Alarm Input Device
Alarm Linkage	• Memory Card Video Recording • Upload to FTP Server • Alarm Output Device • Push Notifications • Send to Alarm Server • Active Defense-Sound Alarm • Active Defense-Light Alarm • Email Alarm
DEEP LEARNING FUNCTION
People & Vehicle Analytics	Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	1 Alarm In/Out
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
GENERAL
Operating Temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature	-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Package Content	• VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories
Material	Metal
Net Weight	0.6 kg
Power Supply	• 12V DC $\pm$ 5%, Max. 15.6 W, 5.5 mm Coaxial Power Plug • PoE: 802.3at, Class 4, Max. 17.9 W
Protection	IP67 Weatherproof
Product Dimensions (L x W x H)	$\Phi$2.6 $\times$ 7.5 in ($\Phi$66 $\times$ 191 mm)

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Насочени ("bullet") камери
Резолюция:	QHD
Управляема:	Неуправляема
Аудио:	Двупосочно
Безжична:	Не
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
