Name: IP камера TP-Link VIGI InSight S345-4G(4mm), насочена bullet камера, 4Mpix(2688x1520@30fps), 4mm обектив, H.265+/H.265/H.264+/H.264, IR осветеност (до 50m), външна IP66, безжична, 4G, LAN, microSD слот до 512GB, микрофон и говорител
Brand: TP-Link
SKU: SCMDGTPLINKINSIGHTS3454G4MM
Price: 549.99 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

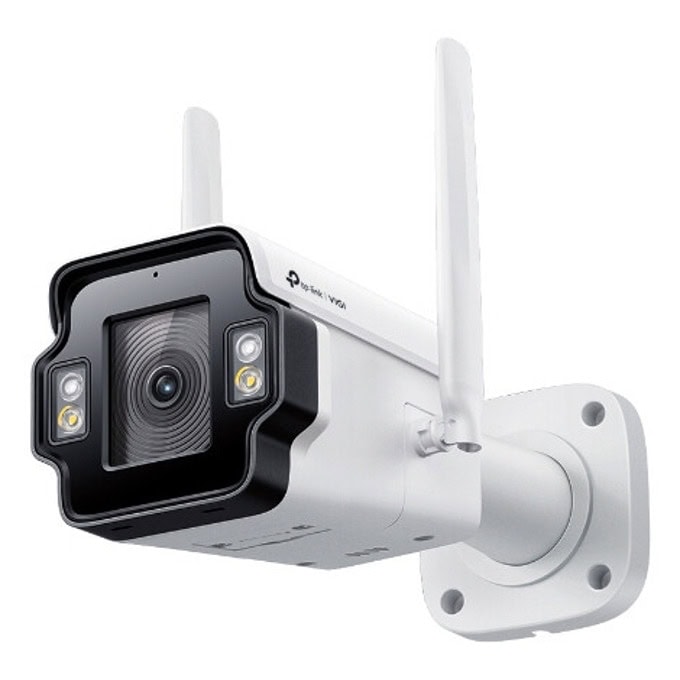

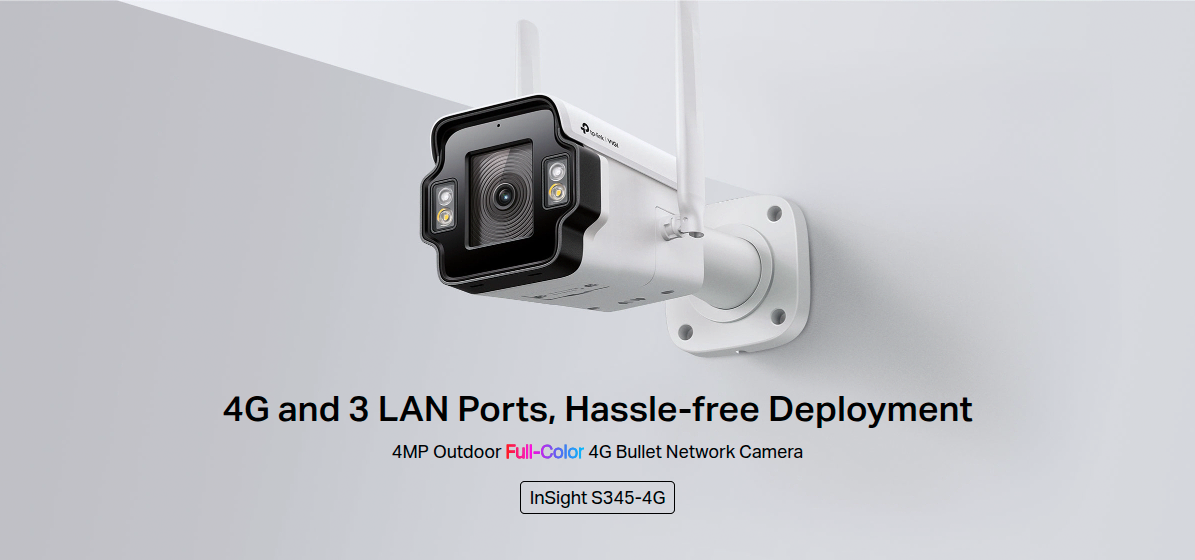

InSight S345-4G

VIGI 4MP Outdoor Full-Color 4G Bullet Network Camera

4MP Super-High Definition and 24h Full-Color
4G Mobile Networking*1
3 LAN Ports for Downstream Devices
Human & Vehicle Classification
Smart Detection
Smart Video Enhancement Technology
Active Defense and Two-Way Audio
H.265+ Compression Technology
IP66 Weatherproof

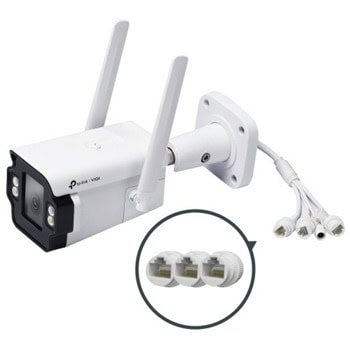

3 LAN Ports Meet Minimal Deployment Effort

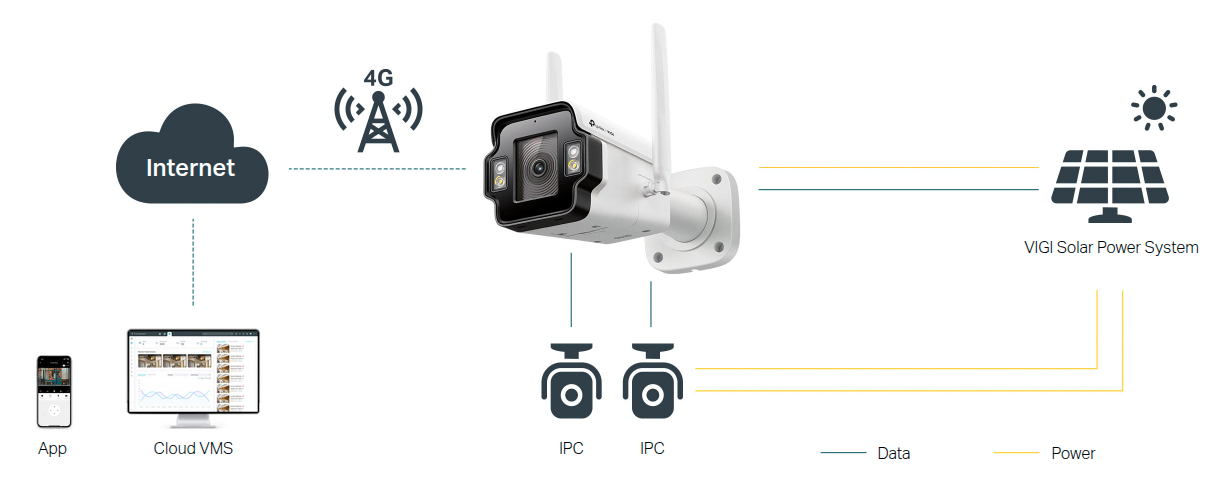

InSight S345-4G offers industry-first three LAN ports, enabling simultaneous connectivity for up to three devices as you need. It is ideal for coupling with solar power systems to eliminate additional wiring deployments.

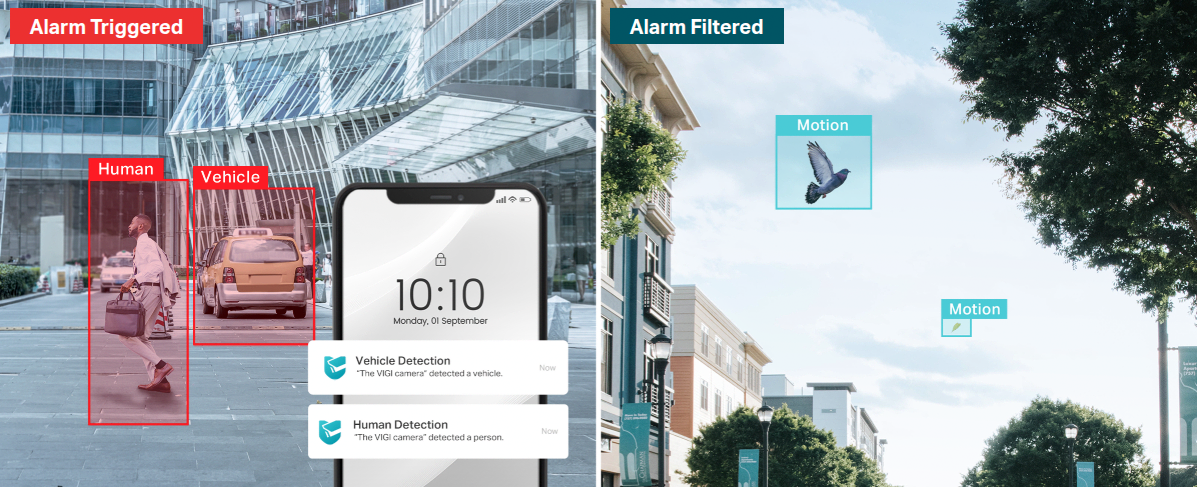

Human & Vehicle Classification

Distinguish humans and vehicles from other objects and receive more accurate event notifications.

Характеристика (Parameter)	Стойност (Value)
Светлочувствителен сензор	1/2.7“ Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Type	Fixed Focal Lens
Focal Length	4 mm
Aperture	F1.6
FOV	Horizontal FOV: 80.4°, Vertical FOV: 41.8°, Diagonal FOV: 98.7°
Lens Mount	M12
DORI Distance	Detect: 80 m (262 ft) Observe: 33 m (109 ft) Recognize: 16 m (52 ft) Identify: 8 m (26 ft)
Range	• Pan: 0° to 360° • Tilt: 0° to 90° • Rotate: 0° to 360°
Illuminator Type	• 2× IR LED • 2× White LED
IR LED	• Quantity: 2 • Range: 50m • Wavelength: 850nm
Illuminator Distance	• IR LED: 50 m (164 ft) • White LED: 30 m (98 ft)
White LED	• Quantity: 2 • Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
Max. Resolution	2688 X 1520
Main Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 2688x1520, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream	• Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps • Resolution: 848x480, 704x576, 640x480, 640x360, 352x288, 320x240 Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control	CBR, VBR
Видео компресия	• Main Stream: H.265+/H.265/H.264+/H.264 • Sub-Stream: H.265/H.264
H.264 Type	High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	• Main Stream: 256 Kbps to 6 Mbps • Sub-Stream: 64 Kbps to 512 Kbps
Image Settings	• Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent Overexposure to Infrared Light
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	120dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
Аудио комуникация	Two-Way Audio
Аудио вход	Yes (Built-in Microphone)
Аудио изход	Yes (Built-in Speaker)
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP
ONVIF	Yes
API	Open Network Video Interface (Profile S/G/T)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS
Web Browser	• Google Chrome® 57 and above • Firefox® 52 and above • Safari® 11 and above • Microsoft® Edge 91 and above
Cloud	Yes
Защита	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Standard	LTE-TDD/LTE-FDD/WCDMA
SIM Type	Nano SIM*1
Category	4
Frequency	• LTE-FDD: B 1/3/5/7/8/20/28 • LTE-TDD: B 38/40/41 • WCDMA: B 1/5/8
Uplink and Download Data Rate	Uplink: 50 Mbps, Downlink: 150 Mbps
Antenna	• Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Smart Event	• Intrusion Detection • Line-Crossing Detection • Region Entering Detection • Region Exiting Detection • Object Abandoned Detection • Object Removal Detection • Loitering Detection • People Detection • Vehicle Detection • Abnormal Sound Detection • Scene Change Detection
Basic Event	• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts) • Video Tampering Detection • Exception (Illegal Login)
Alarm Linkage	• Memory Card Video Recording • Message Push • Audible Warning • White Light Flashing • Upload to FTP server • Send to Alarm Server • Email Alarm
Мрежов интерфейс	3 RJ45 10/100M LAN Ports
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB*1

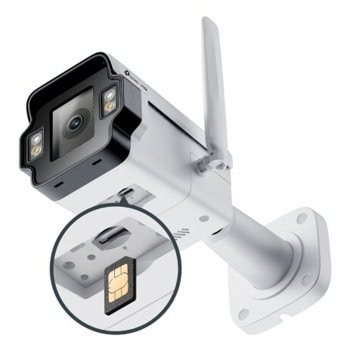

Built-in Nano-SIM Card Slot	Yes
Built-in Microphone	Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
Околна температура при работа	-30℃ to 60°C
Storage Temperature	-40℃ to 60°C
Околна влажност при работа	95% or Less (Non-Condensing)
Storage Humidity	95% or Less (Non-Condensing)
Material	Metal
Net Weight	1.09 Kg
Power Supply	DC • 12V DC/1 A, 5.5 mm Coaxial Power Plug • Recommended Power Supply: T120100-2C1 (for EU Regions) ErP Information • Power consumption in networked standby when all wired network ports are connected: 2.7 W.
Antenna	• Quantity: 2 • Type: 690~960&1710~2690MHz Dipole Omni-Directional Antenna • Gain: Ant1：0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz Ant2：0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
Protection	IP66 Weatherproof
Product Dimensions (L x W x H)	10 × 4.8 × 4.0 in (256 × 122 × 101 mm) (excluding antennas)

Виж още Цифрови IP камери TP-Link
Виж всички Цифрови IP камери в категорията

Технически характеристики

Вид:	Насочени ("bullet") камери
Резолюция:	QHD
Управляема:	Неуправляема
Аудио:	Двупосочно
Безжична:	Да
Външен монтаж:	Да
IR Осветление:	Да
Термокамера:	Не
