Тонколони Q Acoustics Q Concept 50, 2.0, басрефлексни, черни, 42 - 30 000 Hz честотен диапазон

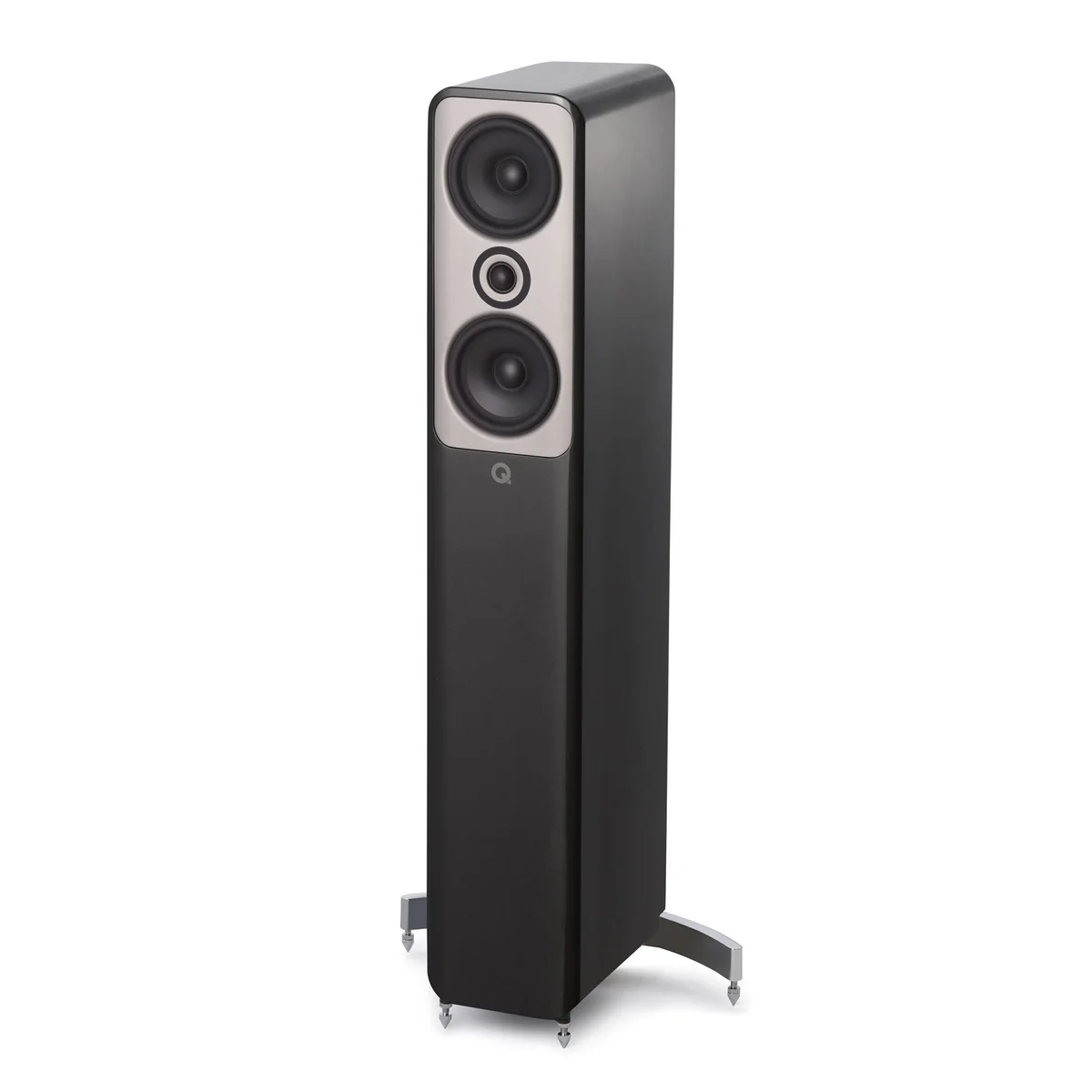

Q Acoustics Q Concept 50

The drive units are fixed to a remarkably stiff 3mm aluminium baffle plate before it is fitted to the cabinet - this gives the correct acoustic seal, dampening vibrations and minimising structural coupling.



Elsewhere, the tweeter is hermetically sealed and mechanically isolated (floating) from the baffle, which means lower distortion and a lower crossover point for seamless integration through the crossover region. At 30.5mm, the larger mid/bass driver voice coil increases motor strength resulting in a 50% increase in power handling over a comparable driver with 25.4 mm voice coil.



Lastly, the crossover itself is mounted to the isolation base, keeping it free of sound-effecting vibrations and away from the electro-magnetic influence of the drivers themselves.



HPE (Helmholtz Pressure Equalizer) technology

The very nature of the Concept 50 tower design can introduce undesirable standing waves within the cabinet. By employing an HPE™ (Helmholtz Pressure Equalizer™) tube design, first launched in the Concept 500, pressure is converted to velocity to eliminate these performance-effecting vibrations and to help deliver the ideal frequency response.



Gelcore technology

Introduced in the original Concept speaker, the Gelcore cabinet construction is designed to minimise high-frequency noise. A unique design comprised of a non-setting gel sandwiched between two individual layers, this specially developed adhesive dissipates high-frequency vibrations, generated by the moving drivers, into heat to maintain a focused audio performance.

Specifications

 Bass unit
2 x 125 mm (5.0 in)



  Treble unit
1 x 25 mm (0.9 in)



  Frequency response(-6dB)
42 Hz - 30 kHz



  Nominal impedance
6 Ω



  Minimum impedance
3.6 Ω



  Sensitivity (2.83V @ 1kHz)
90.5 dB/w/m



  Recommended amplifier power
25-150 W



  Crossover frequency
2.1 kHz



  Distortion (120Hz - 20kHz, @2.83Vrms)
<0.2%



  Effective volume
28.8 L



  Dimensions (per loudspeaker / HxWxD)
Inc spikes and stabiliser: 1025 x 418 x 319 mm (40.4 x 16.5 x 12.6 in), Cabinet width: 180 mm (7.1 in)
