IP видеорекордер Tenda N3L-4H, 4 канален, H.265+/H.265/H.264+/H.264, 1x SATA (до 10TB), LAN, HDMI, VGA, USB

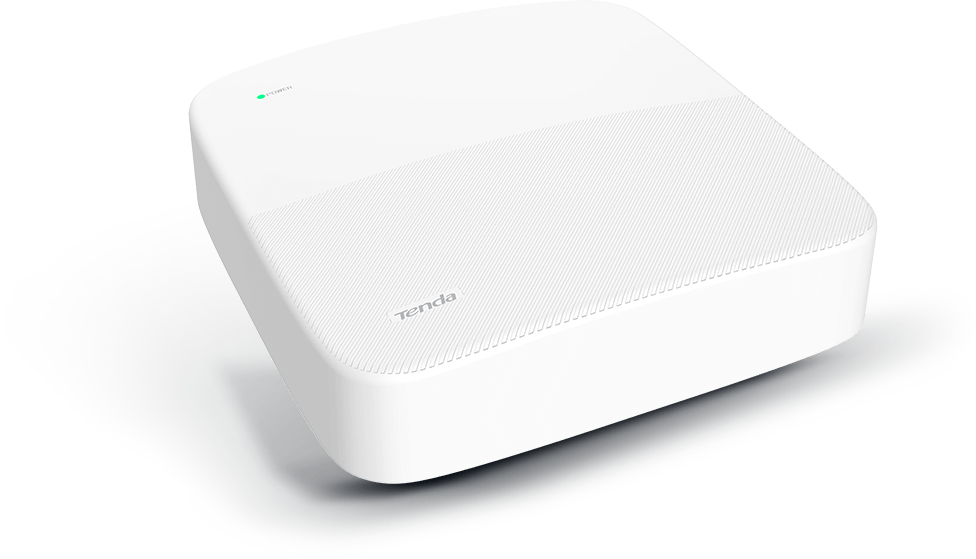

Tenda N3L-4H

UHD Recordings and  HDD Bad Sector Isolation

Restaurant | Shop | Office | School | Farm

N3L-4H HD Network Video Recorder can automatically connect to 4 channels of 8MP UHD cameras with high protocol compatibility. It supports 1080P HD output, HDD bad sector isolation, channel cloud storage, H.265 high-performance video compression and app remote monitoring. It is suitable for shops, restaurants, offices, factories, farms and other scenarios, meeting your demand for efficient and convenient monitoring management and storage.









Real-time Recording with Simultaneous Playback

Network Video Recorder supports 8MP UHD IP camera access, simultaneous video preview, storage and playback.

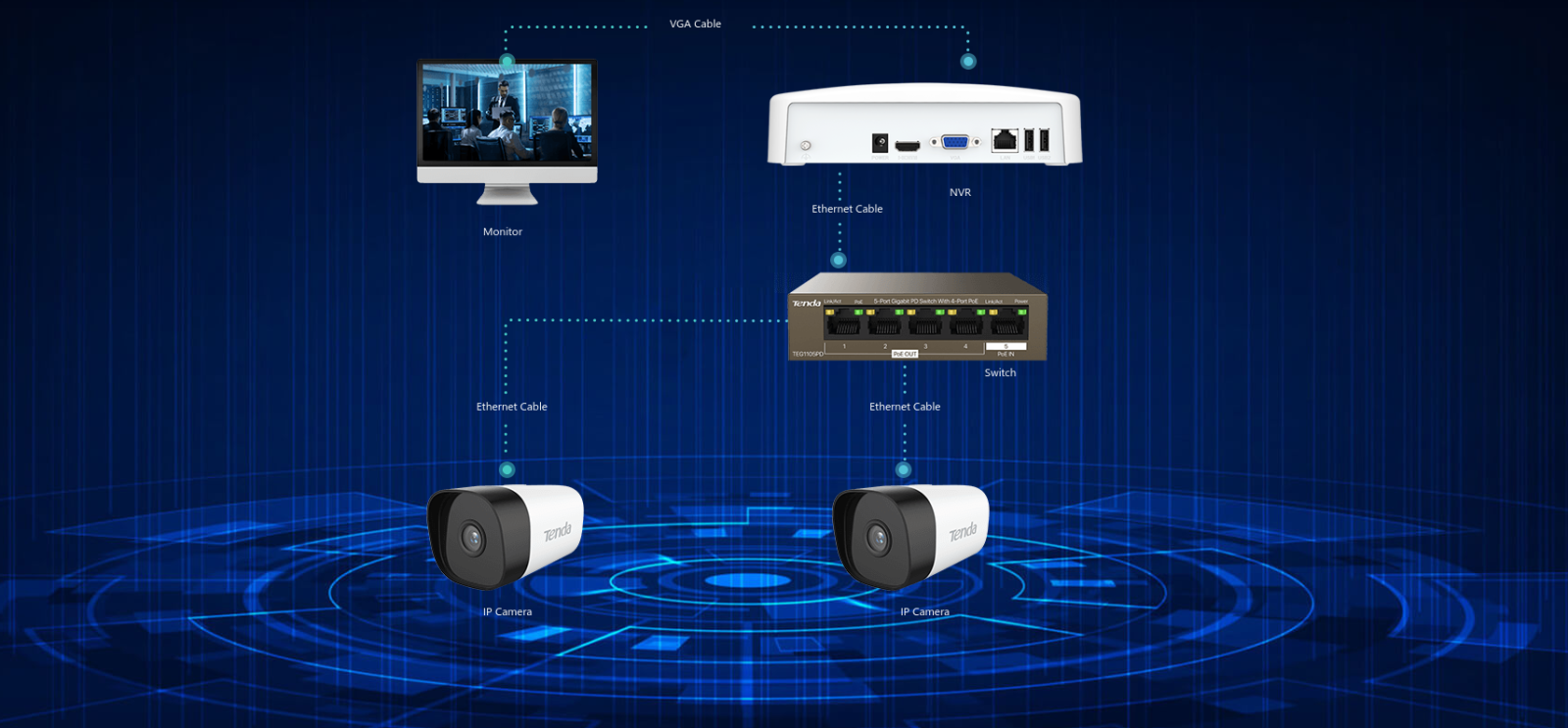

Efficient Automatic Connection

Automatically searching and connecting to cameras within the local area network, Network Video Recorder gets you out of tedious manual configuration, which is friendly for novices.





VGA/HDMI Simultaneous Output of 1080P HD Images

Network Video Recorder supports VGA/HDMI simultaneous output, with the resolution up to 1920 × 1080.





Powerful Compatibility, Avaliable in Other Brand Cameras

Network Video Recorder supports search and add other brands of cameras to establish monitor networking





Specifications:



Video

IP Video Input

4-ch



IP Video Resolution

Up to 8MP



Input Bandwidth

60 Mbps





Video&Audio Output

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz



VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz HDMI/VGA simultaneous output



Output Bandwidth

60 Mbps





Video&Audio Decoding

Video Decoding Format

H.265+, H.265, H.264+, H.264



Audio Decoding Format

G.711A, G.711U, G726



Recording Resolution

8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, D1



Decoding Capability

4-ch@1080p(30 fps)



Stream Type

Video, Video & Audio





Recording Management

Record Mode

Normal, Alarm



Playback Mode

Instant, Channel, File, Tag



Sync Playback

Up to 4-ch



Backup Mode

USB device





Network Managemant

Ethernet Port

1 × RJ-45, 10 Mbps/100 Mbps auto-negotiation Ethernet port



Network Protocol

HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS



Mobile Client

Supports iOS, Android



Web Browser

Plug-in free live view : Chrome, Edge, Opera







PoE



HDD Storage

HDD Interface

1 × SATA interface



Capacity

Up to 10 TB capacity for each HDD





External Interface

USB Port

2 × USB2.0





General

Power

12 VDC,2A



Dimension

200 mm × 200 mm × 48 mm (7.9 ”× 7.9 ” × 1.9 ”)



Weight (Without HDD)

430g(0.95lb)



Certification

CCC, CE, FCC, RoHS



Installation Method

Desktop mounting, wall mounting



Temperature

Operating Temperature: 0°C - 40°C (32°F - 104°F)
Storage Temperature: -30°C - 70°C (-22°F - 158°F)



Humidity

Operating Humidity: 10% - 90% RH (non-condensing)
Storage Humidity: 5% - 95% RH (non-condensing)
