Комплект за видеонаблюдение Tenda K8P-4CR, 8x IP насочени тип "bullet" камери (4MP, 4mm, IR до 50m, (2560x1440)), + IP видеорекордер (8 канала, 1x SATA до 10TB, 1x HDMI, 1x VGA, USB

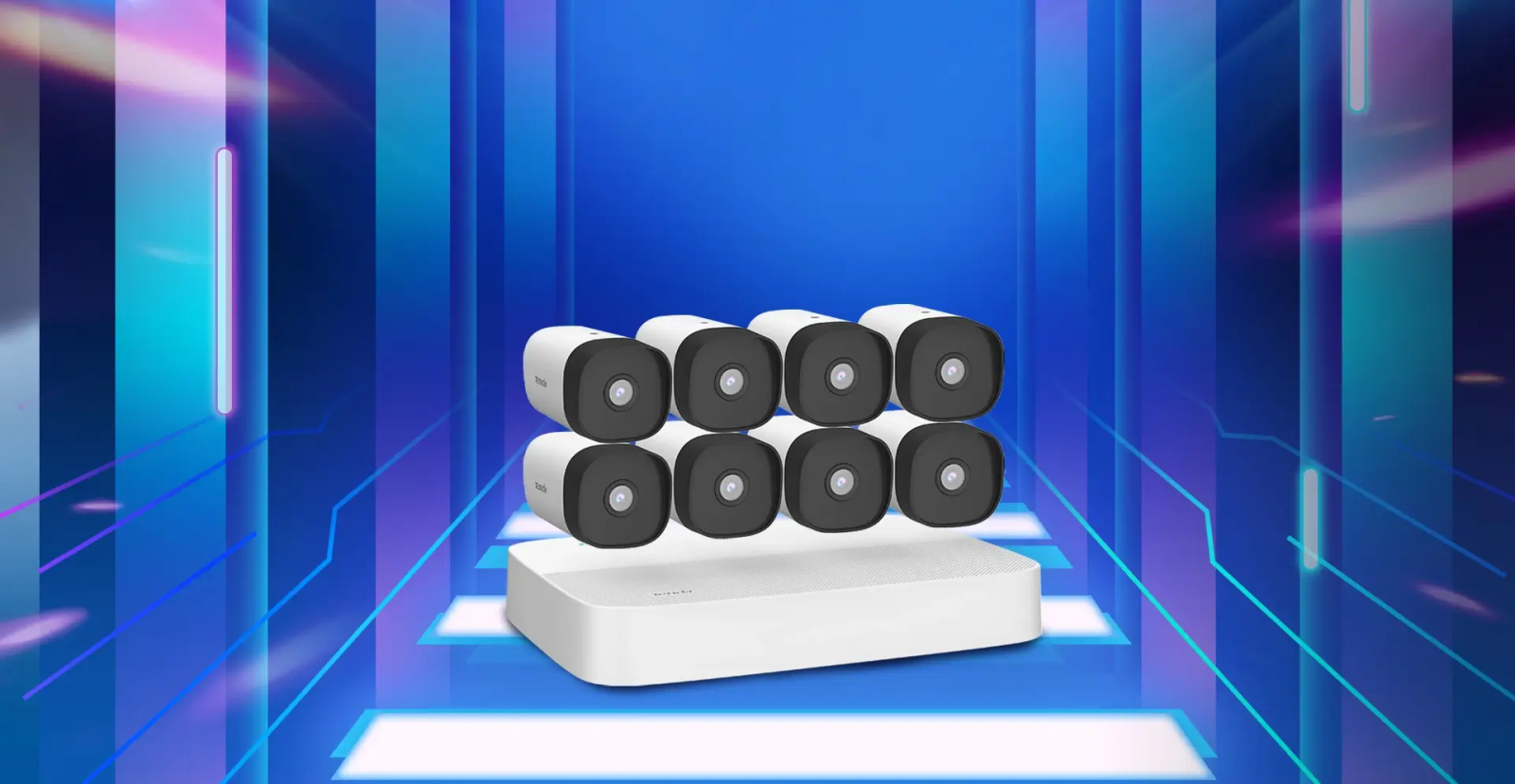

8 Channel PoE HD Video Security Kit K8P-4TR

4MP All-day Safeguard
Enjoy Smart and Safe Life

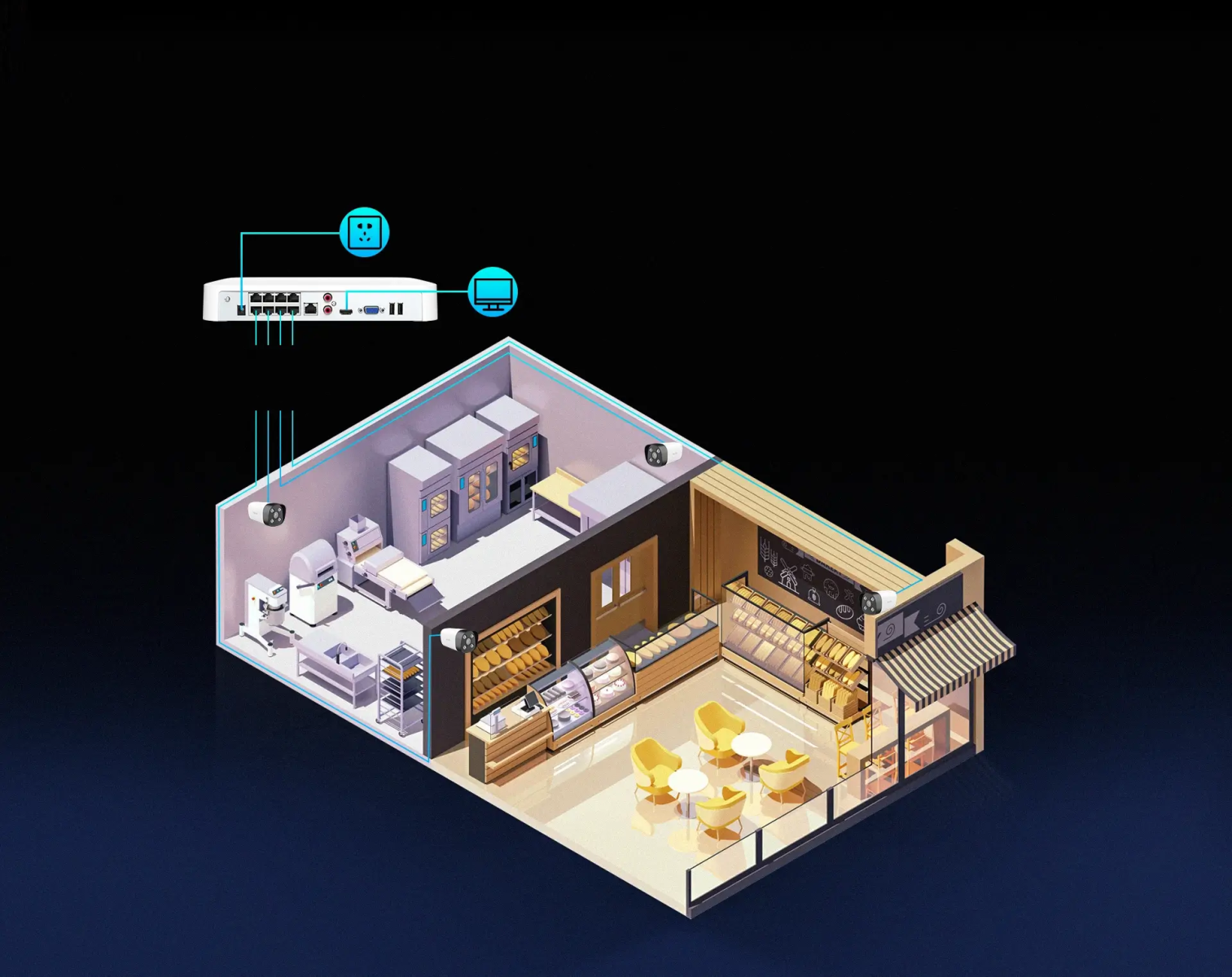

Restaurant | Shop | Single-family House | Office | School | Factory | Farm





Plug and Play with Stable Standard
PoE Power Supply

IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply





4MP HD Excellent Night Vision Experience

Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 50-meter infrared night vision enables you record with high-definition even in dark environment or a ultra-long distance.





Support 4K UHD Output for Clearer Horizons

4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.





Smart Bad Sector Isolation, Designed for Monitoring

The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable.





AI Human Detection for Accurate Alarm

Based on deep learning image identification technology, the built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.

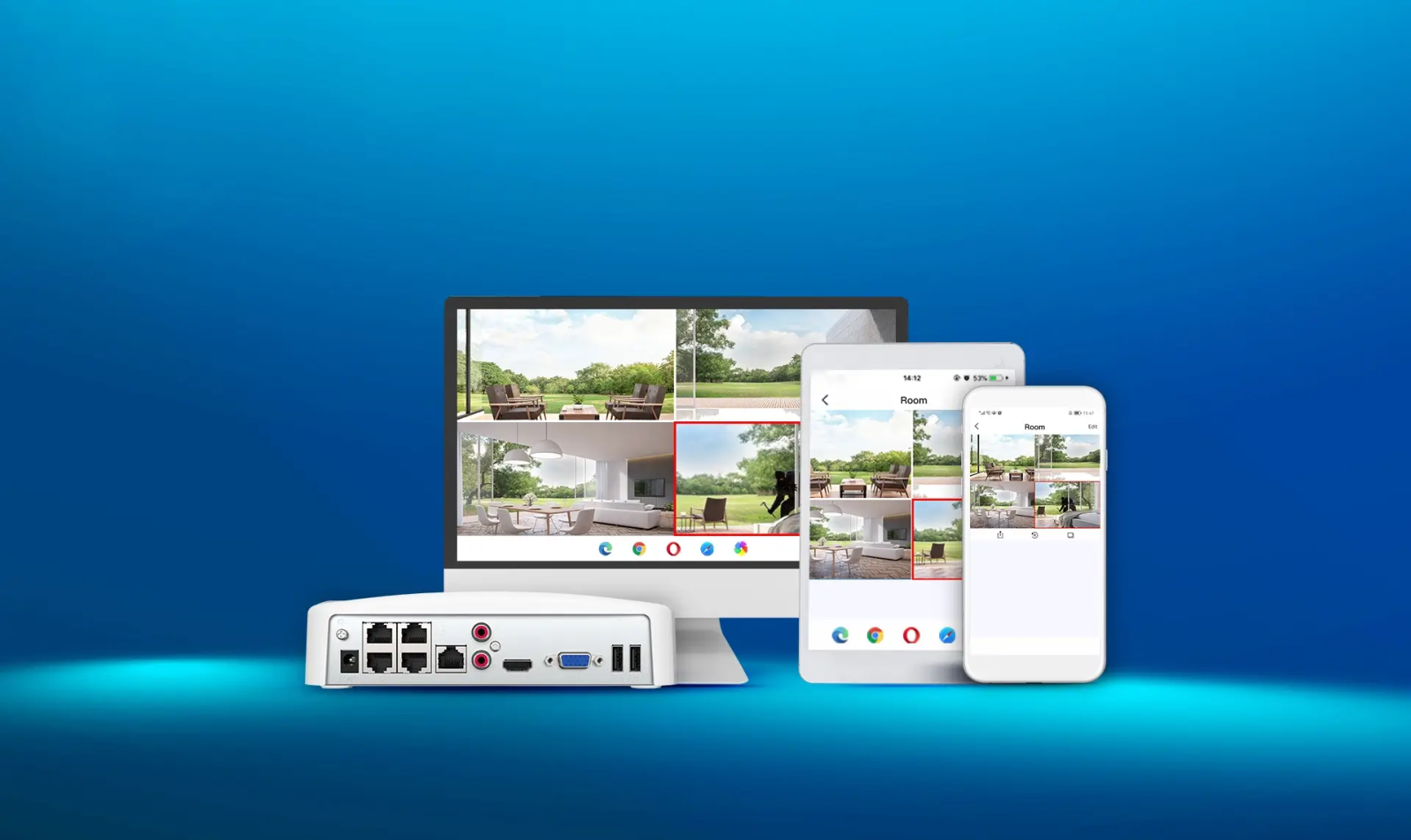

Easy and Fast Remote Access
Control Monitoring Anytime Anywhere

The video security kit supports mobile App remote monitoring and browser access without plug-in. You can view and paly back the video, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.





Specifications:



PoE HD Network Video Recorder



Video&Audio Input

IP Video Input

8-ch

IP Video Resolution

4MP

Input Bandwidth

60 Mbps

Audio Input

1-ch, RCA (2.0 Vp-p, 10kΩ)





Video&Audio Output

HDMI Output

1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz



VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output



Output Bandwidth

60 Mbps



Audio Output

1-ch, RCA (2.0 Vp-p, 10kΩ)





Video&Audio Decoding

Video Decoding Format

H.265, H.264



Audio Decoding Format

G.711A, G.711U



Recording Resolution

4MP, 3MP, 1080P, 720P, D1



Decoding Capability

4-ch@1080P (30 fps)



Stream Type

Video, Video & Audio





Recording Management

Record Mode

Normal, Alarm



Playback Mode

Instant, Channel, File, Tag



Sync Playback

Up to 8-ch



Backup Mode

USB device





Network Managemants

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port



Network Protocol

HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS



Mobile Client

Support iOS, Android



Web Browser

Plug-in free live view : Chrome, Edge, Opera, Safari





PoE

PoE Port

8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports



PoE Standard

IEEE 802.3af



PoE Power

≤60W





HDD Storage

HDD Interface

1 SATA 3.0 interface



Capacity

Up to 10 TB capacity for each HDD





External Interfaces

USB Port

2 x USB 2.0





Generals

Power

51 VDC, 1.25 A



Dimension

200 mm × 200 mm × 48 mm



Weight (Without HDD)

780 g (1.72lb)



Certification

CCC, CE, FCC, RoHS,UKCA



Installation Method

Desktop mounting, Wall mounting



Temperature

Operating temperature: 0°C - 40°C (32°F - 104°F)
Storage temperature: -30°C - 70°C (-22°F - 158°F)



Humidity

Operating humidity: 10% - 90% RH (non-condensing)
Storage humidity: 5% - 95% RH (non-condensing)







PoE Security Camera



Camera

Image Sensor

1/3” CMOS sensor



Max. Resolution

2560 x 1440



Day and Night

Built-in IR-CUT Dual Filters



Digital Noise Reduction

3D DNR



DWDR

Support

Backlight Compensation

Support



Fill Light

4 IR Lights



Infrared Fill Light Distance

Up to 50 meters (depending on environment)



Night Vision Mode

Infrared Mode





Lens Specifications

Lens Type

4 [email protected]



FOV

Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2°





Video Specifications

Video Encoding Format

H.265, H.264



Main Stream

25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080)

Sub Stream

25fps (640 × 360, 352 × 288, 320 × 240)





Audio Specifications

Audio Encoding Format

G.711A, G.711U



Audio Sampling Rate

8 kHz



Network Managemant

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port





Smart Alarm

Motion Detection

Support

Human Detection

Support

Video Tampering

Support





External Interface

Audio Input

Built-in microphone





General

Dimension

85mm x 85mm x 166mm



Weight

204g



Protection Level

IP67



Installation Method

Pendant mounting, Wall mounting (with bracket)



Certification

CE, FCC, RoHS,UKCA



Temperature

Operating temperature: -10°C - 50°C (14°F - 122°F)
Storage temperature: -40°C - 70°C (-40°F - 158°F)



Humidity

Operating humidity: 10% - 95% RH (non-condensing)
Storage humidity: 3% - 95% RH (non-condensing)





Kit

Dimension

420mm x 395mm x 305mm



Weight (With Package)

8.99kg
