Комплект за видеонаблюдение Tenda K8P-4CR, 8x IP насочени тип "куполни" камери (4MP, 4mm, IR до 30m, (2560x1440)), + IP видеорекордер (8 канала, 1x SATA до 10TB, 1x HDMI, 1x VGA, USB

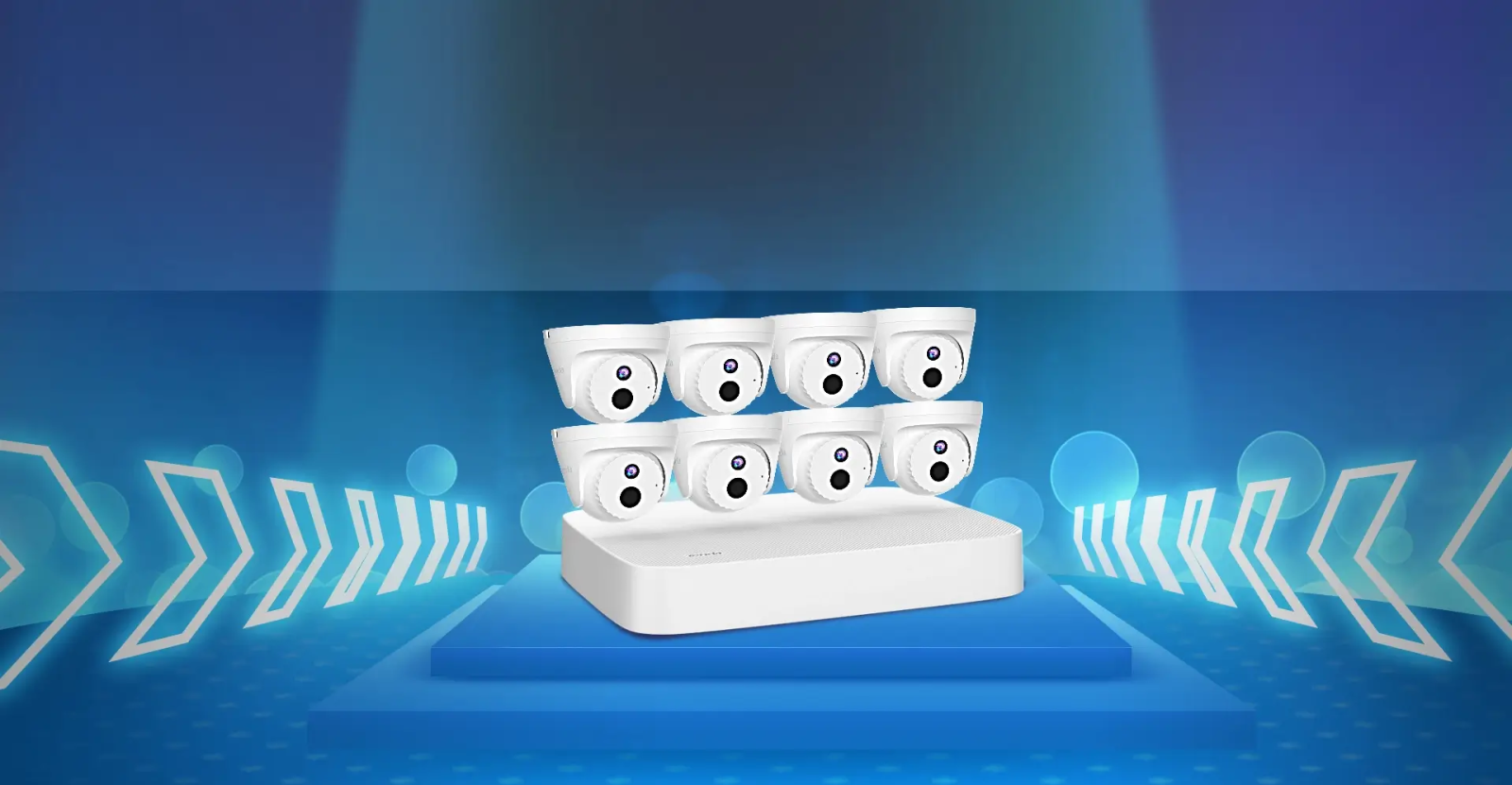

Tenda K8P-4CR

4MP All-day Safeguard
Enjoy Smart and Safe Life

Restaurant | Shop | Single-family House | Office | School | Factory | Farm

Plug and Play with Stable Standard
PoE Power Supply

IEEE802.3af standard PoE; Sifos testing; Power overload protection; Plug and play; Safe and stable internet connection and power supply

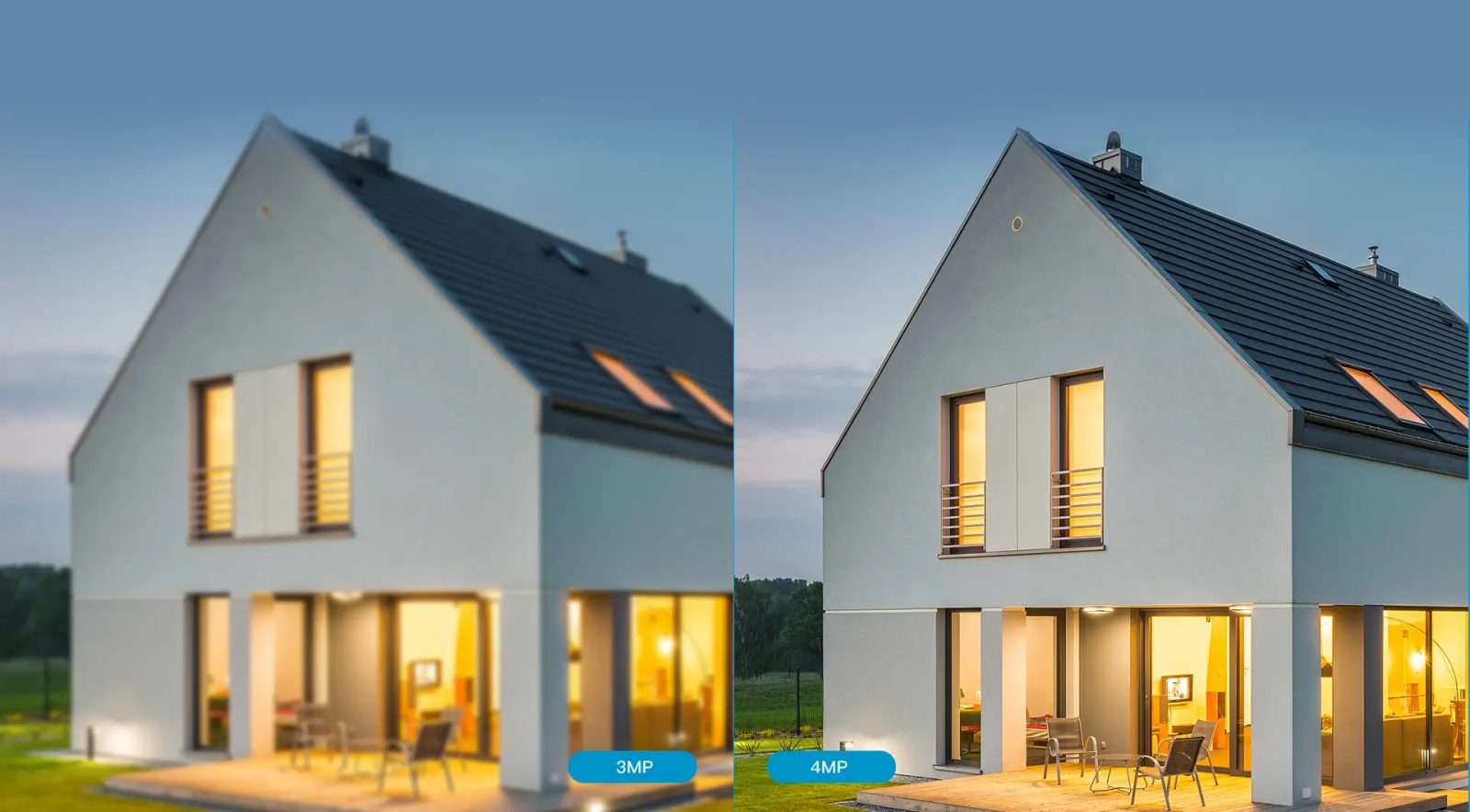

4MP HD Excellent Night Vision Experience

Equipped with 4MP high-performance CMOS image sensor, the resolution can reach 2560*1440. 30-meter infrared night vision enables you record with high-definition even in dark environment or a ultra-long distance.

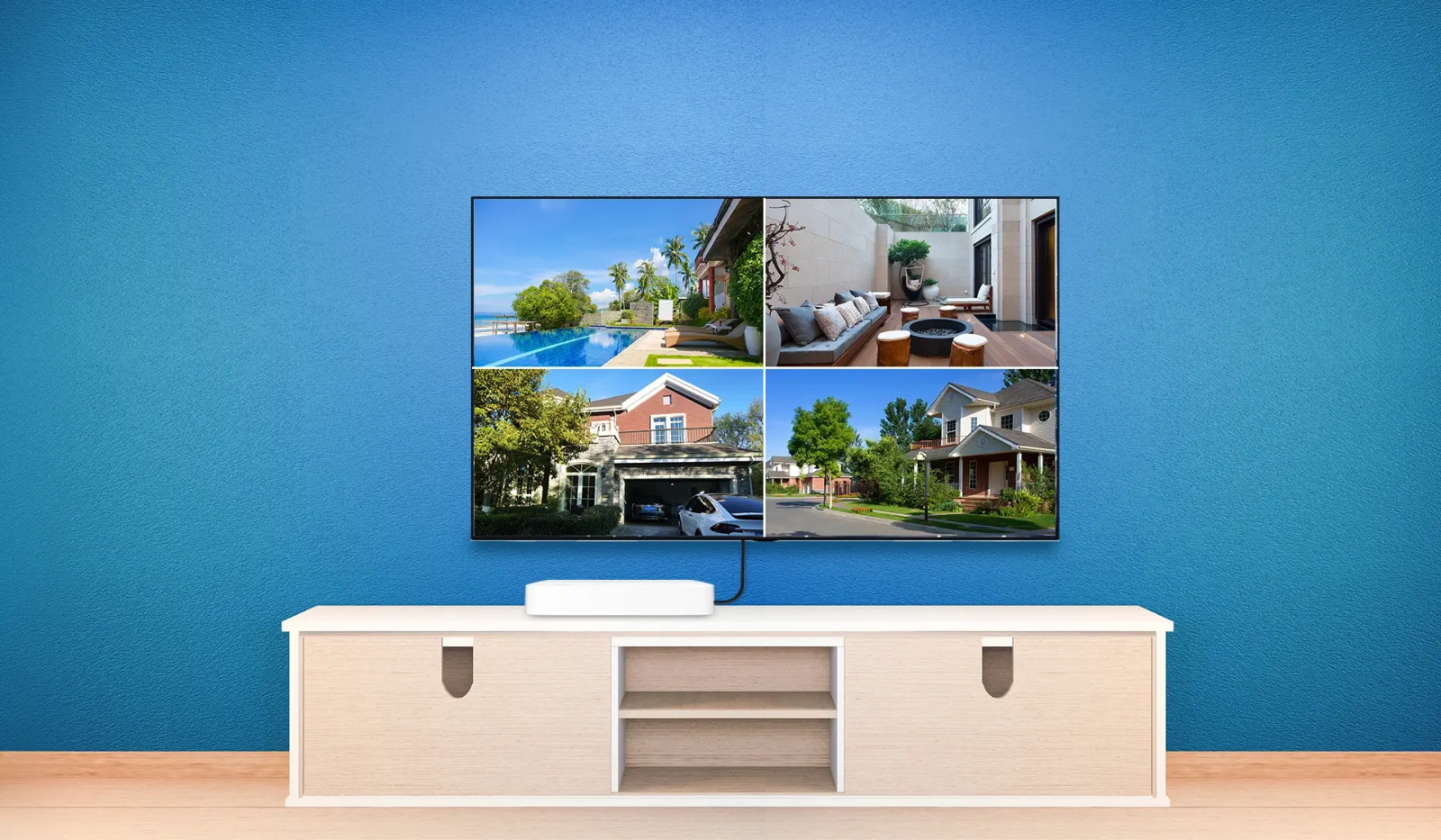

Support 4K UHD Output for Clearer Horizons

4K HDMI output and the ultra high-definition 3840*2160 resolution provides you clear images with more details even when zoomed.

Smart Bad Sector Isolation, Designed for Monitoring

The file system is specially designed for video surveillance. It can automatically detect, identify and skip the bad sectors on the HDD, ensuring that the recording is complete without losing frames. It is safe, stable and reliable.

AI Human Detection for Accurate Alarm

Based on deep learning image identification technology, the built-in AI human detection function effectively filters non-human targets, thus greatly improving alarm accuracy.

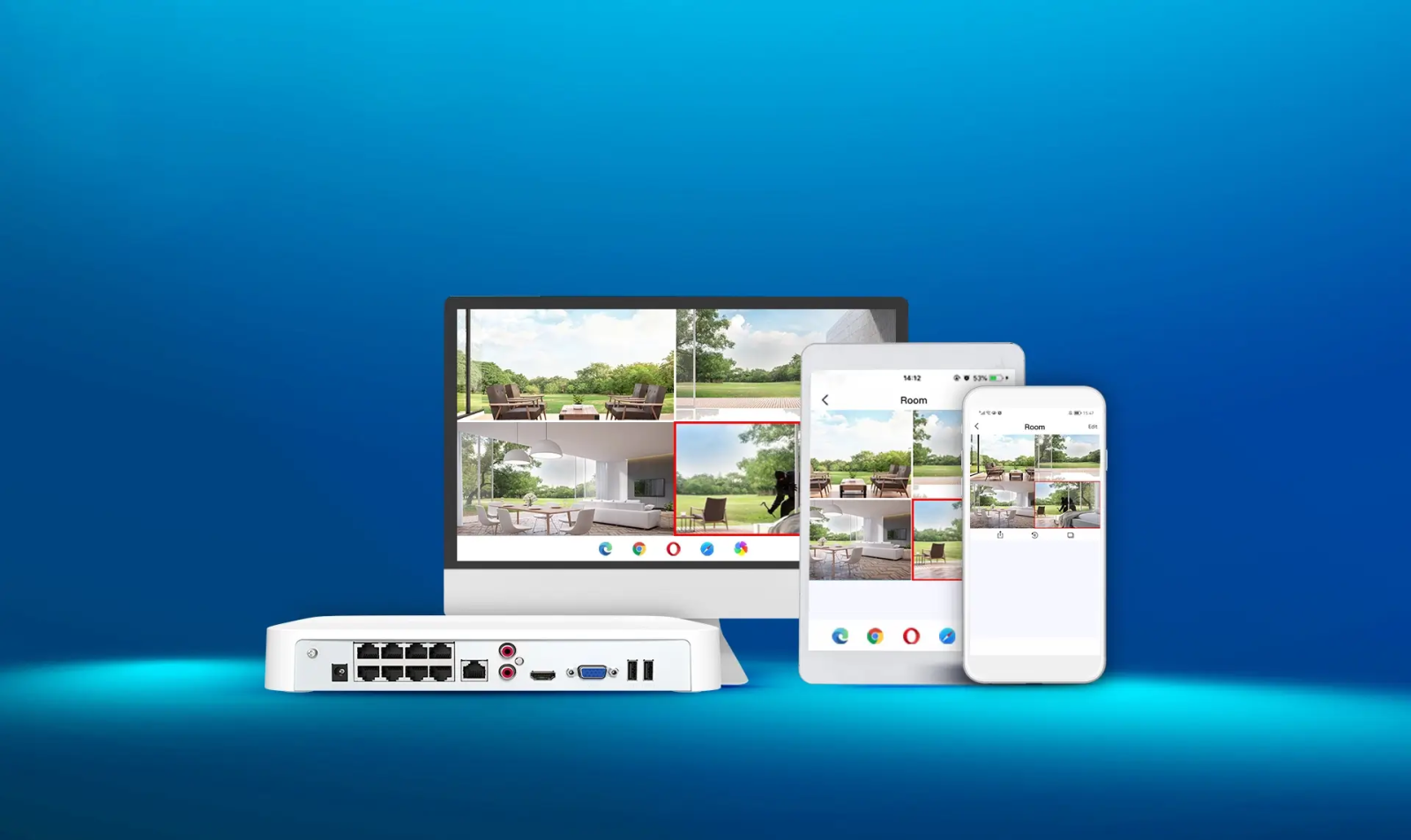

Easy and Fast Remote Access Control Monitoring Anytime Anywhere

The video security kit supports mobile App remote monitoring and browser access without plug-in. You can view and paly back the video, receive the alarm messages and control abnormal conditions on your mobile phone anytime and anywhere.

Specifications:

PoE HD Network Video Recorder

Video&Audio Input

IP Video Input

8-ch

IP Video Resolution

4MP

Input Bandwidth

4MP 60 Mbps

Audio Input

1-ch, RCA (2.0 Vp-p, 10kΩ)

Video&Audio Output

HDMI Output

1-ch, 4K (3840 × 2160 )/30Hz, 1920 × 1080/60 Hz, 1280 × 1024/60Hz, 1280 × 720/60 Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output

Output Bandwidth

60 Mbps

Audio Output

1-ch, RCA (2.0 Vp-p, 10kΩ)

Video&Audio Decoding

Video Decoding Format

H.265, H.264

Audio Decoding Format

G.711A, G.711U

Recording Resolution

4MP, 3MP, 1080P, 720P, D1

Decoding Capability

4-ch@1080P (30 fps)

Stream Type

Video, Video & Audio

Recording Management

Record Mode

Normal, Alarm

Playback Mode

Instant, Channel, File, Tag

Sync Playback

Up to 8-ch

Backup Mode

USB device

Network Managemants

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Network Protocol

HTTP, HTTPS, WebSockets, TCP/IP, IPv4, RTSP, UDP, NTP, DHCP, DNS, DDNS

Mobile Client

Support iOS, Android

Web Browser

Plug-in free live view : Chrome, Edge, Opera, Safari

PoE

PoE Port

8 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet ports

PoE Standard

IEEE 802.3af

PoE Power

≤60W

HDD Storage

HDD Interface

1 SATA 3.0 interface

Capacity

Up to 10 TB capacity for each HDD

External Interfaces

USB Port

2 x USB 2.0

Generals

Power

51 VDC, 1.25 A

Dimension

200 mm × 200 mm × 48 mm

Weight (Without HDD)

780 g (1.72lb)

Certification

CCC, CE, FCC, RoHS,UKCA

Installation Method

Desktop mounting, Wall mounting

Temperature

Operating temperature: 0°C - 40°C (32°F - 104°F)
Storage temperature: -30°C - 70°C (-22°F - 158°F)

Humidity

Operating humidity: 10% - 90% RH (non-condensing)
Storage humidity: 5% - 95% RH (non-condensing)

PoE Security Camera

Camera

Image Sensor

1/3” CMOS sensor

Max. Resolution

2560 x 1440

Day and Night

Built-in IR-CUT Dual Filters

Digital Noise Reduction

3D DNR

DWDR

Support

Backlight Compensation

Support

Fill Light

1 IR Light

Infrared Fill Light Distance

Up to 30 meters (depending on environment)

Night Vision Mode

Infrared Mode

Lens Specifications

Lens Type

4 [email protected]

FOV

Horizontal FOV: 74.9°, Vertical FOV: 41.3°, Diagonal FOV: 88.2°

Video Specifications

Video Encoding Format

H.265, H.264

Main Stream

25fps (2560 ×1440),30fps(2304 × 1296, 1920 × 1080)

Sub Stream

25fps (640 × 360, 352 × 288, 320 × 240)

Audio Specifications

Audio Encoding Format

G.711A, G.711U

Audio Sampling Rate

8 kHz

Network Managemant

Ethernet Port

1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port

Smart Alarm

Motion Detection

Support

Human Detection

Support

Video Tampering

Support

External Interface

Audio Input

Built-in microphone

General

Dimension

106.8 mm x 90.5 mm

Weight

174 g

Installation Method

Ceiling mounting, Wall mounting

Certification

CE, FCC, RoHS,UKCA

Temperature

Operating temperature: -10°C - 50°C (14°F - 122°F)
Storage temperature: -40°C - 70°C (-40°F - 158°F)

Humidity

Operating humidity: 10% - 95% RH (non-condensing)
Storage humidity: 3% - 95% RH (non-condensing)

Kit

Dimension

395mm x 377mm x 305mm

Weight (With Package)

7.25kg
