Проектор Sony VPL-FHZ80/B, 3LCD, WUXGA (1920x1200), 6500lm, DVI-D, HDMI, LAN, RS-232C, VGA

Sony VPL-FHZ80/B



Crisp, high-impact images

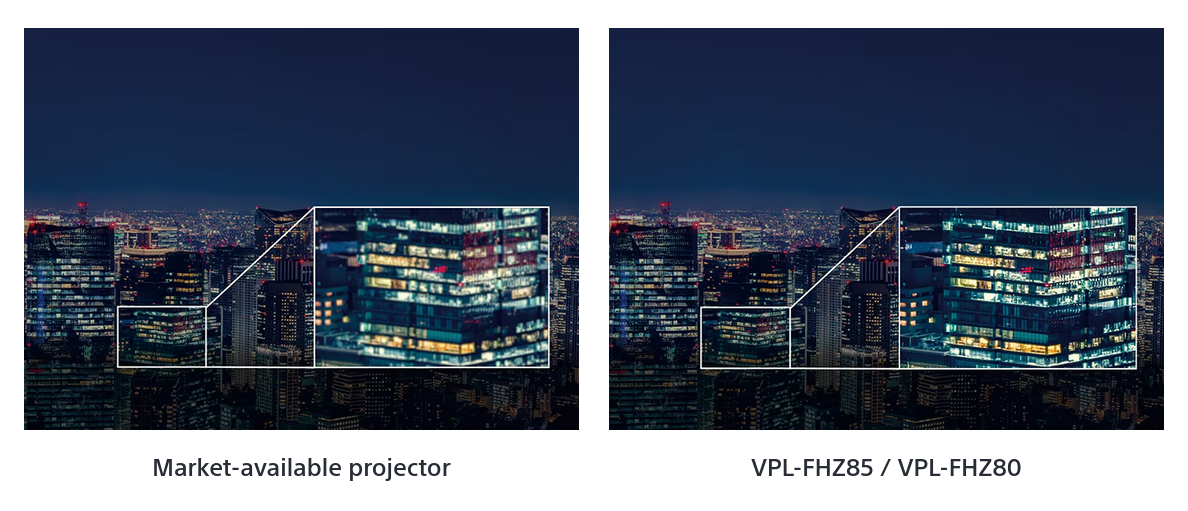

The use of 4K photos and videos is increasingly common in presentations. While the VPL-FHZ85/80 are WUXGA projectors, they offer a 4K60P input to display images with quality that’s close to true 4K resolution. Reality Creation is Sony’s processing technology that’s been improved for displaying 4K content better, ensuring images look crisper, with a stronger feeling of depth.



Sophisticated design and superior installation flexibility

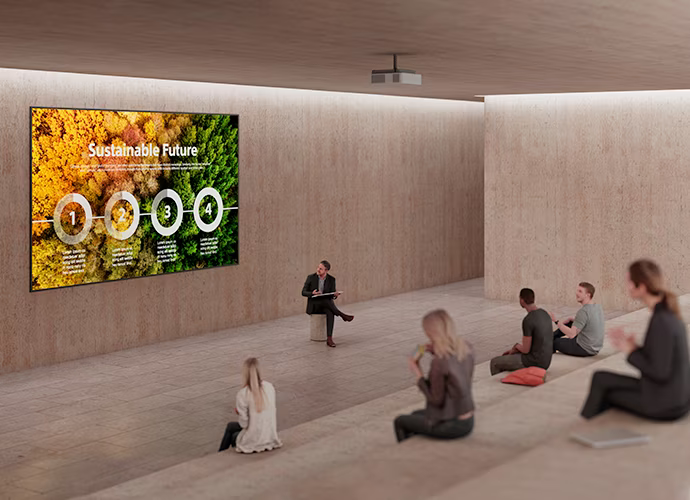

The light, compact VPL-FHZ85/80 make an elegant addition to any modern work space. Its understated blend-in design features a flat-top surface that minimizes visual impact when the projector is ceiling mounted. Installation is simplified with a choice of optional lenses, while a class-leading lens shift capability overcomes challenges like ceiling obstacles and other AV equipment.



Specifications

Display system

3 LCD system

Display device

Size of effective display area

New LCD panel 0.76" (19 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10



Number of pixels

6,912,000 (1920 x 1200 x 3) pixels

Projection lens

Focus

Powered



Zoom - Powered/Manual

Powered



Zoom - Ratio

Approx. x 1.6



Throw ratio

1.39:1 to 2.23:1



Lens shift - Powered/Manual

Powered



Lens shift - Range Vertical

-5%, +70%



Lens shift - Range Horizontal

+/- 32%

Light source

Type

Laser diode

Screen size

Screen size

40'' to 600'' (1.02 m to 15.24 m) (measured diagonally)

Light output

Mode: Standard

6000lm / 6500lm (Center)



Mode: Middle

4800lm



Mode: Low

-

Colour light output

Mode: Standard

6000lm



Mode: Middle

4800lm



Mode: Low

-

Time until light output declines to 50 %

Mode: Standard

20000 hours



Mode: Middle

30000 hours

Contrast ratio (full white / full black)

Contrast ratio (full white / full black)

∞:1

Displayable scanning frequency

Horizontal

15 kHz to 93 kHz



Vertical

23 Hz to 63 Hz

Accepted signal resolution

Computer signal input

Maximum signal resolution: 1920 x 1200



Video signal input

NTSC, PAL, SECAM, 480/60i, 576/50i, 480/60p, 576/50p, 720/60p, 720/50p, 1080/60i, 1080/50i, 1080/60p, 1080/50p,3840/60p, 3840/30p, 3840/25p, 3840/24p,4096/60p, 4096/30p, 4096/25p, 4096/24p

Keystone correction (Max.)

Horizontal

+/- 30 degrees



Vertical

+/- 30 degrees

INPUT OUTPUT (Computer / Video / Audio / Control)

INPUT A

RGB / Y PB PR input connector:Mini D-sub 15 pin (female)
Audio input connector: Stereo mini jack



INPUT B

DVI input connector: DVI-D 24-pin (single link), HDCP support
Audio input connector: Shared with INPUT A



INPUT C

HDMI input connector: HDMI 19-pin, HDCP support
Audio input connector: HDMI audio support



INPUT D

HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)



VIDEO IN

Video input connector: BNC
Audio input connector: Shared with input A



OUTPUT A

Monitor output for Input A Connector: Mini D-sub 15-pin (female)
Audio output connector: Stereo mini jack



OUTPUT B

Monitor output for Input B Connector: DVI-D 24-pin (single link), HDCP not supported
Audio output, Monitor out connector: Stereo mini jack



REMOTE

D-sub 9-pin (male) / RS232C



LAN

RJ45, 10BASE-T/100BASE-TX



IR (Control S)

Stereo mini jack, Plug in power DC5V



USB

TYPE-A (for F/W update) , TYPE-A (for Power supply)

Acoustic Noise (Mode: Standard / Middle)

36 dB / 34 dB

Operating temperature / Operating humidity

Operating temperature / Operating humidity

0°C to 45°C (32°F to 109°F) / 20% to 80% (no condensation)

Storage temperature / Storage humidity

Storage temperature / Storage humidity

-10°C to +60°C (14°F to +140°F) / 20% to 80% (no condensation)

Power requirements

Power requirements

AC 100 V to 240 V, 5.1 A to 2.2 A, 50 Hz / 60 Hz

Power consumption

AC 100 V to 120 V

Mode: Standard: 397 W



AC 220 V to 240 V

Mode: Standard: 378 W

Power consumption (Standby Mode)

AC 100 V to 120 V

0.5W (when “Standby mode” is set to “Low”)



AC 220 V to 240 V

0.5W (when “Standby mode” is set to “Low”)

Power consumption (Networked Standby Mode)

AC 100 V to 120 V

9.8 W (LAN)
10.6 W (HDBaseT)
10.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")



AC 220 V to 240 V

10.9 W (LAN)
11.6 W (HDBaseT)
11.6 W (All Terminals and Networks Connected) (when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Standby Mode / Networked Standby Mode Activated

Approx. 10 Minutes

Heat dissipation

AC 100 V to 120 V

1355 BTU/h



AC 220 V to 240 V

1290 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions)

460 x 169 x 494 mm
18 1/8 x 6 3/4 x 19 1/2 inches

Mass

Approx. 13 kg (28 lb)
