Аналогов HD (AHD) видеорекордер Qihan QH-D7116EM, 16-канален, 16k@960H/D1, HDMI, VGA, ALARM, LAN, up to 2x2TB HDD

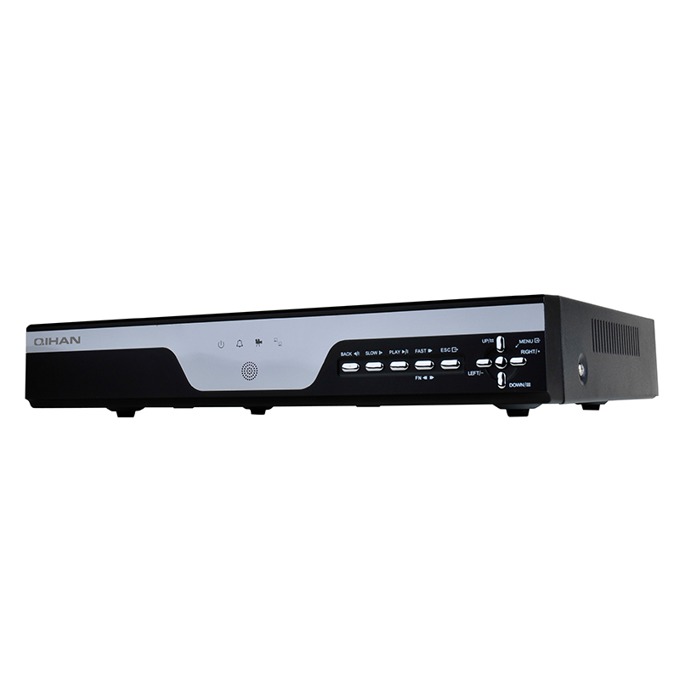

DVR Qihan QH-D7116EM

- All channel 720P@25/30FPS realtime recording
- Compatible with Analog 960H/D1
- Support 10M/100Mbit/s network interface
- Free ISS Management software
- Mobile surveillance supported,Including iPhone, iPad, Android
- Support browser IE 6.0 Above;
- Free DDNS server: HDCCTVDDNS
- P2P support
- 1080P HD Diaplay


OPERATION SYSTEM LINUX

VIDEO
VIDEO SYSTEM NTSC/PAL Switch Selectable
INPUT BNC*16.1.0Vp-p,75ohm
SPOT NA
HDMI OUTPUT 1 HDMI Output
VGA OUTPUT 1 VGA Output
LOOP OUT NA

AUDIO
INPUT 4CH, RCA
OUTPUT 1CH, RCA
TALK BACK YES
CONTROL MOUSE 2*USB2.0
IR CONTROLLER YES
STORAGE BUILD IN INTERFACE SATA 3.0 *2(2*HDD max 4TB )
DISPLAY DIVISION 1, 4, 9,16

ZOOM
Preview&Playback Zoom Support

RECORDING
COMPRESSION H.264(High profile)
RECORDING MODE Manual/Schedule/Motion Detection/Sensor Optional
RESOLUTION Mode 1: 16CH 720P ; Mode 2: 8CH 720P + 8CH 960H ; Mode 3: 16CH 960H
RECORD FRAME RATE PAL: 16CH 720P@25fps, NTSC: 16CH 720P@30fps
QUALITY Worst, Worse, Bad, Normal, Better, Best
PLAYBACK SYNC PLAYBACK 1 to 4(Max 4 CH)
SPEED Normal, FF(1X, 2X, 4X, 8X,), Slow (1/2X, 1/4X, 1/8X)
SEARCH METHOD Time, Event, Channels and Calendar
COMMUNICATION REMOTE ACCESS IE ( 6 and above), ISS ( Windows XP/WIN7/WIN8 ), ISS MOBILE2 ( IOS, Android )
REMOTE OPERATION Remote view, remote playback, remote setup
NETWORK SERVICE TCP/IP PPPOE DDNS FTP NTP UPNP
MOBILE DEVICE Iphone, Ipad, Android
3G EXTERNAL MODULE Yes, with USB 2.0 Port
WAN RJ45 10/100Mbit/s
WIFI EXTERNAL MODULE Yes, with USB 2.0 Port
GUI INTERFACE Supported GUI 16 Bit True Color
PTZ PROTOCOL PELCO-D, PELCO-P, etc 17 kinds of protocol
BACKUP INTERNAL NA
EXTERNAL 2*USB2.0
NETWORK YES
FILE FORMAT AVI/dav
GENERAL ALARM IN/OUT 4/1
RS-485 1
UNIT DIMENSION(mm) 325(L) x 53(H) x 245(W)
OPERATION TEMPERATURE 10°-40°
WORKING HUMIDITY 10% ~ 90%
POWER CONSUMPTION DC 12V,2A, <13W (Exclude HDD)
Weight 1.543Kg
Net weight 2.269Kg
