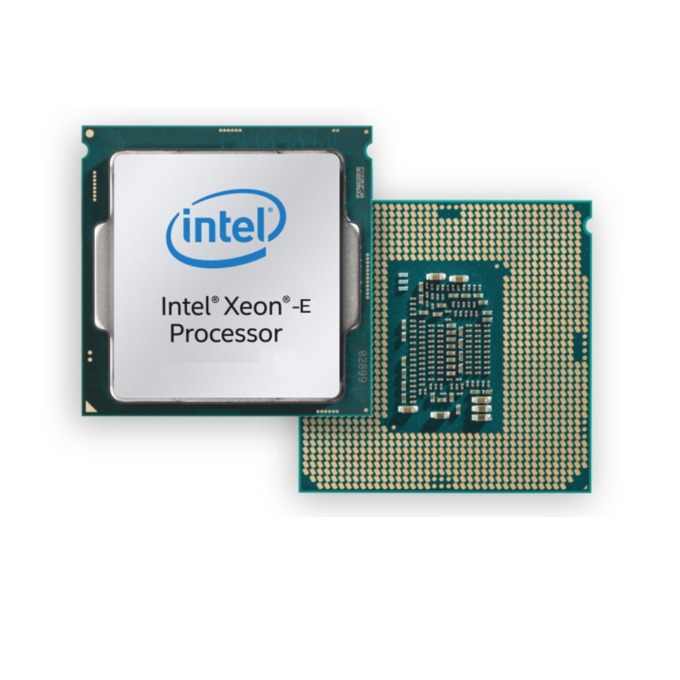

INTEL CPU Xeon E-2176G Processor (3.70 GHz, 12 MB, S1151) Box, INTEL HD Graphics P630
BX80684E2176GSR3WS
Essentials
Product Collection Intel® Xeon® E Processor
Code Name Products formerly Coffee Lake
Vertical Segment Server
Processor Number E-2176G
Status Launched
Launch Date Q3'18
Lithography 14 nm
Use Conditions PC/Client/Tablet
Performance
# of Cores 6
# of Threads 12
Processor Base Frequency 3.70 GHz
Max Turbo Frequency 4.70 GHz
Cache 12 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 80 W
Supplemental Information
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‡ Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics P630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 128 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2160@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x3E96
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ 1x16,2x8,1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Low Halogen Options Available No
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Виж още Сървъри Процесори Intel
Виж всички Сървъри Процесори в категорията
BX80684E2176GSR3WS
Essentials
Product Collection Intel® Xeon® E Processor
Code Name Products formerly Coffee Lake
Vertical Segment Server
Processor Number E-2176G
Status Launched
Launch Date Q3'18
Lithography 14 nm
Use Conditions PC/Client/Tablet
Performance
# of Cores 6
# of Threads 12
Processor Base Frequency 3.70 GHz
Max Turbo Frequency 4.70 GHz
Cache 12 MB SmartCache
Bus Speed 8 GT/s DMI3
TDP 80 W
Supplemental Information
Embedded Options Available Yes
Memory Specifications
Max Memory Size (dependent on memory type) 128 GB
Memory Types DDR4-2666
Max # of Memory Channels 2
Max Memory Bandwidth 41.6 GB/s
ECC Memory Supported ‡ Yes
Processor Graphics
Processor Graphics ‡ Intel® UHD Graphics P630
Graphics Base Frequency 350 MHz
Graphics Max Dynamic Frequency 1.20 GHz
Graphics Video Max Memory 128 GB
Graphics Output eDP/DP/HDMI/DVI
4K Support Yes, at 60Hz
Max Resolution (HDMI 1.4)‡ 4096x2160@24Hz
Max Resolution (DP)‡ 4096x2304@60Hz
Max Resolution (eDP - Integrated Flat Panel)‡ 4096x2304@60Hz
Max Resolution (VGA)‡ N/A
DirectX* Support 12
OpenGL* Support 4.5
Intel® Quick Sync Video Yes
Intel® InTru™ 3D Technology Yes
Intel® Clear Video HD Technology Yes
Intel® Clear Video Technology Yes
# of Displays Supported ‡ 3
Device ID 0x3E96
Expansion Options
Scalability 1S Only
PCI Express Revision 3.0
PCI Express Configurations ‡ 1x16,2x8,1x8+2x4
Max # of PCI Express Lanes 16
Package Specifications
Sockets Supported FCLGA1151
Max CPU Configuration 1
Package Size 37.5mm x 37.5mm
Low Halogen Options Available No
Advanced Technologies
Intel® Optane™ Memory Supported ‡ Yes
Intel® Turbo Boost Technology ‡ 2.0
Intel® vPro™ Platform Eligibility ‡ Yes
Intel® Hyper-Threading Technology ‡ Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes
Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
Intel® TSX-NI Yes
Intel® 64 ‡ Yes
Instruction Set 64-bit
Instruction Set Extensions Intel® SSE4.1, Intel® SSE4.2, Intel® AVX2
Idle States Yes
Enhanced Intel SpeedStep® Technology Yes
Thermal Monitoring Technologies Yes
Виж още Сървъри Процесори Intel
Виж всички Сървъри Процесори в категорията
Технически характеристики
Процесор сокет: | LGA1151 |
---|
