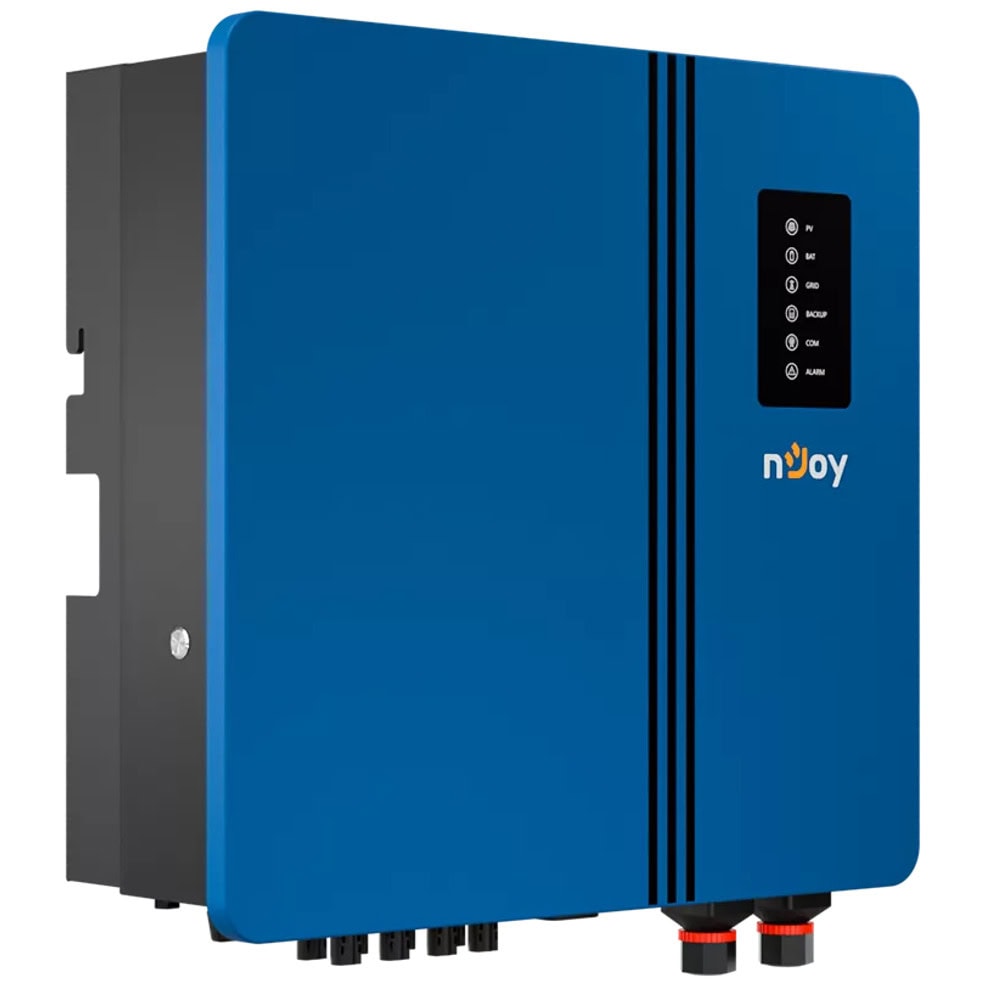

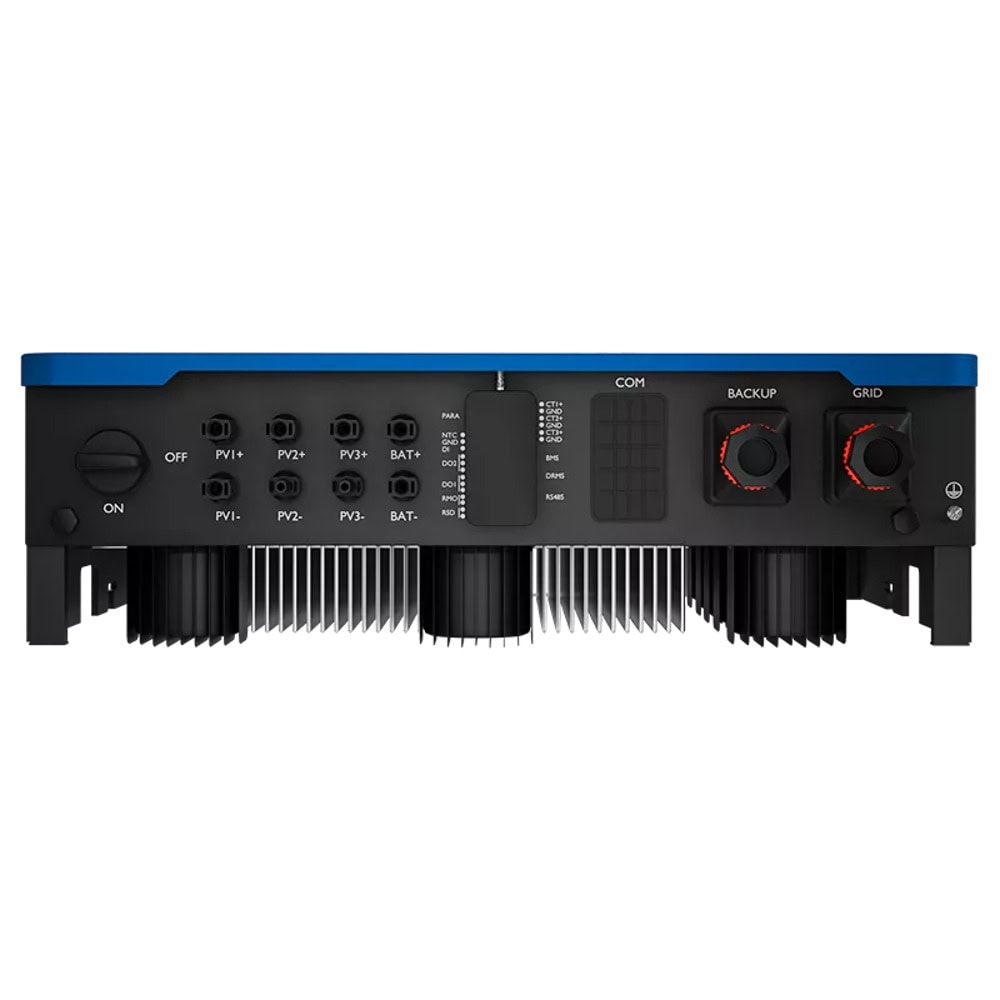

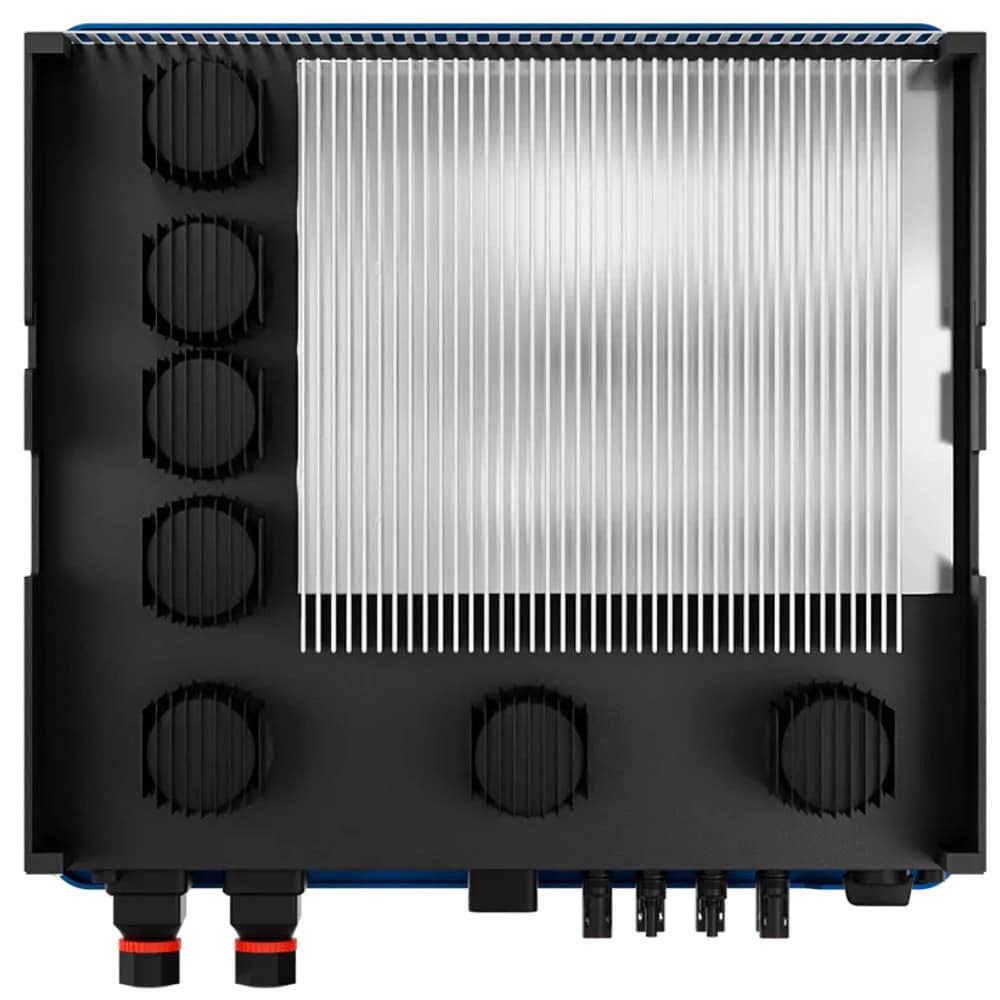

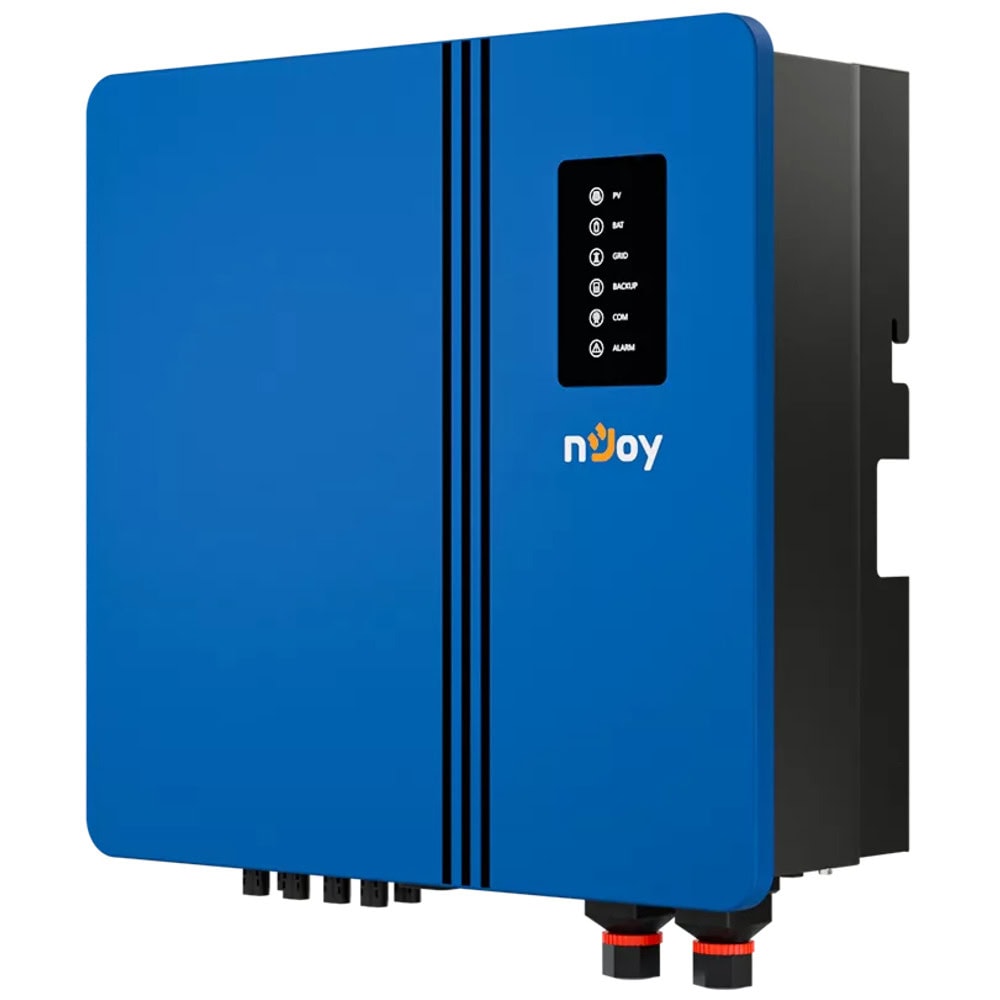

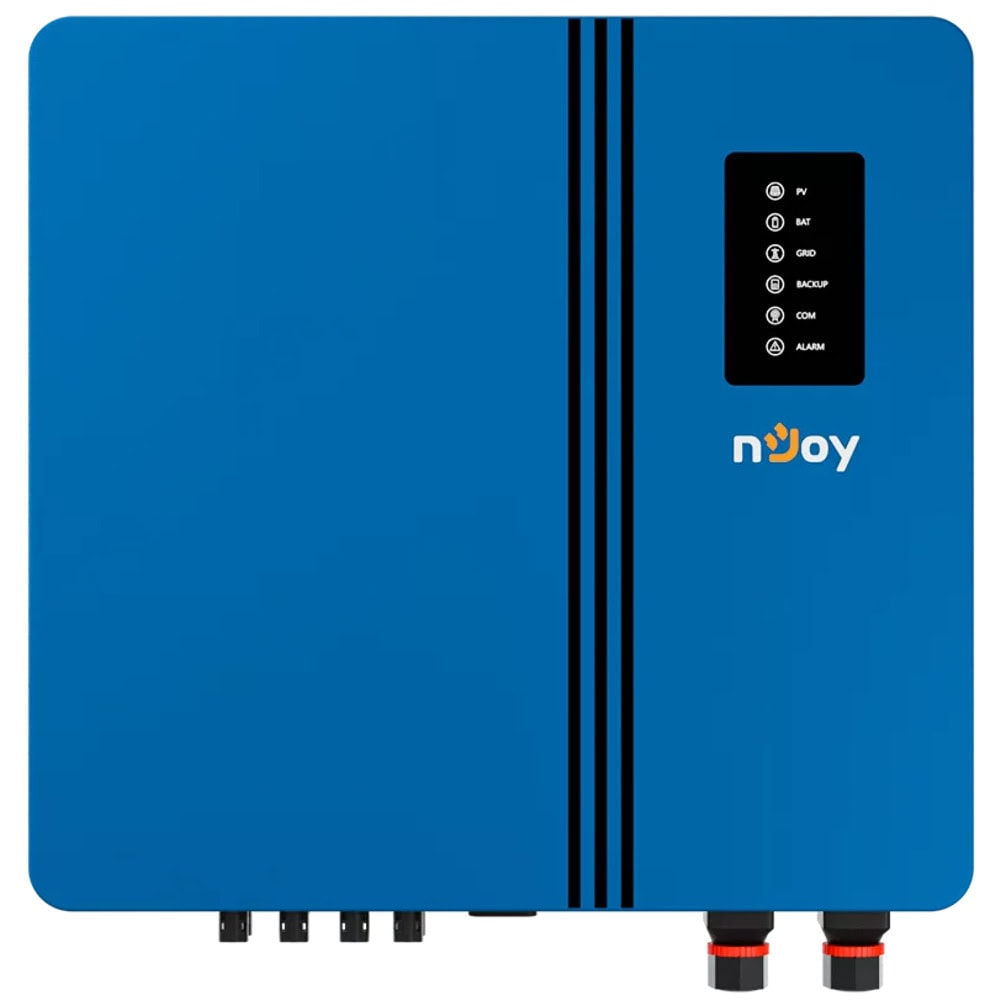

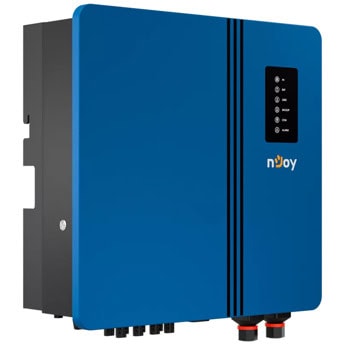

Ascet HV 10K-50/3P2T3
- 97,8% PV max. efficiency
- IP65 protection rating
- Three-phase hybrid solar inverter
- Maximum 15kW PV input power
- Compatible with lithium-ion batteries
| Specification | Details |
|---|---|
| Phase | Three-Phase |
| Topology | Transformerless |
| Max Efficiency | 97,8% |
| Battery Mode Efficiency | 97,0% |
| Battery supported | High Voltage LifePO4 or Lead Acid |
| Input PV Max Power | 15KW |
| Input PV Max Voltage | 1000V |
| Input Max Current | 20A (MPPT 1) / 30A (MPPT 2) |
| Input Max Short Circuit Current | 30A (MPPT 1) / 40A (MPPT 2) |
| Input PV Start Voltage | 120V |
| MPPT Operating Voltage | 160V-950V |
| No MPPTs | 2 |
| Max Single Phase Power | 5000W |
| Max No PV Strings | 3 (1/2) |
| Battery Voltage Range | 120V-600V |
| Battery Charge/Discharge Power | 15KW / 11.3KW |
| Battery Charge/Discharge Current | 50A / 50A |
| Output Rated Voltage | 380V / 400V / 415V, 3W+N+PE |
| Output Rated Power | 10KW |
| Output Max Apparent Power | 11KVA |
| Output Max Current | 3 x 16.7A |
| Protection category | Class 1 |
| DC switch | Support |
| Anti-islanding protection | Support |
| AC overcurrent protection | Support |
| DC/AC overvoltage protection | Support |
| DC Type II, AC Type III | Support |
| DC reverse connection | Support |
| Surge arrester DC type ll, AC type ll | Support |
| Insulation detection | Support |
| Leakage current protection | Support |
| GFCI | Support |
| AC | Support |
| Short circuit protection | Support |
| Arc-Fault Circuit Interrupter (AFCI) | — |
| IP Rating | IP65 |
| Cooling | Natural |
| Display | LED + APP |
| Integrated Communication | Bluetooth, RS485/CAN (BMS), RS485 (For meter), DRM, 2x DI (1 RMO), 2x DO, WIFI Module |
| External Communication Modules | Optional: GPRS / LAN |
| PV connection way | MC4/H4 |
| Self-Adaptation to BMS | — |
| Operating Temperature | -25°C - 60°C |
| Relative Humidity | 0 - 100% |
| Max Operating Altitude | 4000m |
| Remote configuration and upgrade | — |
| Dimensions (W x H x D) | 560 x 218 x 580 mm |
| Weight | 32.85 kg |
Виж още Инвертори за фотоволтаици NJOY
Виж всички Инвертори за фотоволтаици в категорията
Документация
Техническа спецификацияТехнически характеристики
| Тип: | Трифазен |
|---|---|
| Изходна мощност: | 10000 W |
