Слушалки Meze Audio Empyrean Jet Black (MEM-JB), 4650mm2 говорители с изопланарна диафрагма, 4 - 110 000 Hz честотен диапазон, 100 dB/mW, 31.6 ohms, AUX, черни

Meze Audio Empyrean Jet Black

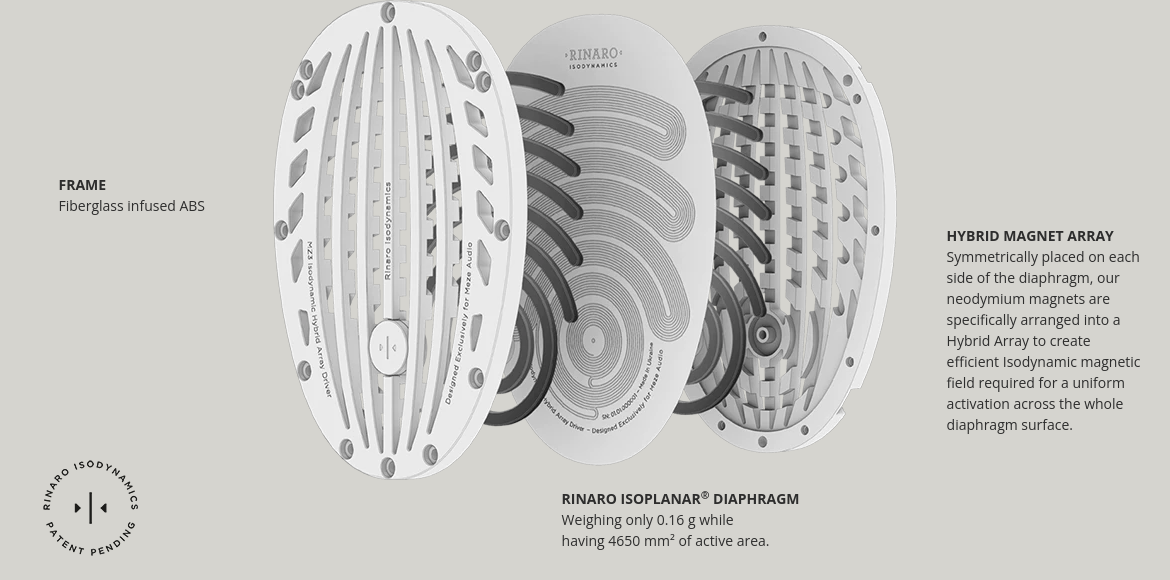

ARCHITECTURE OF THE ISODYNAMIC® HYBRID ARRAY DRIVER











HYBRID ARRAY DRIVER ADVANTAGES

Combines two independently shaped voice coils within the same diaphragm delivering more selective acoustic performance to the various areas within the structure of the ear.





ACCURATE REPRODUCTION
Total harmonic distortion (THD) measures under 0.1% in the whole frequency range



LIGHTWEIGHT
Reduced driver weight designed to create a headphone that offers prolonged listening sessions



ERGONOMIC SHAPE
Ergonomically shaped driver structure with an increased active area



ULTRA-HIGH-RESOLUTION AUDIO
Upper-frequency limit of audio reproduction is 110,000 Hz



ULTRA EFFICIENT
100db@1mw/1kHz High performance without needing amplification



PATENT PENDING ISODYNAMIC HYBRID ARRAY DRIVER
World's first in planar magnetic headphones

ACCURATE REPRODUCTION  Total harmonic distortion (THD) measures under 0.1% in the whole frequency range   LIGHTWEIGHT  Reduced driver weight designed to create a headphone that offers prolonged listening sessions               ERGONOMIC SHAPE  Ergonomically shaped driver structure with an increased active area   ULTRA-HIGH-RESOLUTION AUDIO  Upper-frequency limit of audio reproduction is 110,000 Hz   ULTRA EFFICIENT  100db@1mw/1kHz High performance without needing amplification   PATENT PENDING ISODYNAMIC HYBRID ARRAY DRIVER  World's first in planar magnetic headphones

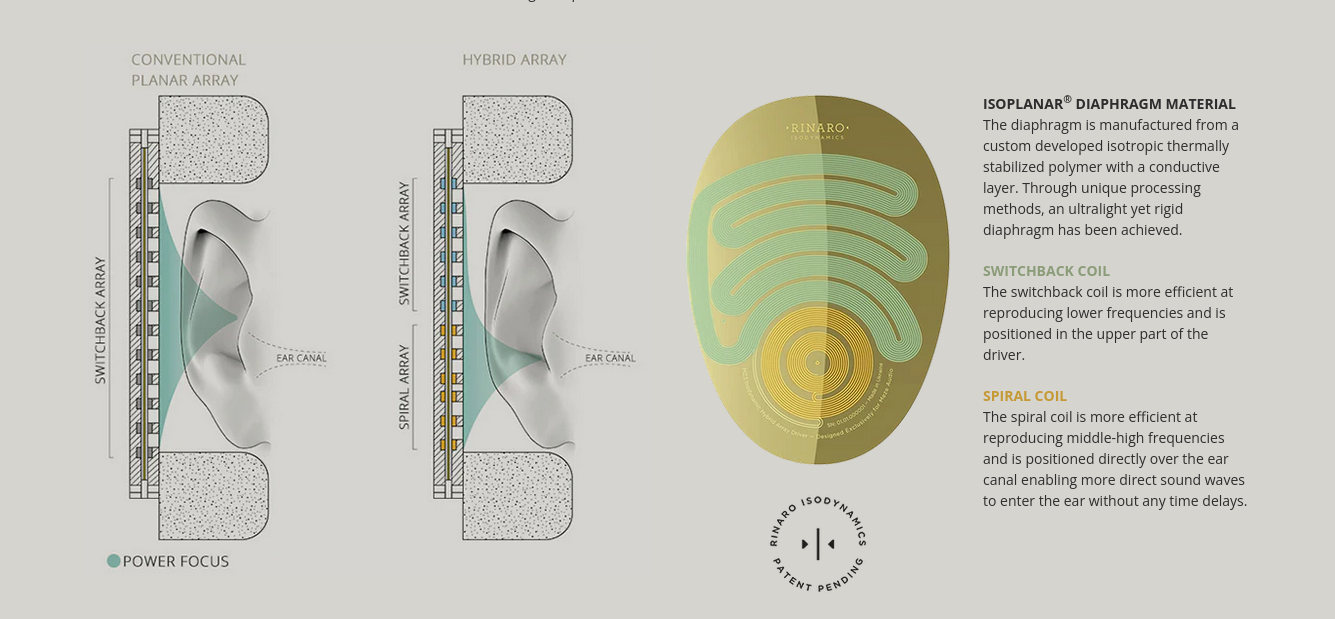

AUDIBLE BENEFITS OF A DUAL DRIVEN SYSTEM

One of the problems with conventional planar magnetic arrays is coming from reflected signals entering the ear canal with different time delays, thereby worsening the focus of 3D sound imaging.
Combining different voice coil configurations makes it possible to create a better sound intensity distribution across the sound wavefront at high frequencies when directed at the auricle and ear canal.

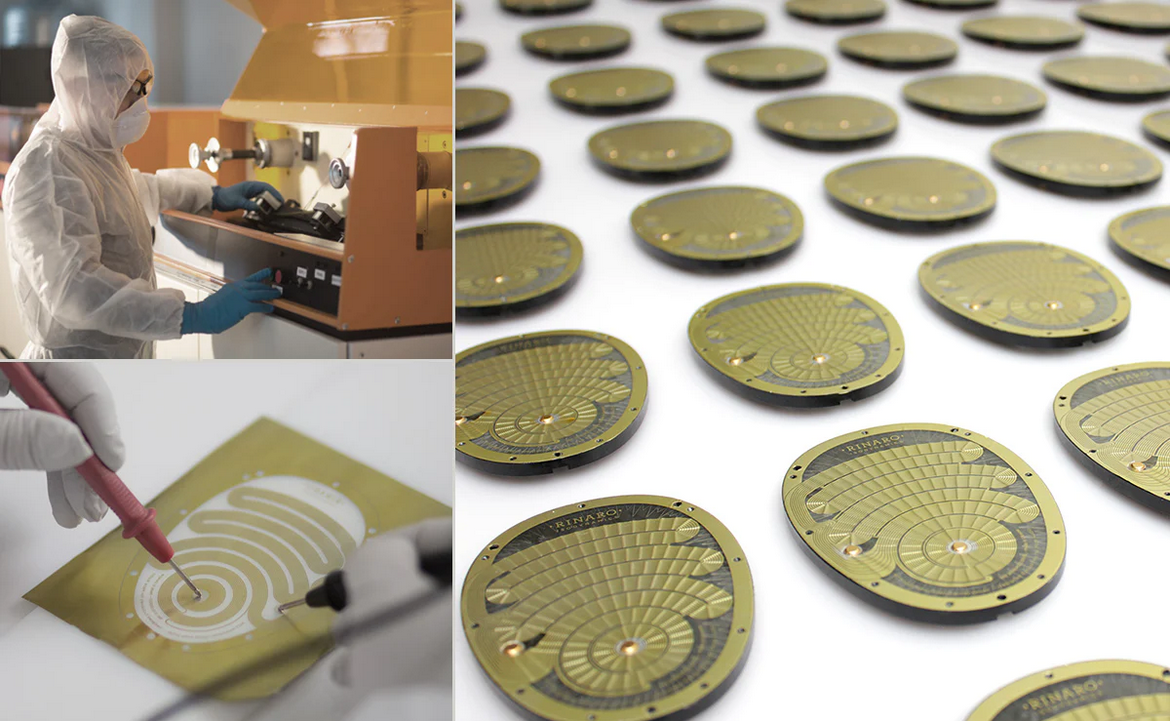

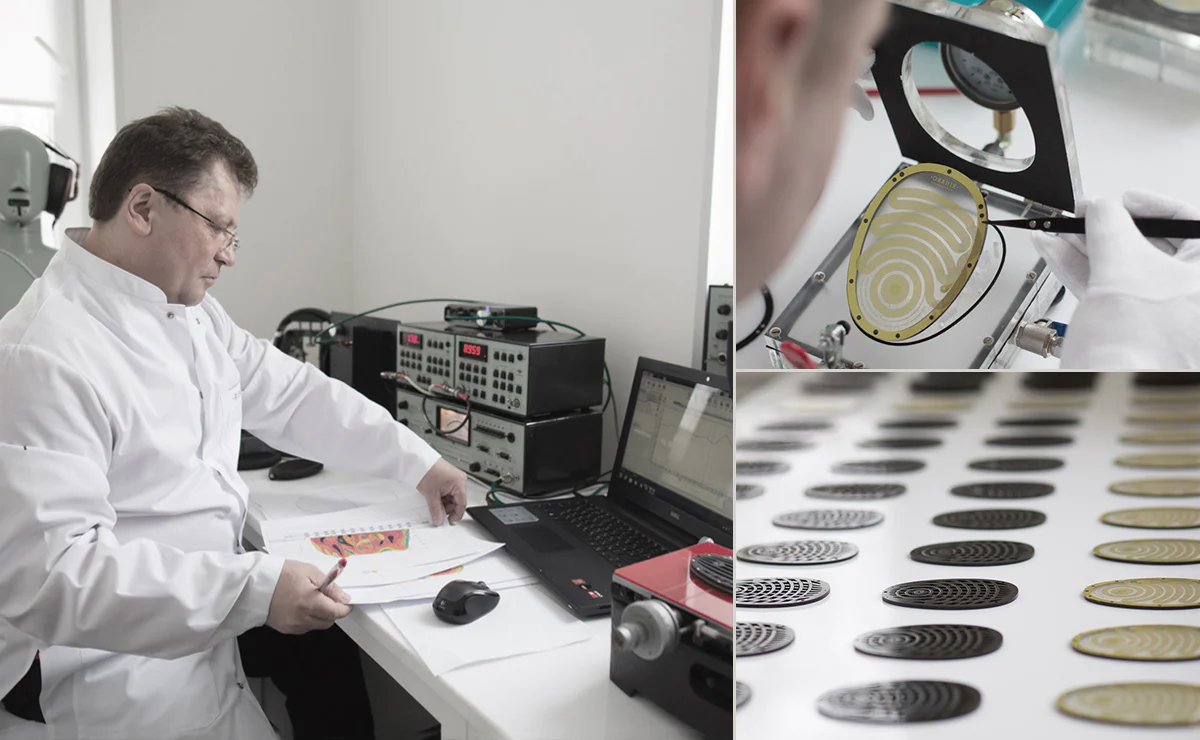

ISODYNAMIC DRIVER MANUFACTURED BY RINARO

Each driver has been hand assembled and tested in an industrial facility in Ukraine.





EMPYREAN TECHNICAL SPECIFICATIONS

Driver Type

Rinaro Isodynamic Hybrid Array

Operating Principle

Open

Ear Coupling

Circumaural

Frequency Response

4 - 110,000 Hz

Impedance

31,6 Ω

Nominal SPL

100 dB (1 mW / 1 kHz)

Maximum SPL

> 130 dB

Total Harmonic Distortion (THD)

< 0.1%

Weight

~ 430 g

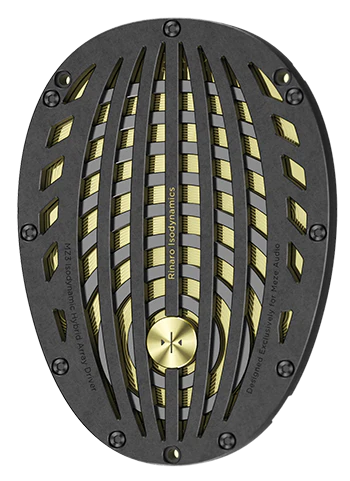

MZ3 DRIVER SPECIFICATIONS

• PHYSICAL •

Geometrical Shape

Ovoid

Size

102 mm x 73 mm

Weight

82 g

Casing

Fiberglass Infused ABS

• DIAPHRAGM •

Type

Rinaro ISOPLANAR®

Active Area

4650 mm2

Weight

0.16 g

Acoustic Mass

10.7 kg/m4

Lower Frequency Limit

4 Hz

Upper-Frequency Limit

110.000 Hz

• MAGNET ARRAY •

Type

Isodynamic

Size

75 mm x 49 mm

Magnetic Flux

0.35 T
