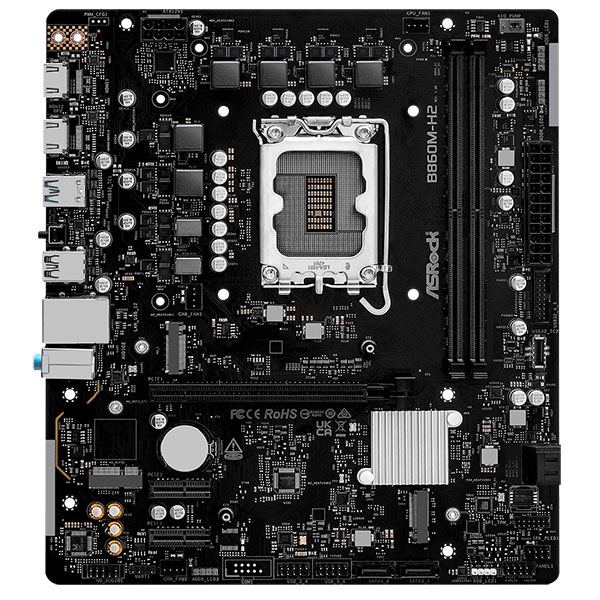

MB ASROCK B860M-H2, 2xHDMI, 2xD5, 2xM.2

ASROCK B860M-H2

• USB: CPU:;- 1 x USB 3.2 Gen2x2 Type-C (Rear);Chipset:;- 1 x USB 3.2 Gen1 Type-C (Front);- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front);- 6 x USB 2.0 (2 Rear, 4 Front)

• Manufacturer: ASRock

• Memory type: Dual Channel DDR5 Memory Technology;2 x DDR5 DIMM Slots;Supports DDR5 non-ECC, un-buffered memory up to 8333+(OC);Supports Clocked Unbuffered DIMM (CUDIMM);Max. capacity of system memory: 128GB;Supports Intel® Extreme Memory Profile (XMP) 3.0x

• Features: Superb Productivity;- PCIe Gen5 (M.2);- Dual Channel DDR5;Rock-Solid Durability;- 5+1+1+1+1 Power Phase;ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology;EZ Update;- BIOS Flashback Button;- ASRock Auto Driver Installer

• CPU`s supported: Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851);Supports Intel® Hybrid Technology;Supports Intel® Turbo Boost Max 3.0 Technology;Supports Intel® Thermal Velocity Boost (TVB);Supports Intel® Adaptive Boost Technology (ABT);Integrated NPU for dedicated AI acceleration

• Chipset: Intel® B860

• Graphics: Intel® Xe LPG Graphics Architecture;2 x HDMI 2.1 TMDS/FRL 8G Compatible, support HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

• Expansion Slots: CPU:;- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode;Chipset:;- 2 x PCIe 4.0 x1 Slots (PCIE2 and PCIE3);- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

• Storage: CPU:;- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode;Chipset:;- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode;- 4 x SATA3 6.0 Gb/s Connectors;Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

• I/O: 2 x Antenna Mounting Points;2 x HDMI Ports;1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s);3 x USB 3.2 Gen1 Type-A Ports;2 x USB 2.0 Ports;1 x RJ-45 LAN Port;1 x BIOS Flashback Button;HD Audio Jacks: Line in / Front Speaker / Microphone

• Connectors: 1 x SPI TPM Header;1 x Power LED and Speaker Header;1 x RGB LED Header;3 x Addressable LED Headers;1 x CPU Fan Connector (4-pin) (Smart Fan Speed Control);2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control);1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control);1 x 24 pin ATX Power Connector;1 x 8 pin 12V Power Connector;2 x USB 2.0 Headers (Support 4 USB 2.0 ports);1 x USB 3.2 Gen1 Headers (Supports 2 USB 3.2 Gen1 ports);1 x Front Panel Type C USB 3.2 Gen1 Header

• Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

• LAN: Gigabit LAN 10/100/1000 Mb/s;Realtek 8111H

• BIOS: 256Mb AMI UEFI Legal BIOS with GUI support

• Form Factor: Micro ATX Form Factor: 9.6-in x 8.3-in, 24.4 cm x 21.1 cm

• OS: Microsoft Windows® 11 64-bit
