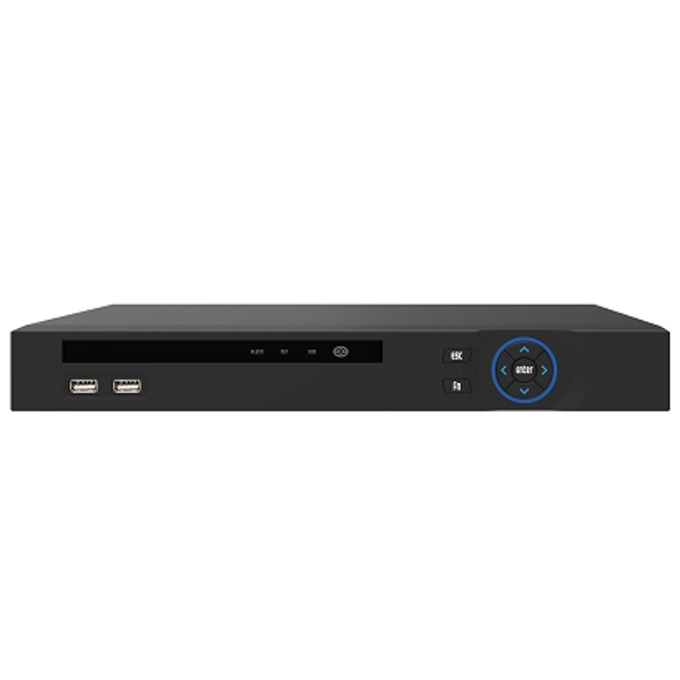

Хибриден видеорекордер Longse AHD-T3116A, 16 канален, 1080p, H.264, 2x SATA, HDMI, VGA, 2x USB, AUDIO, ALARM, RJ45 1000 Mbps

Main Processor

HI3531

Operating System

Embedded LINUX

Video

Input

AHD: 16CHx1080P; IPC: 16CHx1080P; Analog: 16CHx960H/D1

Output

1 VGA, 1CVBS,1 HDMI

Audio

Input

4Channel, RCA

Two-way Audio

NO

Output

1 Channel, RCA

Alarm

Sensor Input

NO

Output

NO

Motion Detection

16 Channel

Trigger Events

Recording, PTZ, Tour, Alarm, , Email, Screen tips

Email Alarm

Send Pieces to The Designated E-mail

PTZ

Interface

RS485

Protocol

Pelco-D, Pelco-P

Baud Rate

110~921600

Address

0~255

Display

VGA

Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080

HDMI

1920x1080

Display Split

16 Channel/9 Channel/8 Channel/4 Channel / 1Channel

Privacy Masking

1 Rectangular Zones (Each camera)

OSD

Camera title, Time,  Motion detection, Recording

Recording

Video Compression

H.264

Audio Compression

G711A

Resolution

1080P(1080*1080);720P(1280×720);960H(P:960×576/N:960×480)

Video Quality

worst/worse/ordinary/well/best

Record Rate

half1080P(960x1080 240fps),720P(1280×720 240fps), 960H(P:960×576 400fps/N:960×480 480fps)

Record Mode

ManualTimerMotion Detection

Playback & Backup

Sync Playback

4 Channel / 1Channel

Remote Playback

4 Channel / 1Channel

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Slow play

Smart Phone Playback

1 channel

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M/1000M Adaptive Ethernet Interface

Network Functions

HTTP, IPv4, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP/FTP/UPNP

DDNS

Dyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES

Web Browser

IE8-11,Googel,Firefox

CMS Software

Support Windows XP /Windows Vista/Windows 7/Windows 8/Windows 10

Extra Stream

D1/CIF(1~25fps)

Smart Phone

iPhone, ipad,  Android ,Android pad

Hard Disk Driver

Interface Type

2 SATA Interface

Capacity

3.5" SATA, Up to 8TB

General

Language

Support 20 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic,

Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary, Romania,

 Korean,Nederland)

USB Interface

2 USB 2.0 Interfaces

Power consumption

DC 12V  ≤10W

Working Environment

-10~55℃/10~90%

Dimension (W×D×H)

354*280*50(mm)

Weight

6kg (Without HDD)
