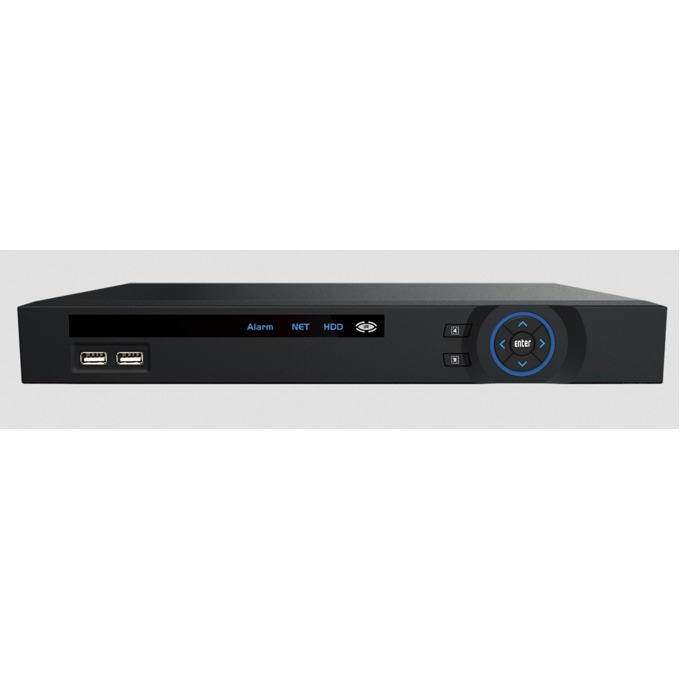

Хибриден видеорекордер Longse AHD-T2108A, 8 канален, 1080p, H.264, 2x SATA, HDMI, VGA, CVBS, 2x USB, AUDIO, ALARM, RJ45 1000 Mbps

Main Processor

HI3521

Operating System

Embedded LINUX

Video

Input

AHD:8*1080P/720P; Analog:8*960H/D1; IPC:16*1080P/960P/720P

Output

1 VGA, 1 CVBS,1 HDMI

Audio

Input

4Channel, RCA

Two-way Audio

NO

Output

1 Channel, RCA

Alarm

Sensor Input

NO

Output

NO

Motion Detection

16 Channel

Trigger Events

Recording, PTZ, Tour, Alarm, Email, Screen tips

Email Alarm

Send Pieces to The Designated E-mail

PTZ

Interface

RS485

Protocol

Pelco-D, Pelco-P

Baud Rate

110~921600

Address

0~255

Display

VGA

Resolution:  1024×768, 1280×720, 1280×1024, 1920×1080

HDMI

1920x1080

Display Split

16 Channel/9 Channel/8 Channel/4 Channel / 1Channel

Privacy Masking

1 Rectangular Zones (Each camera)

OSD

Camera title, Time, Video loss, Alarm, Motion detection, Recording

Recording

Video Compression

H.264

Audio Compression

G711A

Resolution

1080P(1920x1080),720P(1280×720), 960H(P:960×576/N:960×480)

Video Quality

worst/worse/ordinary/well/best

Record Rate

half1080P(960x1080 200fps/240fps),720P(1280×720 200fps/240fps), 960H(P:960×576 200fps/N:960×480 240fps)

Record Mode

ManualTimerMotion Detectionalarm

Playback & Backup

Sync Playback

4 Channel / 1Channel

Remote Playback

4 Channel/ 1Channel

Search Mode

ALL, Channel, Manual, Time, Date, Motion Detection

Playback Functions

Play, Pause, Stop, Fast play, Slow play

Smart Phone Playback

1 Channel

Backup Mode

USB Device/Network

Network

Interface

1 RJ45 10M/100M/1000M Adaptive Ethernet Interface

Network Functions

HTTP, IPv4,IPv6, TCP/IP, SMTP, DHCP, DNS, PPPOE, DDNS,NTP,FTP,UPNP

DDNS

Dyndns,changeip,no-ip,Oray,A-PRESS,MYQSEE,SKDDNS,SMART-EYES

Web Browser

IE8-11,Googel,Firefox

CMS Software

Support Windows XP /Windows Vista/Windows 7/Windows 8

Extra Stream

D1/CIF(1~25fps)

Smart Phone

iPhone, ipad,  Android ,Android pad

Hard Disk Driver

Interface Type

2 SATA Interface

Capacity

2.5"/3.5" SATA, Up to 8TB

General

Language

Support 20 languages (Chinese, English, polish, Czech, Russian, Thai, Hebrew, Arabic,

Bulgarian, Persian, Germany, France, Portugal, Turkey, Spain, Italy, Hungary,

 Romania, Korean,Nederland)

USB Interface

2 USB 2.0 Interfaces

Power consumption

DC 12V  ≤10W

Working Environment

-10~55℃/10~90%

Dimension (W×D×H)

354*280*50(mm)

Weight

4.5kg (Without HDD)
