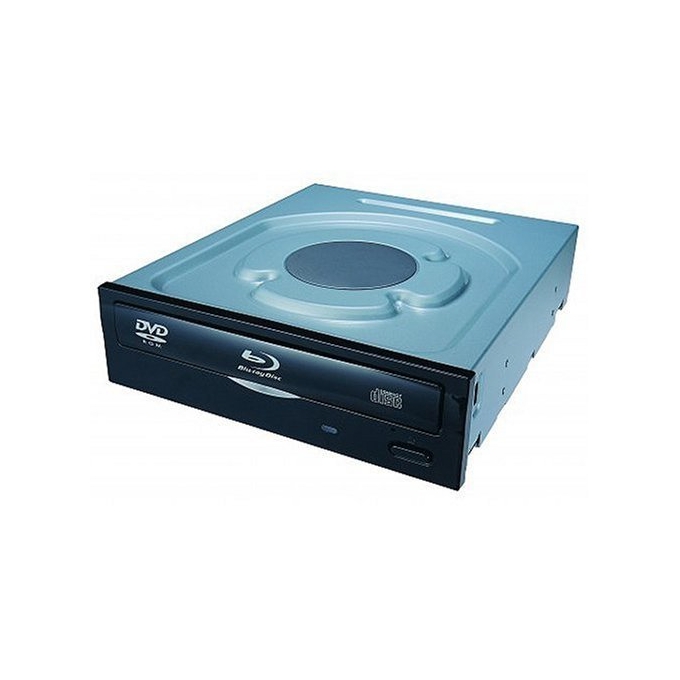

Оптично устройство LiteOn iHOS104, Blu-Ray & DVD ROM, SATA, черна, BD-ROM 4x, BD-R/RE 4x, BD DL 4x, DVD 8x, CD 32x

LiteOn iHOS104

- SATA interface, 5 1/4"" Half-Height internal BD ROM drive.
Max. 4X BD-ROM/BD-RE SL and 4X BD-ROM/BD-R/BD-RE DL CAV reading
Max. 8X DVD-ROM/+R/+RW/+RDL/-R/-RW/-RWDL CAV reading
Max. 32X CD-ROM/R/RW CAV reading

- Fast access time and high data transfer rate, could be vertical mounted (optional)
- SMART-X(*) function smartly adjusts CD-DA / VCD / DVD data extraction to a fastest allowable speed according to both data request rate from host and disk quality
- Supporting DOS 6.xx, Windows XP/ 2003/ Vista and Linux Operating System
- BD read compliant: BD data, BD video of 12 cm diameter
- CD read compliant: CD-DA,CD-ROM, CD-ROM/XA , Photo-CD, Multi-session Video-CD, CD-I FMV, CD Extra, CD Plus, CD-R , and CD-RW discs of 8 or 12 cm diameter
- DVD read compliant: DVD single/dual layer (PTP, OTP), DVD-R(4.7G), DVD-R multi-borders DVD-R Double Layer, DVD+R, DVD+R multi-sessions, DVD+R Double Layer, DVD-RW and DVD+RW discs
- Flash ROM support on line programming capability
- Serial ATA Revision 2.6, ATA-8, MMC-6 and SFF-8090 V7 compliant
- MPC level 3, PC2001 System Design Guide, MultiRead/UDF compliant
- Support Ultra DMA mode 5
- AACS compliant (incl. Rom mark)

Specifications

Performance

(BD) Maximum Speed
Read
BD-ROM/R/RE SL 4X maximum by CAV
Random access time: 250ms

(DVD) Maximum Speed
Read
8X maximum by CAV
Random access time:160 ms

(CD) Maximum Speed
Read
Read 32X maximum by CAV
Random access time: 150 ms

Interface SATA
Buffer Size 2 Mbytes
Disc Formats DVD read compliant: DVD single/dual layer (PTP, OTP), DVD-R(4.7G), DVD-R multi-borders DVD-R Double Layer, DVD+R, DVD+R multi-sessions, DVD+R Double Layer, DVD-RW and DVD+RW discs
Physical Characteristics Dimension: 146 X 42 X 186 mm (W x L x D) Weight: <0.8 kg
Power Requirement P4 D 3.0 CPU / 1G RAM or above for High-Definition movie playback and authoring

General

Environment
5°C to 50°C; Relative Humidity: 15% to 80%
-40°C to 65°C; Relative Humidity: 15% to 95%
146(W) x 42(H) x 186(D) mm
MTBF: 60,000 POH

Flash memory upgradeable
DOS 6.xx, Windows XP/ 2003/ Vista and Linux Operating System
