Product benefits
- Easy and quick installation
- Colorful garden lighting with smart and intelligent control options
- Combines the functionality of general lighting and mood lighting
Areas of application
- Building facades
Product features
- Controllable via voice control available: Google Assistant or Amazon Alexa

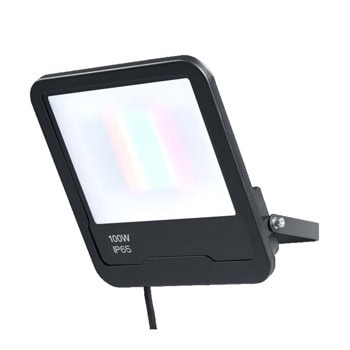

- RGB color control, approx. 16 million color options adjustable
- Dimmable
- Color temperature: 3,000 K (Warm White)
- Network protocol: WiFi
- Mounting bracket for up to 180° tilting
- Type of protection: IP65
- Connection via 0.5 m cable, wiring required
- Controllable via SMART+ App (with minimum Android 8.0 or iOS 14.0)
Safety advice
- All electrical connections must be made by a qualified person.
- Caution, risk of electric shock.
- Product in protection class I. All electrically conductive, metallic housing parts that can absorb voltage during operation or during maintenance in the event of a fault must be continuously connected to the protective earthing conductor.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
Technical data
Electrical data
Nominal wattage | 100.00 W |
Nominal voltage | 220…240 V |
Mains frequency | 50…60 Hz |
Nominal current | 440.000 mA |
Inrush current | 22 A |
Inrush current time Th50 | 152 µs |
Max. number of luminaires per miniature circuit breaker B16 | 20 |
Max. number of luminaires per miniature circuit breaker C10 | 12 |
Max. number of luminaires per miniature circuit breaker C16 | 20 |
Power factor λ | ≥ 0.90 |
Total harmonic distortion | < 20 % |
Protection class | I |
Operating mode | Integrated LED driver |
Photometrical data
Luminous flux | 8000 lm |
Luminous efficacy | 80 lm/W |
Color temperature | 3000 K |
Light color (designation) | Warm White |
Color rendering index Ra | ≥80 |
Standard deviation of color matching | < 6 sdcm |
Luminous intensity | 3600 cd |
Photobiological safety group acc. to EN62778 | RG1 |
Beam angle | 100 ° |
Dimensions & Weight
Length | 255.00 mm |
Height | 284.00 mm |
Width | 39.00 mm |
Product weight | 1620.00 g |
Materials & Colors
Product color | Black |
Housing color | Black |
Body material | Aluminum |
Cover material | Polycarbonate (PC) |
Glow Wire Test according to IEC 60695-2-12 | 650 °C |
Mercury content | 0.0 mg |
Application & Mounting
Ambient temperature range | -20…+40 °C |
Temperature range at storage | -20…+85 °C |
Type of connection | Cable, 3-pole |
Type of protection | IP65 |
Protection class IK (shock resistance) | IK06 |
Dimmable | Yes |
Type of dimming | WiFi |
Mounting type | Surface |
Adjustable | Yes |
With light source | Yes |
Lifespan
Lifespan L70/B50 at 25 °C | 30000 h |
Number of switching cycles | 30000 |
Certificates & Standards
Standards | CE, EAC, UKCA |
Luminaire with limited surface temperature, "D sign" | No |
Replaceable light source (EPREL) | Not replaceable |
Additional product data
Product remark | Reset settings to default by switching the product on for three seconds and off for three seconds and repeating this five times. |
Number of illuminants | empty |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals | Contains at least 10 mg |
Quantity of rare earths | Contains at least 1 mg |
Виж още LED Екстериорно осветление Ledvance
Виж всички LED Екстериорно осветление в категорията
Технически характеристики
Тип: | Прожектори |
---|---|
Монтаж: | Стена |
Влагозащитеност: | IP65 (Външна употреба) |
Мощност: | от 91 до 120 W |
Напрежение: | 240V V |
Светлинен поток: | от 7501 до 9000 lm |
Цветна температура: | Топло бяла |
Цвят на корпуса: | Черен |
Особеност: | Смарт |
