Product benefits

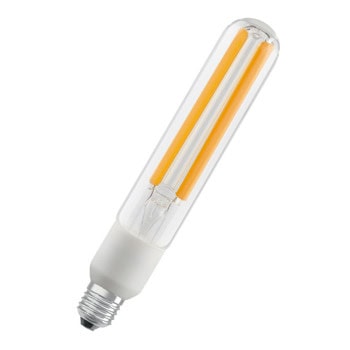

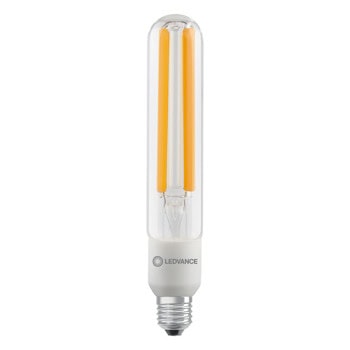

- Same design as traditional NAV lamps with clear, tubular full glass bulb
- Full use of reflector of existing luminaire thanks to 360 degree beam angle
- Saves up to 78 % energy when used as replacement for sodium vapor lamps (NAV)
- Instant 100 % light, no warm-up time
- Similar light distribution as traditional NAV lamps
Areas of application
- Streets
- Area lighting
- Pedestrian zones
- Parks
- Outdoor applications only in suitable luminaires
Product features
- Suitable for operation with conventional control gear (CCG) or 230 V AC mains
- Very high efficiency of up to 190 lm/W
- Power factor: 0.9
- Type of protection: IP65
- Surge protection: up to 2 kV (L-N)
Safety advice
- Not suitable for operation with ignitors.
- Operation on the capacitor can lead to a reduction of the power factor of the system.
- When installed horizontally, the tc point of the lamp is located on the top side of the lamp.
- Use in tight luminaires and luminaires with tight reflectors not recommended.
- Only suitable for temperatures of up to 50 °C inside of the luminaire. Use in tight luminaires and luminaires with tight reflectors not recommended.
- All electrical connections must be made by a qualified person.
Technical data
Electrical data
| Nominal wattage | 35 W |
| Construction wattage | 35.00 W |
| Nominal voltage | 220…240 V |
| Operating mode | CCG, AC Mains |
| Claimed equiv. conventional lamp power | 70 W |
| Nominal current | 155 mA |
| Type of current | AC |
| Inrush current | 11.1 A |
| Operating frequency | 50/60 Hz |
| Mains frequency | 50/60 Hz |
| Max. lamp number on MCB B10 A | 11 |
| Max. lamp number on MCB B10 A - CCG without compensation | 16 |
| Max. lamp number on MCB B10 A - CCG with compensation | 6 |
| Max. lamp number on MCB B16 A | 14 |
| Max. lamp number on MCB B16 A - CCG without compensation | 20 |
| Max. lamp number on MCB B16 A - CCG with compensation | 8 |
| Total harmonic distortion | 12 % |
| Power factor λ | > 0.90 |
| Surge capability (L-N) | 2 kV |
Photometrical data
| Luminous intensity | Not relevant |
| Luminous flux | 6000 lm |
| Nominal useful luminous flux 90° | 6000 lm |
| Luminous efficacy | 171 lm/W |
| Lumen main.fact.at end of nom.life time | 0.70 |
| Light color (designation) | Cool White |
| Color temperature | 4000 K |
| Color rendering index Ra | 70 |
| Light color | 740 |
| Standard deviation of color matching | ≤6 sdcm |
| Rated LLMF at 6,000 h | 0.80 |
| Flickering metric (Pst LM) | 1 |
| Stroboscope effect metric (SVM) | 0,4 |
Light technical data
| Beam angle | 360 ° |
| Warm-up time (60 %) | ‹ 0.50 s |
| Starting time | < 0.5 s |
Dimensions & Weight
| Overall length | 210.00 mm |
| Diameter | 38.00 mm |
| Maximum diameter | 38 mm |
| Product weight | 120.00 g |
Temperatures & operating conditions
| Ambient temperature range | -20…+50 °C 1) |
| Maximum temperature at tc test point | 90 °C |
1) Temperature surrounding the lamp - for enclosed luminaires: temperature inside of the luminaire
Lifespan
| Lifespan L70/B50 at 25 °C | 25000 h |
| Number of switching cycles | 100000 |
| Lumen maintenance at end of service lifetime | 0.70 |
| Rated lamp survival factor at 6,000 h | ≥ 0.90 |
Additional product data
| Base (standard designation) | E27 |
| Mercury content | 0.0 mg |
| Mercury-free | Yes |
Capabilities
| Dimmable | No |
Certificates & Standards
| Energy efficiency class | C 1) |
| Energy consumption | 35.00 kWh/1000h |
| Type of protection | IP65 |
| Standards | CE, EAC, UKCA |
| Photobiological safety group acc. to EN62778 | RG1 |
1) Energy efficiency class (EEC) on a scale of A (highest efficiency) to G (lowest efficiency)
LOGISTICAL DATA
| Temperature range at storage | -20…+80 °C |
Energy labelling regulation data acc EU 2019/2015
| Lighting technology used | LED |
| Non-directional or directional | NDLS |
| Mains or non-mains | MLS |
| Light source cap-type (or other electric interface) | E27 |
| Connected light source (CLS) | No |
| Color-tuneable light source | No |
| Envelope | No |
| High luminance light source | No |
| Anti-glare shield | No |
| Correlated colour temperature type | SINGLE_VALUE |
| Claim of equivalent power | No |
| Length | 210.00 mm |
| Height | 38.00 mm |
| Width | 38.00 mm |
| Chromaticity coordinate x | 0.382 |
| Chromaticity coordinate y | 0,38 |
| R9 Colour rendering index | 1 |
| Beam angle correspondence | SPHERE_360 |
| Survival factor | 0.9 |
| Displacement factor | 0.9 |
| LED light source replaces a fluorescent light source | No |
| EPREL ID | 1371178 |
| Model number | AC46363 |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
Виж още Крушки Ledvance
Виж всички Крушки в категорията
Технически характеристики
| Цокъл: | E27 |
|---|---|
| Вид: | Не е указано |
| Мощност: | 35 W |
| Напрежение: | 240 V |
| Светлинен поток: | 6000 lm |
| Цветна температура: | Неутрално бяла |
| Особеност: | LED |
| Енергиен клас: | C |
