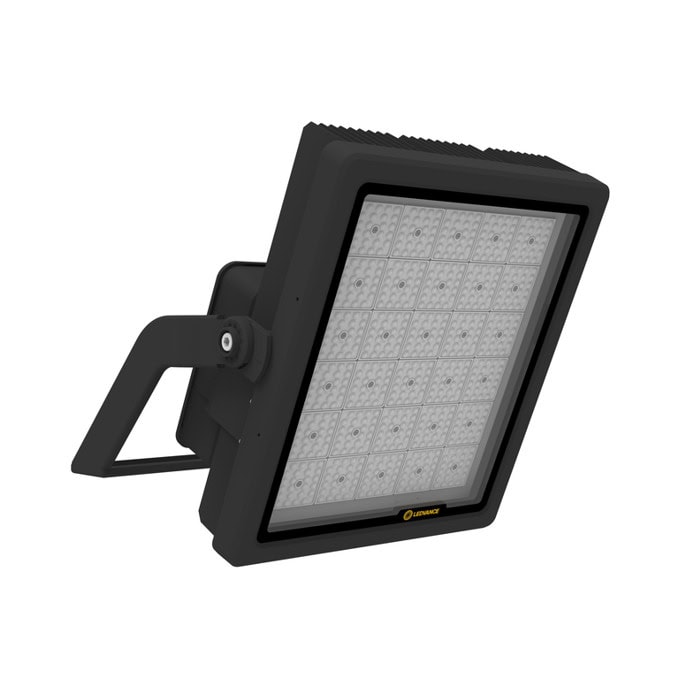

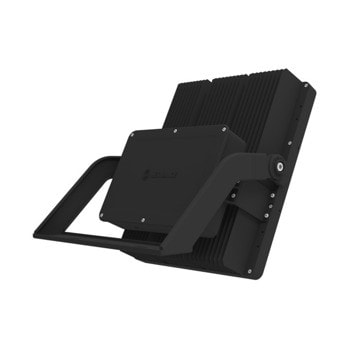

LED прожектор Ledvance FL H M LUM V 500W 740 SYM R30, 500W, 70 000lm, 4000K, IP66, за стена/стълб/под

Product benefits
Low flicker light thanks to special electronic control gear
Optimized product logistic, luminaire heads and power supplies to be ordered separately in stand-alone packaging
Symmetric and asymmetric light distribution for various application areas

Areas of application
Replacement for luminaires with mercury vapor or metal halide lamps
Outdoor use (IP66)
Suitable for high mast applications
Lighting of large areas
Construction areas
Industry

Product features
Cover made of high quality glass
High-power floodlight with up to 140 lm/W
Lifetime (L80/B50): up to 100,000 h (at 25 °C)
Joint or separate installation with floodlight high mast power supply
Highly-transparent, tempered glass diffuser


Specifications

Electrical data
Nominal wattage 500.00 W
Nominal voltage 345 V
Mains frequency 50…60 Hz
Nominal current 1360.000 mA
Inrush current time Th50 974 µs
Max. number of luminaires per miniature circuit breaker B16 4
Max. number of luminaires per miniature circuit breaker C10 3
Max. number of luminaires per miniature circuit breaker C16 5
Power factor λ > 0.90
Protection class I
Operating mode External LED driver

Photometrical data
Luminous flux 70000 lm
Luminous efficacy 140 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 70
Standard deviation of color matching 5 sdcm
Luminous intensity 124000 cd
Flickering metric (Pst LM) <1
Stroboscope effect metric (SVM) <0,4
Photobiological safety group acc. to EN62778 RG1
Photobiological safety group acc. to EN62471 RG1
Beam angle 30 °

Dimensions & Weight
Length 479.00 mm
Height 243.00 mm
Width 389.00 mm
Product weight 9700.00 g

Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Cover material Tempered glass
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting
Ambient temperature range -40…+50 °C
Temperature range at storage -40…+70 °C
Type of connection Terminal, 3-Pole (L, N, PE)
Type of protection IP66
Protection class IK (shock resistance) IK10
Dimmable Yes
Mounting type Surface
Mounting location Wall; Pole; Floor
Application environment Outdoor
Mechanically adjustable Yes
With light source Yes
Replaceable light source No

Lifespan
Lifespan L70/B50 at 25 °C 100000 h 1)
Lifespan L80/B10 at 25 °C 100000 h 1)
Number of switching cycles 100000
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)

Certificates & Standards
Standards CE; UKCA; ENEC; EMC; EAC
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable

PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
Quantity of precious metals Contains at least 10 mg
Quantity of rare earths Contains at least 1 mg
Minimum rate of recycled material in packaging 80 % 1)
Minimum percentage of recycled content in the product 0 % 1)
Product recyclability Mostly recyclable product 1)
Packaging recyclability Mostly recyclable packaging 1)
List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage No
Contains substances of very high concern in concentrations greater than 0.1% by mass percentage Yes
List of substances of very high concern in concentrations greater than 0.1% in mass percentage Lead (7439-92-1)
