Product benefits
Demand optimized illumination due to flexible and programmable sensor
Easy adjustment of sensor range, daylight detection, hold time and dimming function
Always-on override, activated via special mains switching pattern
Breather membrane to optimize air exchange, without compromising IP protection
Highly versatile due to selectable lumen steps (Multi Lumen) on the housing
Robust cable gland with integrated waterstop function
Safe and very uniform illumination, due to frosted and tempered glass diffuser
Bright, robust and durable
Energy savings of up to 90 % compared to halogen lamp floodlights
No upper light output ratio (ULOR 0%) when mounted at 0° tilt
Areas of application
Replacement for floodlights with halogen lamps
Outdoor use (IP65)
D-sign according to EN 60598-2-24 for fire-risk commercial unit, e.g. by accumulation of dust
Public areas
Building facades
Construction areas
Parking
Gardens and balconies
Product features
Flexible motion and daylight sensor
Sensor with 350° pan and 200° tilt
Luminous efficacy: up to 145 lm/W
Type of protection: IP65

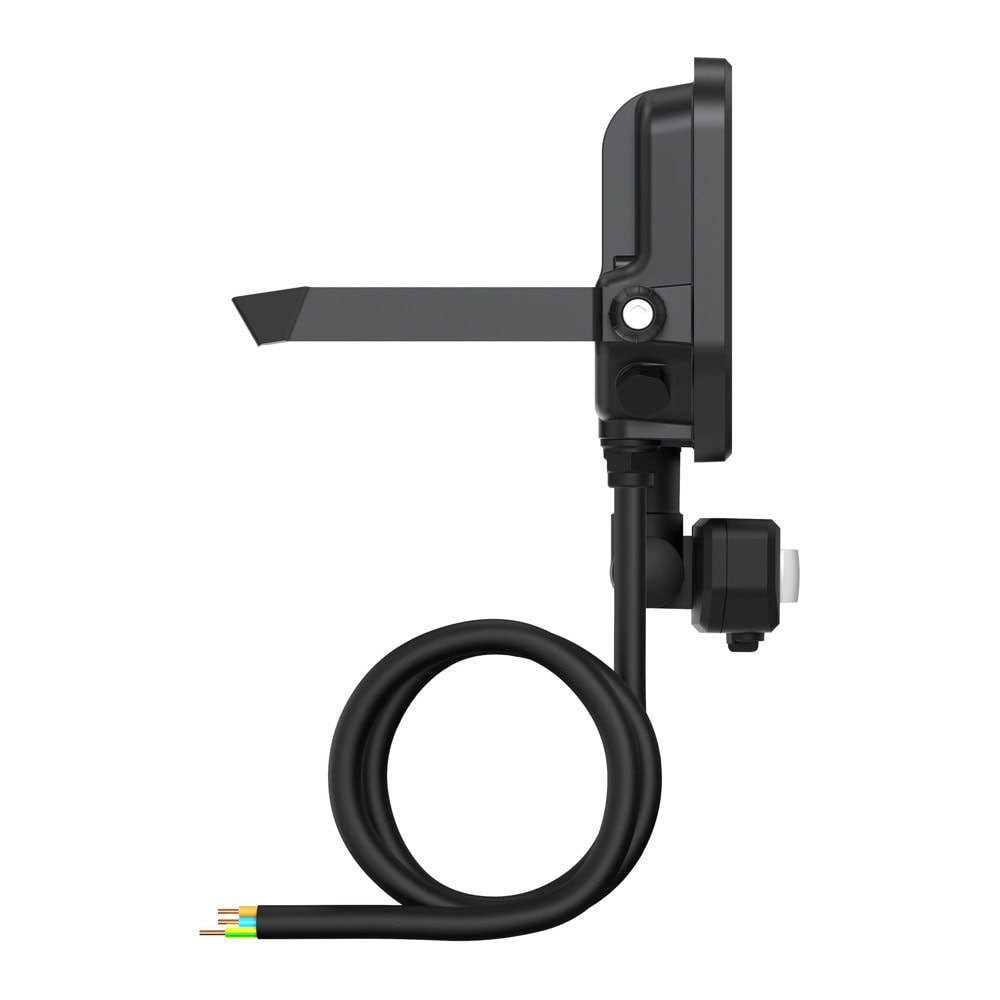

Pre-installed, flexible 1 m cable (H05RN-F), wrapped 3 x 1.0 mm² single wires
Reflector-based, symmetric light distribution with 100° x 100° beam angle

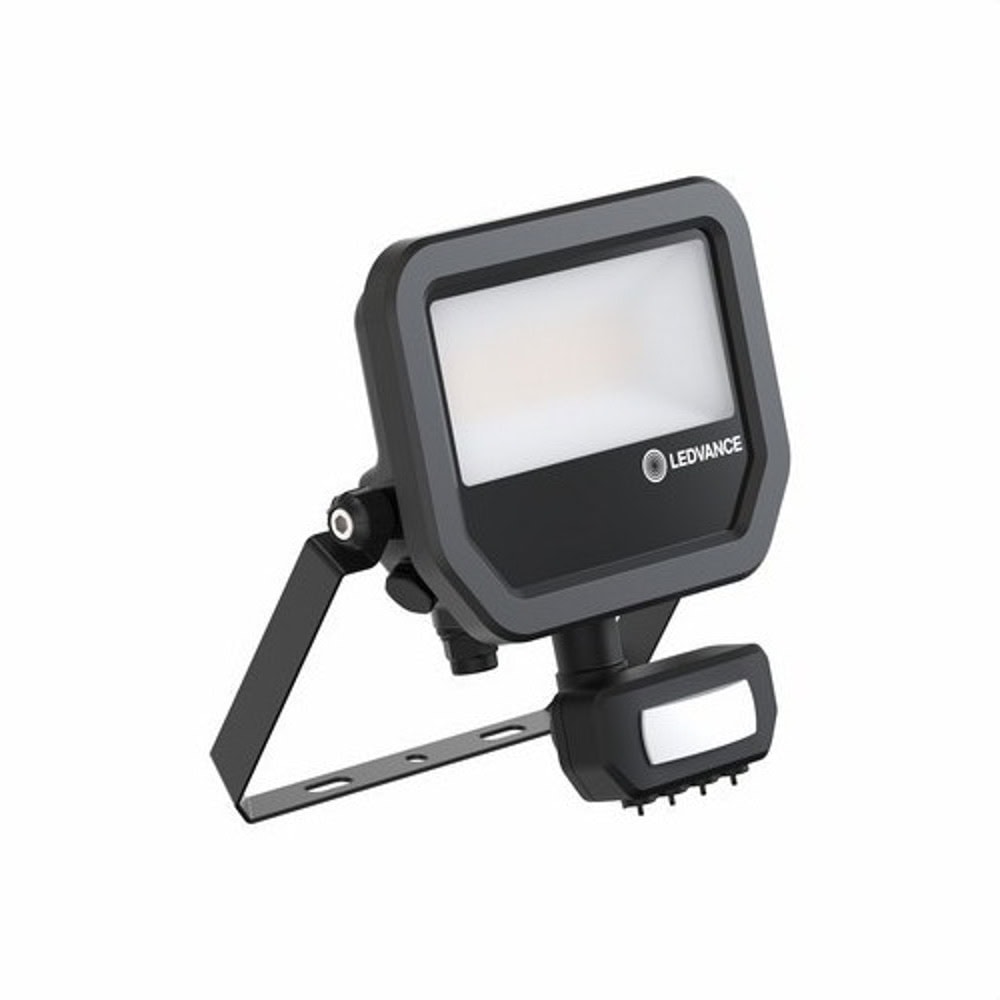

Mounting bracket with 30° angle and wide rotation area
Integrated voltage driver, suitable for 220 - 240 V AC
Safety advice
Max. wind load surface 0.017 m²
Specifications
Electrical data
| Nominal wattage | 17 W |
| Nominal voltage | 220…240 V |
| Mains frequency | 50…60 Hz |
| Nominal current | 75/60 mA |
| Inrush current | 9.96 A |
| Inrush current time Th50 | 38.2 µs |
| Max. number of luminaires per miniature circuit breaker B16 | 75 |
| Max. number of luminaires per miniature circuit breaker C10 | 60 |
| Max. number of luminaires per miniature circuit breaker C16 | 96 |
| Power factor λ | > 0.90 |
| Total harmonic distortion | < 20 % |
| Protection class | I |
| Surge capability (L-N) | 4 kV |
| Surge capability (L/N-Ground) | 6 kV |
| Operating mode | Integrated LED driver |
| Nominal wattage | Color temperature | Luminous flux | Luminous efficacy |
|---|---|---|---|
| 17 W | 4000 K | 2400 lm | 145 lm/W |
Dimensions & Weight
| Length | 157.00 mm |
| Height | 183.00 mm |
| Width | 38.00 mm |
| Product weight | 576.00 g |
| Cable length | 1000 mm |
Materials & Colors
| Product color | Black |
| Housing color | Black |
| RAL Color (most similar) | RAL 9017 |
| Body material | Aluminum |
| Cover material | Glass |
| Light emitting surface material | Glass |
| Glow Wire Test according to IEC 60695-2-12 | 650 °C |
| Mercury content | 0.0 mg |
Application & Mounting
| Ambient temperature range | -30…+50 °C |
| Temperature range at storage | -40…+70 °C |
| Type of connection | Cable, 3-pole |
| Type of protection | IP65 |
| Protection class IK (shock resistance) | IK05 |
| Corrosion resistance class acc. to EN 12944 | C4 |
| Dimmable | No |
| Mounting type | Surface |
| Mounting location | Wall; Ceiling |
| Application environment | Outdoor |
| Mechanically adjustable | Yes |
| With light source | Yes |
| Replaceable light source | No |
Lifespan
| Lifespan L70/B50 at 25 °C | 100000 h 1) |
| Lifespan L80/B10 at 25 °C | 75000 h 1) |
| Lifespan L90/B10 at 25 °C | 35000 h 1) |
1) t[h]: L70 / B50 @ 25 °C (Ta), t[h]: L80 / B10 @ 25 °C (Ta), t[h]: L90 / B10 @ 25 °C (Ta)
Control gear
| Output current | 133 mA |
| Output ripple current (100 Hz) | < 20 % |
Sensor
| Type of sensor | Motion; Light |
| Sensor technology | Passive infrared (PIR) |
| Sensor detection angle | 40…160 ° |
| Sensor controlled switching time | 10 s…12 min |
| Detection range of motion sensor | 2…12 m |
| Detection threshold of daylight sensor | 10…2000 lx |
| Sensor IP rating | IP65 |
Certificates & Standards
| Standards | CE; CB; ENEC; EAC; UKCA; EPD |
| Luminaire with limited surface temperature, "D sign" | Yes |
| Ball shot safe | No |
| EPD | LEDV-00031-V01.01-EN |
Additional product data
| Added function | MULTI LUMEN |
PRODUCT SHEET RELATING TO ENVIRONMENTAL QUALITIES AND CHARACTERISTICS
| Quantity of precious metals | Contains at least 10 mg |
| Quantity of rare earths | Contains at least 1 mg |
| Minimum rate of recycled material in packaging | 80 % 1) |
| Minimum percentage of recycled content in the product | 0 % 1) |
| Product recyclability | Mostly recyclable product 1) |
| Packaging recyclability | Mostly recyclable packaging 1) |
| List of dangerous substances contained in the product in concentrations greater than 0.1% in mass percentage | No |
| Contains substances of very high concern in concentrations greater than 0.1% by mass percentage | Additional info can be provided per individual request |
Photometrical data
| Luminous flux | 2400 lm / 1600 lm |
| Luminous efficacy | 145 lm/W |
| Color temperature | 4000 K |
| Light color (designation) | Cool White |
| Color rendering index Ra | 80 |
| Standard deviation of color matching | 5 sdcm |
| Stroboscope effect metric (SVM) | ≤0.9 |
| Photobiological safety group acc. to EN62778 | RG0 |
| Photobiological safety group acc. to EN62471 | RG0 |
| Beam angle | 100 ° x 100 ° |
