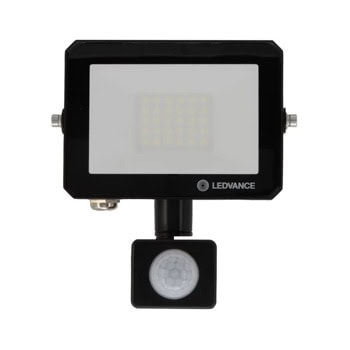

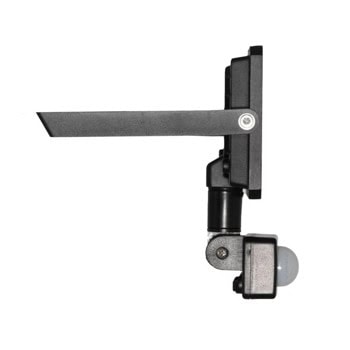

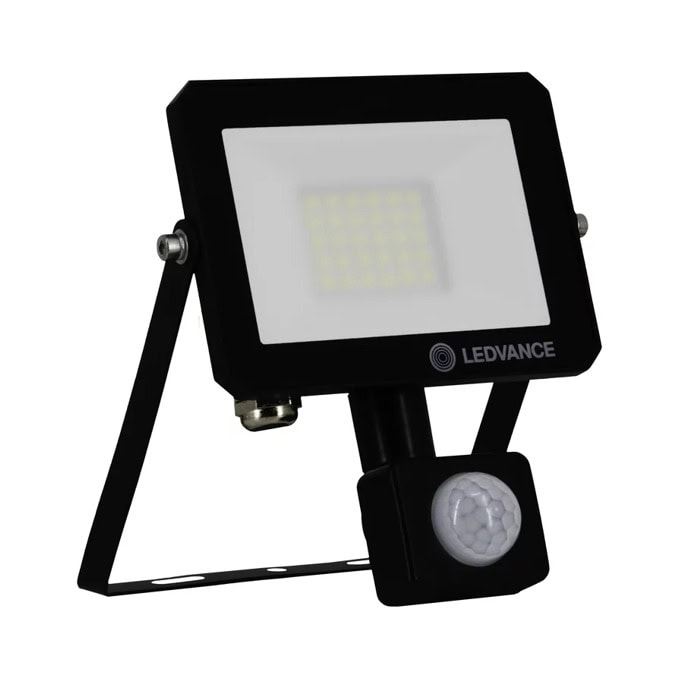

LED прожектор Ledvance Effect 840 Black, 30W, 2700 lm, 4000K, IP65, за стена, със сензор

Electrical data
Nominal wattage 30.00 W
Nominal voltage 220…240 V
Mains frequency 50 Hz
Nominal current 135.000 mA
Max. number of luminaires per miniature circuit breaker B16 94
Max. number of luminaires per miniature circuit breaker C16 94
Power factor λ > 0.90
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data
Luminous flux 2700 lm
Luminous efficacy 90 lm/W
Color temperature 4000 K
Light color (designation) Cool White
Color rendering index Ra 80
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 105 °

Dimensions & Weight
Length 159.00 mm
Width 175.00 mm
Height 52.00 mm
Product weight 384.00 g

Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -30…+80 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Mounting location Wall
With light source Yes
Replaceable light source No

Lifespan
Number of switching cycles 20000

Sensor
Type of sensor Light / Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 120 °
Sensor controlled switching time 8 s...10 min
Detection range of motion sensor 8-10 m
Detection threshold of daylight sensor 5…2000 lx

Certificates & Standards
Standards CE / EAC / UKCA
