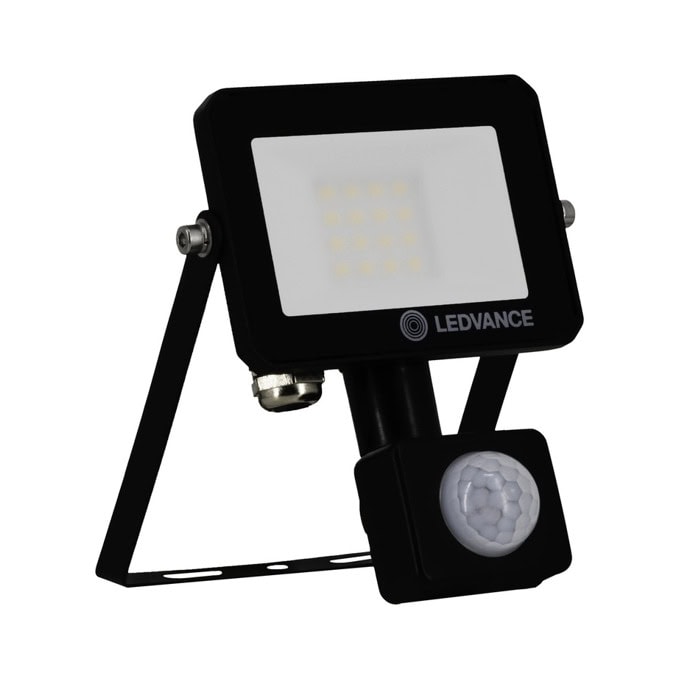

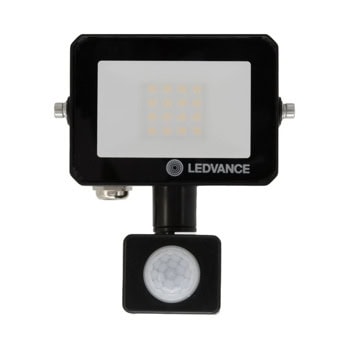

LED прожектор Ledvance Effect 865 Black, 10W, 900 lm, 6500K, IP65, за стена, със сензор

Areas of application

Gardens and other outdoor areas
Workshops, garages, covered outdoor storage areas
Outdoor use (IP65)

Product benefits

Milky glass reducing the glare effect
Bent-over bracket for easy mounting
Easy adjustment of sensor range, daylight detection and hold time

Product features

Modern design
Lifetime up to 30,000 h
Frosted diffuser
Adjustable sensor with functions: Time, lux, zone

Technical data

Electrical data
Nominal wattage 10.00 W
Nominal voltage 220…240 V
Mains frequency 50 Hz
Nominal current 45.000 mA
Max. number of luminaires per miniature circuit breaker B16 164
Max. number of luminaires per miniature circuit breaker C16 215
Power factor λ > 0.85
Total harmonic distortion < 20 %
Protection class I
Operating mode Integrated LED driver

Photometrical data
Luminous flux 900 lm
Luminous efficacy 90 lm/W
Color temperature 6500 K
Light color (designation) Daylight
Color rendering index Ra 80
Standard deviation of color matching 6 sdcm
Photobiological safety group acc. to EN62778 RG1
Beam angle 105 °

Dimensions & Weight
Length 102.00 mm
Width 134.00 mm
Height 52.00 mm
Product weight 200.00 g

Materials & Colors
Product color Black
Housing color Black
Body material Aluminum
Glow Wire Test according to IEC 60695-2-12 650 °C
Mercury content 0.0 mg

Application & Mounting
Ambient temperature range -20…+40 °C
Temperature range at storage -30…+80 °C
Type of connection Cable, 3-pole
Type of protection IP65
Protection class IK (shock resistance) IK06
Dimmable No
Mounting type Surface
Mounting location Wall
With light source Yes
Replaceable light source No

Lifespan
Number of switching cycles 20000

Sensor
Type of sensor Light / Motion
Sensor technology Passive infrared (PIR)
Sensor detection angle 120 °
Sensor controlled switching time 8 s...10 min
Detection range of motion sensor 8-10 m
Detection threshold of daylight sensor 5…2000 lx

Certificates & Standards
Standards CE / EAC / UKCA
Luminaire with limited surface temperature, "D sign" No
Replaceable light source (EPREL) Not replaceable
