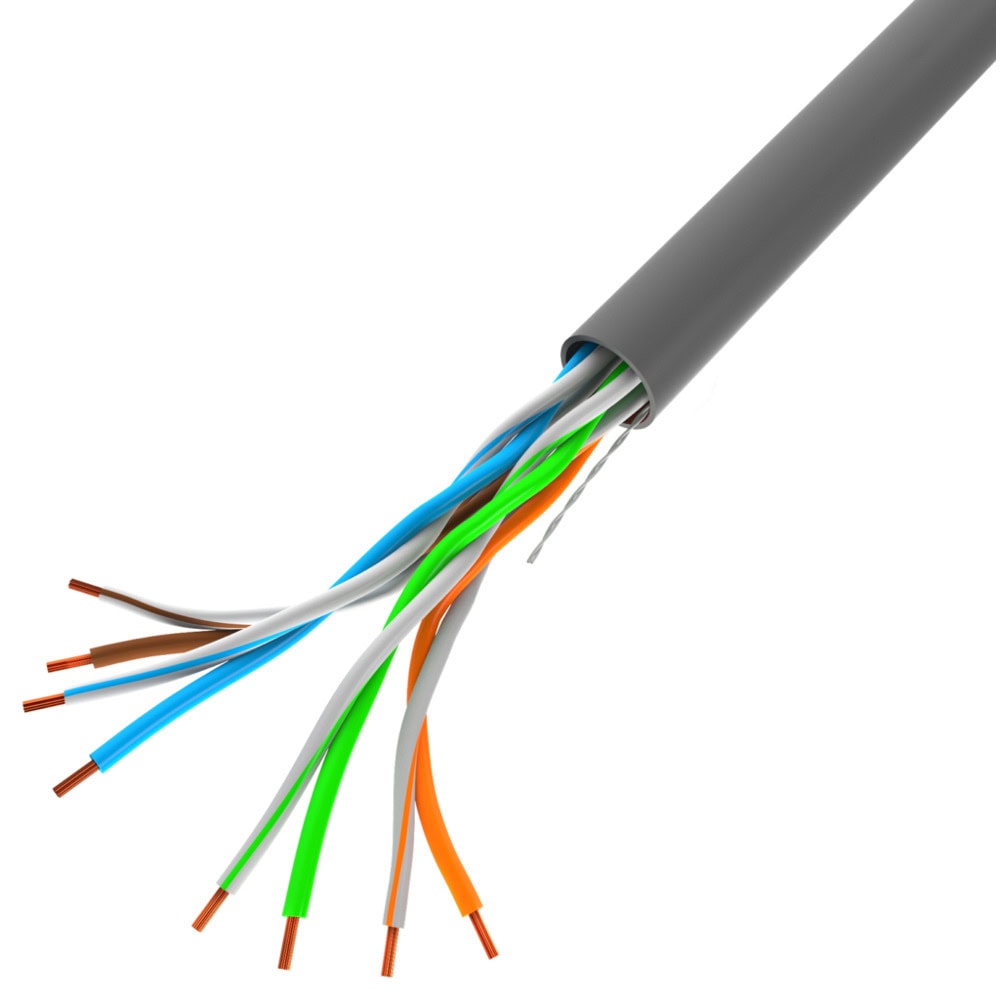

Lanberg LCU5-10CC-0305-S
Specification:
- LAN cable category 5e UTP (unshielded).
- Lenght 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.93mm.
- Works up to 100Mhz.
- Compatibility with standards: ANSI/TIA/EIA-568&ISO/IEC 11801.
- Package: cardboard box.
- Packaging dimensions (W x D x H): 36 x 23 x 36 cm.
Electrical characteristrics (20 degrees):
- Conductor resistance (max.): 60 - 90Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 100-120m.
Виж още Мрежови кабели медни Lanberg
Виж всички Мрежови кабели медни в категорията
Specification:
- LAN cable category 5e UTP (unshielded).
- Lenght 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.93mm.
- Works up to 100Mhz.
- Compatibility with standards: ANSI/TIA/EIA-568&ISO/IEC 11801.
- Package: cardboard box.
- Packaging dimensions (W x D x H): 36 x 23 x 36 cm.
Electrical characteristrics (20 degrees):
- Conductor resistance (max.): 60 - 90Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 100-120m.
Виж още Мрежови кабели медни Lanberg
Виж всички Мрежови кабели медни в категорията
Документация
Декларация за съответствие _Lanberg_CE_LC_INDOOR_SUP1.pdfТехнически характеристики
| Вид: | Ролка |
|---|---|
| Тип: | UTP |
| Категория: | Cat 5e |
| Дължина: | 305 m |
