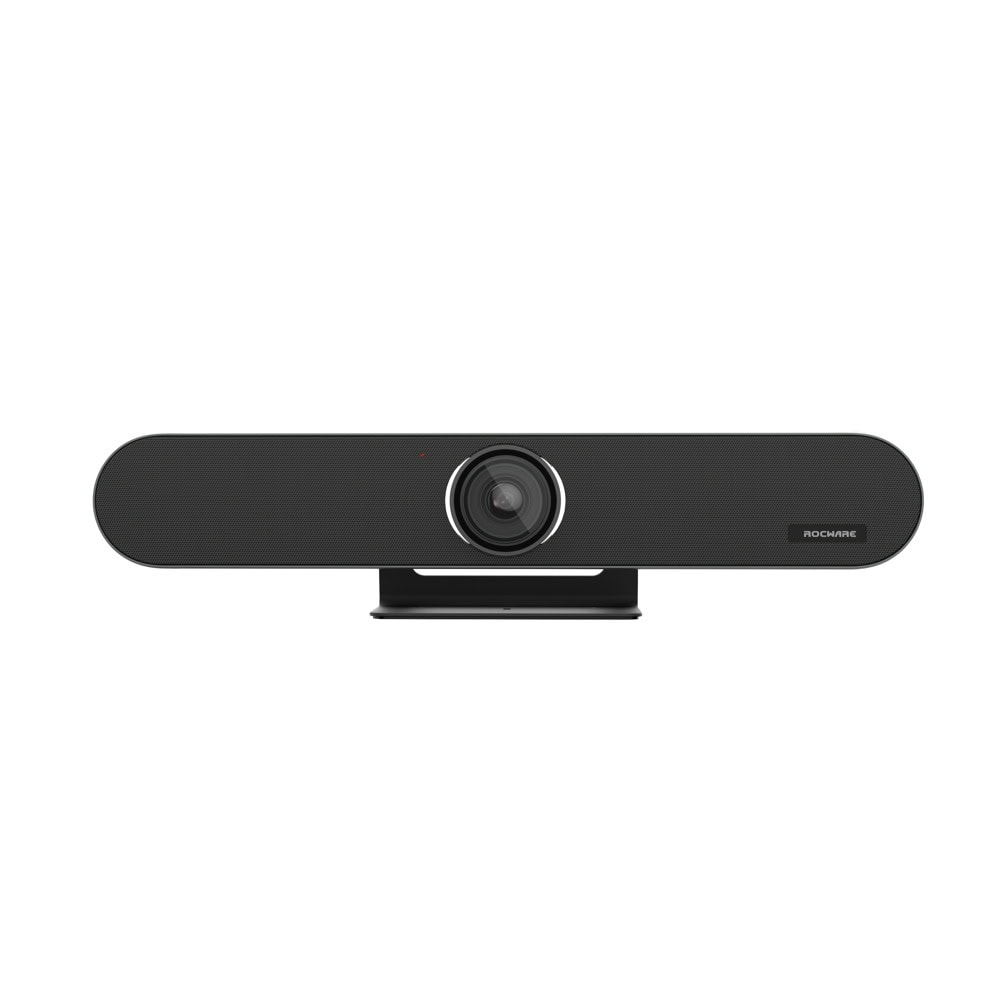

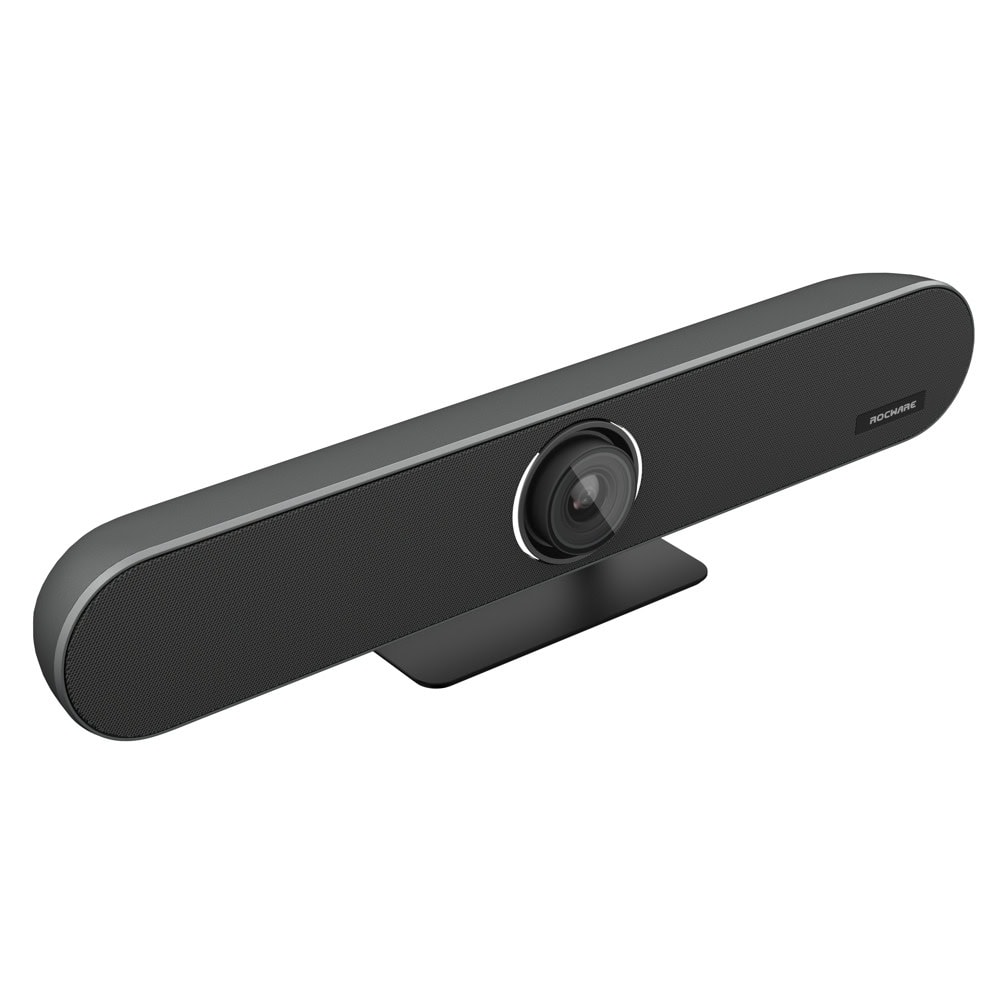

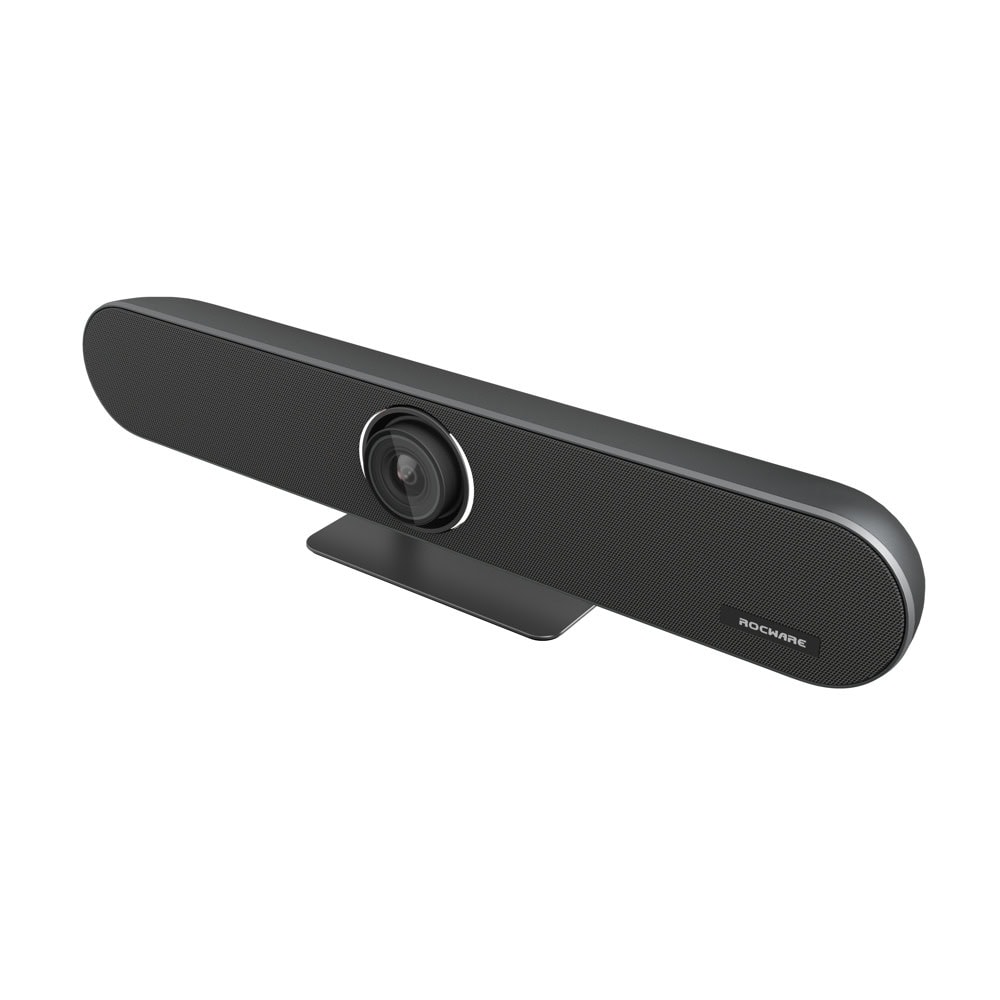

Конферентна камера Rocware RB10, 4K/UHD, 20MP CMOS сензор, 5x увеличение, 3 микрофона, HDMI, USB, RJ45, WiFi

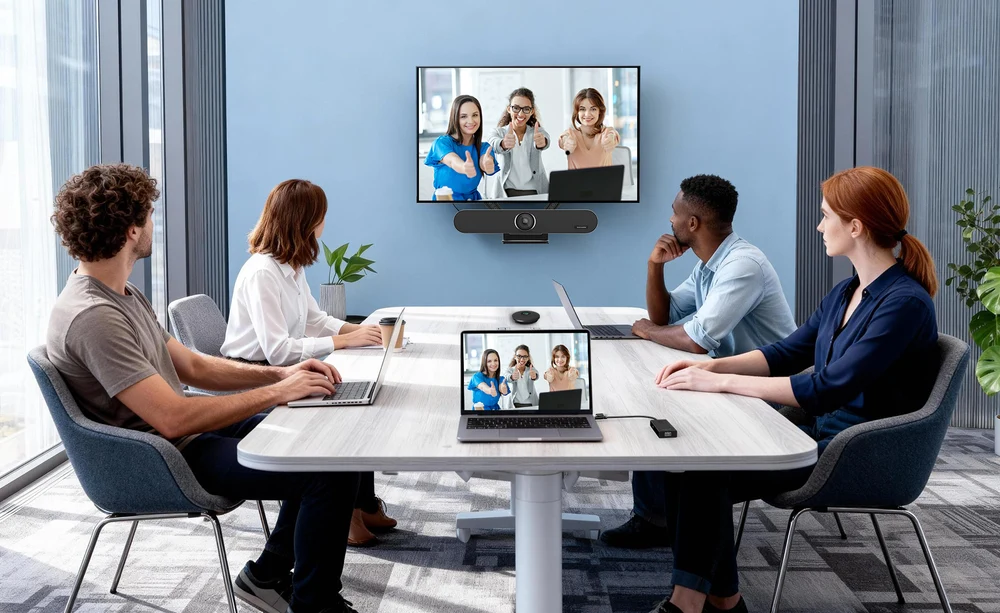

BYOD MODE

Connect easily with your own device.

Plug in your laptop and instantly take control of the room. Use your own meeting app to access the video bar’s camera, microphones, and speakers—no setup, no learning curve. Share your screen in smooth 4K with low latency, so everyone stays in sync.

Experience sharp 4K clarity every time.

A high-resolution 20MP sensor captures sharp, true-to-life 4K video, even in larger rooms. Zoom in up to 5× digitally to keep speakers and content clear on screen. So remote participants never miss important details.

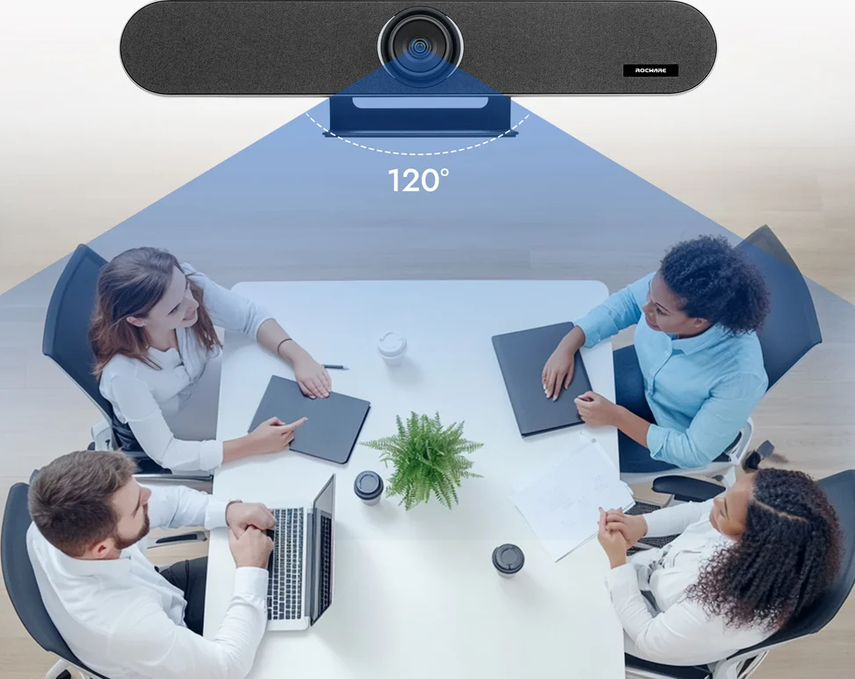

Wide-Angle Lens with Mini PTZ

Everyone stays in frame.

The 120° wide-angle lens captures the whole room at once, while a built-in mini PTZ subtly adjusts left, right, and up or down. It follows the conversation naturally, keeping participants visible without manual camera control.

5x Zoom & ±15° PTZ

Sharp focus with 5x zoom and ±15° PTZ.

Combined with 5x digital zoom, it ensures every detail is visible, no matter the distance. With a ±15° PTZ function, the camera can easily adjust to focus on all participants, ensuring everyone is included, even if they move around the room.

Speaker Framing

Stay focused. Stay engaged.

When someone starts talking, the camera automatically turns to them. Audio-based localization keeps the active speaker centered, while a subtle visual frame highlights who’s speaking—making conversations feel more direct, natural, and face to face.

Group Framing

Everyone perfectly in frame.

The camera automatically recognizes people in the room and adjusts its view as participants join, move, or leave. It keeps the group balanced and clearly visible at all times—so remote attendees see the full room, not cropped faces.

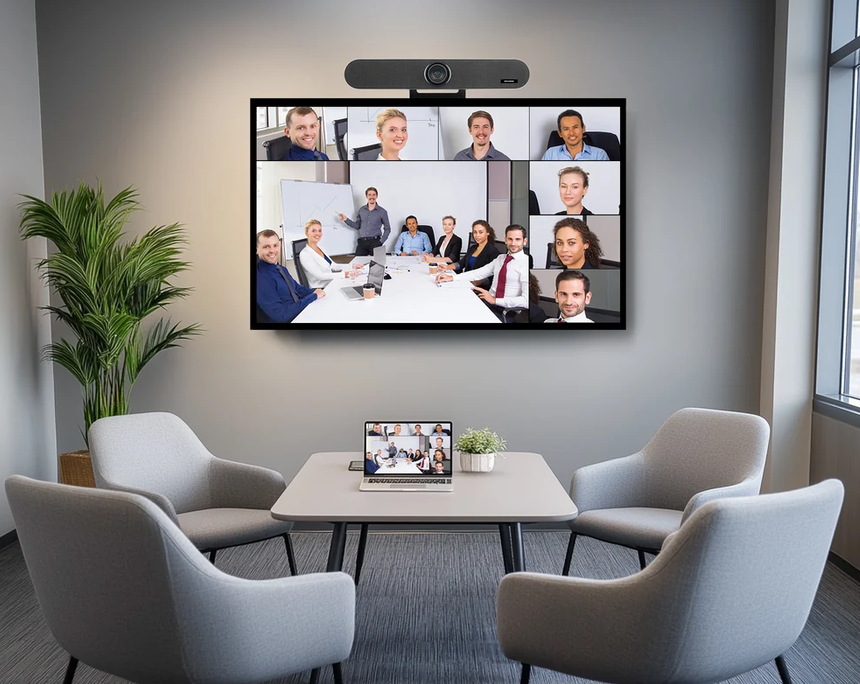

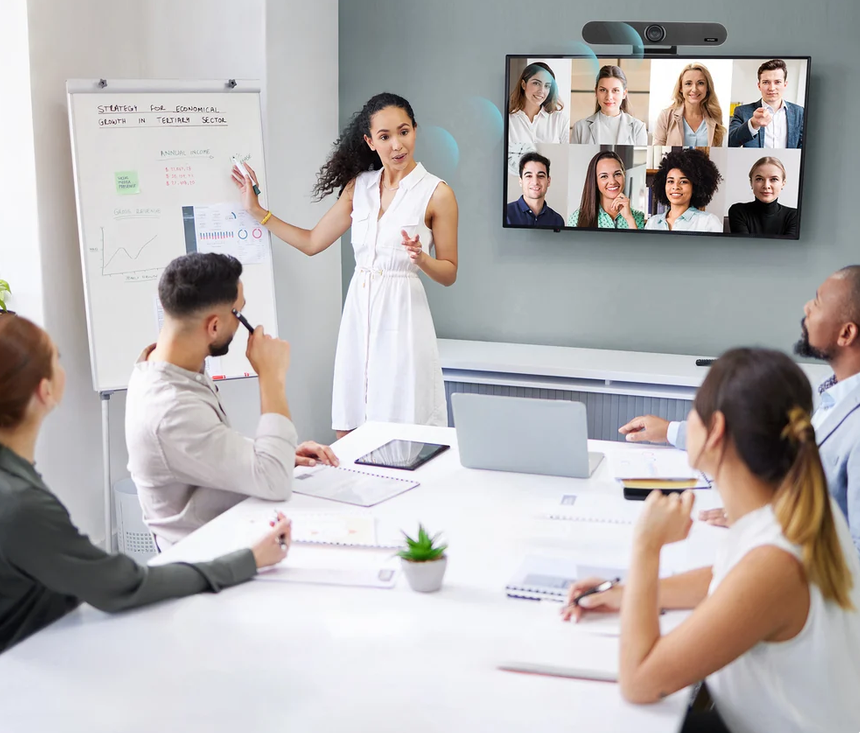

Smart gallery

Dynamic view for seamless collaboration.

RB10 uses AI to track heads, faces, and bodies, automatically adjusting the screen layout to fit everyone. Each participant is shown clearly, so remote attendees feel like they’re in the room, making meetings more engaging and natural.

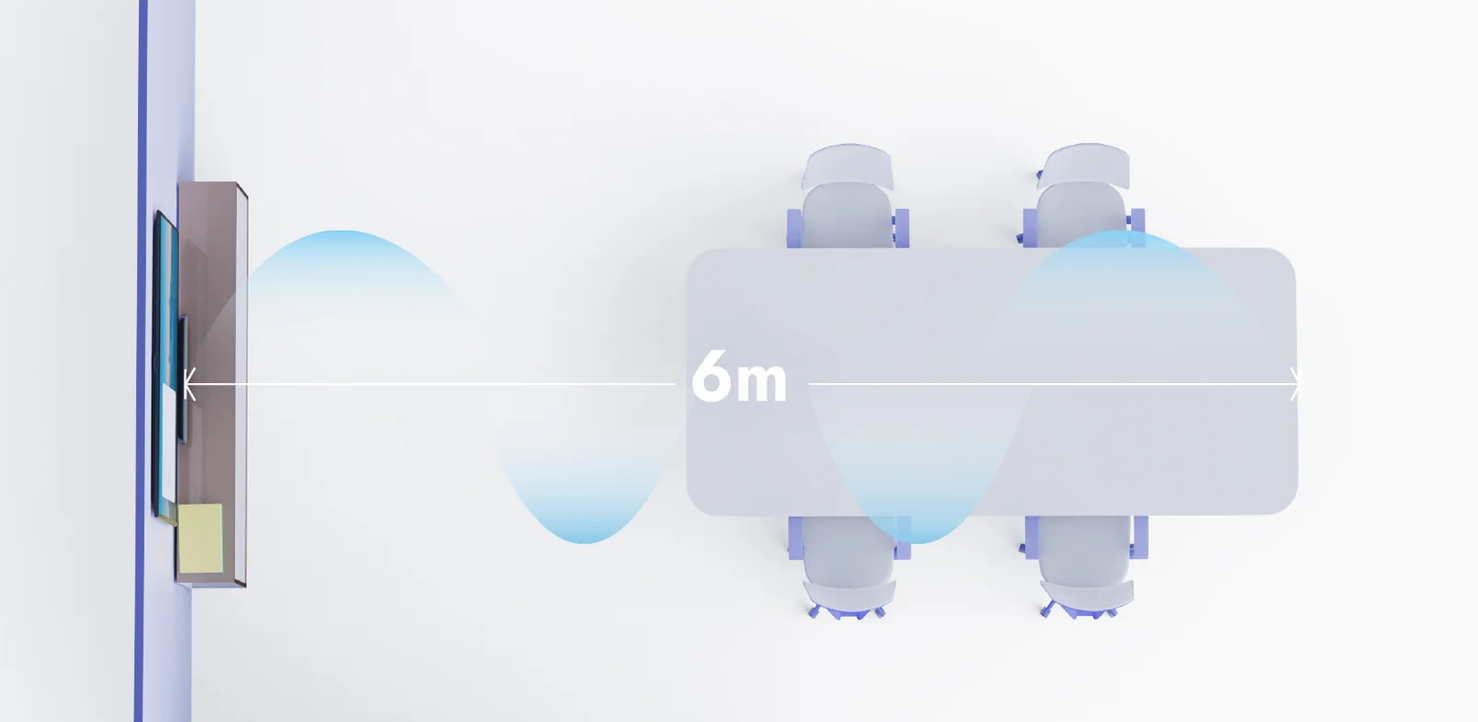

6M AUDIO PICKUP + FULL-RANGE HI-FI

Clear audio for every voice.

The built-in beamforming microphone detects who’s speaking and captures sound accurately within a 6-meter range. A full-range speaker with bass-enhancing acoustic design delivers rich, layered sound at 8W, ensuring clear audio coverage across the entire meeting space.

Specifications

Camera

Video Resolution 4KP30, 1080P30, 1080P60, 720P60
Sensor 1/1.8 inches, CMOS, Effective Pixels: 20 Megapixels
Horizontal FOV 110°
Diagonal FOV 120°
Digital zoom 5x
Pan Angle ±15°
Tilt Angle ±15°
PTZ Mechanical PTZ (MPTZ) + e-PTZ (EPTZ)
Digital Noise Reduction 2D & 3D Digital Noise Reduction
SNR ≥ 55dB
Backlight Compensation Support

Audio

Full-frequency Speaker 96 dB SPL at 0.5 m
Microphone Array Beamforming microphone with 6m pickup distance
Expansion MIC Supports up to 3 microphones via DMIC interface
Audio 3A Algorithm AI-Powered AEC/ANC/AGC
Sampling Rate Mic 48K, Speaker 48K

USB Features

Type of Connection USB 3.0, downward compatible with USB 2.0
Color System / Compression H.264 / YUY2 / MJPEG
USB Audio 48KHz sampling rate, UAC 1.0 support
USB Video Communication Protocol UVC 1.1
UVC PTZ Control Support(ePTZ)

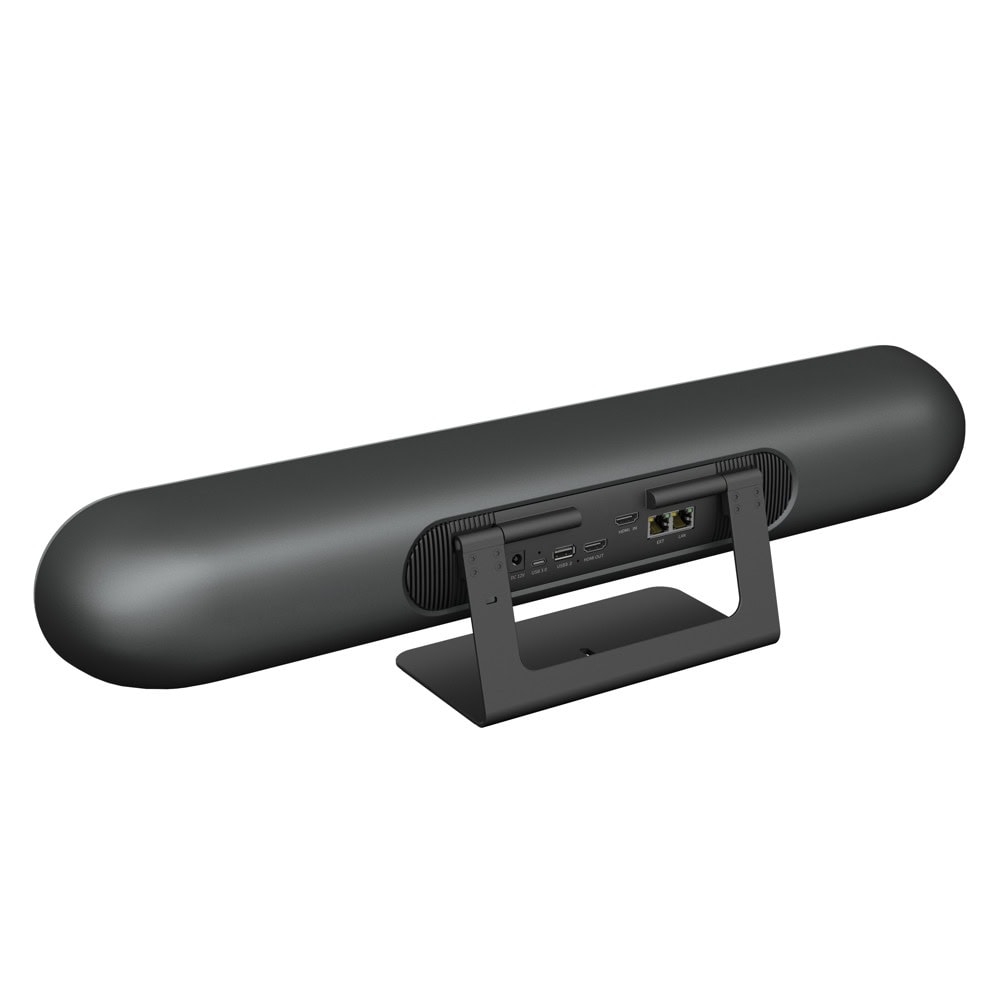

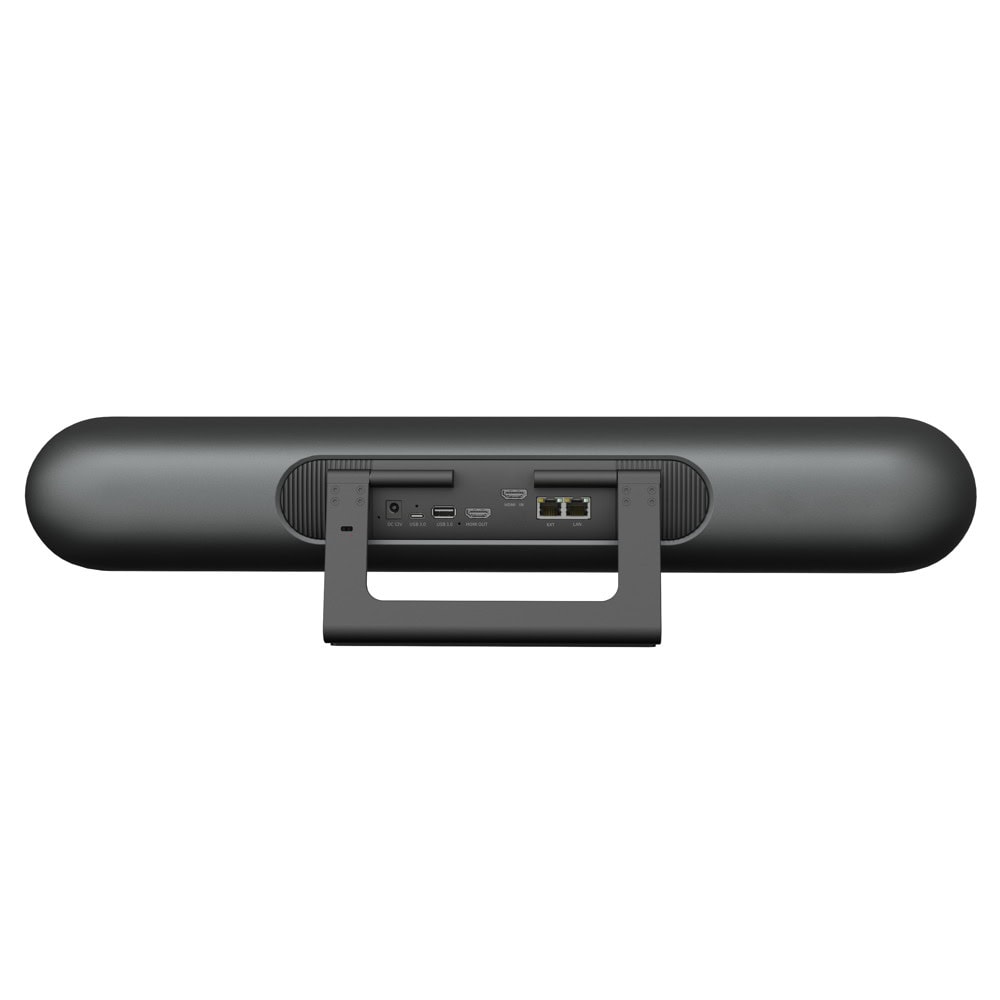

I/O Interface

USB 3.0
1 × USB 3.0, type-C, Support audio/video transmission and firmware upgrade
1 × USB 3.0, type-A, Reserved
HDMI 1 × HDMI OUT, 1 × HDMI IN
Network Interface 1 x RJ45, 10/100/1000M adaptive Ethernet port
EXT Interface 1 x RJ45, connects to expansion microphone or wired BYOD pod, and supports PSE power supply (IEEE802.3at)
Power 1 × Power connector
WiFi Wifi 5, 2.4G/5G Dual-band, IEEE802.11 a/b/g/n/ac, Supports wireless BYOM and wireless screen sharing(requires additional device)
Remote Controller Support

Other specifications

Installation Method Support desktop placement, wall mounting and TV-mounting etc.
Supplied Cables USB/HDMI Cable
Safety Protection Anti-theft lock

Generic Spec

Power Supply DC 12V, 5A (MAX)
Operating Temperature 0° C ~ 40° C
Storage Temperature -40° C ~ 60° C
Dimension (W × D × H) 600× 135 × 117mm
Net Weight 2.5 Kg
