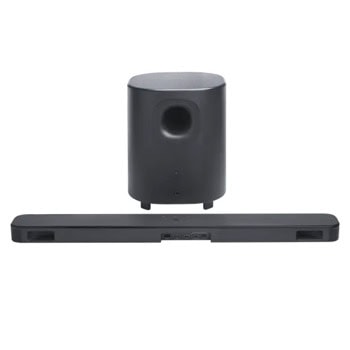

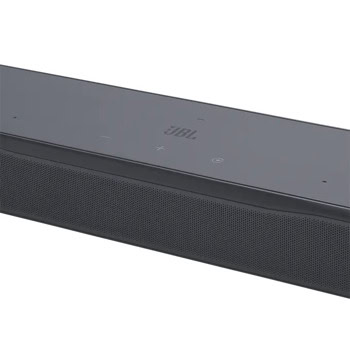

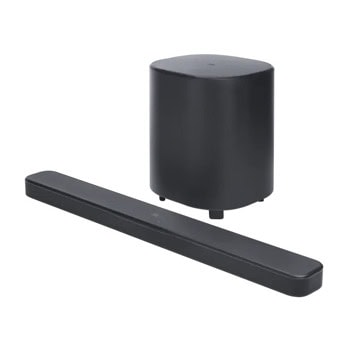

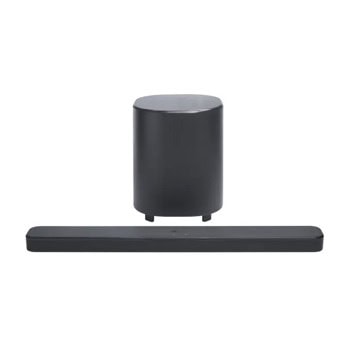

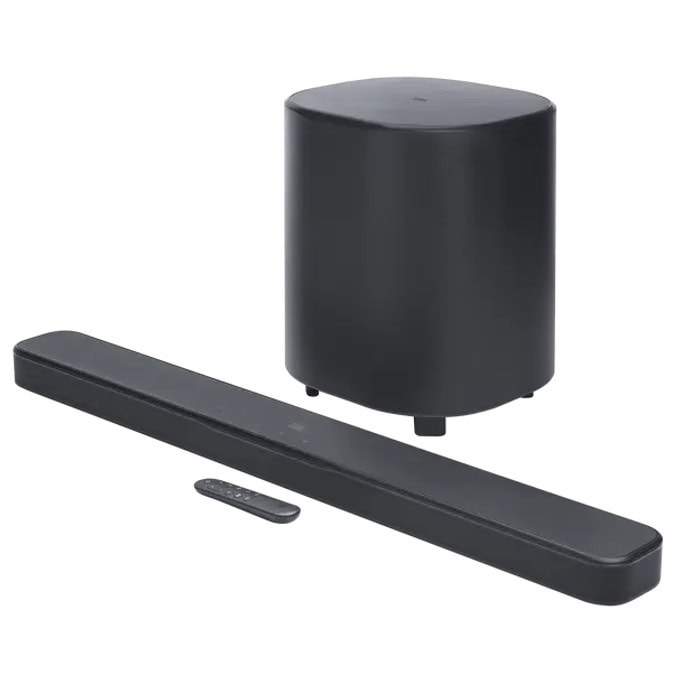

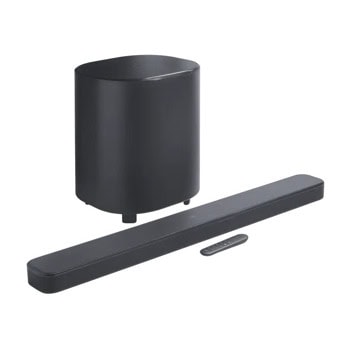

JBL Bar 500MK2

750W max output power and a 10" wireless subwoofer

Feel every on-screen crash, bang, and boom right in your chest. Your movies, music, and games become an even more immersive, theater-like sound experience with 750 watts of total system power, including big, thundering bass from the 10" wireless subwoofer.

Dolby Atmos®

Hear a plane soar overhead. Feel a crowd swarming past you. Or get carried away by the energy of your go-to dance playlist. Hear extraordinary cinematic sound from all directions with the 3D audio experience of Dolby Atmos®.

Category	Specification	Details
General	Model	BAR 500MK2 (soundbar unit), BAR 500MK2 SUB (subwoofer unit)
	Sound system	5.1 channel
	Power supply	100 - 240V AC, ~ 50/60Hz
	Total speaker power output (Max. @THD 1%)	750W
	Soundbar output power (Max. @THD 1%)	450W
	Subwoofer output power (Max. @THD 1%)	300W
	Soundbar transducer	5 × (42 × 80) mm racetrack drivers, 4 × 0.75" (20 mm) tweeters
	Subwoofer transducer	10" (260 mm)
	Networked standby power	< 2.0 W
	Operating temperature	0°C – 45°C
Audio	Frequency response	40 Hz – 20 kHz (-6dB)
	Audio inputs	Optical, Bluetooth, USB (Playback available in US version; others: Service only)
Dimensions & Weight	Soundbar (W × H × D)	940 × 50.5 × 104 mm / 37" × 2.0" × 4.1"
	Subwoofer (W × H × D)	325 × 400 × 325 mm / 12.8" × 15.7" × 12.8"
	Soundbar weight	2.9 kg / 6.5 lbs
	Subwoofer weight	8.1 kg / 17.8 lbs
	Packaging (W × H × D)	1020 × 395 × 490 mm / 40.2" × 15.6" × 19.3"
	Packaging weight	18.0 kg / 39.7 lbs (EMEA/UK/AU/NZ), 15.9 kg / 34.9 lbs (Others)
Control & Connectivity	USB port	Type A
	USB rating	5V DC, 0.5A
	Supported file formats	MP3
	MP3 codec	MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3
	MP3 sampling rate	16 – 48 kHz
	MP3 bitrate	80 – 320 kbps
	Bluetooth version	v5.3
	Bluetooth profiles	A2DP v1.3, AVRCP v1.5
	Bluetooth transmitter frequency range	2400 – 2483.5 MHz
	Bluetooth transmitter power	<15 dBm (EIRP)
	Wi-Fi	IEEE 802.11 a/b/g/n/ac/ax (2.4GHz / 5GHz)
	2.4G Wi-Fi frequency range	2412 – 2472 MHz (USA: 11 channels; EU/others: 13 channels)
	2.4G Wi-Fi transmitter power	<20 dBm (EIRP)
	5G Wi-Fi frequency range	5.15 – 5.35 GHz, 5.470 – 5.725 GHz, 5.725 – 5.825 GHz
	5G Wi-Fi transmitter power	5.15 – 5.25 GHz <23 dBm; 5.25 – 5.35 GHz & 5.470 – 5.725 GHz <20 dBm; 5.725 – 5.825 GHz <14 dBm (EIRP)
	2.4G wireless transmitter frequency range	2406 – 2474 MHz
	2.4G wireless transmitter power	<10 dBm (EIRP)
	Note	Band 5.6 – 5.64 GHz disabled in AU/NZ
Video	HDMI video input	1
	HDMI video output (with eARC)	1
	HDMI HDCP version	2.3
	HDR pass-through	HDR10+, Dolby Vision
Additional Power Ratings	Soundbar RMS @THD 1%	375W
	Subwoofer RMS @THD 1%	225W
